Product Description

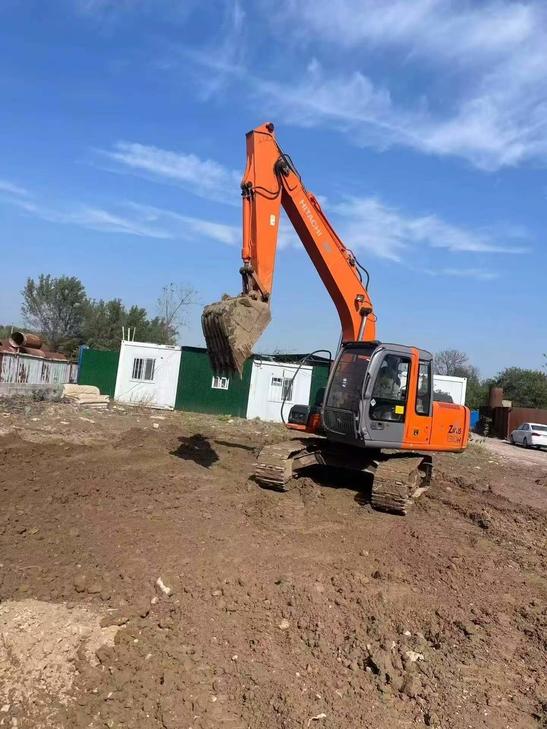

This 2020 Hitachi ZX130H hydraulic excavator represents a well-maintained mid-size machine currently located in Beijing, China. The unit has been primarily deployed in earthmoving applications without hydraulic breaker attachment use, preserving the machine's structural integrity and hydraulic systems.
Key condition highlights include:
- Clean operational history focused on excavation and earthwork
- Major components report no fluid leaks with solid performance
- Undercarriage shows positive wear characteristics
- Comprehensive visual documentation and operational video available
The ZX130H series is recognized for reliable performance in construction and utility applications. This particular unit demonstrates the care typical of professionally managed equipment. Detailed photographs and video footage are available to qualified buyers for remote inspection prior to purchase consideration.
| Specifications | Value |
|---|---|
| No. | 1171934 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12500 |
| Bucket capacity (m³) | 0.59/0.65 |
| Boom length (mm) | 4600 (H type) |
| Rod length (mm) | 2520/2100 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4BG1TC |
| Rated power (kw/rpm) | 66/2150 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 105 x 125 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | Direct injection; Turbocharging; intercooling |
| Ground specific pressure (Kpa) | 39 |
| Rotation speed (rpm) | 13.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 99 |
| Rod digging force (kN) | 65 |
| Maximum tractive force (kN) | 102 |
| Travel speed (km/h) | 3.4/5.5 |
| Turning torque (Nm) | 34 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable plunger motor ×2 |
| Maximum flow of main pump (l/min) | 105 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 32.3 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 33 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-100 x 70 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-115 x 80 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-105 x 70 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 69(Full box 130) |
| Engine Oil changes (L) | 15.8 |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2740 |
| Full cab height (mm) | 2740 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8270 |
| Maximum digging depth (mm) | 5570 |
| Maximum excavation height (mm) | 8550 |
| Maximum unloading height (mm) | 6140 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 8140 |
| Maximum effective digging depth (mm) | 5360 |
