Product Description

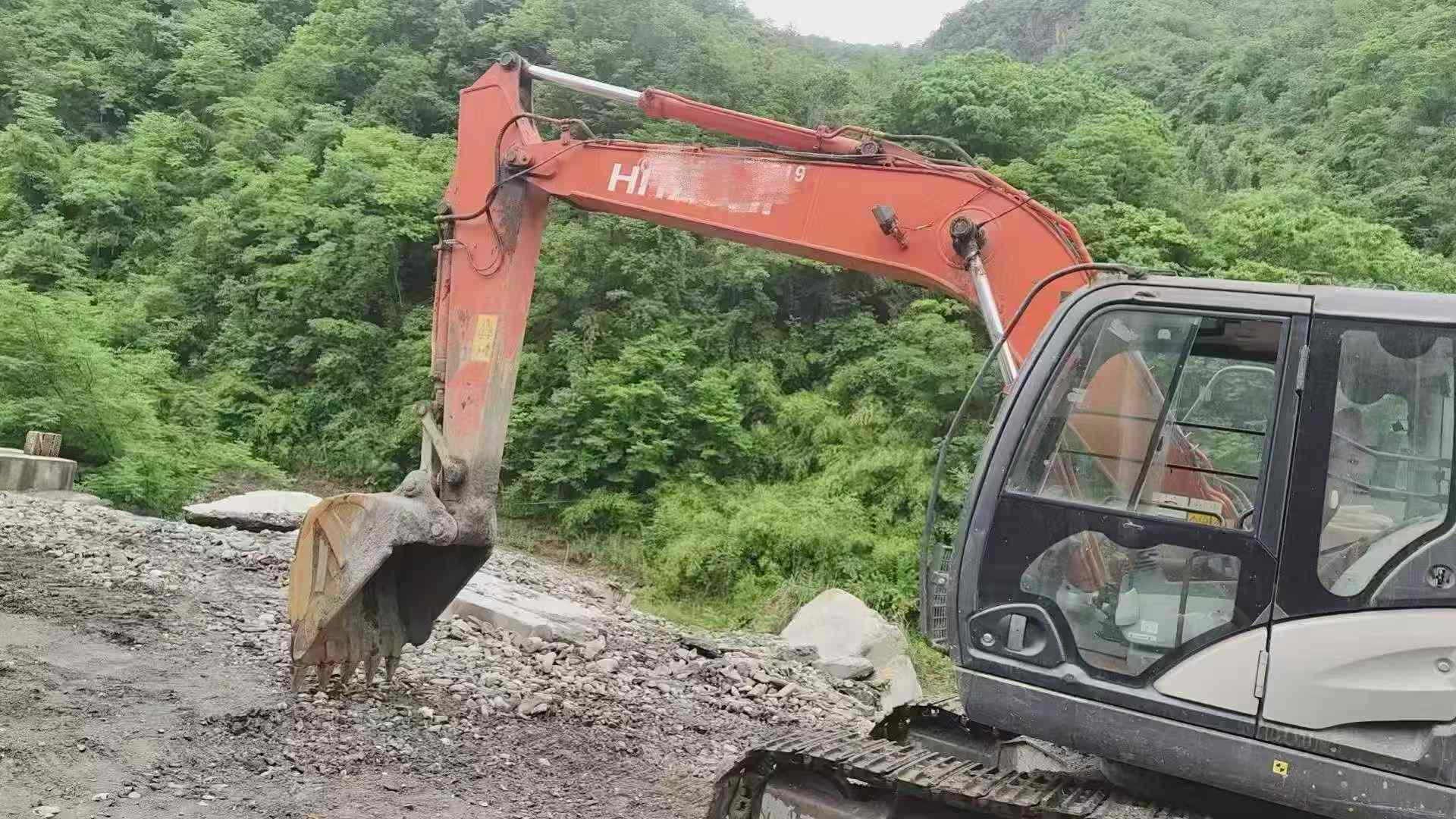

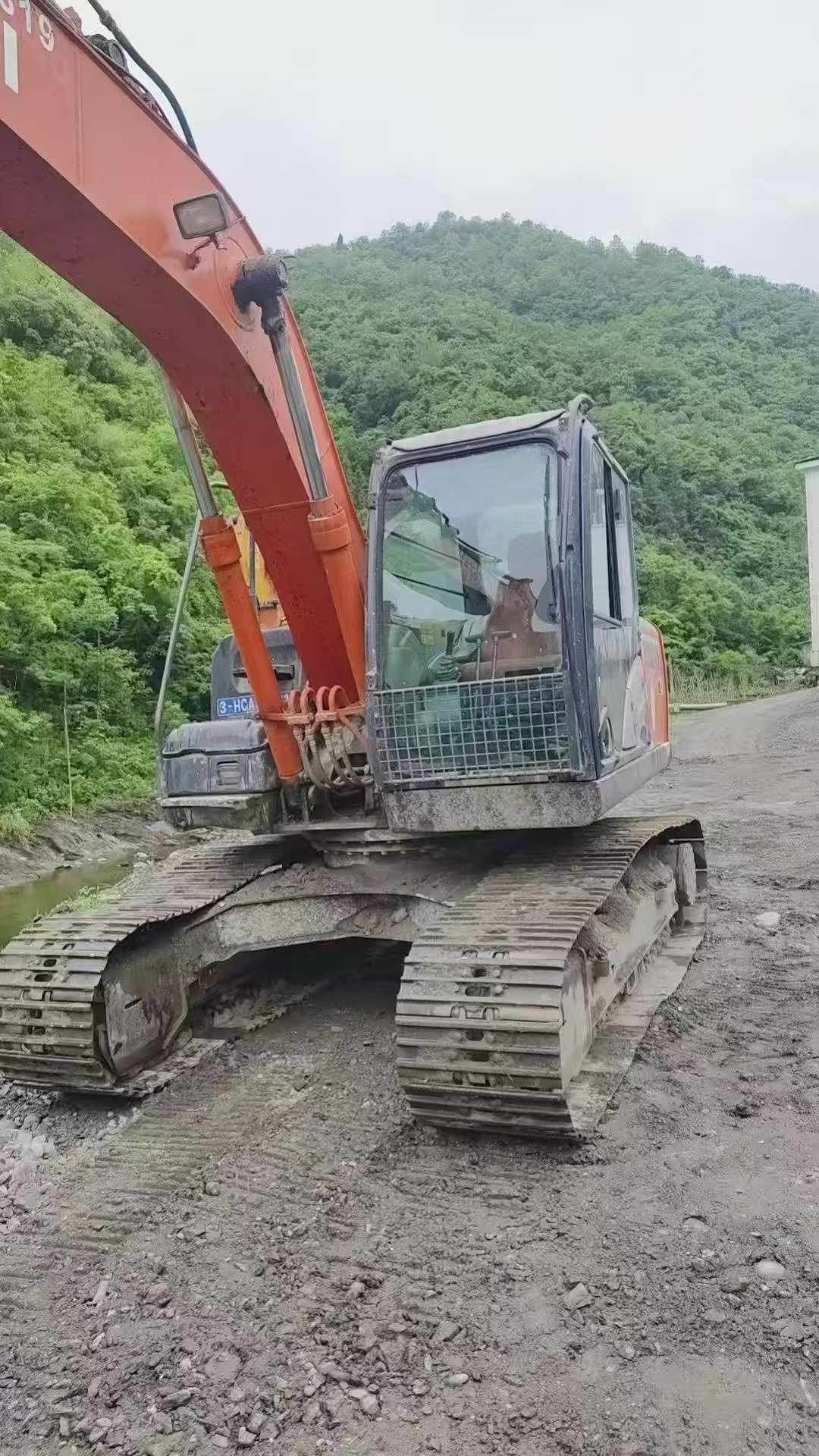

Discover the reliability and efficiency of the 2017 Hitachi ZX170W-3, available for a competitive price in Zhejiang, China. This used excavator is an excellent choice for construction and excavation projects, offering robust performance and durability. Designed to handle tough jobs with ease, the ZX170W-3 features a powerful engine and advanced hydraulic system, ensuring high productivity and fuel efficiency. Ideal for contractors and businesses looking for a cost-effective solution without compromising on quality.
- Year: 2017
- Brand: Hitachi
- Model: ZX170W-3
- Location: Zhejiang, China
- Condition: Used, well-maintained
| Specifications | Value |
|---|---|
| No. | 1134941 |
| Tonnage (tons) | 17 |
| Working weight (kg) | 17800 |
| Bucket capacity (m³) | 0.7 |
| Rod length (mm) | 2580 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AI-4HK1X |
| Rated power (kw/rpm) | 107/2000 |
| Total displacement (L) | 5.193 |
| Cooling mode | water-cooling |
| remark | Turbocharged and intercooled |
| Forward speed (Km/h) | Crawling 2.6/ Low speed 8.6/ High speed 35 |
| Rotation speed (rpm) | 12.2 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 83 |
| Rod digging force (kN) | 80 |
| Minimum turning radius (m) | 6650 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative plunger type ×1 |
| Type of walking hydraulic motor | Variable plunger type x 1 |
| Maximum flow of main pump (l/min) | 200 * 2 + 28.6 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 29.3 |
| Boom cylinder - Cylinder diameter × stroke (mm) | 2-110×80 (piston rod diameter) |
| Bucket rod cylinder - Cylinder diameter × stroke (mm) | 1-120×90 (piston rod diameter) |
| Bucket cylinder - Cylinder diameter × stroke (mm) | 1-105×75 (piston rod diameter) |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston type ×2+ gear pump ×1 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 28.6 |
| Fuel Tank (L) | 290 |
| Hydraulic Tank (L) | 100 |
| Engine Oil changes (L) | 23 |
| Coolant (L) | 22 |
| Hydraulic System (L) | 240 |
| Total transport length (mm) | 8580 |
| Total transport width (mm) | 2550 |
| Total transport height (mm) | 3130 |
| Full cab height (mm) | 3130 |
| Counterweight ground clearance (mm) | 1235 |
| Wheelbase (mm) | 2550 |
| Total tire outside width (mm) | 2470 |
| Minimum ground clearance (mm) | 350 |
| Maximum digging radius (mm) | 9050 |
| Maximum excavation radius (mm) | 8870 |
| Maximum digging depth (mm) | 5330 |
| Maximum excavation height (mm) | 9100 |
| Maximum unloading height (mm) | 6360 |
| Maximum vertical digging depth (mm) | 5600 |
| Minimum turning radius (mm) | 2940 |
| Bulldozer lift or depth (mm) | 445 |
| Dodging plate width × height (mm) | 2530 x 590 |
