Product Description

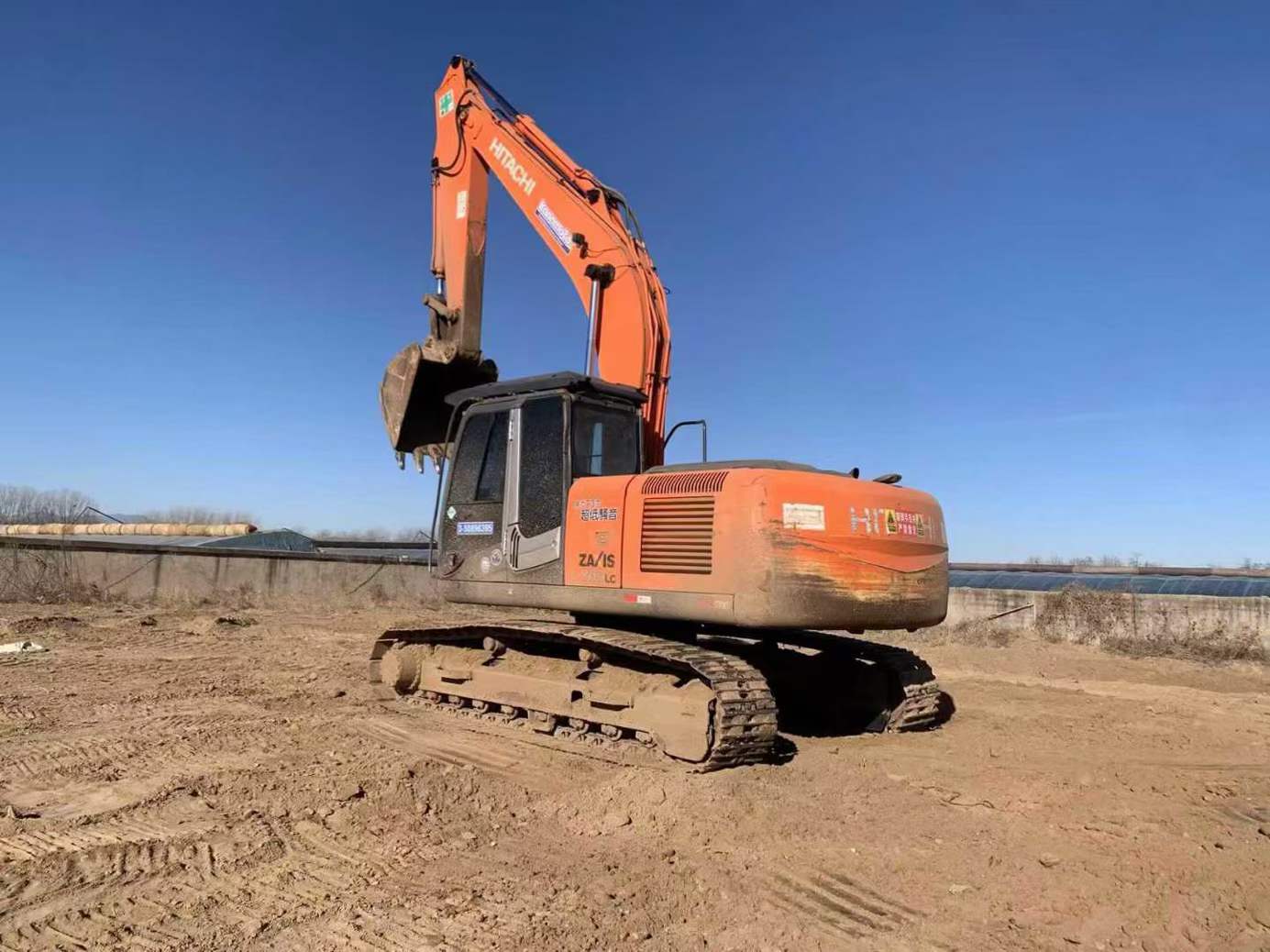

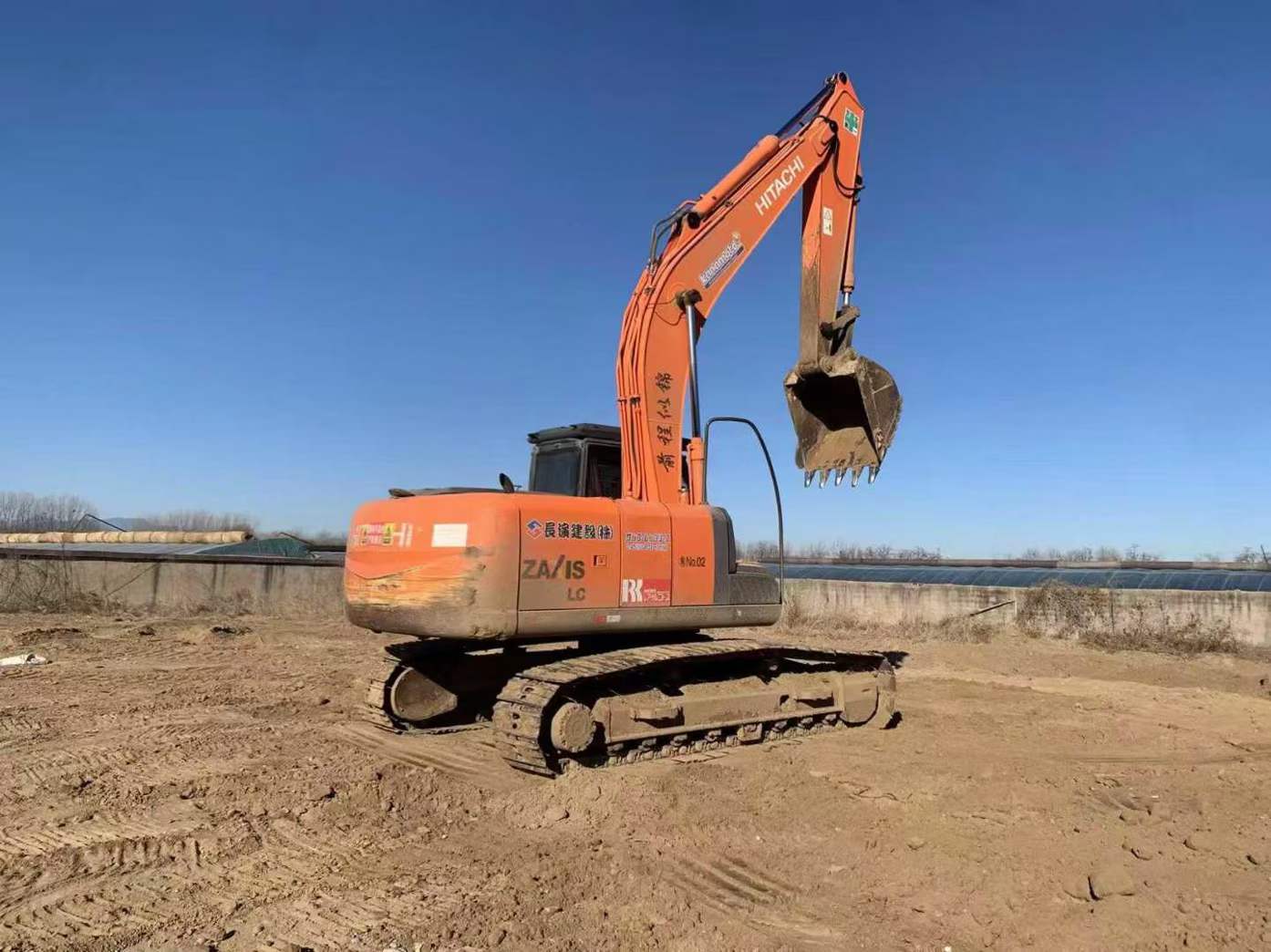

Built to withstand the demands of heavy construction, this 2016 Hitachi ZX200-3 excavator represents proven Japanese engineering at its finest. Operating at 20 tons with a robust 20,300 kg working weight, this machine delivers consistent performance through its reliable ISUZU AI-4HK1X engine, generating 122 kW of power at 2000 rpm. Currently located in Beijing, this workhorse has demonstrated the durability that made Hitachi's ZX series an industry standard.
Key specifications include:
- Maximum digging reach of 9,920 mm with 6,670 mm depth capability
- Powerful digging forces: 151 kN bucket force and 109 kN arm force
- 0.8 m³ bucket capacity for optimal productivity
- Water-cooled 4-cylinder turbocharged engine with intercooler
- Advanced hydraulic system with variable piston pumps
- Impressive 70% (35°) climbing ability for challenging terrain
With years of field-proven reliability behind it, this ZX200-3 continues to deliver the performance and longevity that construction professionals demand. A genuine testament to quality manufacturing that stands the test of time.
| Specifications | Value |
|---|---|
| No. | 994275 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20300 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5.68 (H Type) |
| Rod length (mm) | 2.91 (H type) |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

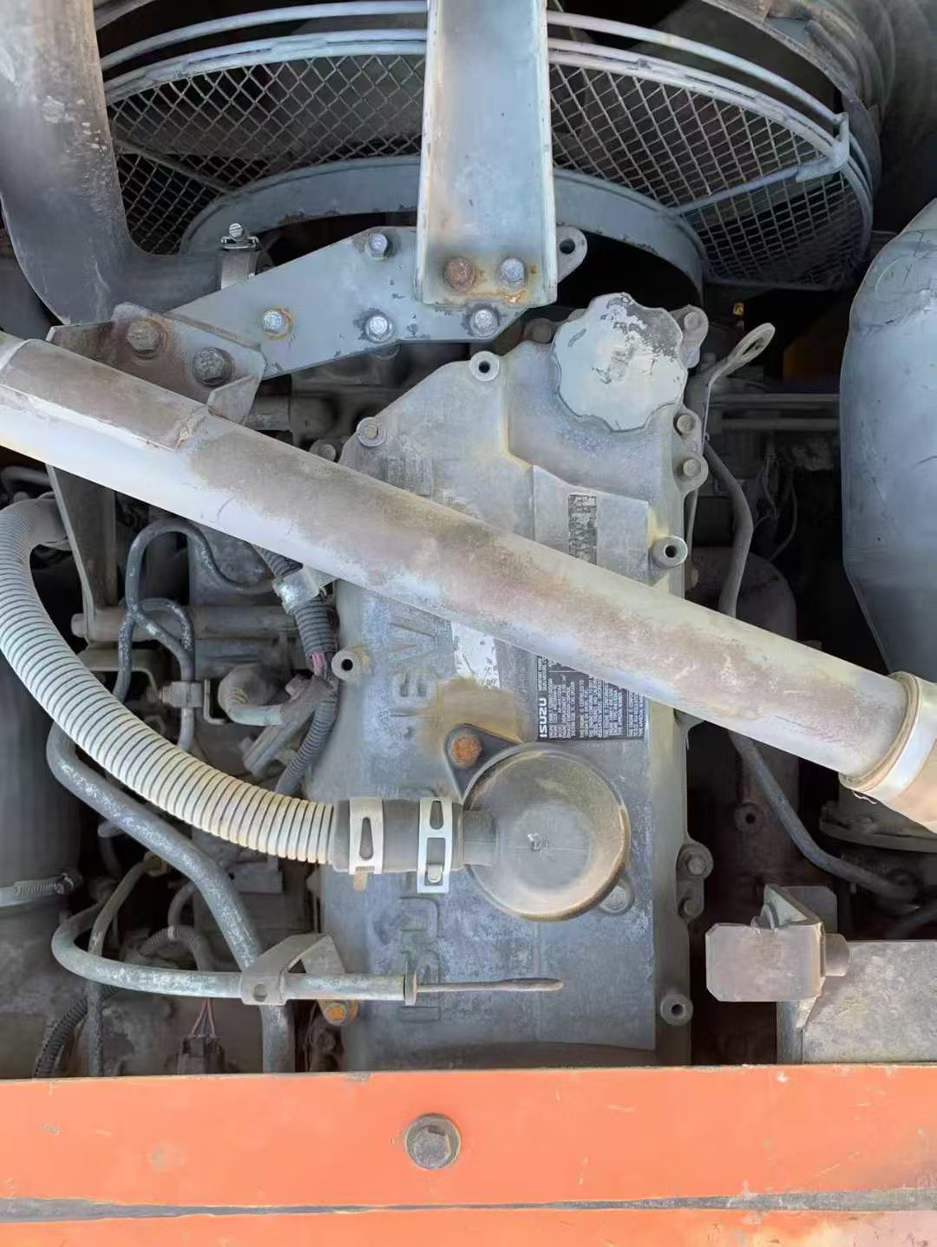

| Engine type | ISUZU AI-4HK1X |
| Rated power (kw/rpm) | 122/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.193 |
| Working form | Direct injection, turbocharged, with intercooler |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 13.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 151 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 3.5/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |

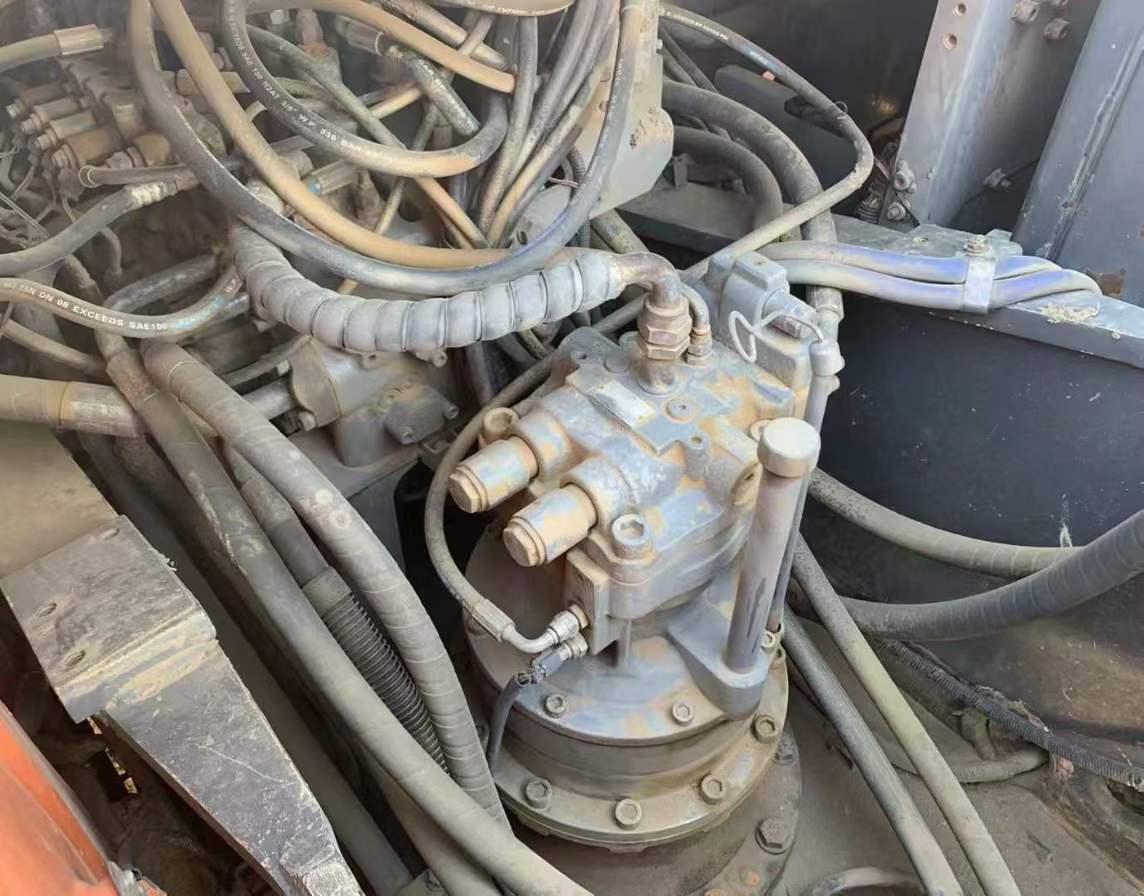

| Rotary hydraulic motor type | Quantitative plunger pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 32.4 |
| Hydraulic crushing pipeline is standard | no |

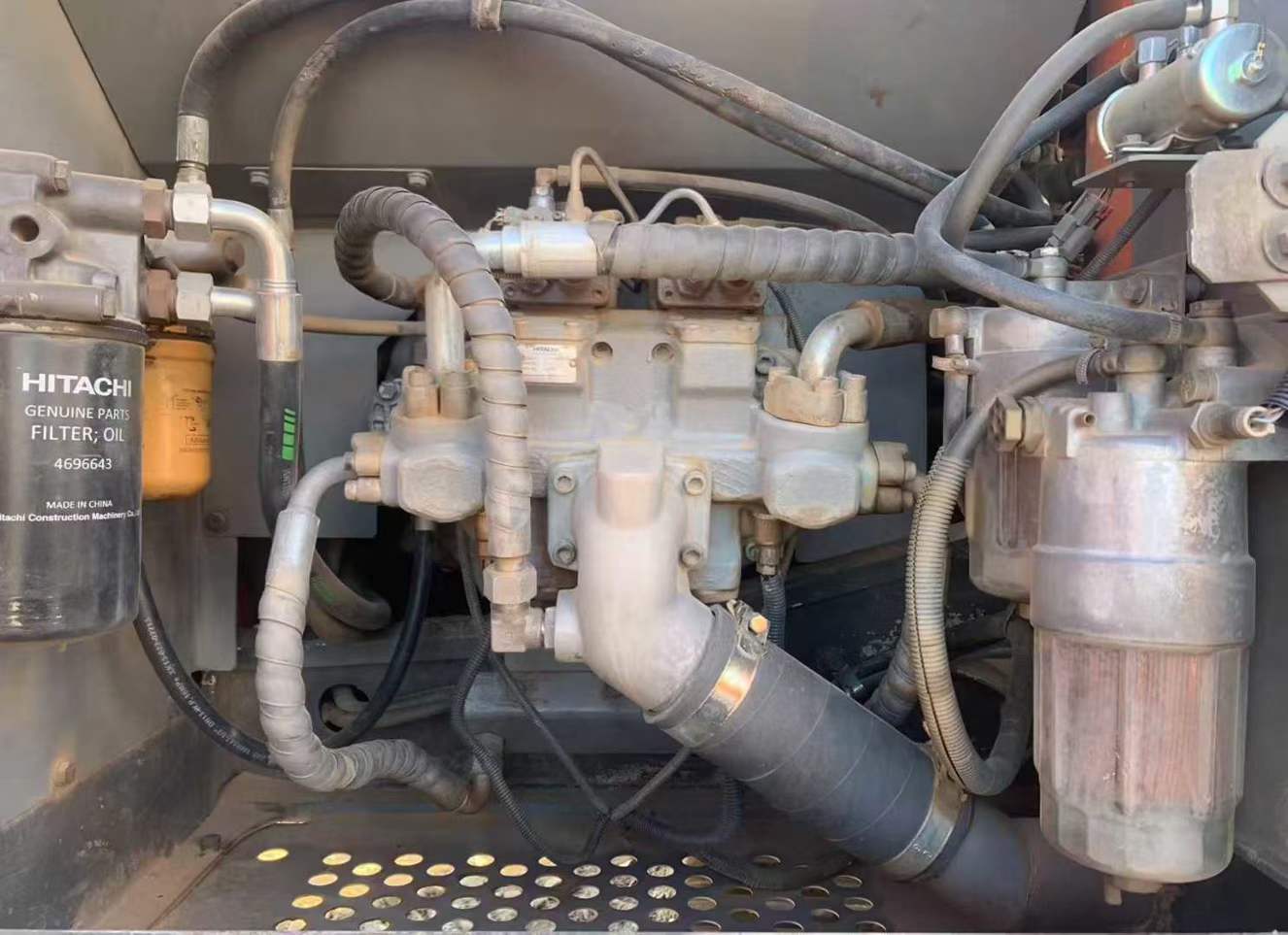

| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 135(Full box 200) |
| Engine Oil changes (L) | 23 |
| Total transport length (mm) | 9520 |
| Total transport width (mm) | 2860 |
| Total transport height (mm) | 3010 |
| Full cab height (mm) | 2950 |
| Counterweight ground clearance (mm) | 1030 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2750 |

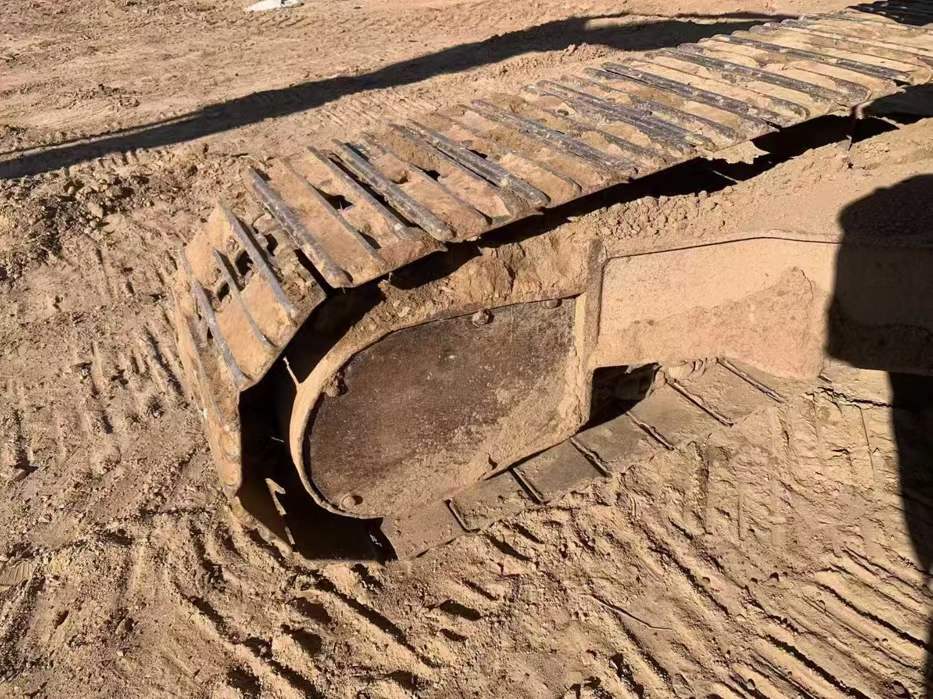

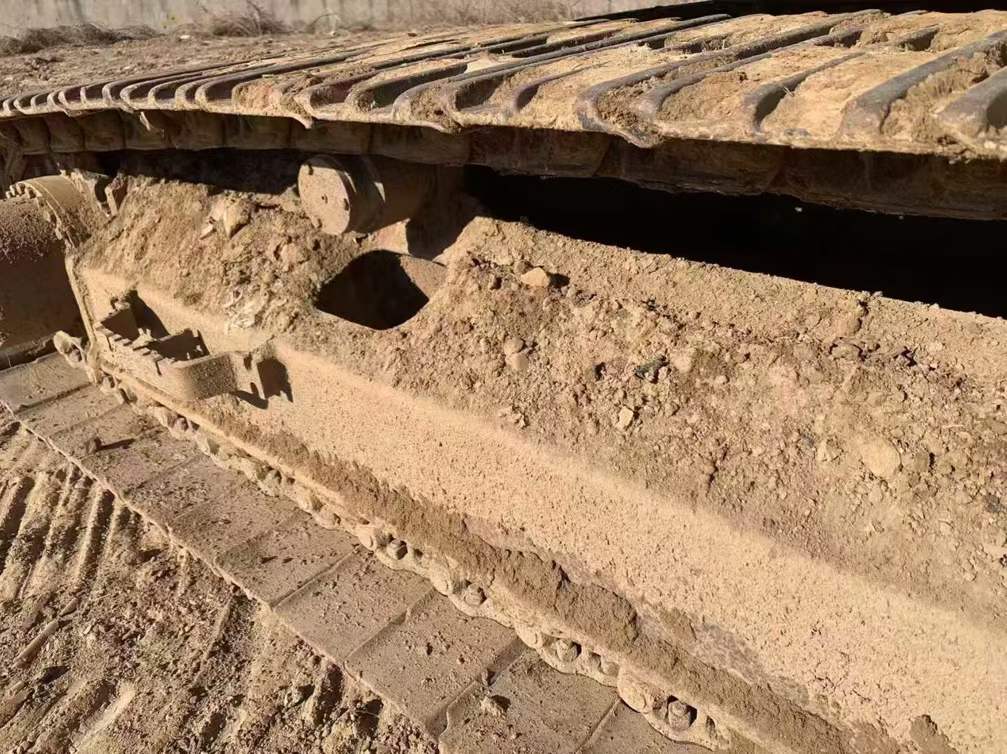

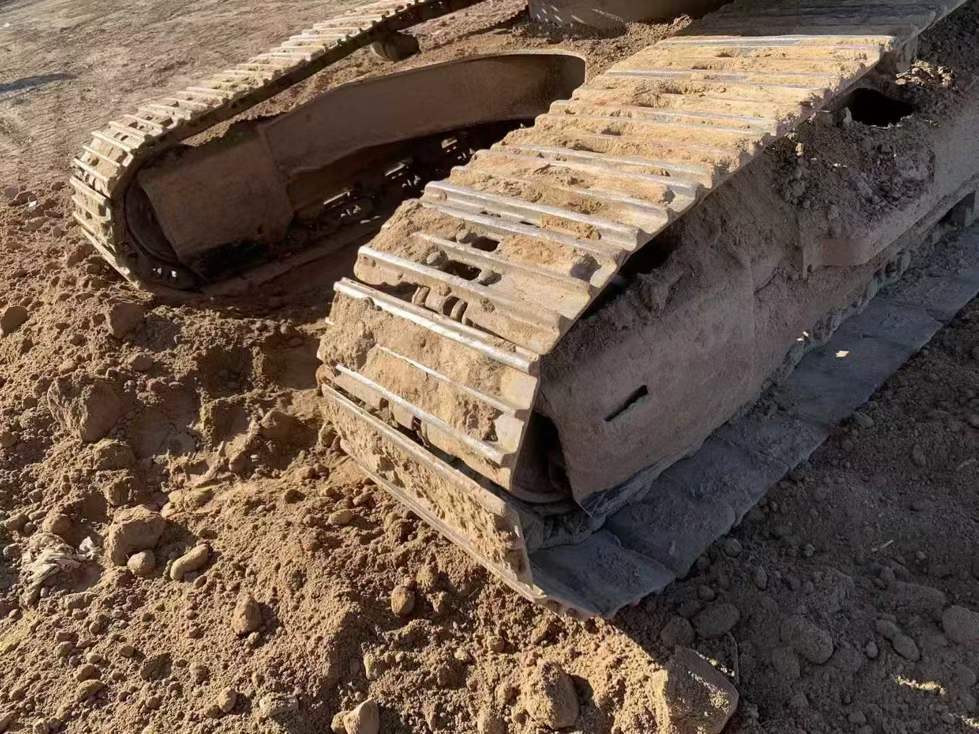

| Total track length (mm) | 4170 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9920 |
| Maximum digging depth (mm) | 6670 |
| Maximum excavation height (mm) | 10040 |
| Maximum unloading height (mm) | 7180 |
| Maximum vertical digging depth (mm) | 5990 |
| Bulldozer lift or depth (mm) | No bulldozer |
