Product Description

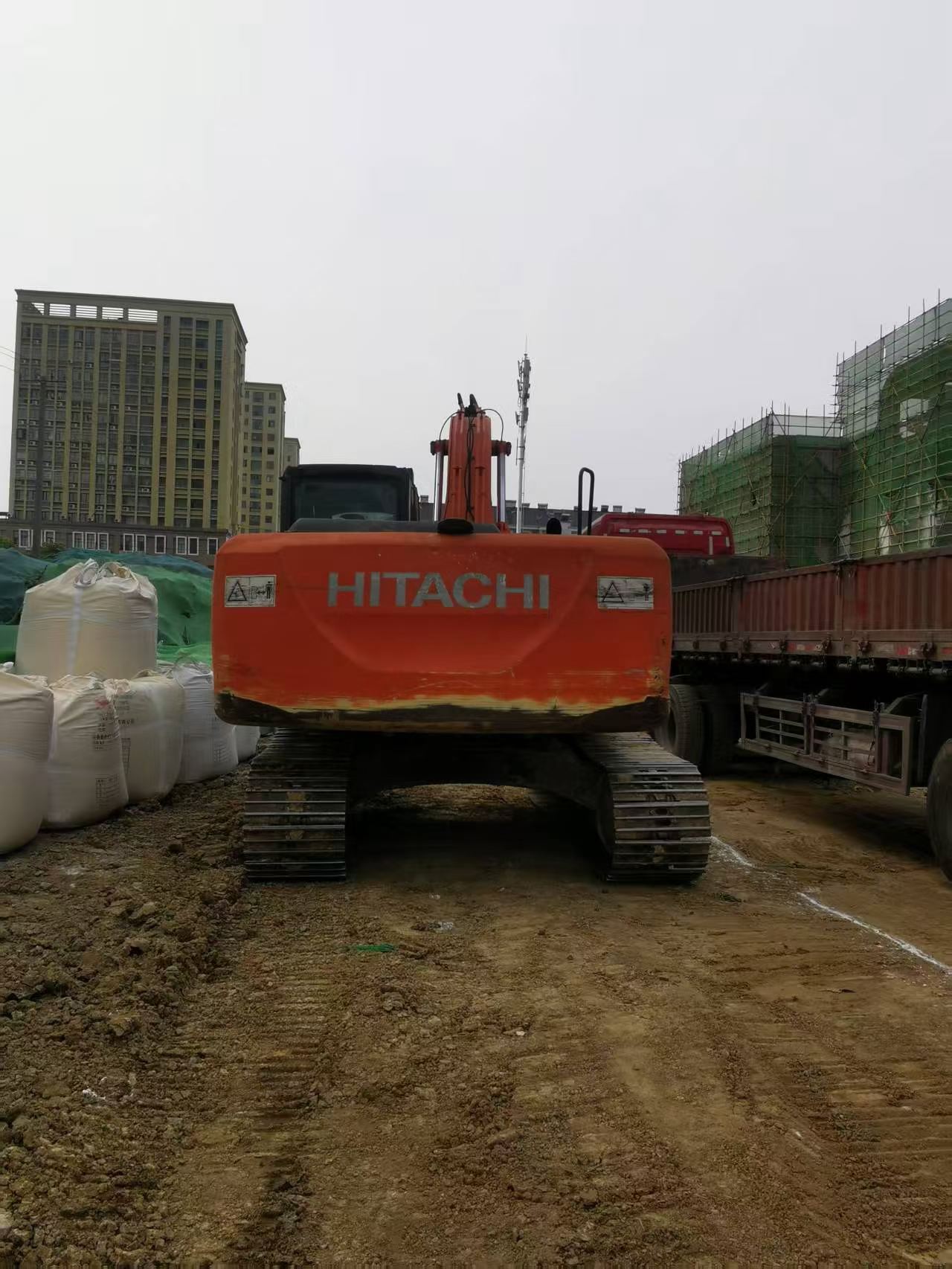

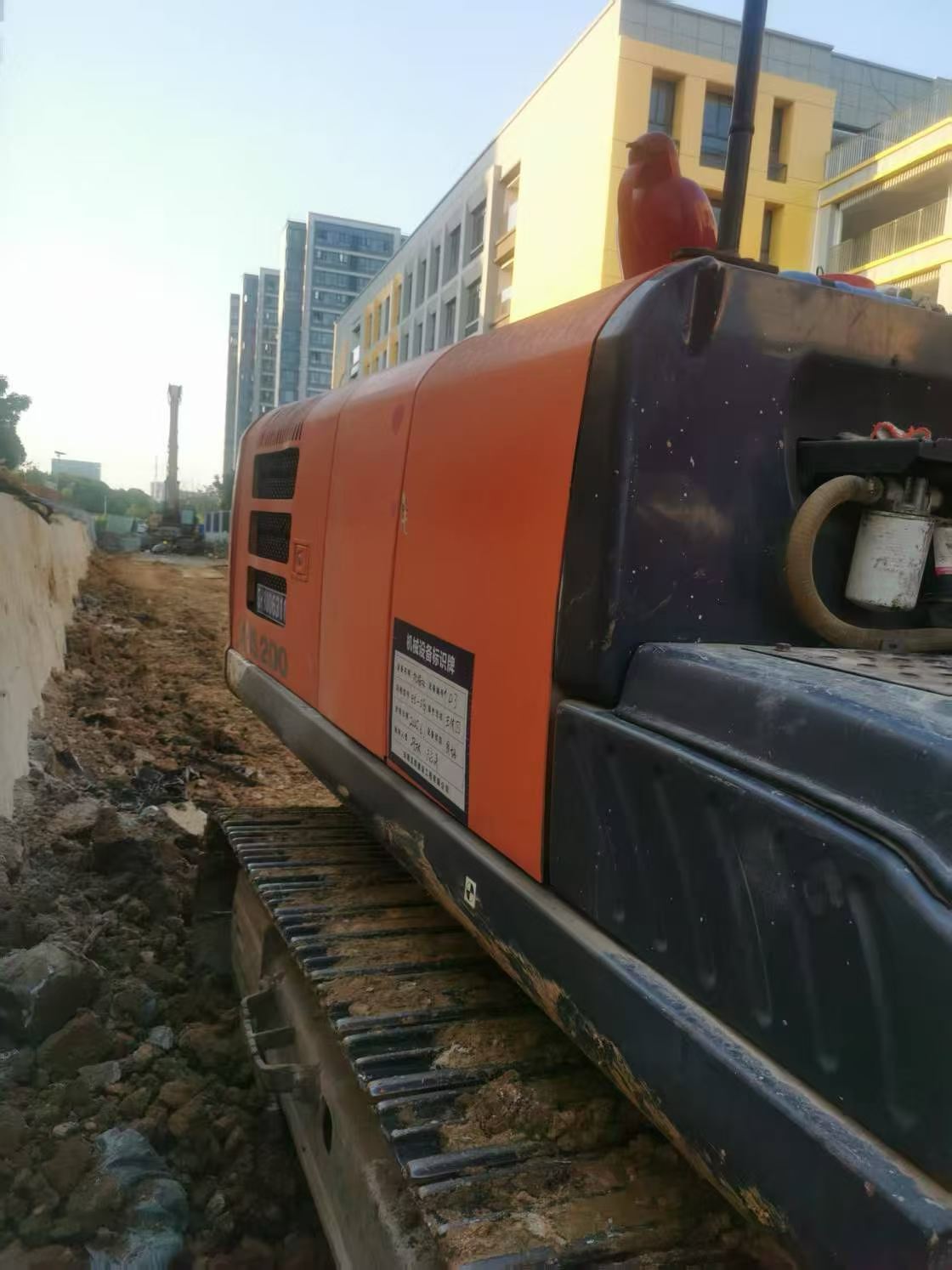

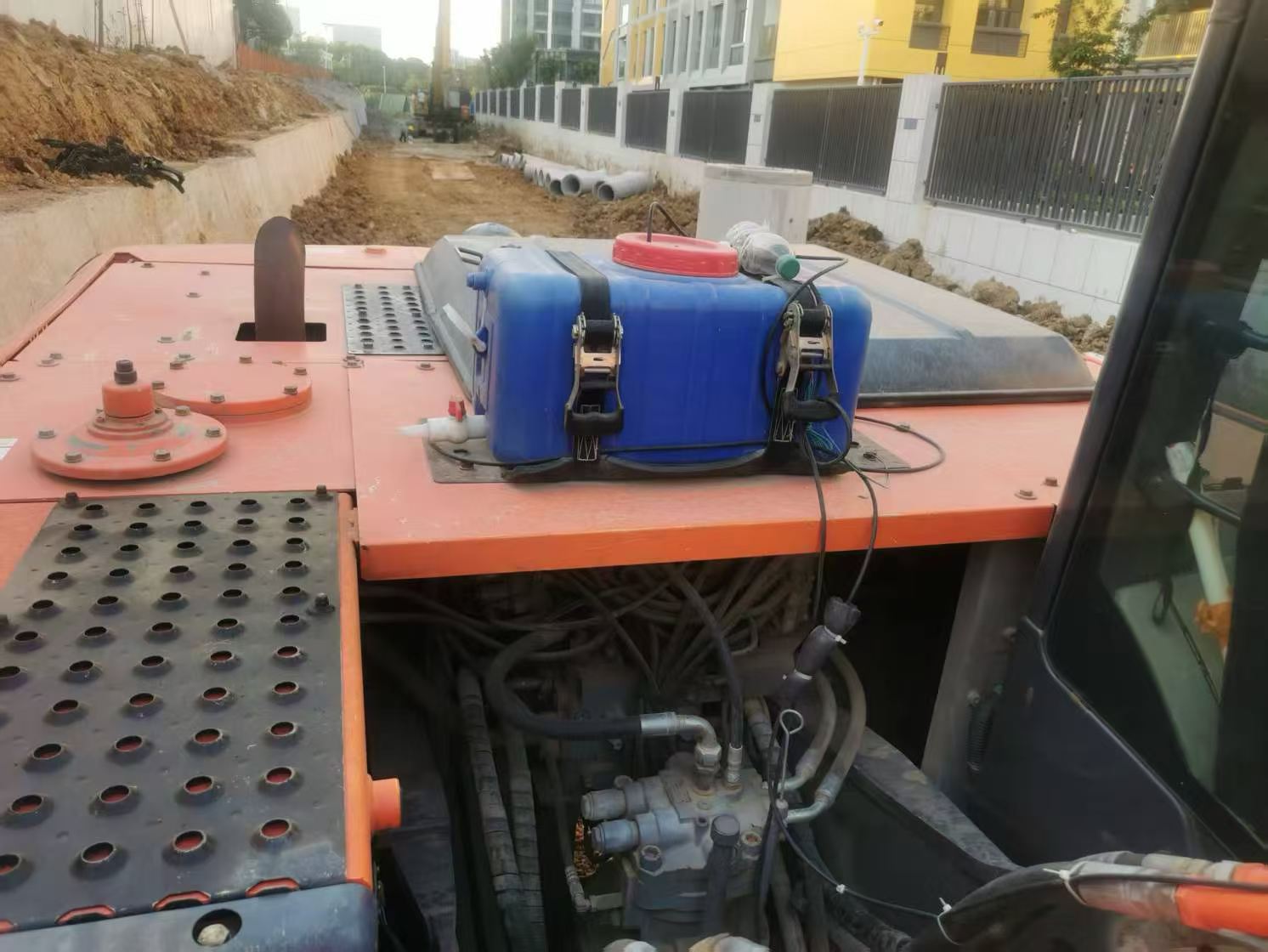

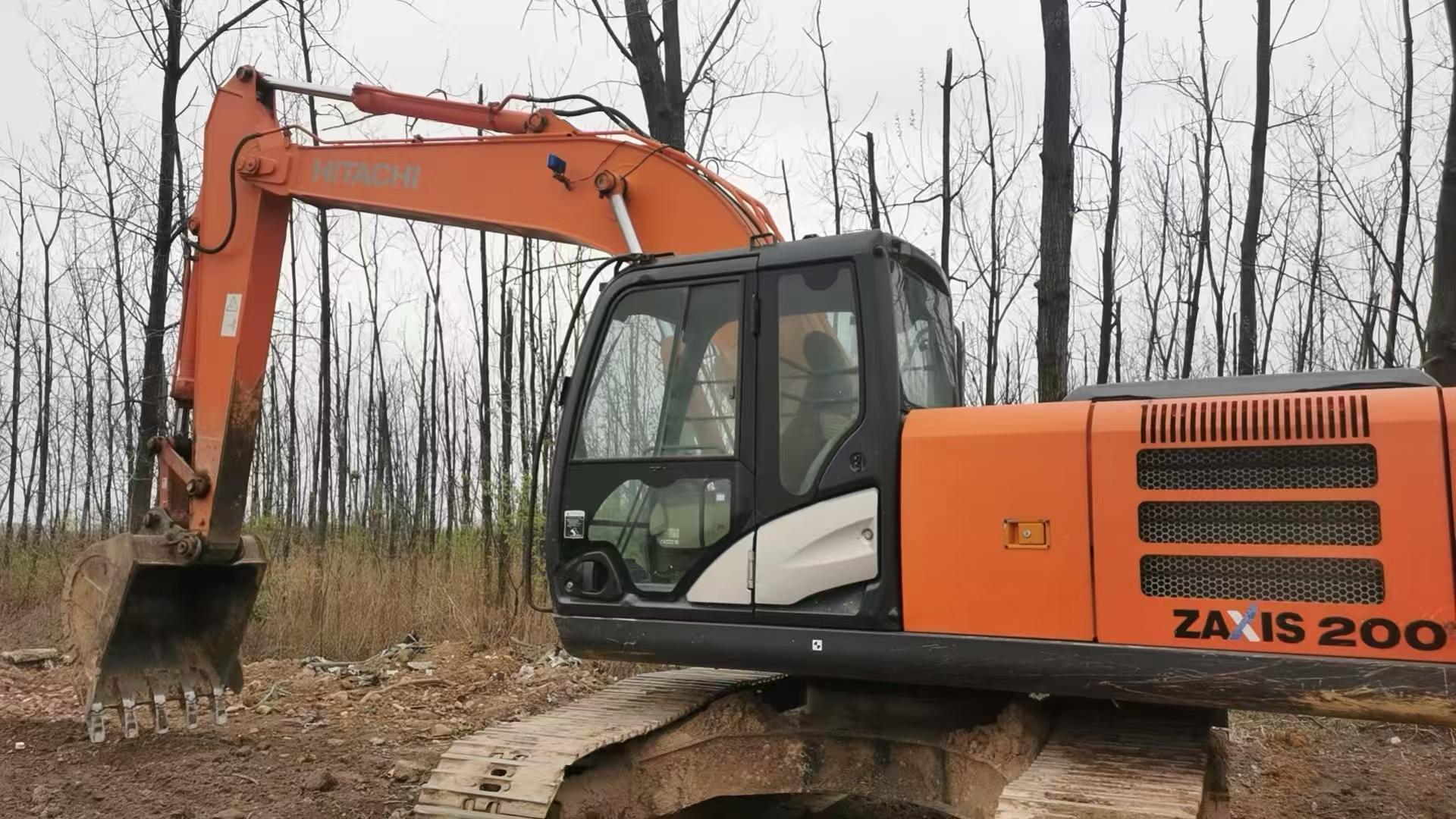

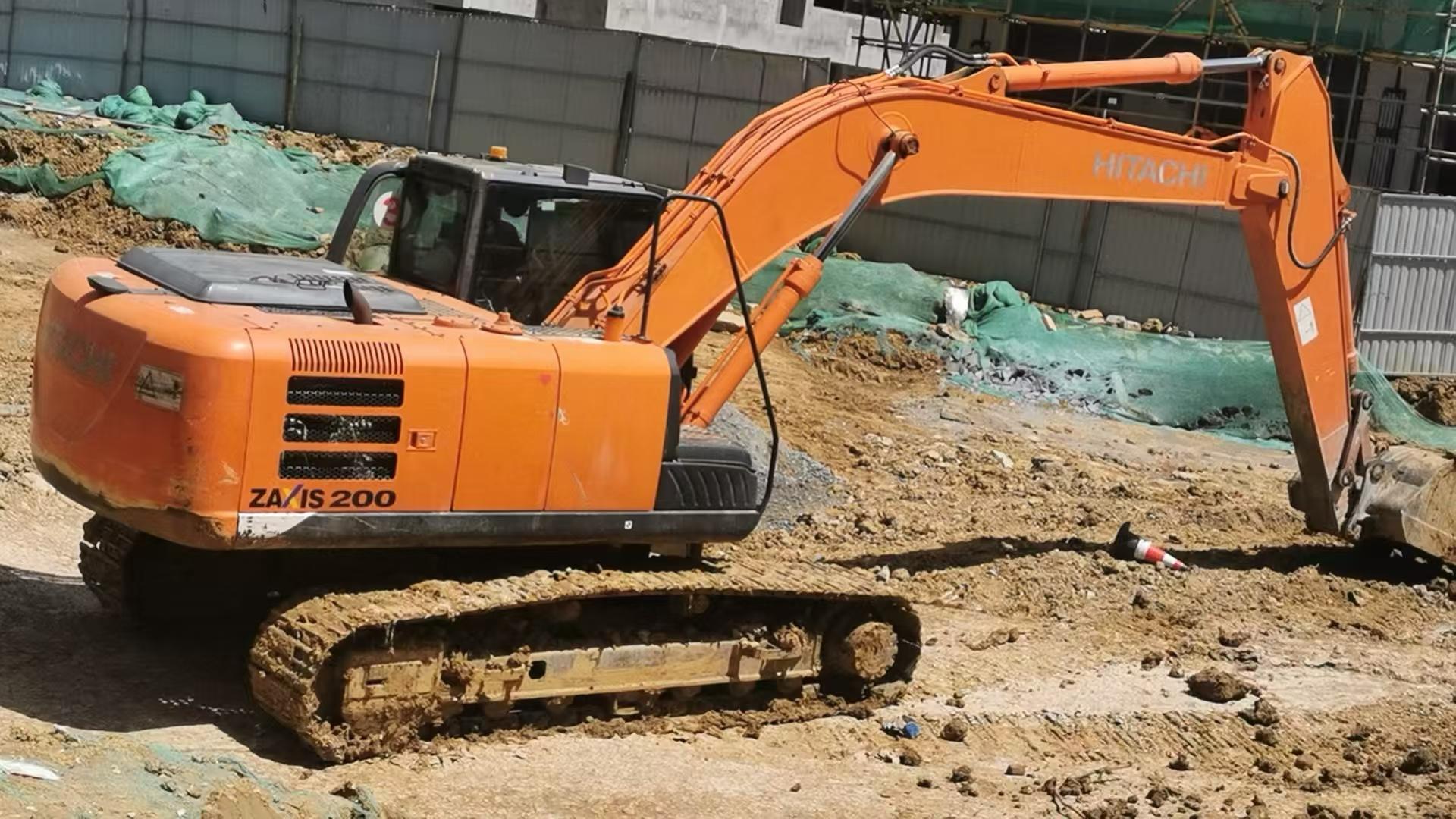

This 2014 Hitachi ZX200-5G hydraulic excavator is available on consignment from a client in Sichuan, China. The ZX200-5G represents Hitachi's proven -5G series, engineered for reliable performance in demanding construction and earthmoving applications. With an operating weight in the 20-ton class, this model delivers balanced power and efficiency for general excavation, trenching, and material handling tasks.
Key features of the ZX200-5G include:
- Hitachi HIOS III hydraulic system for responsive control
- Fuel-efficient engine meeting emission standards

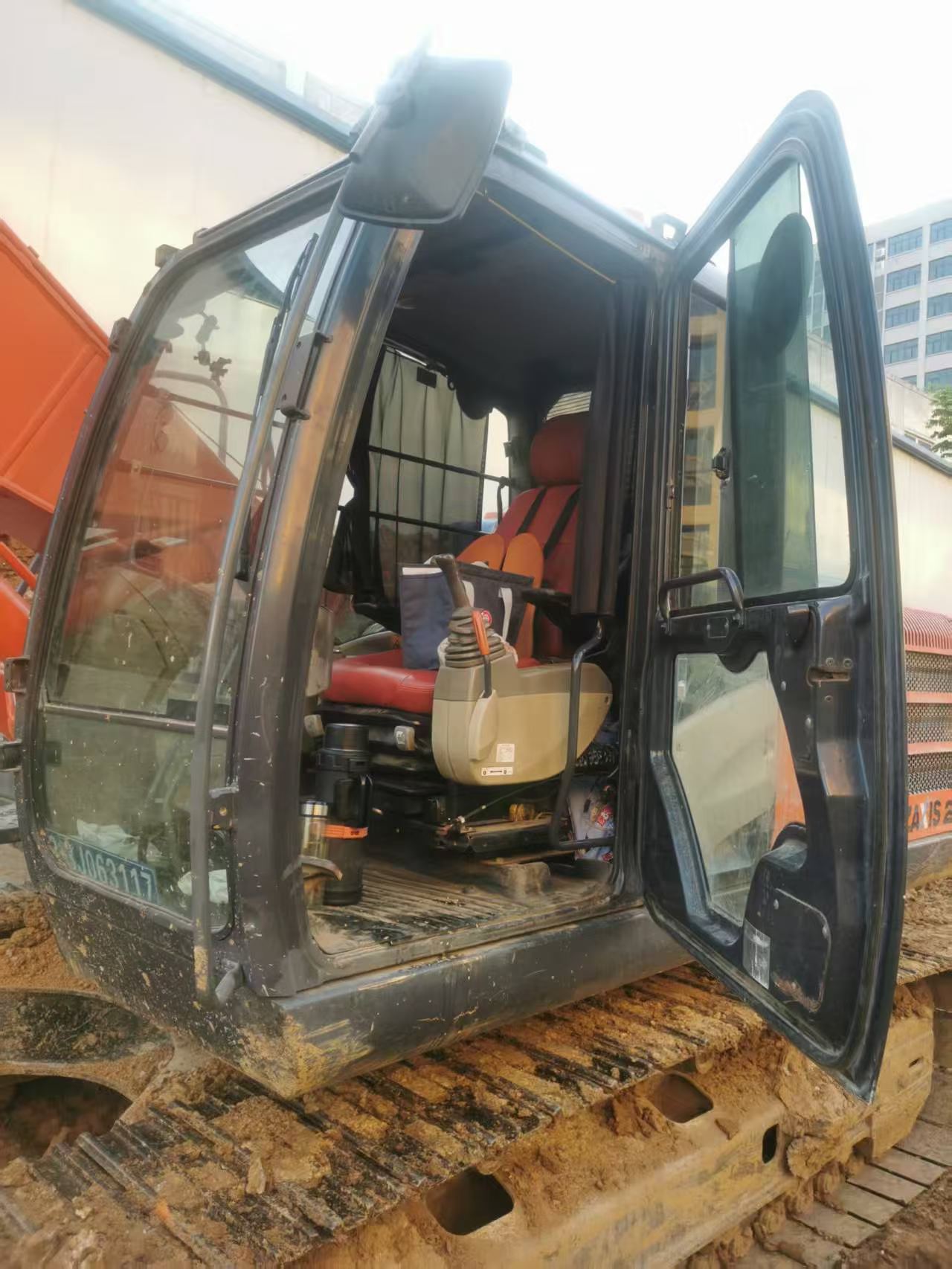

- Spacious operator cabin with ergonomic controls

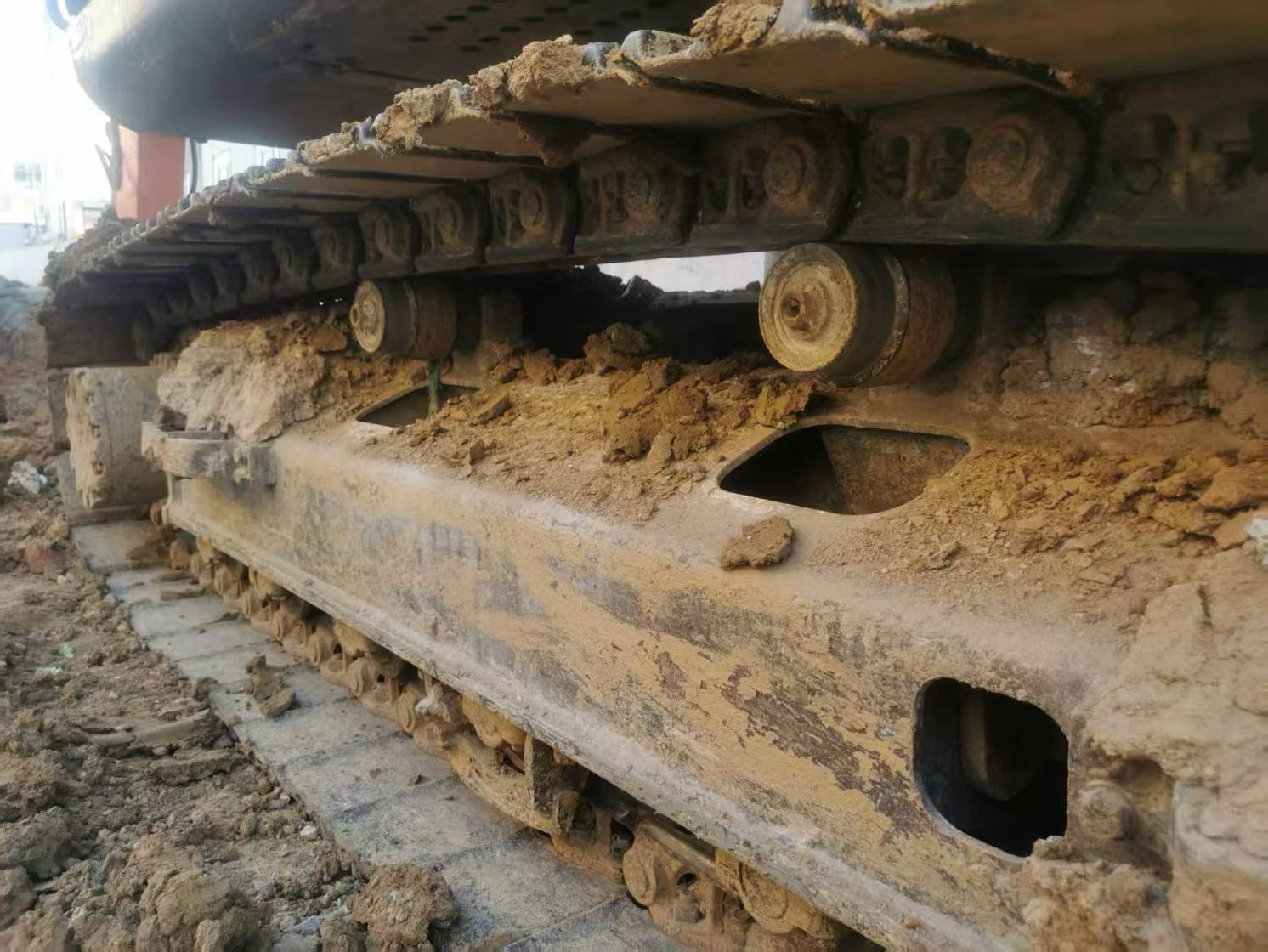

- Durable undercarriage designed for extended service life
This machine has been maintained by its previous owner and is ready for inspection. Located in Sichuan province, it offers an opportunity to acquire reliable Japanese-engineered equipment at competitive consignment pricing. Contact us to arrange a site visit or request additional operational history.
| Specifications | Value |
|---|---|
| No. | 1145416 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20300 |
| Bucket capacity (m³) | 0.91 |
| Rod length (mm) | 2.91 |
| Country of origin | Hefei (Capital of Anhui Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu CC-6BG1T |
| Rated power (kw/rpm) | 125/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 105 x 125 |
| Maximum torque (N.m) | 637 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.494 |
| Working form | 4-stroke, water-cooled, direct injection; Turbocharged, intercooled |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 13.5 |
| Climbing ability (%) | 70% (35 °) |
| Bucket digging force (kN) | 158 |
| Rod digging force (kN) | 114 |
| Maximum tractive force (kN) | 203 |
| Travel speed (km/h) | 5.5/3.5 |
| Turning torque (Nm) | 68 |
| Rotary hydraulic motor type | 1 swashplate plunger motor |
| Type of walking hydraulic motor | 2 variable swash plate plunger motor |
| Maximum flow of main pump (l/min) | 2 x 212 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 34.3 |

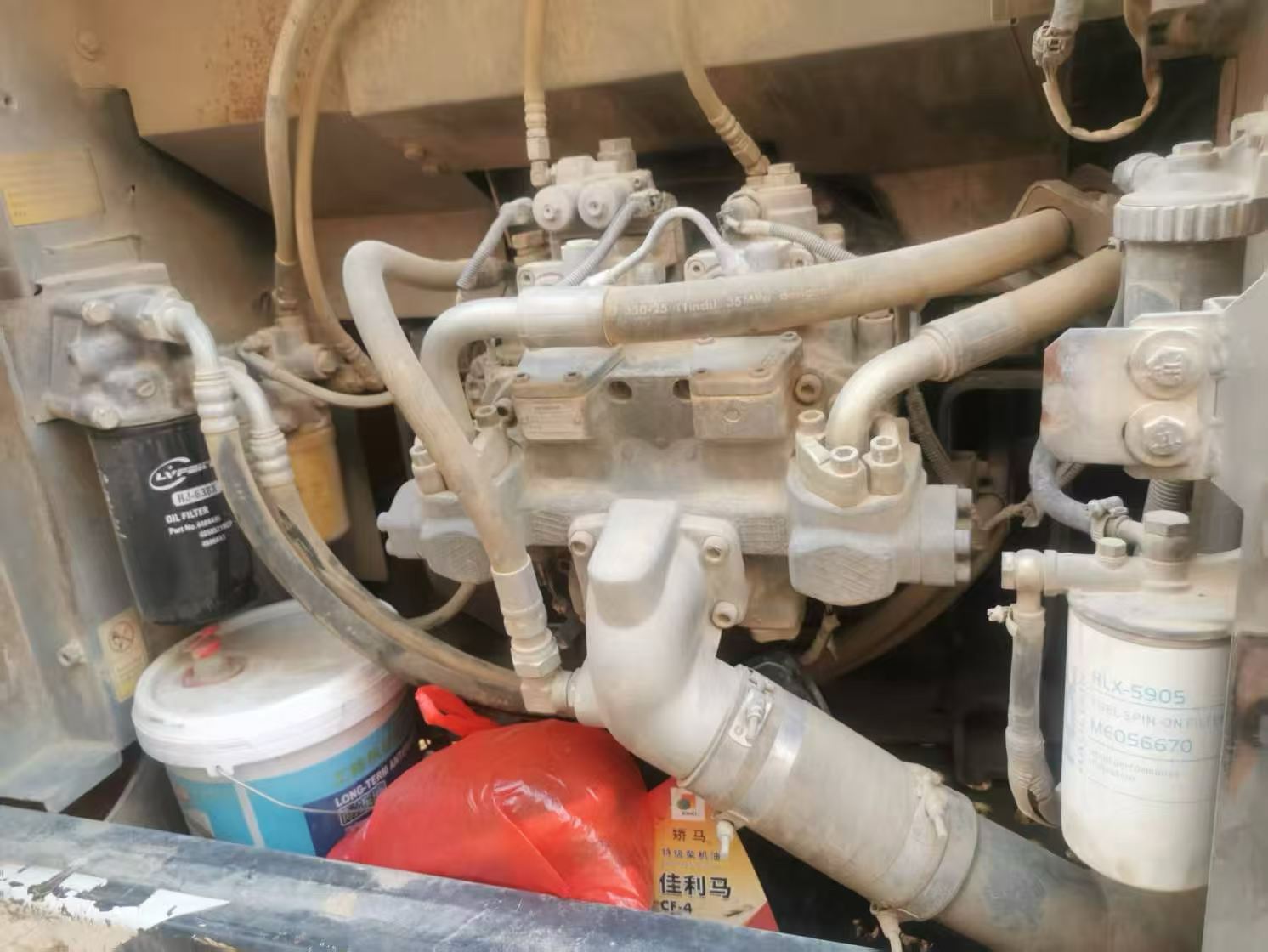

| Main pump type | 2 variable axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 33.6 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 115 x 80 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 135 x 95 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 120 x 85 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 135 |
| Engine Oil changes (L) | 25 |
| Coolant (L) | 23 |
| Hydraulic System (L) | 240 |
| Total transport length (mm) | 9,660 |
| Total transport width (mm) | 2,860 |
| Total transport height (mm) | 3,010 (total boom height) |
| Full cab height (mm) | 2,950 |
| Counterweight ground clearance (mm) | 1,030 |
| Minimum ground clearance (mm) | 450 |
| Minimum turning radius of front working device (mm) | 3,180 |
| Back end turning radius (mm) | 2,890 |
| Onboard width (mm) | 2,710 |
| Total track length (mm) | 4,170 |
| Track gauge (mm) | 2,200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2,800 |
| Maximum digging radius (mm) | 9920 |
| Maximum digging depth (mm) | 6,670 |
| Maximum excavation height (mm) | 10040 |
| Maximum unloading height (mm) | 7180 |
| Maximum vertical digging depth (mm) | 5,990 |
| Maximum excavation radius of stop surface (mm) | 9,750 |
| Maximum effective digging depth (mm) | 6,490 |
