Product Description
Discover the reliability and performance of the 2014 Hitachi ZX210H, an exceptional excavator designed for a variety of heavy-duty applications. Located in Anhui, China, this machine has been a trusted workhorse, particularly excelling in demolition tasks with its powerful hammer attachment. Built to withstand the rigors of demanding job sites, the ZX210H combines robust construction with advanced hydraulic systems, ensuring efficient operation and durability.
- Year: 2014
- Brand: Hitachi
- Model: ZX210H
- Location: Anhui, China
- Notable Feature: Equipped for effective demolition work
| Specifications | Value |
|---|---|
| No. | 1120526 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 19900 |
| Bucket capacity (m³) | 0.8/0.51/0.91 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

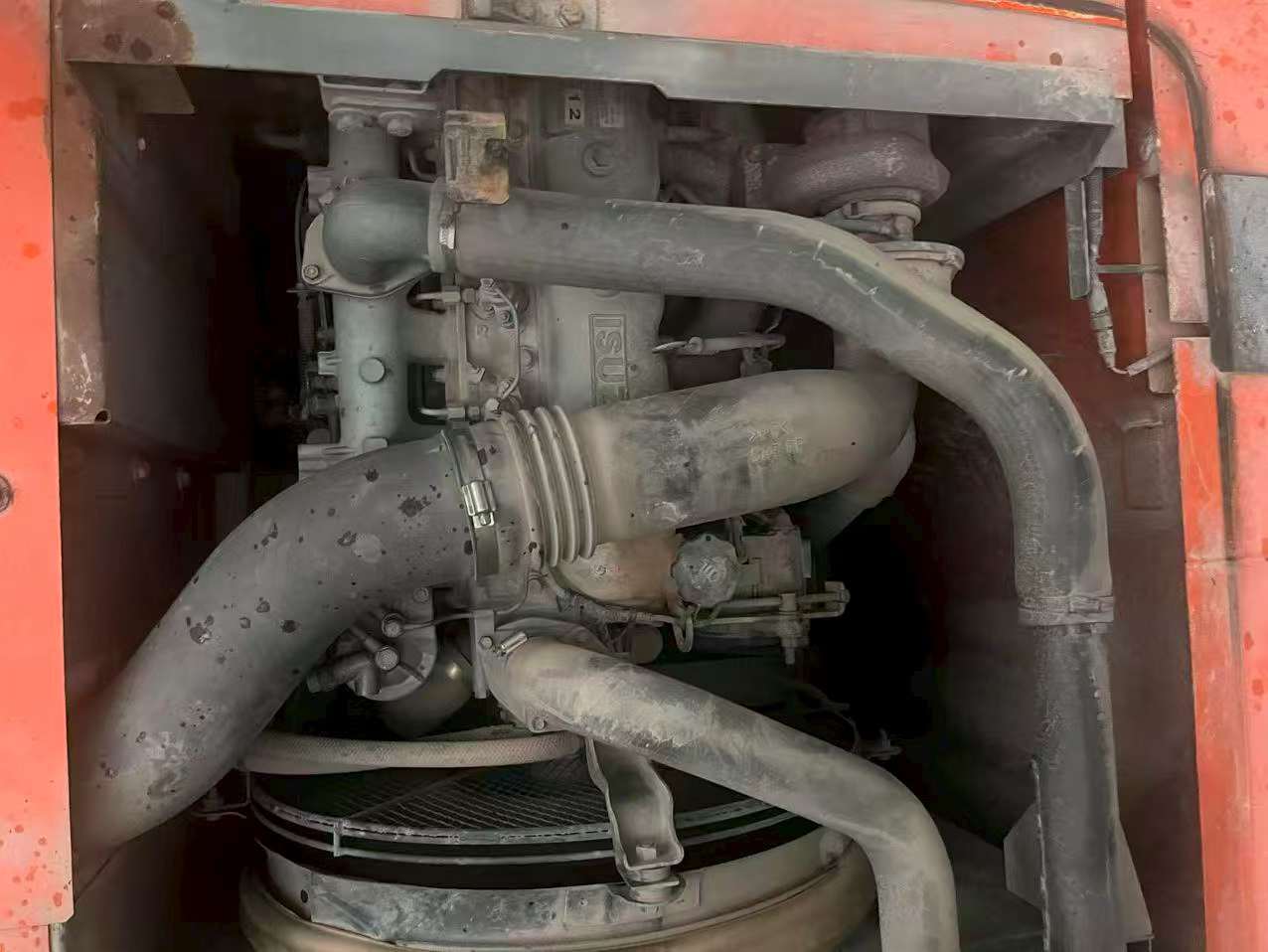

| Engine type | Isuzu AA-6BGIT |
| Rated power (kw/rpm) | 109.6/2100 |
| Displacement (L) | 6.5 |
| Ground specific pressure (Kpa) | 41 |
| Travel speed (km/h) | 5.5 |
| Fuel Tank (L) | 360 |
| Engine Oil changes (L) | 25 |
| Coolant (L) | 23 |
| Hydraulic System (L) | 200 |
| Total transport length (mm) | 9500 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 2970 |
| Full cab height (mm) | 2950 |
| Counterweight ground clearance (mm) | 1030 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2750 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3660 |
| Maximum digging depth (mm) | 6670 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 6050 |
| Maximum excavation radius of stop surface (mm) | 9750 |
