Product Description

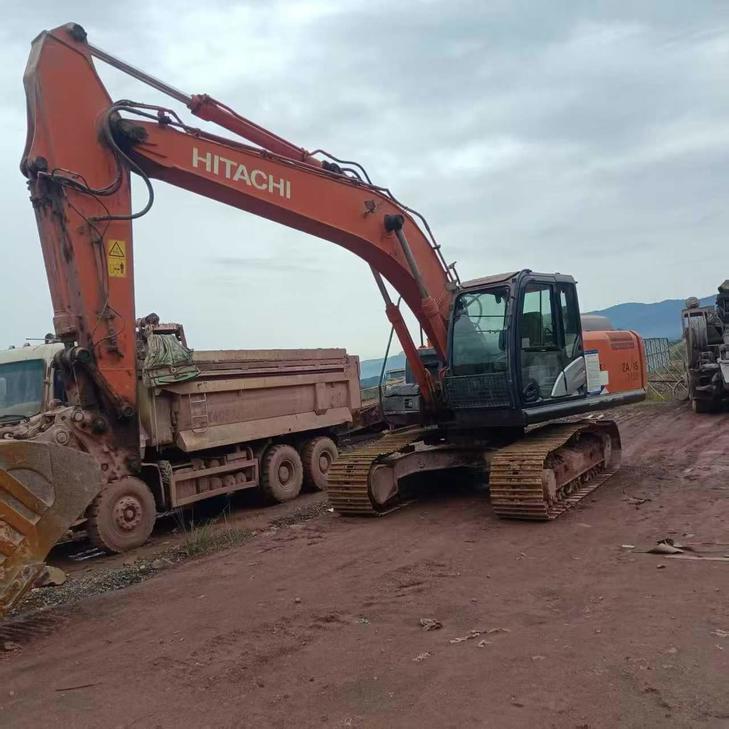

This 2018 Hitachi ZX210H-5A hydraulic excavator offers reliable performance for contractors and fleet operators. As a single-owner machine purchased new, it comes with documented service history and 23,800 hours of operational use. The ZX210H-5A model features Hitachi's proven hydraulic system and fuel-efficient engine design, making it suitable for general excavation, grading, and material handling applications.
- Year: 2018
- Model: Hitachi ZX210H-5A
- Hours: 23,800
- Ownership: Single owner from new
- Location: Guangdong, China
Currently located in Guangdong, this excavator represents a cost-effective option for operations requiring a mid-size machine with established maintenance records. The unit is available for inspection by qualified buyers. Contact us for additional documentation and pricing information.
| Specifications | Value |
|---|---|
| No. | 1166912 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21200 |
| Bucket capacity (m³) | 0.91 |
| Rod length (mm) | 2910 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu GI-4HK1XKSA-02 |
| Rated power (kw/rpm) | 113/2000 |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Maximum torque (N.m) | 638 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.193 |
| Working form | 4-stroke, water-cooled, electronically controlled direct injection, turbocharged, intercooled |
| Ground specific pressure (Kpa) | 47 |
| Rotation speed (rpm) | 13.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 158 |
| Rod digging force (kN) | 114 |
| Travel speed (km/h) | 5.5/3.5 |
| Rotary hydraulic motor type | 1 swashplate plunger motor |
| Type of walking hydraulic motor | 2 variable swash plate plunger motor |
| Maximum flow of main pump (l/min) | 2 x 212 + 30.2 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 32.3 |
| Main pump type | 2 variable axial piston pumps + 1 gear pump |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 115 x 80 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 135 x 95 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 120 x 85 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 135 |
| Engine Oil changes (L) | 23 |
| Coolant (L) | 31 |
| Total transport length (mm) | 9660 |
| Total transport width (mm) | 2880 |
| Total transport height (mm) | 2950 |
| Full cab height (mm) | 2950 |
| Counterweight ground clearance (mm) | 1030 |
| Minimum ground clearance (mm) | 450 |
| Minimum turning radius of front working device (mm) | 3180 |
| Back end turning radius (mm) | 2890 |
| Total track length (mm) | 4170 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9920 |
| Maximum digging depth (mm) | 6670 |
| Maximum excavation height (mm) | 10040 |
| Maximum unloading height (mm) | 7180 |
| Maximum vertical digging depth (mm) | 5990 |
| Maximum excavation radius of stop surface (mm) | 9750 |
