Product Description

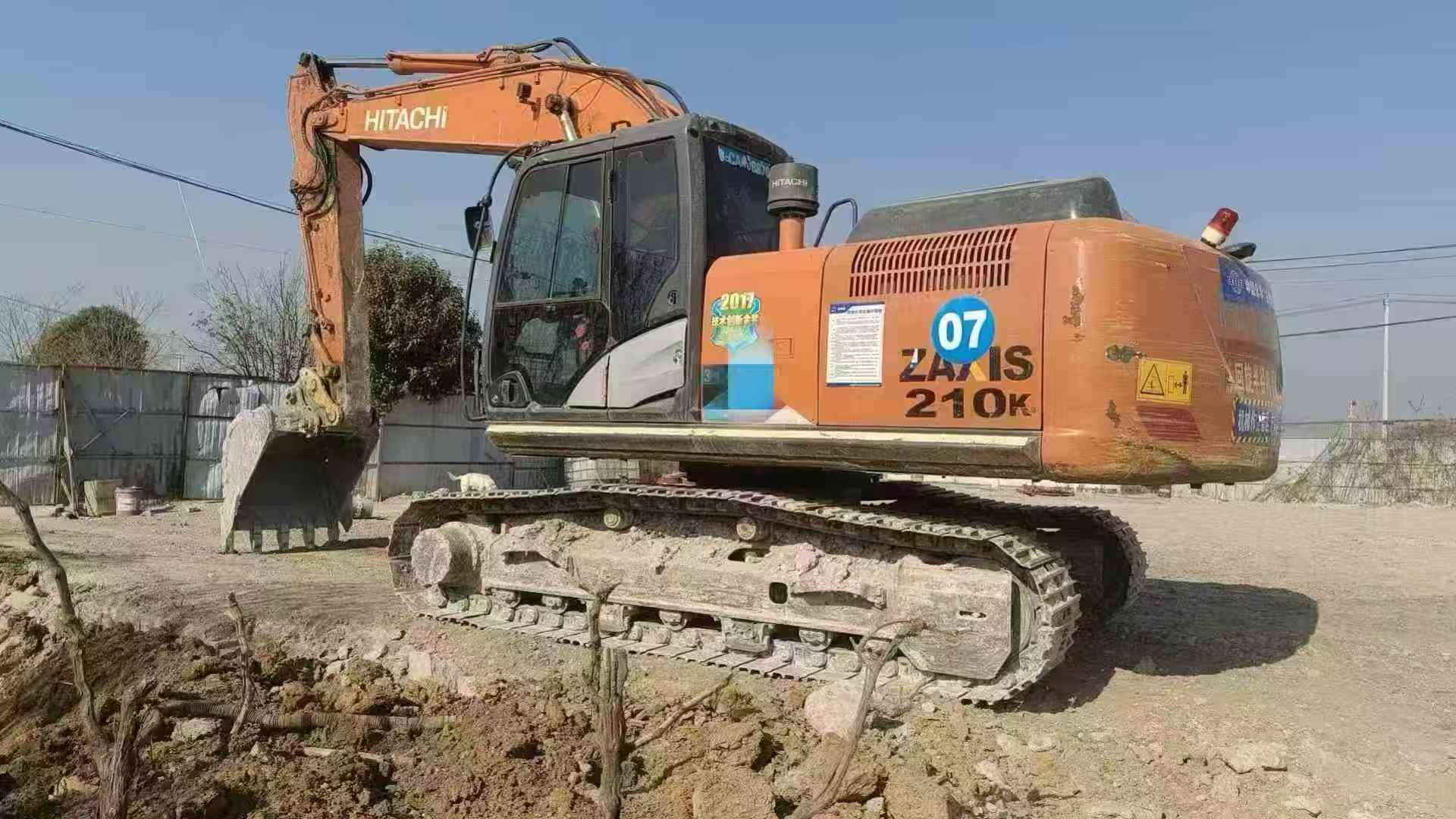

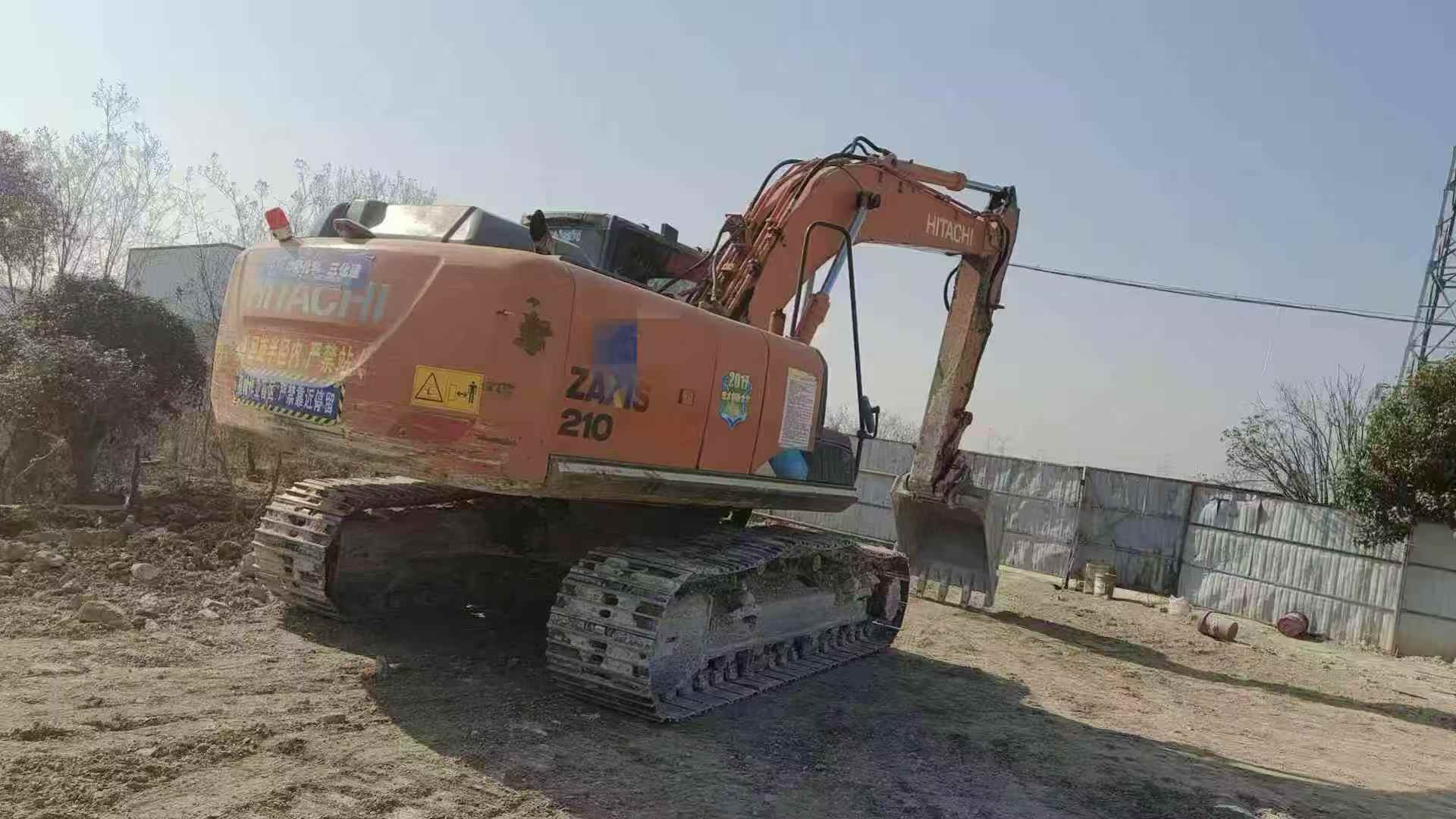

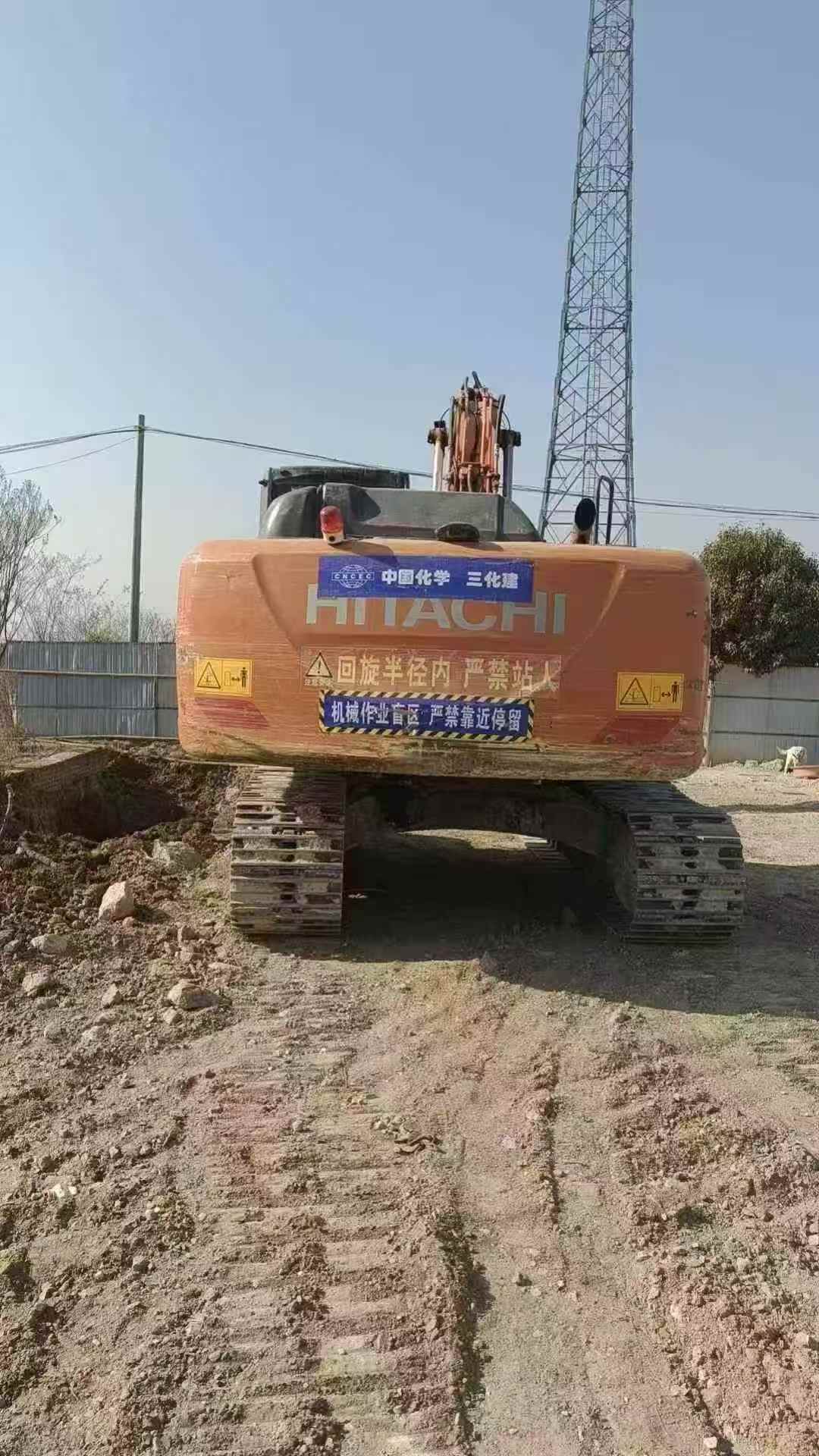

Proven performance meets Japanese engineering in this 2019 Hitachi ZX210K-5A excavator, currently located in Guizhou. With a 21-ton operating weight and robust Isuzu GI-4HK1XKSA-02 engine delivering 113kW at 2000rpm, this machine represents a workhorse built to endure demanding jobsite conditions. Four years of operation demonstrate the reliability inherent in Hitachi's joint-venture manufacturing standards.
Engineered for sustained productivity, this backhoe excavator features a 0.91-1.0m³ bucket capacity backed by impressive digging forces of 158kN (bucket) and 114kN (arm). The water-cooled, turbocharged engine with electronic fuel injection ensures consistent power delivery across extended work cycles. Dual variable axial piston pumps and a maximum digging reach of 9920mm provide the hydraulic muscle needed for heavy excavation tasks.
- Maximum digging depth: 6670mm
- Maximum dumping height: 7180mm
- Travel speed: 5.5/3.5 km/h
- Fuel capacity: 400L for extended operation
- 70% climbing ability for challenging terrain
Built to last through rigorous applications, this ZX210K-5A continues to deliver the dependable performance that defines the Hitachi legacy.
| Specifications | Value |
|---|---|
| No. | 999878 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21000~21100 |
| Bucket capacity (m³) | 0.91~1.0 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

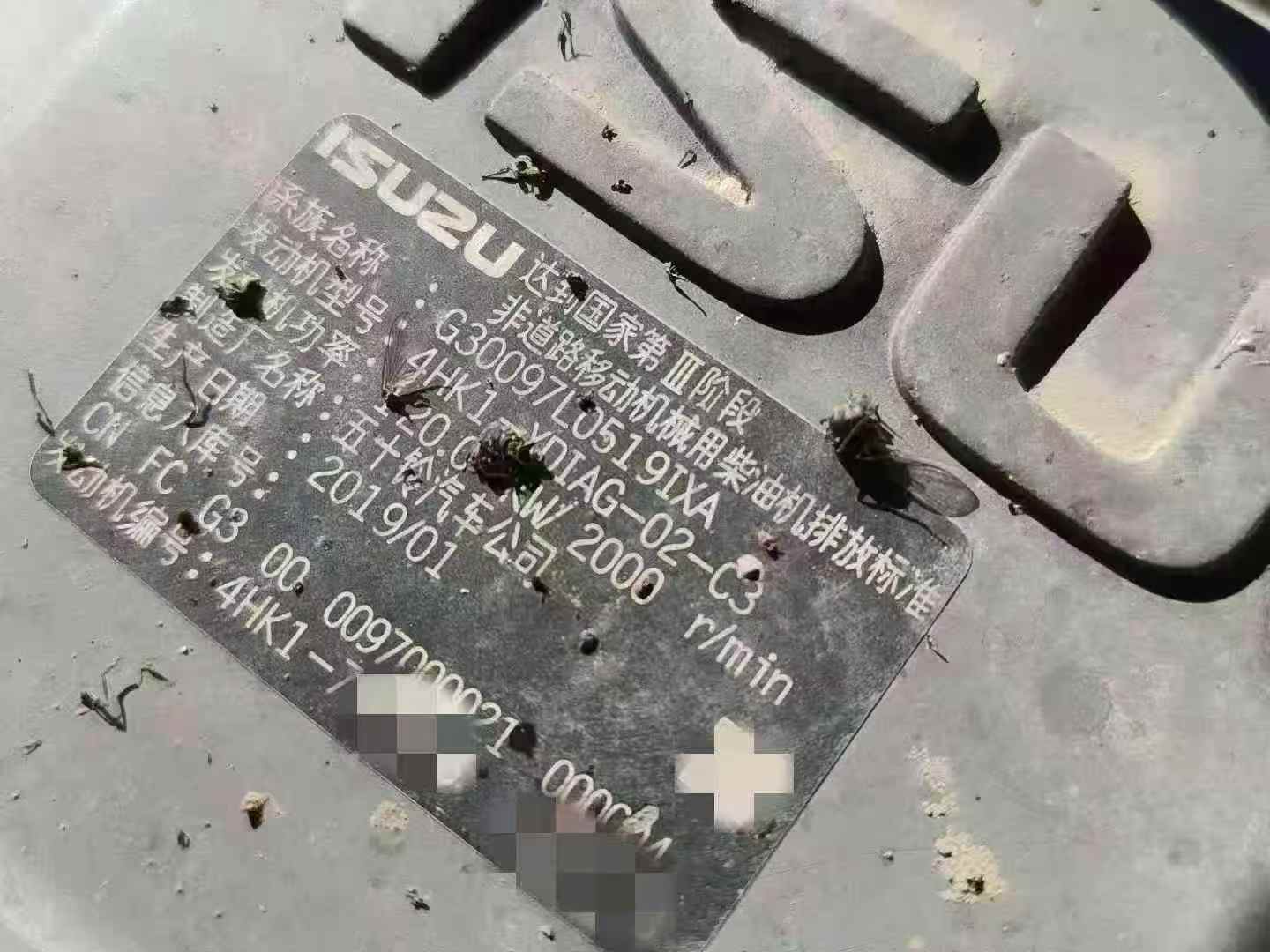

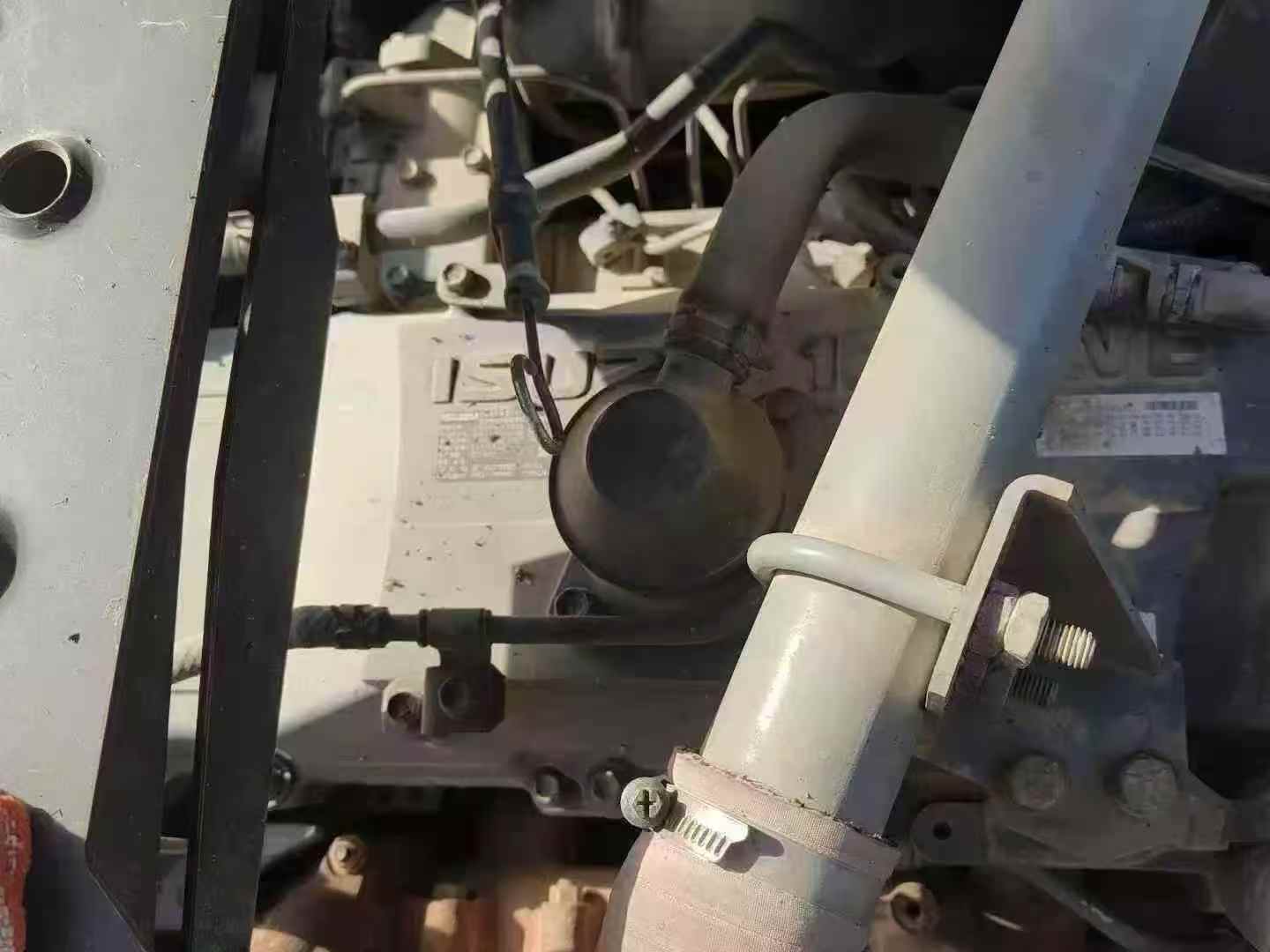

| Engine type | Isuzu GI-4HK1XKSA-02 |
| Rated power (kw/rpm) | 113 / 2000 |
| Cooling mode | water-cooling |
| Displacement (L) | 5.193 |
| Working form | 4 stroke, water cooled, electronically controlled injection, turbocharged, intercooled |
| Ground specific pressure (Kpa) | 47 |
| Rotation speed (rpm) | 13.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 158 |
| Rod digging force (kN) | 114 |
| Travel speed (km/h) | 5.5 / 3.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | 1 axial plunger motor |
| Type of walking hydraulic motor | 2 variable axial piston motors |
| Main pump type | 2 variable axial piston pumps, 1 gear pump |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 200 |
| Engine Oil changes (L) | 23 |
| Total transport length (mm) | 9660 |
| Total transport width (mm) | 2880 |
| Total transport height (mm) | 3010 |
| Counterweight ground clearance (mm) | 1030 |
| Minimum ground clearance (mm) | 450 |
| Minimum turning radius of front working device (mm) | 3180 |
| Back end turning radius (mm) | 2890 |
| Total track length (mm) | 4170 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 9920 |
| Maximum digging depth (mm) | 6670 |
| Maximum excavation height (mm) | 10040 |
| Maximum unloading height (mm) | 7180 |
| Maximum vertical digging depth (mm) | 5990 |
| Maximum excavation radius of stop surface (mm) | 9750 |
