Product Description

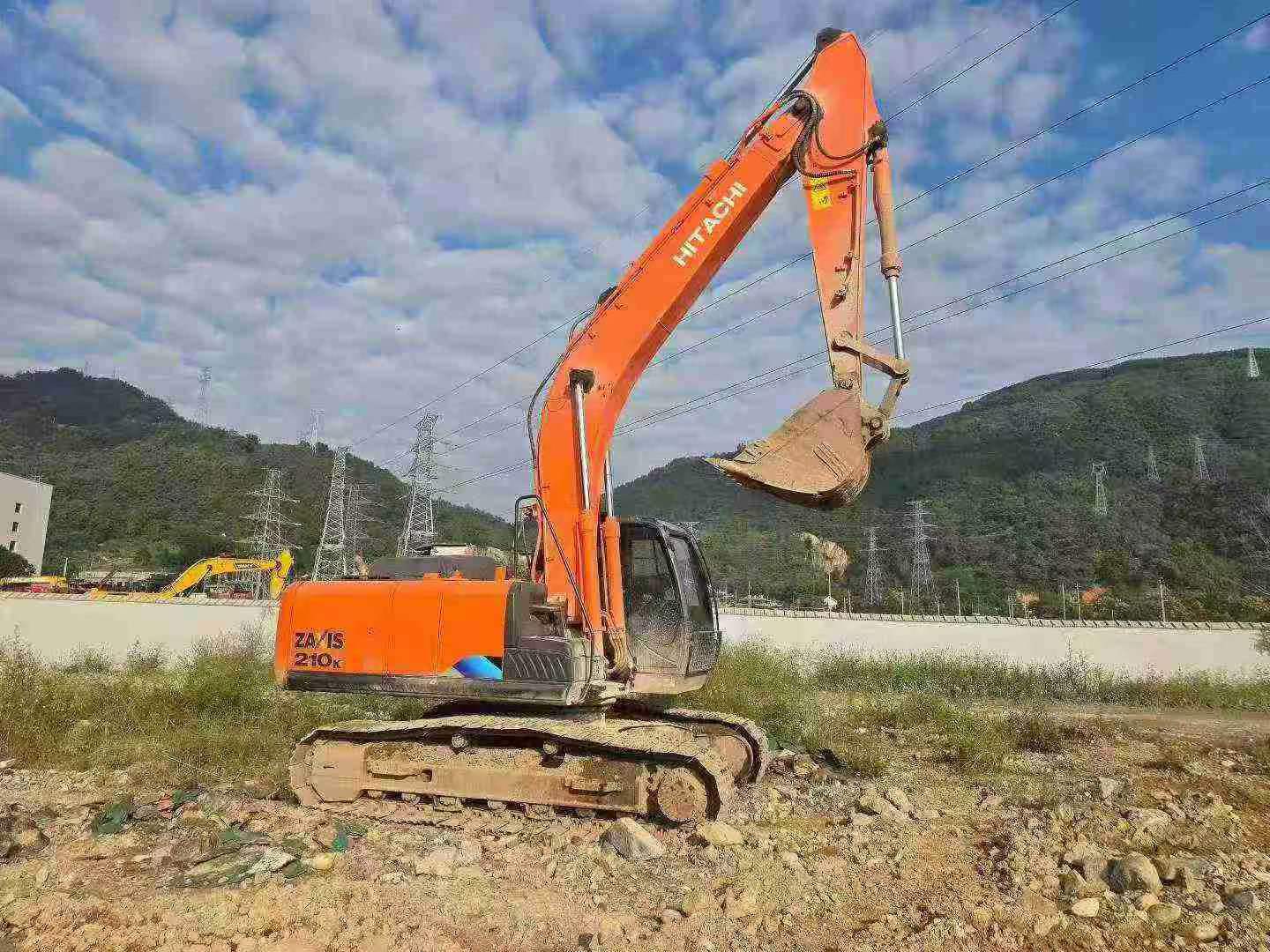

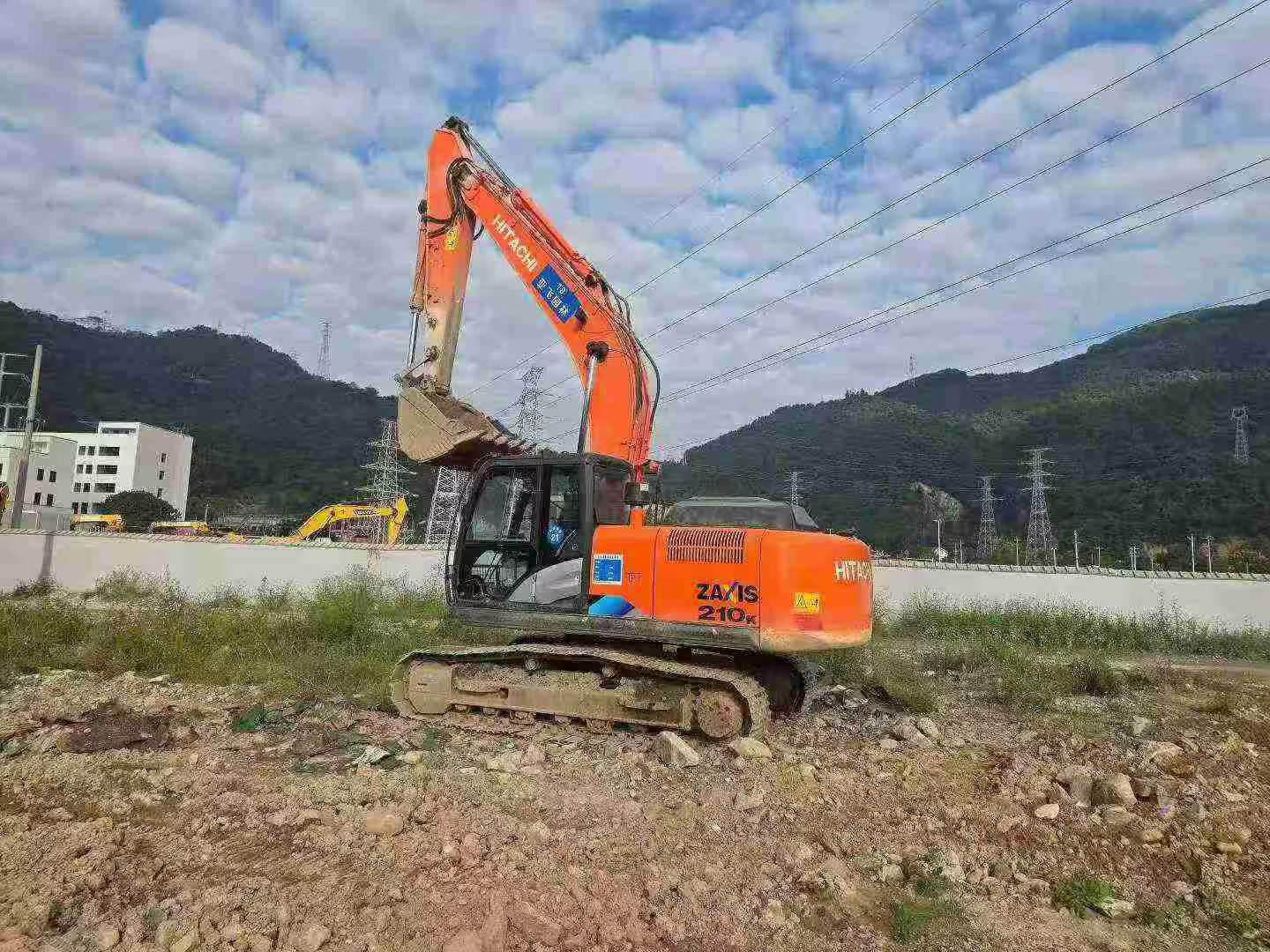

Discover the exceptional 2021 Hitachi ZX210K-5A, a high-specification excavator currently available in Zhejiang, China. This machine is in its original condition, showcasing impeccable maintenance and operational reliability. The internal components are in perfect working order, with all major parts performing flawlessly without any leaks. Ideal for a range of construction and excavation projects, this Hitachi model offers robust performance and durability. Secure this premium piece of equipment today and take advantage of our flexible financing options to fit your business needs.
- Year: 2021
- Brand: Hitachi
- Model: ZX210K-5A
- Location: Zhejiang, China
| Specifications | Value |
|---|---|
| No. | 1165493 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21000~21100 |
| Bucket capacity (m³) | 0.91~1.0 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

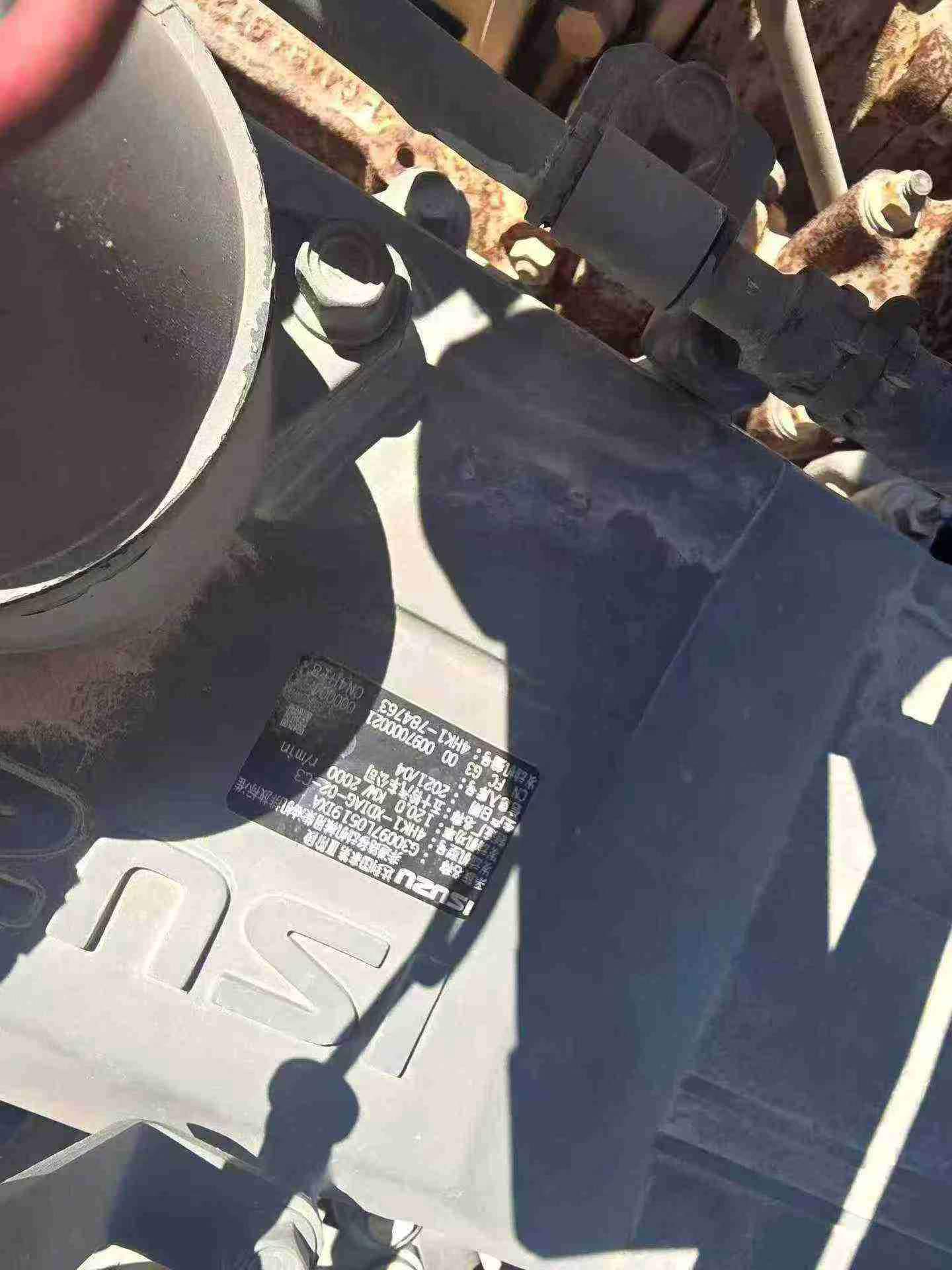

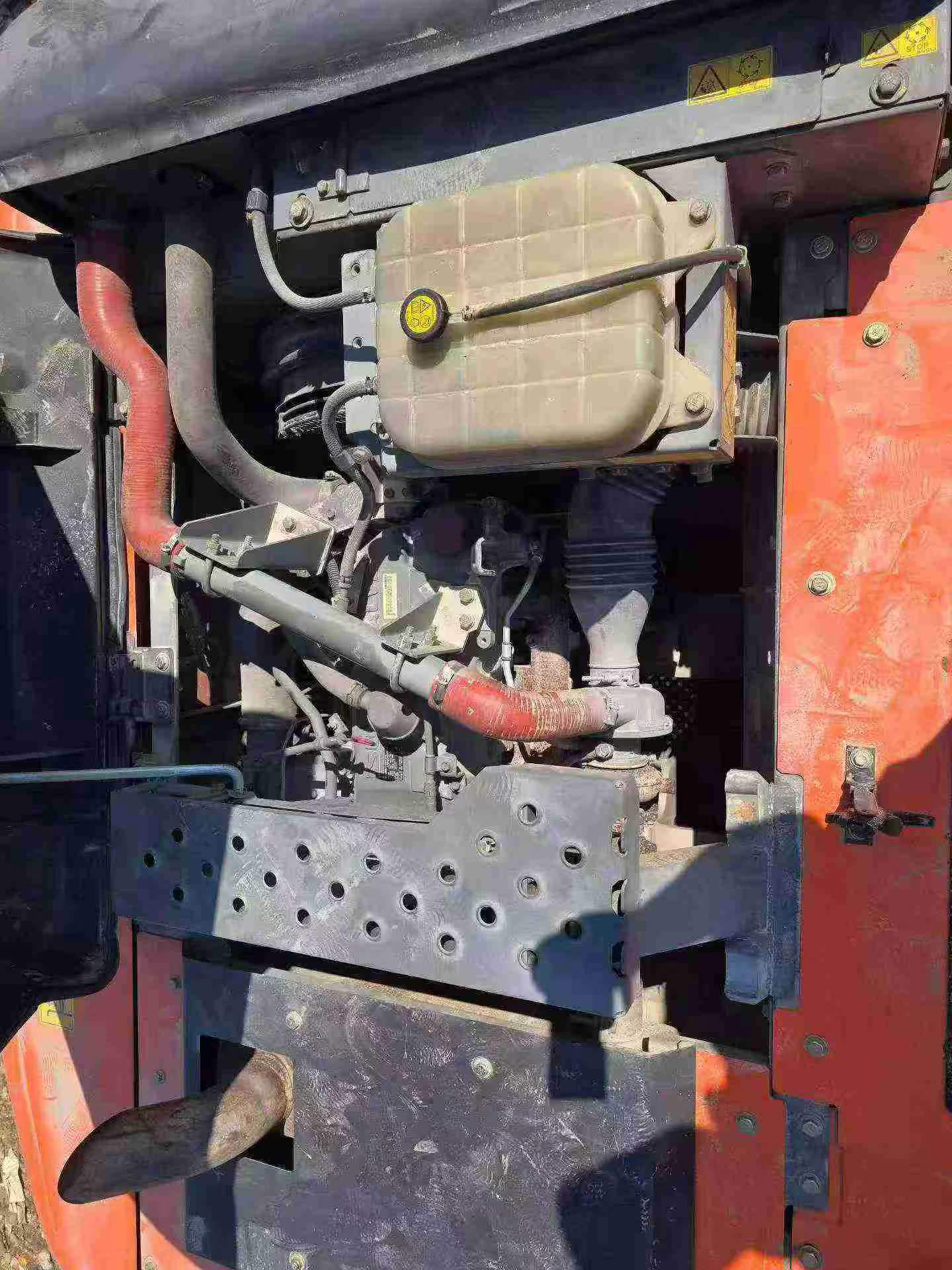

| Engine type | Isuzu GI-4HK1XKSA-02 |
| Rated power (kw/rpm) | 113 / 2000 |
| Cooling mode | water-cooling |
| Displacement (L) | 5.193 |
| Working form | 4 stroke, water cooled, electronically controlled injection, turbocharged, intercooled |
| Ground specific pressure (Kpa) | 47 |
| Rotation speed (rpm) | 13.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 158 |
| Rod digging force (kN) | 114 |
| Travel speed (km/h) | 5.5 / 3.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | 1 axial plunger motor |
| Type of walking hydraulic motor | 2 variable axial piston motors |

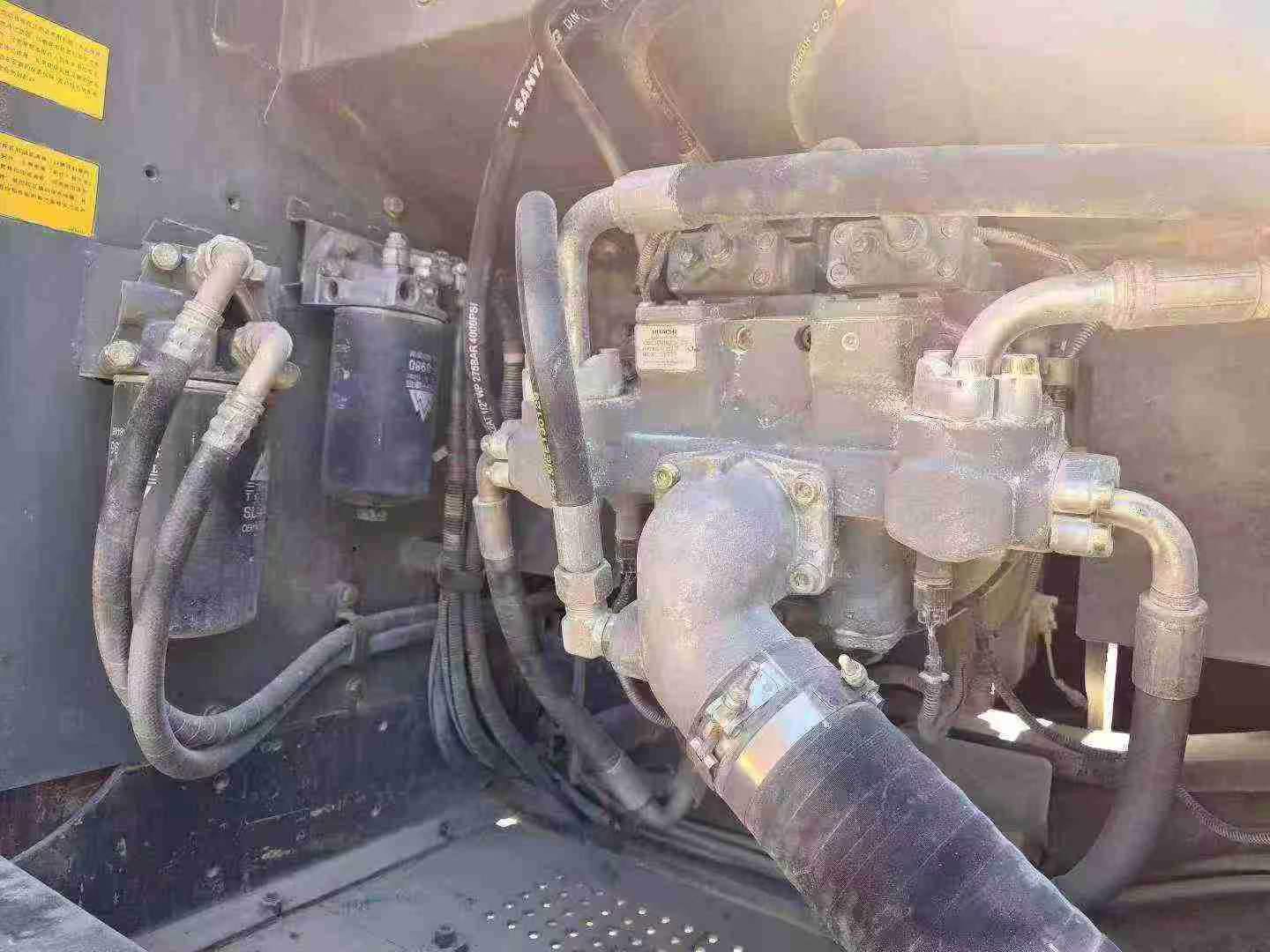

| Main pump type | 2 variable axial piston pumps, 1 gear pump |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 200 |
| Engine Oil changes (L) | 23 |
| Total transport length (mm) | 9660 |
| Total transport width (mm) | 2880 |
| Total transport height (mm) | 3010 |
| Counterweight ground clearance (mm) | 1030 |
| Minimum ground clearance (mm) | 450 |
| Minimum turning radius of front working device (mm) | 3180 |
| Back end turning radius (mm) | 2890 |

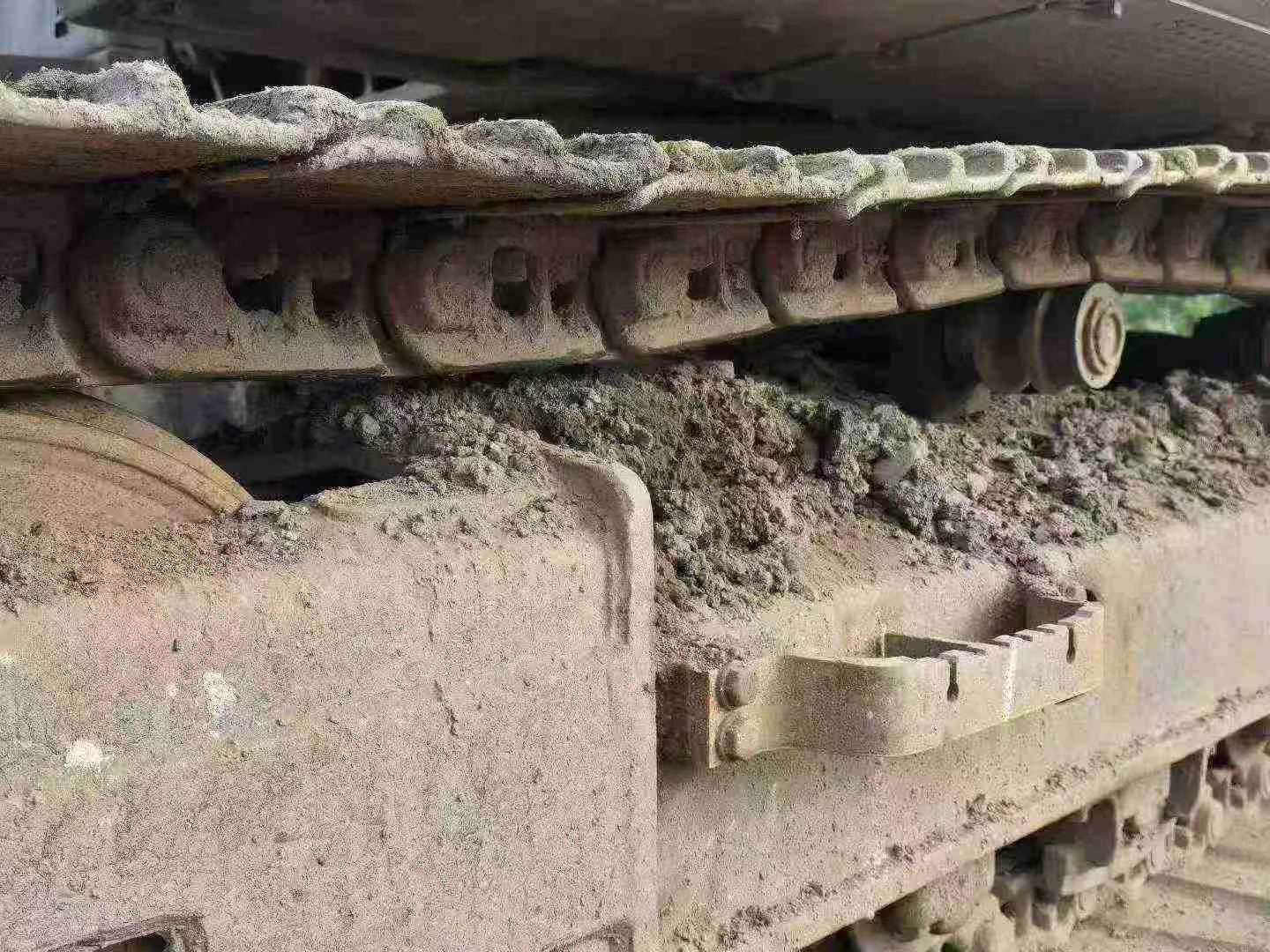

| Total track length (mm) | 4170 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 9920 |
| Maximum digging depth (mm) | 6670 |
| Maximum excavation height (mm) | 10040 |
| Maximum unloading height (mm) | 7180 |
| Maximum vertical digging depth (mm) | 5990 |
| Maximum excavation radius of stop surface (mm) | 9750 |
