Product Description

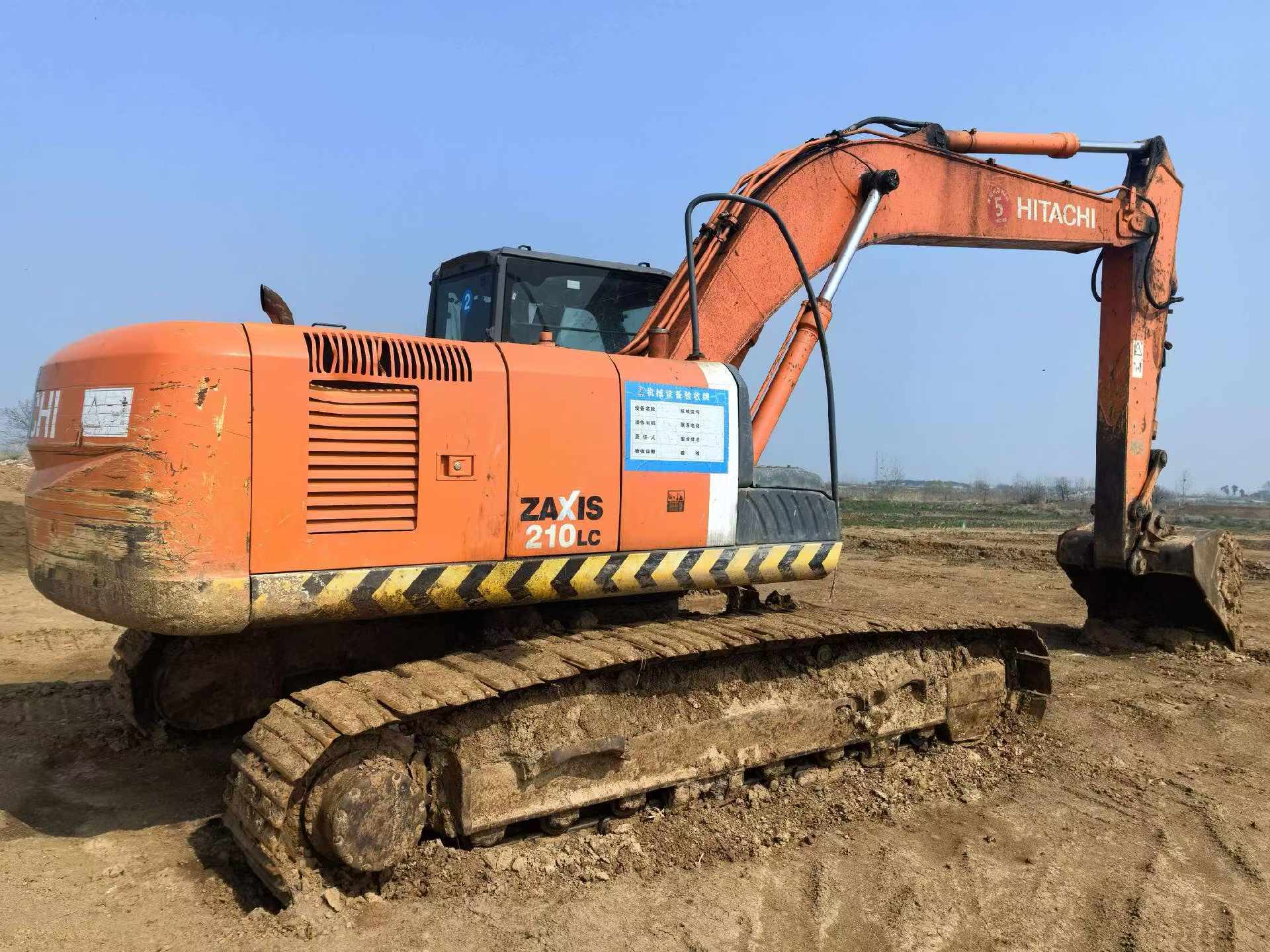

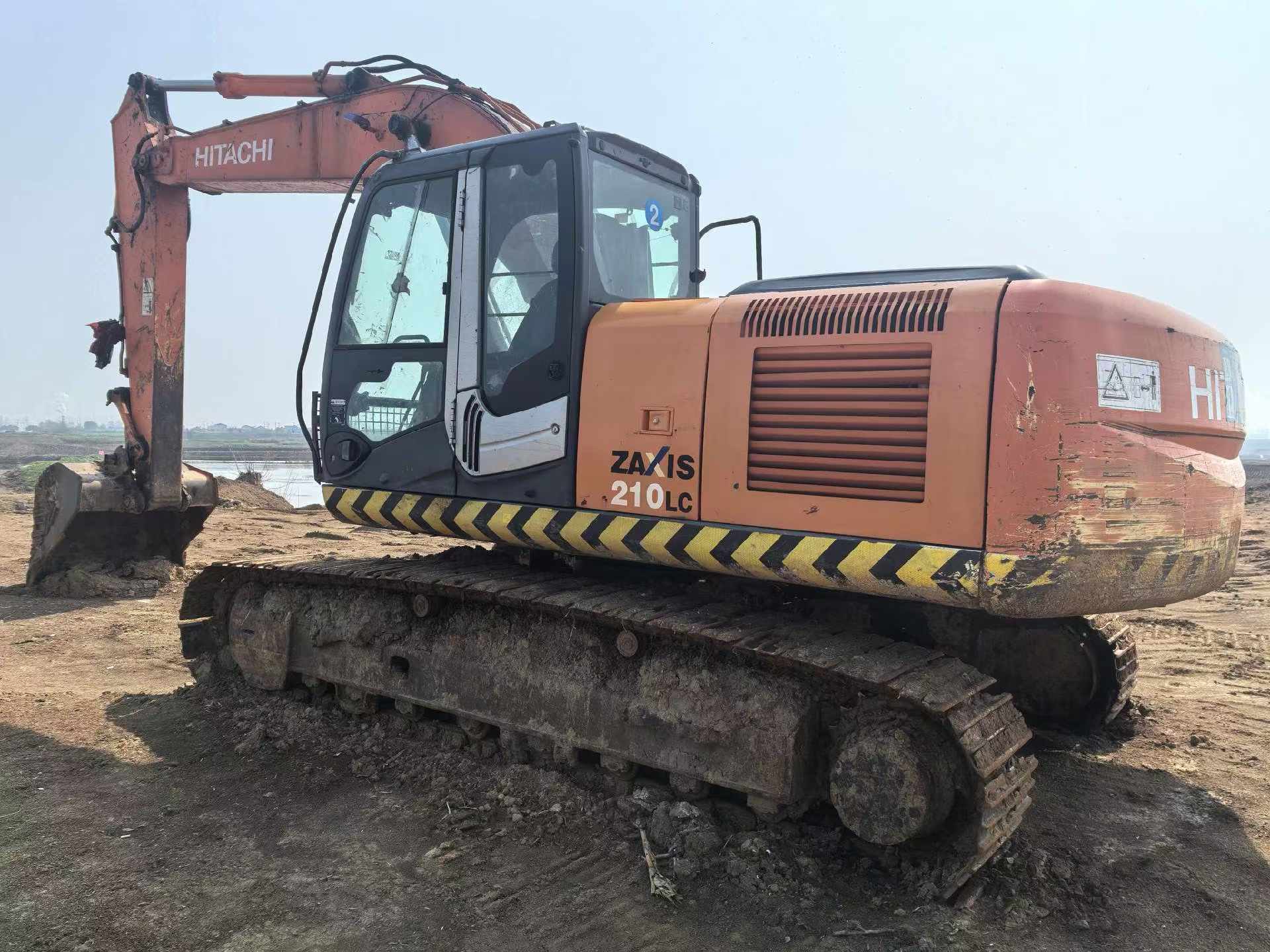

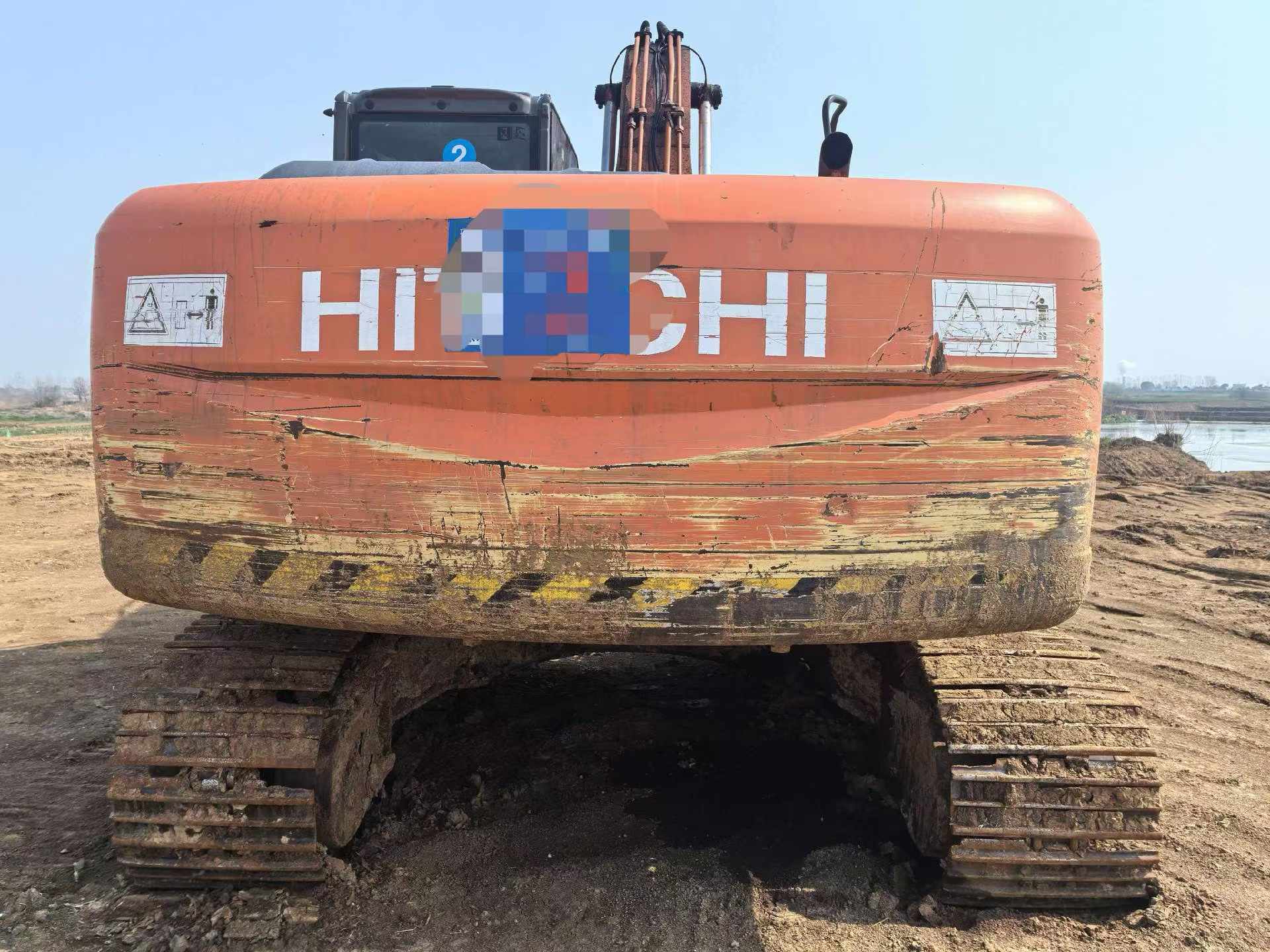

Built for precision earthwork and deep excavation, this 2011 Hitachi ZX210LC-3 delivers 21-ton performance with proven ISUZU AI-4HK1X power. Sourced from Hefei, Anhui Province, this joint-venture machine combines Japanese engineering with field-tested durability across demanding jobsites.
Engineered with a 0.91 m³ backhoe bucket and 9920 mm maximum digging radius, this crawler excavator tackles trenching, foundation work, and mass excavation with 151 kN bucket digging force. The 122 kW turbocharged engine with intercooler maintains consistent hydraulic flow through dual variable piston pumps, while the 5680 mm H-type boom and 2910 mm rod configuration reach 6670 mm digging depth for utility installation and site preparation.
Key specifications include:
- 21,200 kg operating weight with 600 mm track plates for stability on variable terrain
- Dual-speed travel system (3.5/5.5 km/h) for efficient site repositioning
- 70% gradeability and 44 kPa ground pressure minimize site disturbance
- 400 L fuel capacity and 200 L hydraulic reservoir support extended work cycles
- Water-cooled 4-cylinder engine (5.193 L displacement) proven for continuous operation
Ready for immed
| Specifications | Value |
|---|---|
| No. | 1029267 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21200 |
| Bucket capacity (m³) | 0.91 |
| Boom length (mm) | 5680 (H type) |
| Rod length (mm) | 2910 (Type H) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AI-4HK1X |
| Rated power (kw/rpm) | 122/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.193 |
| Working form | Direct injection, turbocharged, with intercooler |
| Ground specific pressure (Kpa) | 44 |
| Rotation speed (rpm) | 13.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 151 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 3.5/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative plunger pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 32.4 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 135(Full box 200) |
| Engine Oil changes (L) | 23 |
| Total transport length (mm) | 9520 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3010 |
| Full cab height (mm) | 2950 |
| Counterweight ground clearance (mm) | 1030 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4470 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3660 |
| Maximum digging radius (mm) | 9920 |
| Maximum digging depth (mm) | 6670 |
| Maximum excavation height (mm) | 10040 |
| Maximum unloading height (mm) | 7180 |
| Maximum vertical digging depth (mm) | 5990 |
| Bulldozer lift or depth (mm) | No bulldozer |
