Product Description
Discover the reliability and efficiency of the 2020 Hitachi ZX240-3G, a robust excavator available for purchase in Zhejiang, China. Priced at 86,000 RMB, this used machine is an excellent investment for construction and excavation projects. Known for its durability and performance, the ZX240-3G model offers powerful digging force and superior maneuverability, making it ideal for a variety of job sites. This excavator features advanced technology to enhance operator comfort and productivity, ensuring smooth and efficient operations.
- Year: 2020
- Brand: Hitachi
- Model: ZX240-3G
- Location: Zhejiang, China
- Price: 86,000 RMB
| Specifications | Value |
|---|---|
| No. | 1131289 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 23500 |
| Bucket capacity (m³) | Type 1.0 /1.2H /1.2 Rock bucket |
| Boom length (mm) | 6.00(H type) |
| Rod length (mm) | 2.96(H type) |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

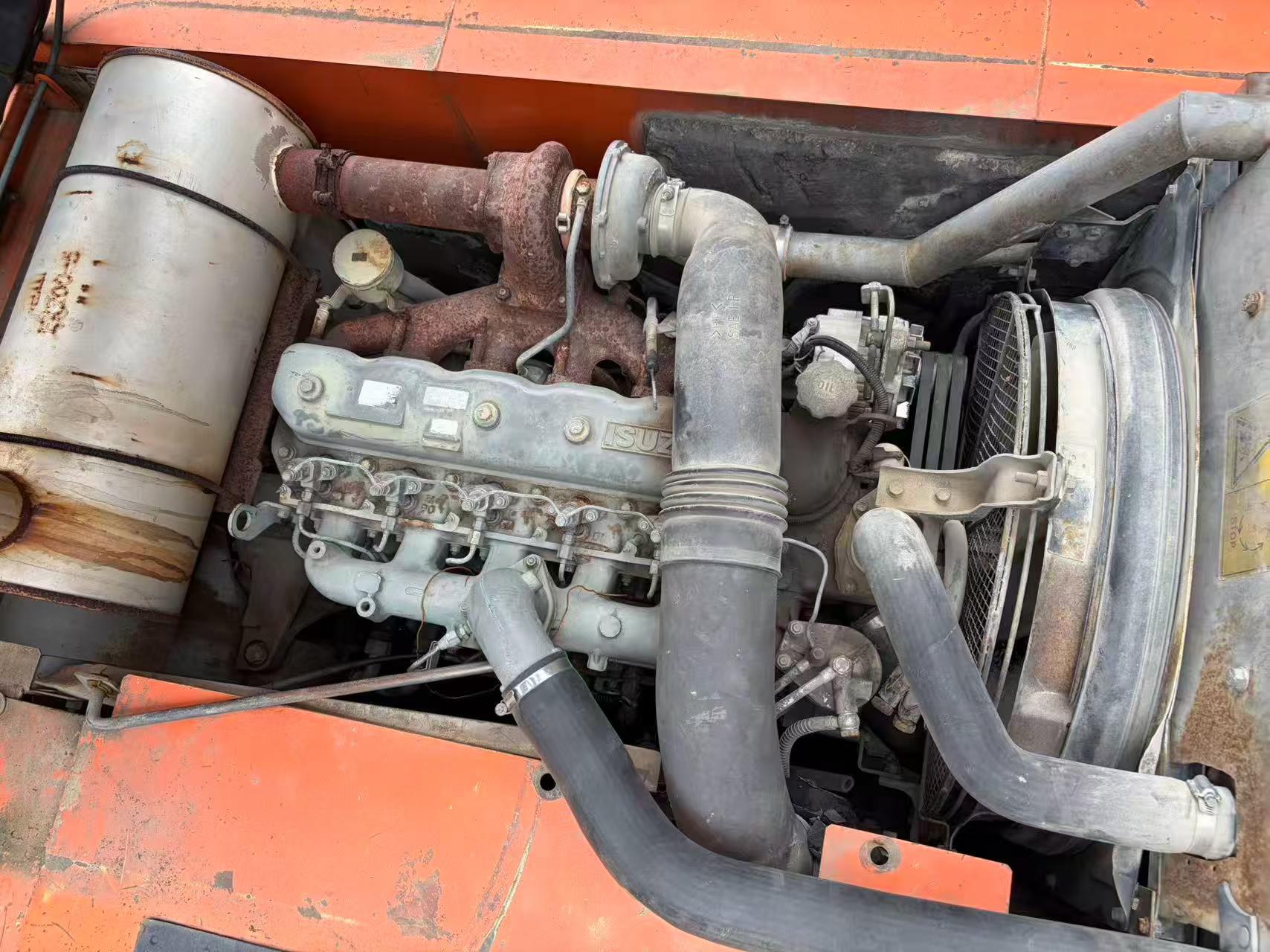

| Engine type | ISUZU CC-6BG1T |
| Rated power (kw/rpm) | 125/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 105 x 125 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.494 |
| Working form | 4 stroke, water cooled, direct injection, turbocharged, intercooled |
| Ground specific pressure (Kpa) | 51 |
| Rotation speed (rpm) | 13.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 18000 |
| Rod digging force (kN) | 125 |
| Travel speed (km/h) | 3.6/5.5 |
| Rotary hydraulic motor type | Axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor ×2 |
| Maximum flow of main pump (l/min) | 204 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 34.8 |
| Rotary Hydraulic Circuit (Mpa) | 31.4 |
| Main pump type | Variable axial piston pump ×2 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-130x90 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 105 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-125 x 85 |
| Fuel Tank (L) | 380 |
| Hydraulic Tank (L) | 148 |
| Engine Oil changes (L) | 25 |
| Coolant (L) | 23 |
| Hydraulic System (L) | 303 |
| Total transport length (mm) | 10140 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3100 |
| Full cab height (mm) | 3020 |
| Counterweight ground clearance (mm) | 1090 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4260 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3460 |
| Maximum digging radius (mm) | 10270 |
| Maximum digging depth (mm) | 6950 |
| Maximum excavation height (mm) | 9630 |
| Maximum unloading height (mm) | 6760 |
| Maximum vertical digging depth (mm) | 6020 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Boom turning Angle (left/right °) | There is no |
