Product Description

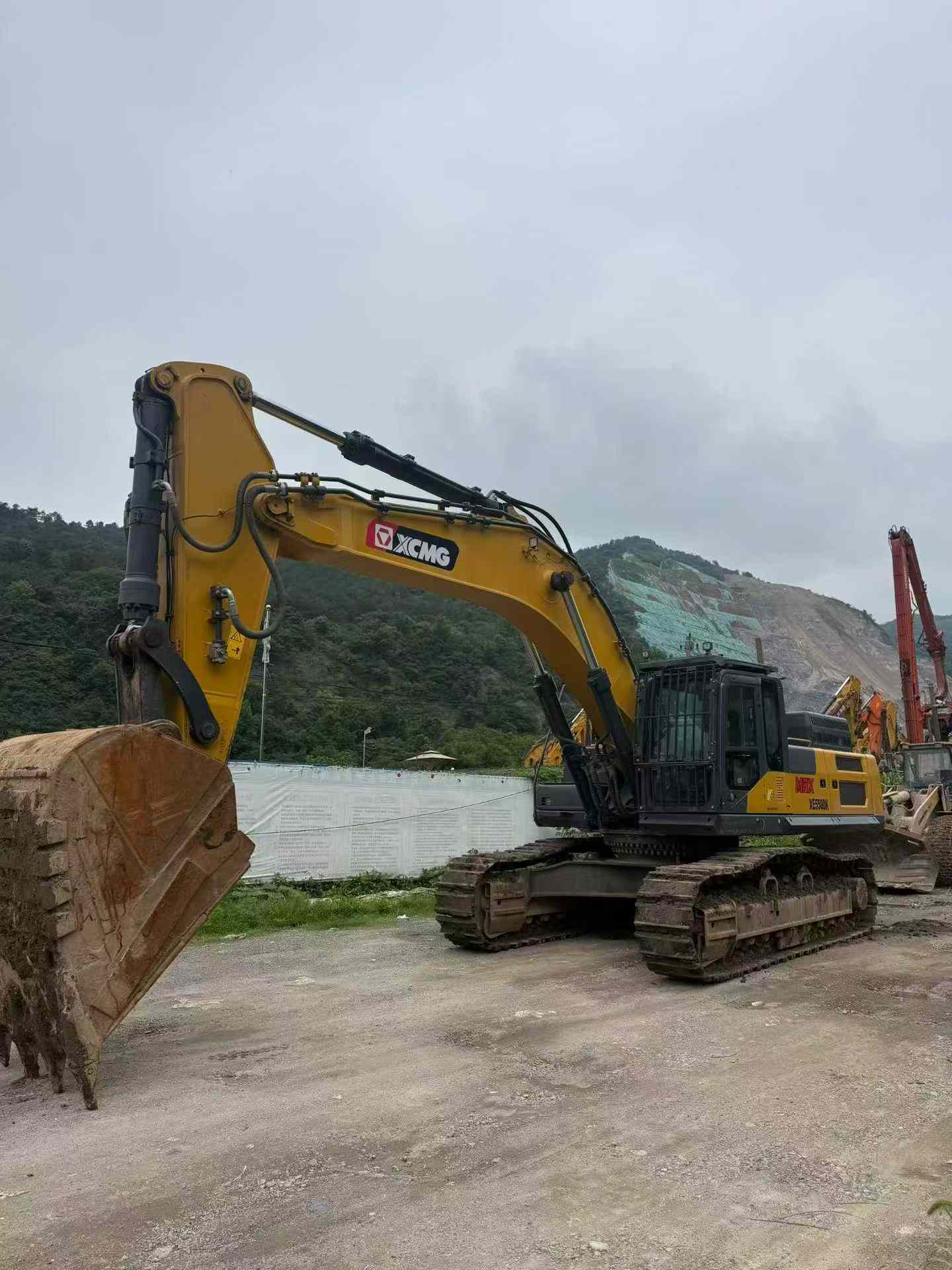

Powered by a Perkins 2206 III N engine, delivering 309.5 kW at 2100 rpm, the XCMG XE550DK excavator ensures robust performance and reliability. With a maximum torque of 1896 N.m at 1400 rpm, this machine is designed for heavy-duty tasks. Equipped with a dual main pump system, it provides a generous flow rate of 2*360 l/min, enhancing hydraulic efficiency and control.
- Working weight: 51,200 kg
- Boom length: 6,550 mm
- Rod length: 2,550 mm
- Bucket digging force: 330 kN
- Maximum tractive force: 370 kN
- Fuel tank capacity: 725 L
Manufactured in China, the XE550DK boasts a ground-specific pressure of 88 Kpa, ensuring stability and minimal ground impact. Its travel speed of 5.2/2.9 km/h and backhoe bucket make it versatile for various construction and excavation projects. This model series is engineered for precision and durability, making it a top choice for demanding environments.
| Specifications | Value |
|---|---|
| No. | 1085789 |
| Tonnage (tons) | 55 |
| Working weight (kg) | 51200 |
| Boom length (mm) | 6550 |
| Rod length (mm) | 2550 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Perkins 2206 III N |
| Rated power (kw/rpm) | 309.5/2100 |
| Maximum torque (N.m) | 1896/1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 13 |
| Ground specific pressure (Kpa) | 88 |
| Rotation speed (rpm) | 9.2 |
| Bucket digging force (kN) | 330 |
| Rod digging force (kN) | 255 |
| Maximum tractive force (kN) | 370 |
| Travel speed (km/h) | 5.2/2.9 |
| Maximum flow of main pump (l/min) | 2*360 |
| Fuel Tank (L) | 725 |
| Hydraulic Tank (L) | 430 |
| Engine Oil changes (L) | 42 |
| Total transport length (mm) | 11870 |
| Total transport width (mm) | 3572 |
| Total transport height (mm) | 4100 |
| Counterweight ground clearance (mm) | 1353 |
| Minimum ground clearance (mm) | 518 |
| Back end turning radius (mm) | 3800 |
| Total track length (mm) | 5470 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
