Product Description

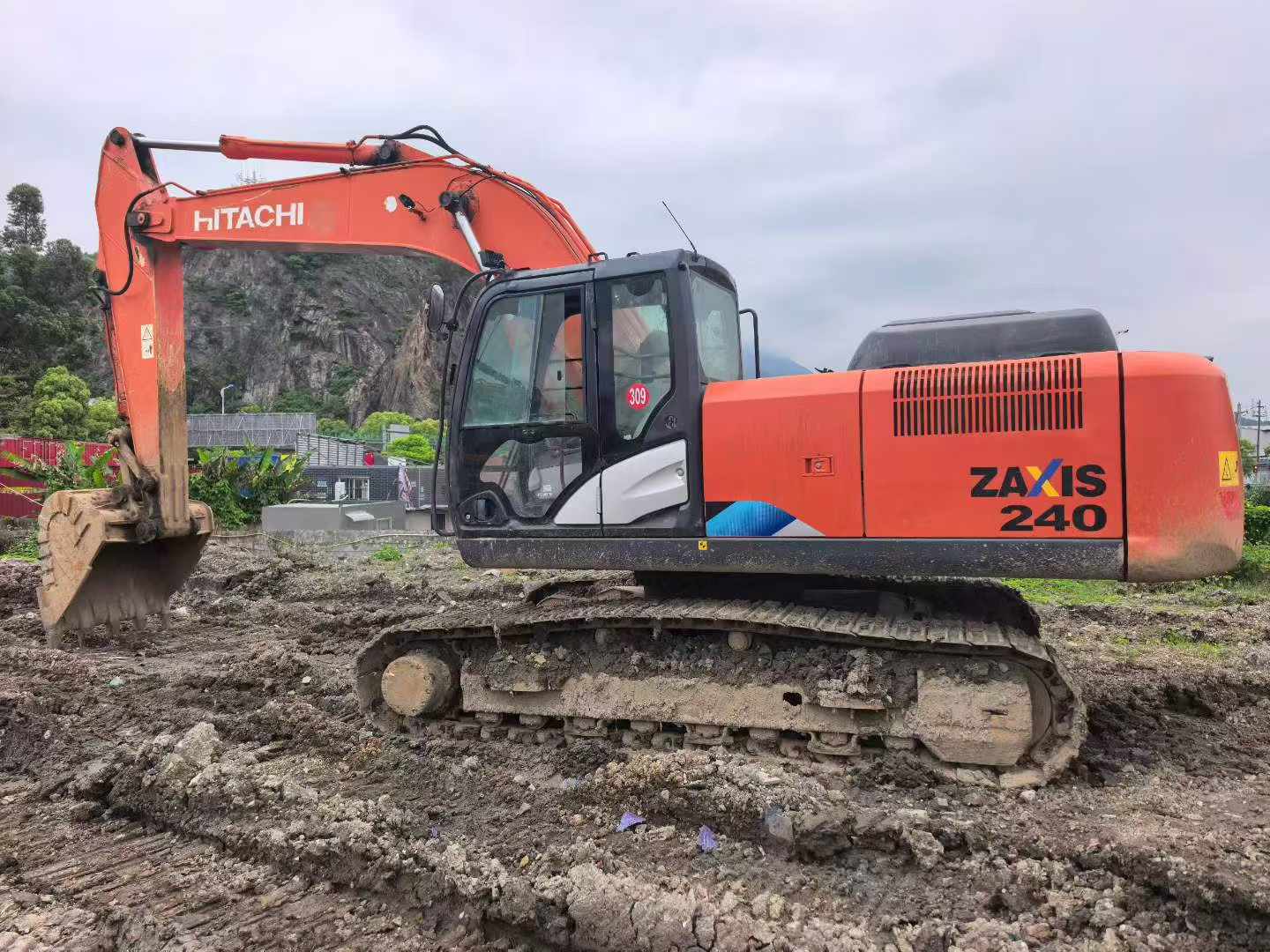

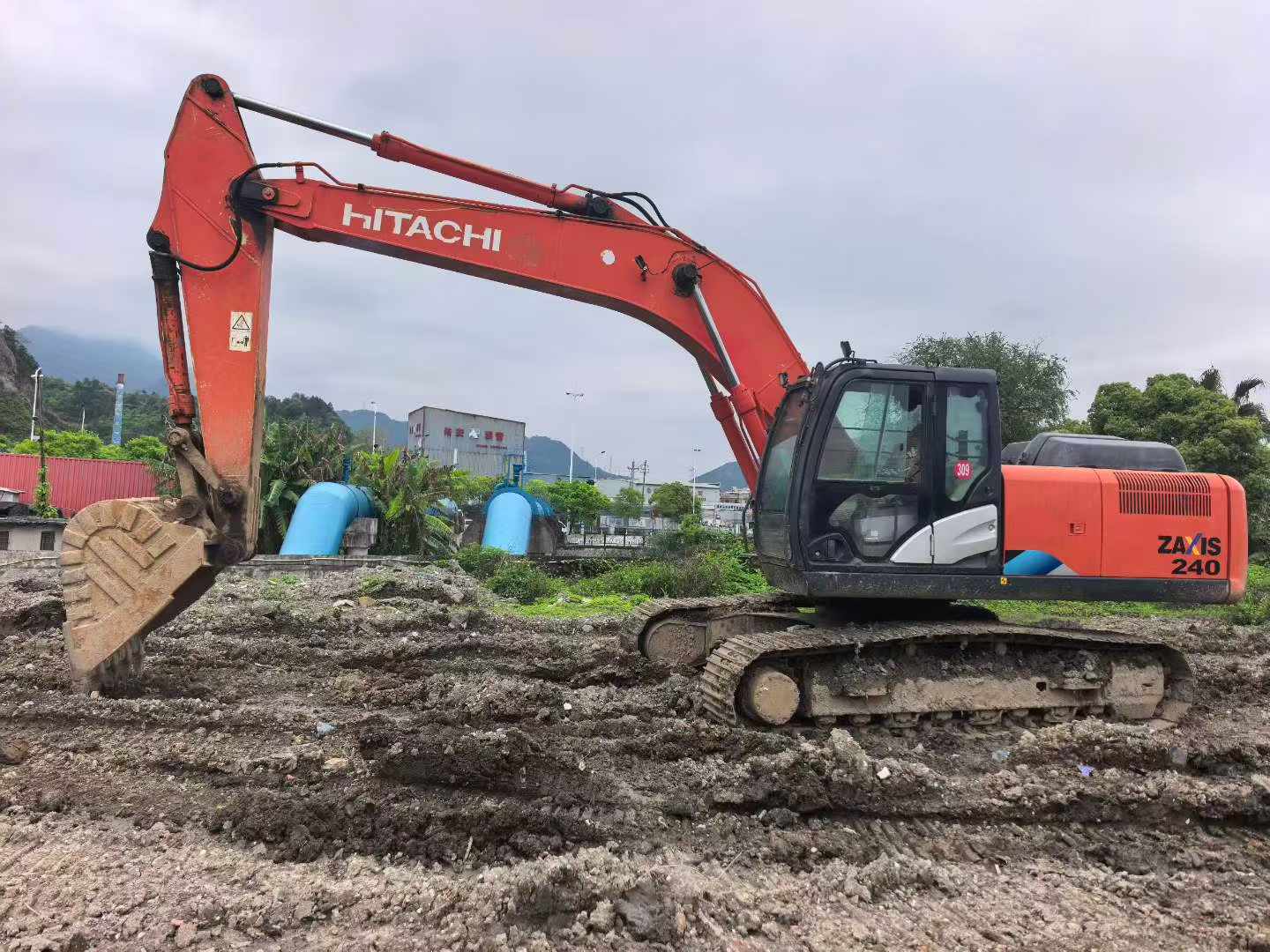

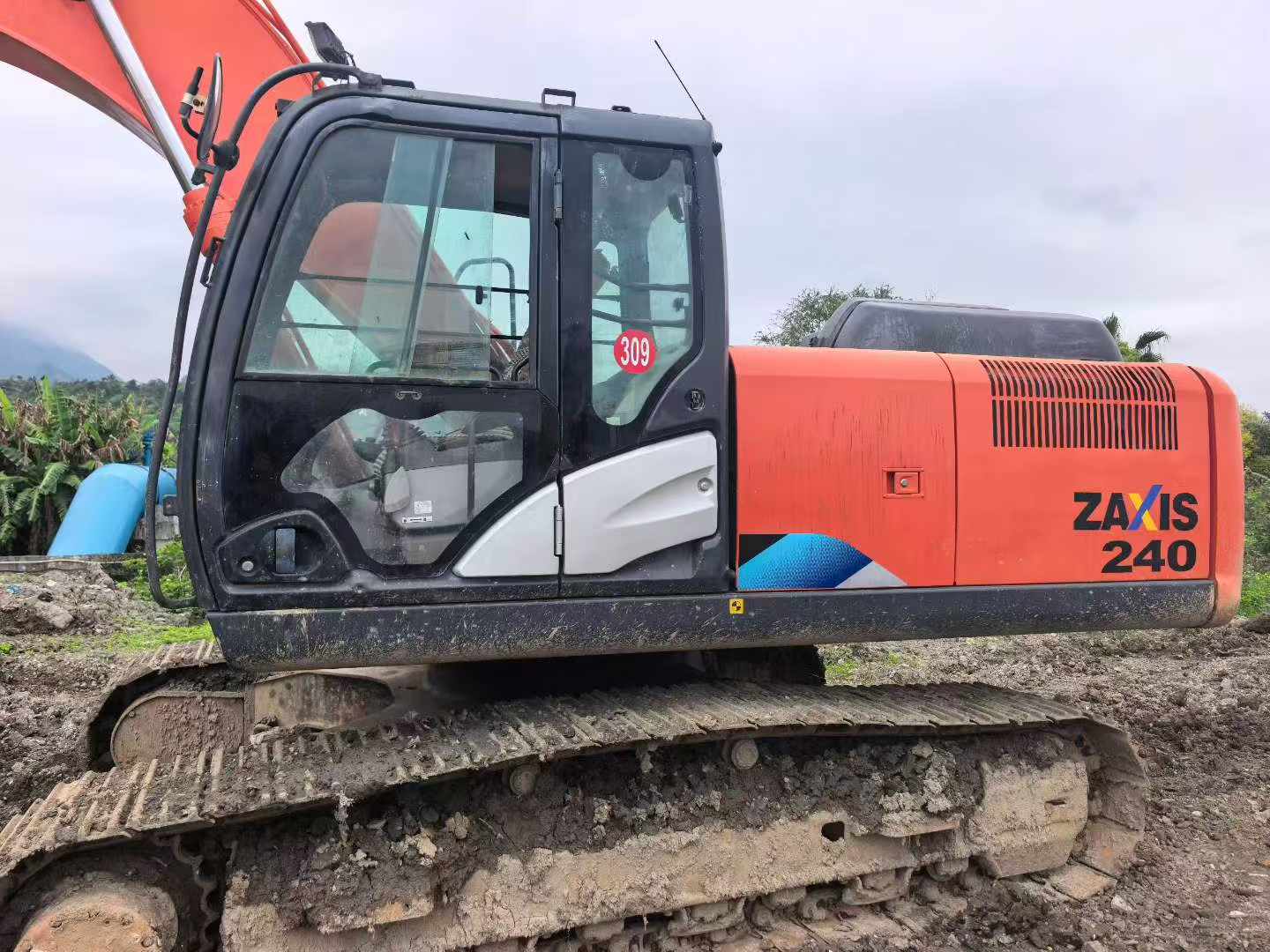

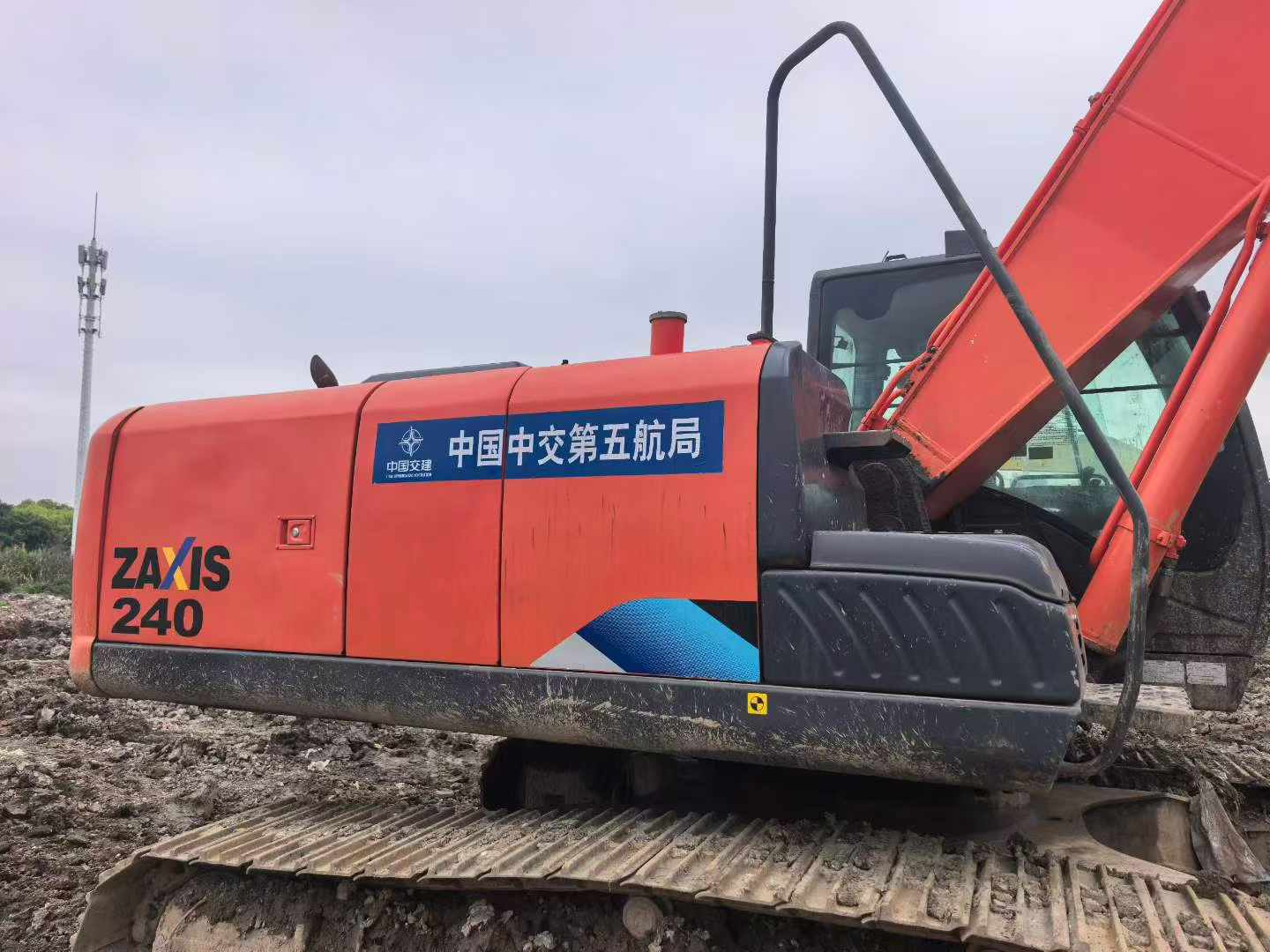

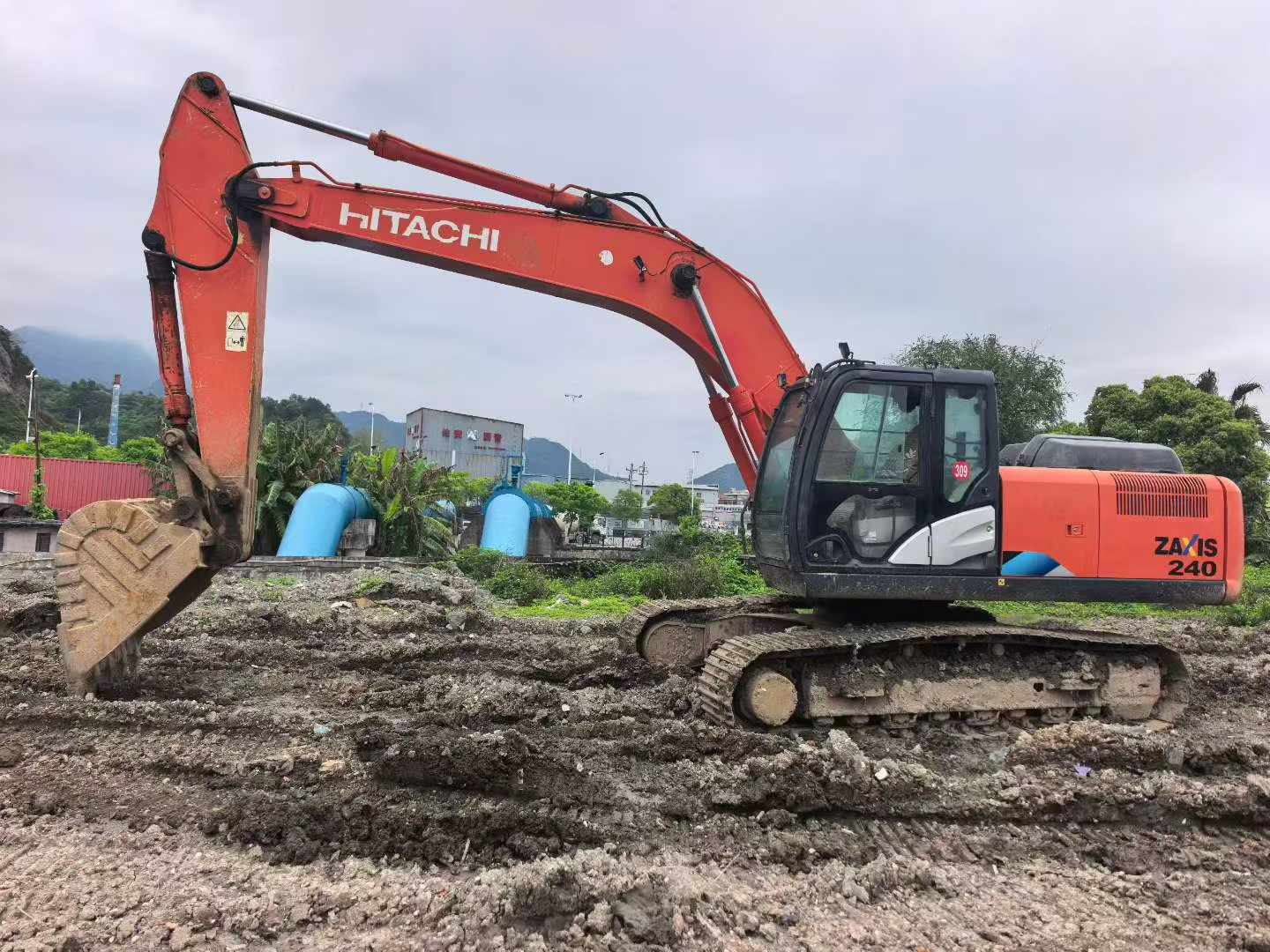

With a working weight of 24,300-24,400 kg and a powerful Isuzu GH-4HK1XKSA-01 engine, this 2021 Hitachi ZX240-5A excavator offers high performance at a fraction of the cost of new machinery. Featuring a robust 4-stroke, water-cooled, electronically controlled direct injection, turbocharged, and intercooled engine, it delivers 127 kW of power at 2000 rpm. Equipped with a 1.2-1.4 m³ bucket capacity and a 6000 mm boom length, this excavator is ideal for a wide range of construction and excavation tasks.
- Maximum digging depth: 6960 mm
- Bucket digging force: 188 kN
- Travel speed: 5.5/3.4 km/h
- Total transport dimensions: 10360 x 2990 x 3080 mm (LxWxH)
- Fuel tank capacity: 510 L
Located in Zhejiang, China, this used excavator is a smart investment, providing reliable and efficient operation for your projects. Save on initial costs without compromising on quality or performance. Invest wisely with Fair Trade Machinery.
| Specifications | Value |
|---|---|
| No. | 1057706 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 24300-24400 |

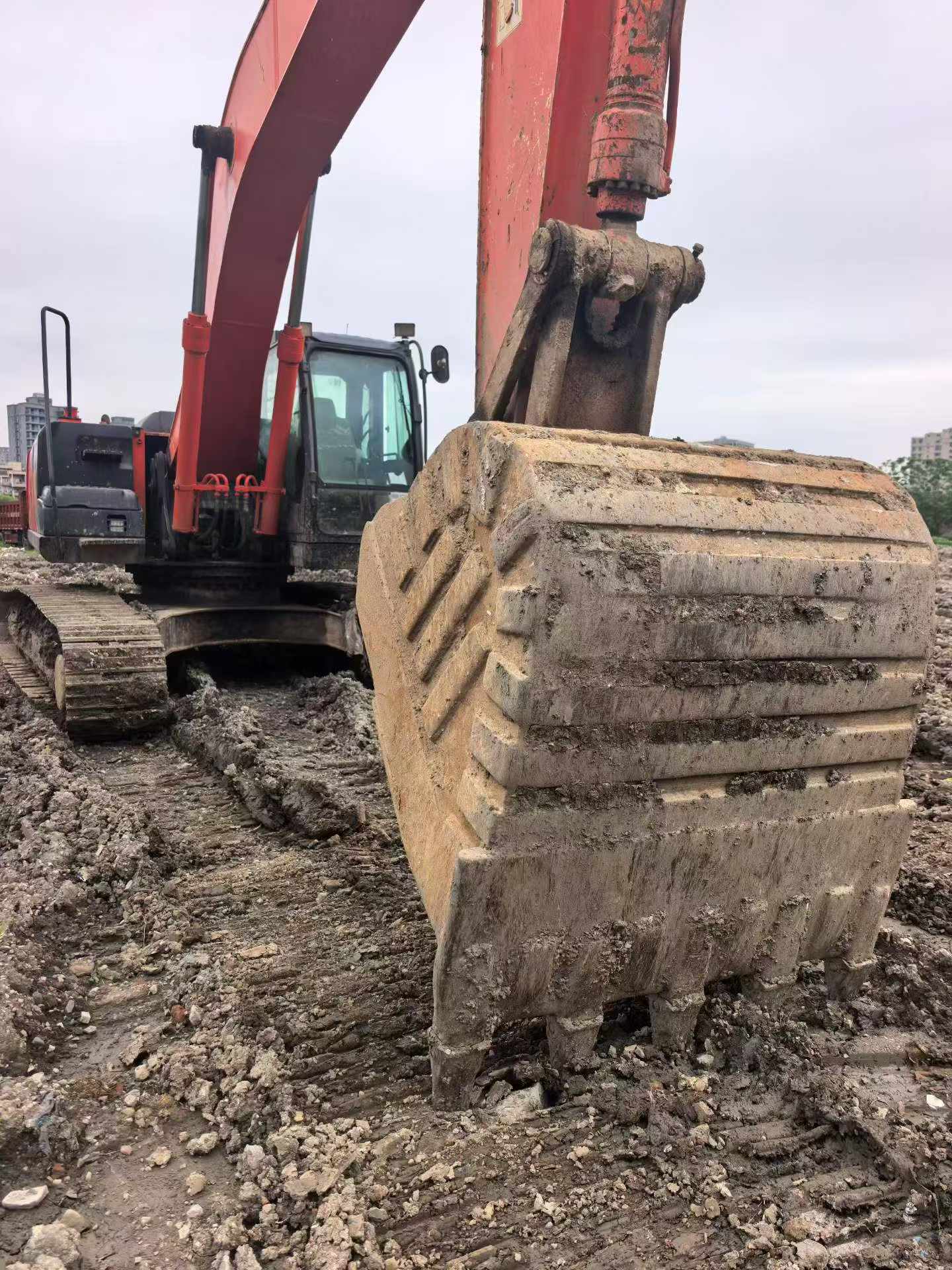

| Bucket capacity (m³) | 1.2-1.4 |
| Boom length (mm) | 6000 |
| Rod length (mm) | 2960 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu GH-4HK1XKSA-01 |
| Rated power (kw/rpm) | 127/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Maximum torque (N.m) | 640/1500 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.193 |
| Working form | 4-stroke, water-cooled, electronically controlled direct injection, turbocharged, intercooled |
| Ground specific pressure (Kpa) | 53 |
| Rotation speed (rpm) | 12.4 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 188 |
| Rod digging force (kN) | 131 |
| Maximum tractive force (kN) | 222 |
| Travel speed (km/h) | 5.5/3.4 |
| Turning torque (Nm) | 77.5 |
| Rotary hydraulic motor type | 1 swashplate plunger motor |
| Type of walking hydraulic motor | 2 variable swash plate plunger motor |
| Maximum flow of main pump (l/min) | 2 x 224 + 32 |
| Traveling Hydraulic Circuit (Mpa) | 34.8 |
| Rotary Hydraulic Circuit (Mpa) | 32.4 |

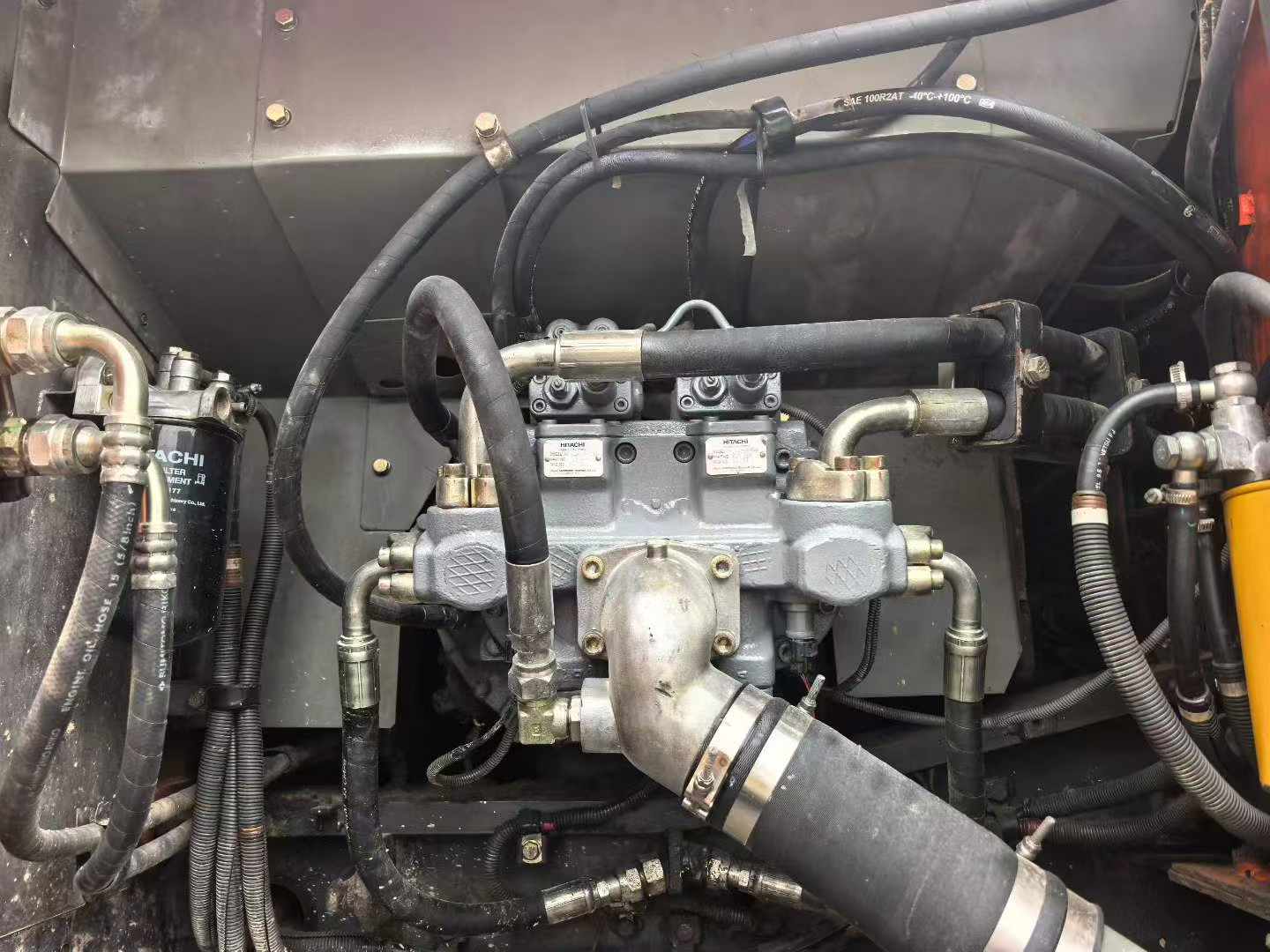

| Main pump type | 2 variable axial piston pumps +1 gear pump |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 130 x 90 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 140 x 100 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 125 x 90 |
| Fuel Tank (L) | 510 |
| Hydraulic Tank (L) | 156 |
| Engine Oil changes (L) | 23 |
| Coolant (L) | 31 |
| Hydraulic System (L) | 280 |
| Total transport length (mm) | 10360 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3080 |
| Full cab height (mm) | 3010 |
| Counterweight ground clearance (mm) | 1080 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3440 |
| Back end turning radius (mm) | 3140 |

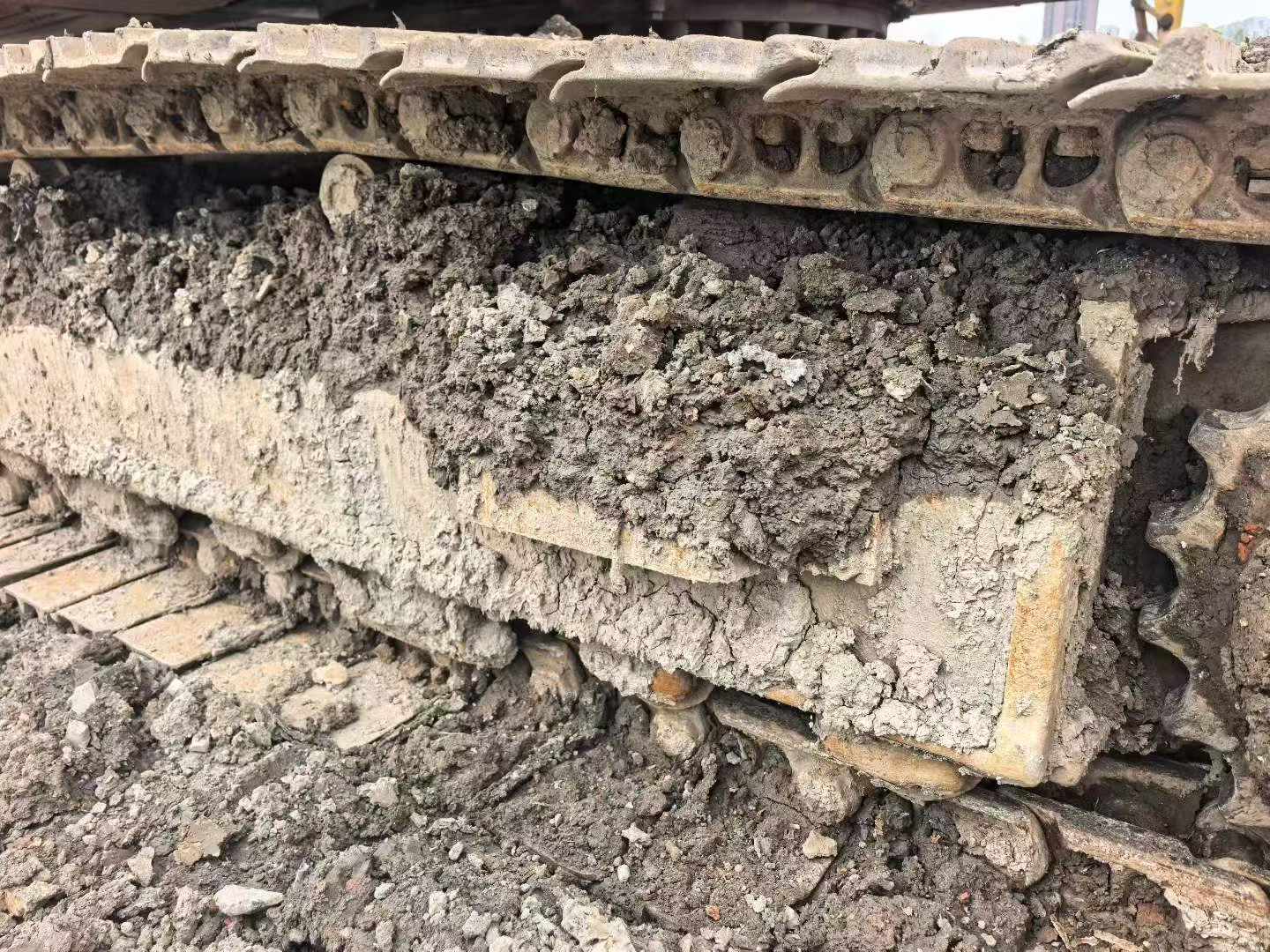

| Total track length (mm) | 4260 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3460 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10290 |
| Maximum digging depth (mm) | 6960 |
| Maximum excavation height (mm) | 10160 |
| Maximum unloading height (mm) | 7200 |
| Maximum vertical digging depth (mm) | 6030 |
| Maximum excavation radius of stop surface (mm) | 10110 |
