Product Description

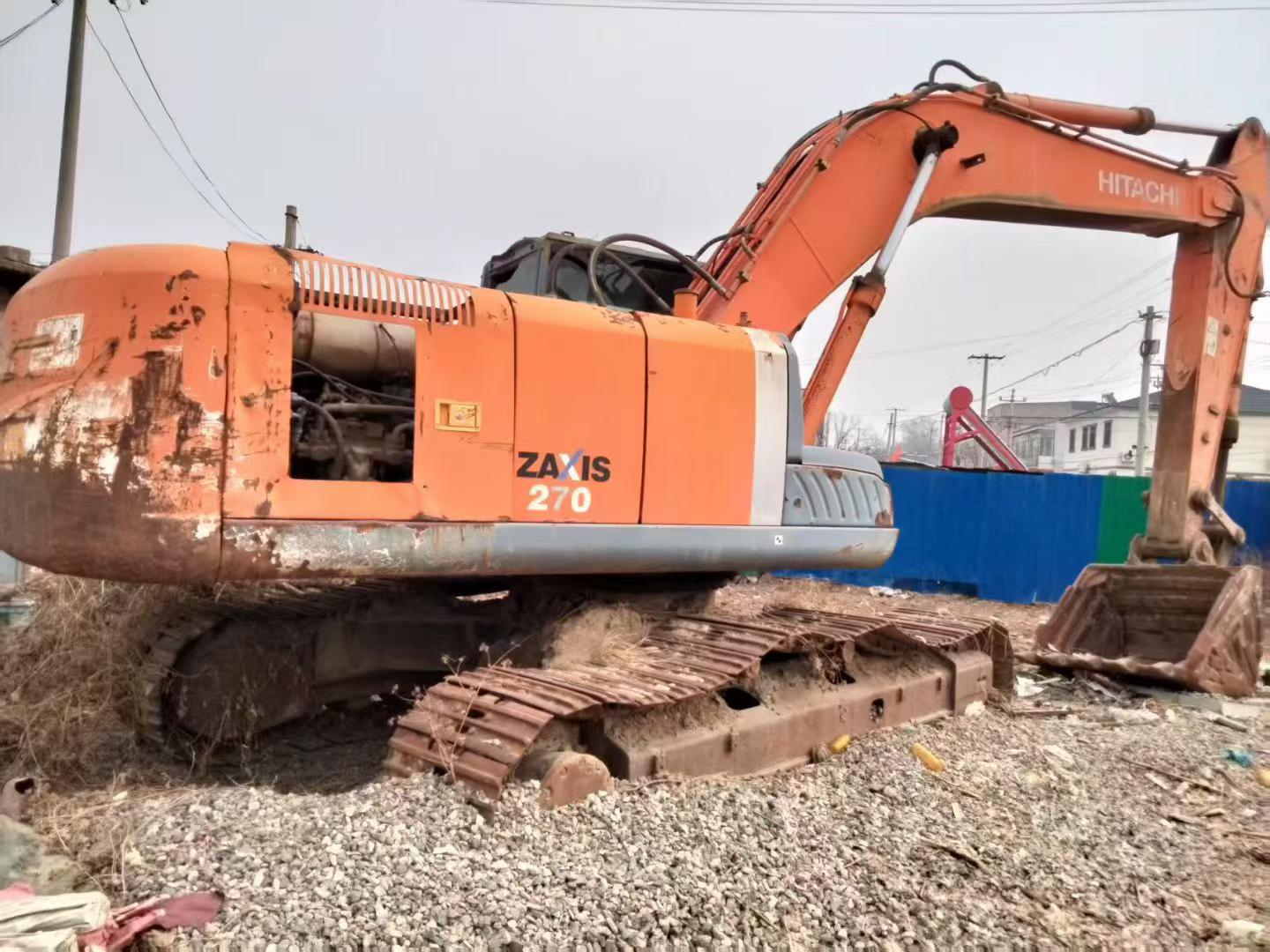

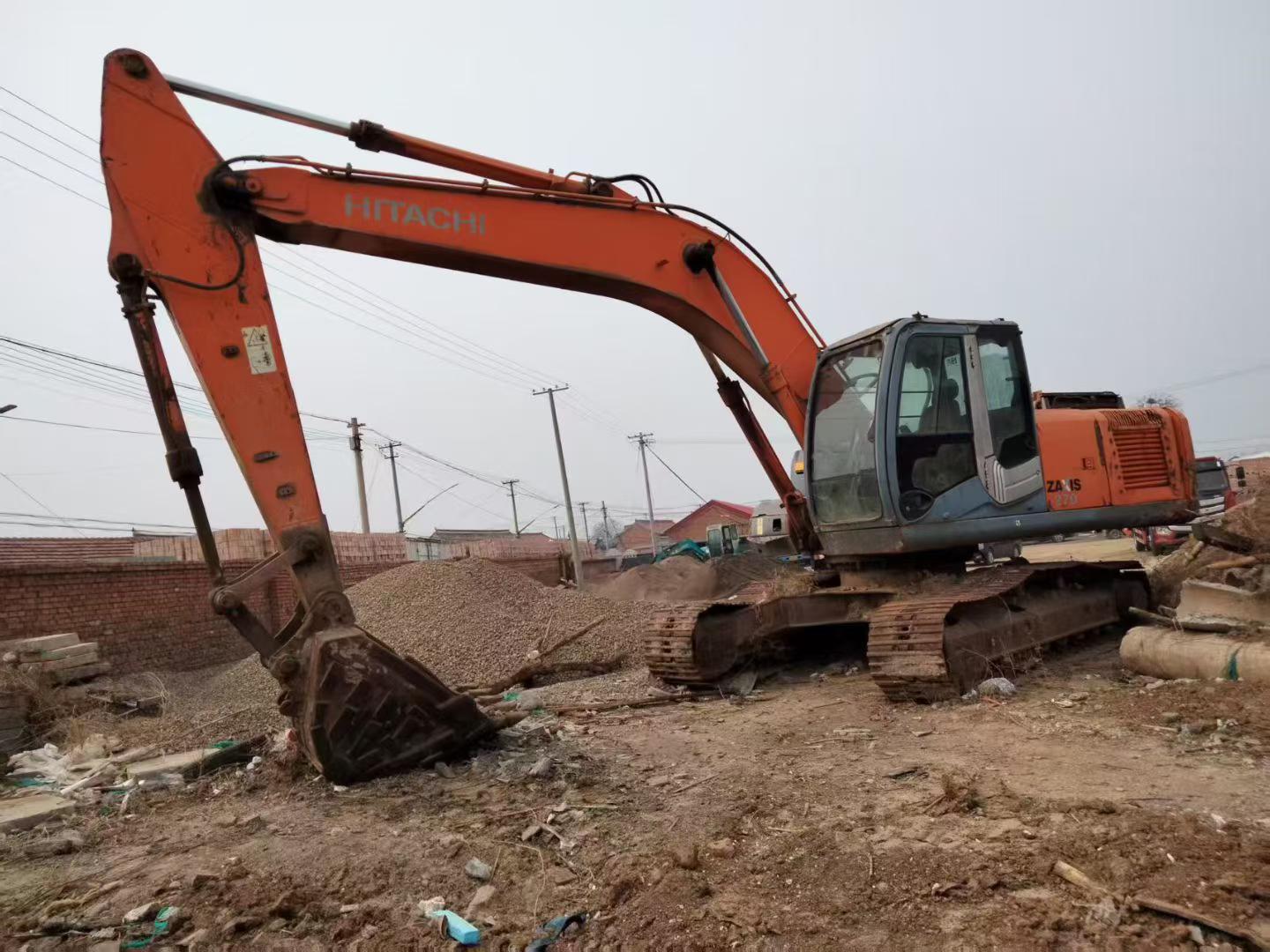

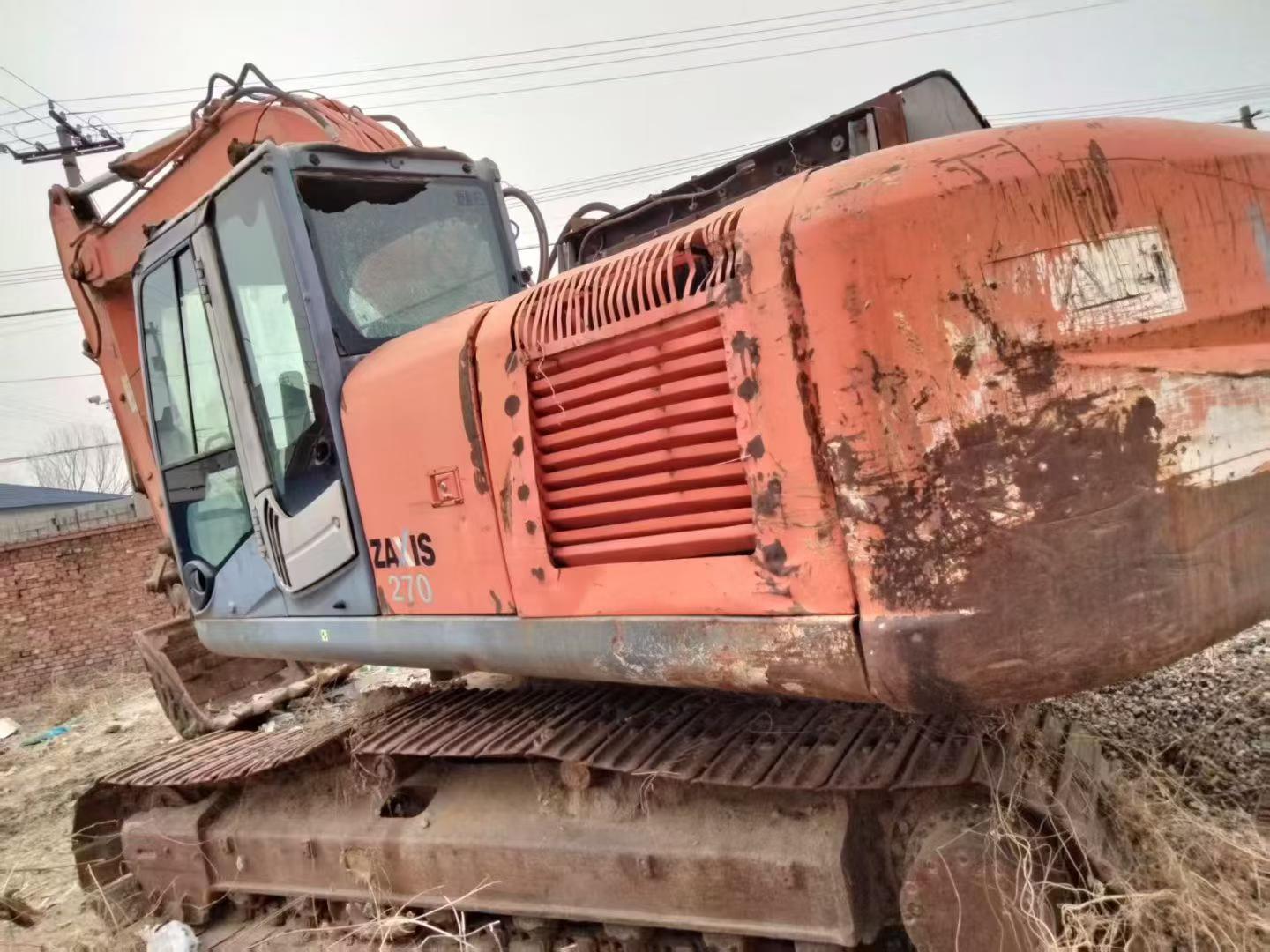

Featuring a 27-ton working weight and a robust ISUZU AH-4HK1X engine, this 2016 Hitachi ZX270-3 excavator offers high performance at a fraction of the cost of new machinery. With a bucket capacity of 1.3 m³ and a digging force of 193 kN, it is designed for efficiency and power. Located in Hunan, this machine boasts a travel speed of up to 5.5 km/h and a maximum digging depth of 7230 mm, making it ideal for a wide range of construction and excavation tasks. Equipped with a water-cooled, direct injection, turbocharged engine, it delivers reliable operation even in challenging conditions. The ZX270-3 includes advanced hydraulic systems, such as a variable piston pump and axial piston motors, ensuring smooth and precise control. Invest wisely with this used Hitachi excavator, which provides a smart, cost-effective solution without compromising on quality or performance.
| Specifications | Value |
|---|---|
| No. | 1033549 |
| Tonnage (tons) | 27 |
| Working weight (kg) | 27700 |
| Bucket capacity (m³) | 1.3 |
| Boom length (mm) | 6.2 |
| Rod length (mm) | 3.11 |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |

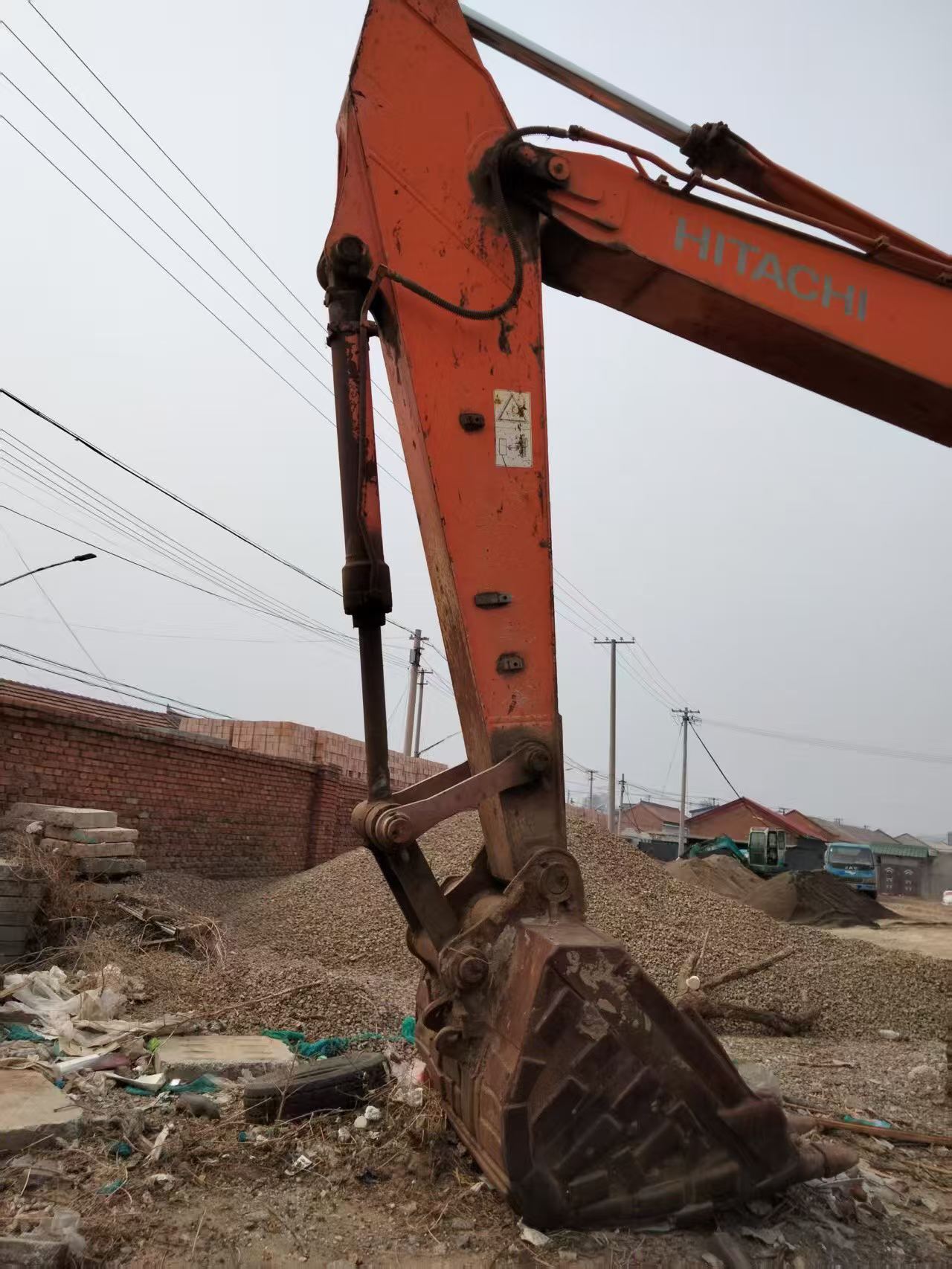

| bucket | backhoe |

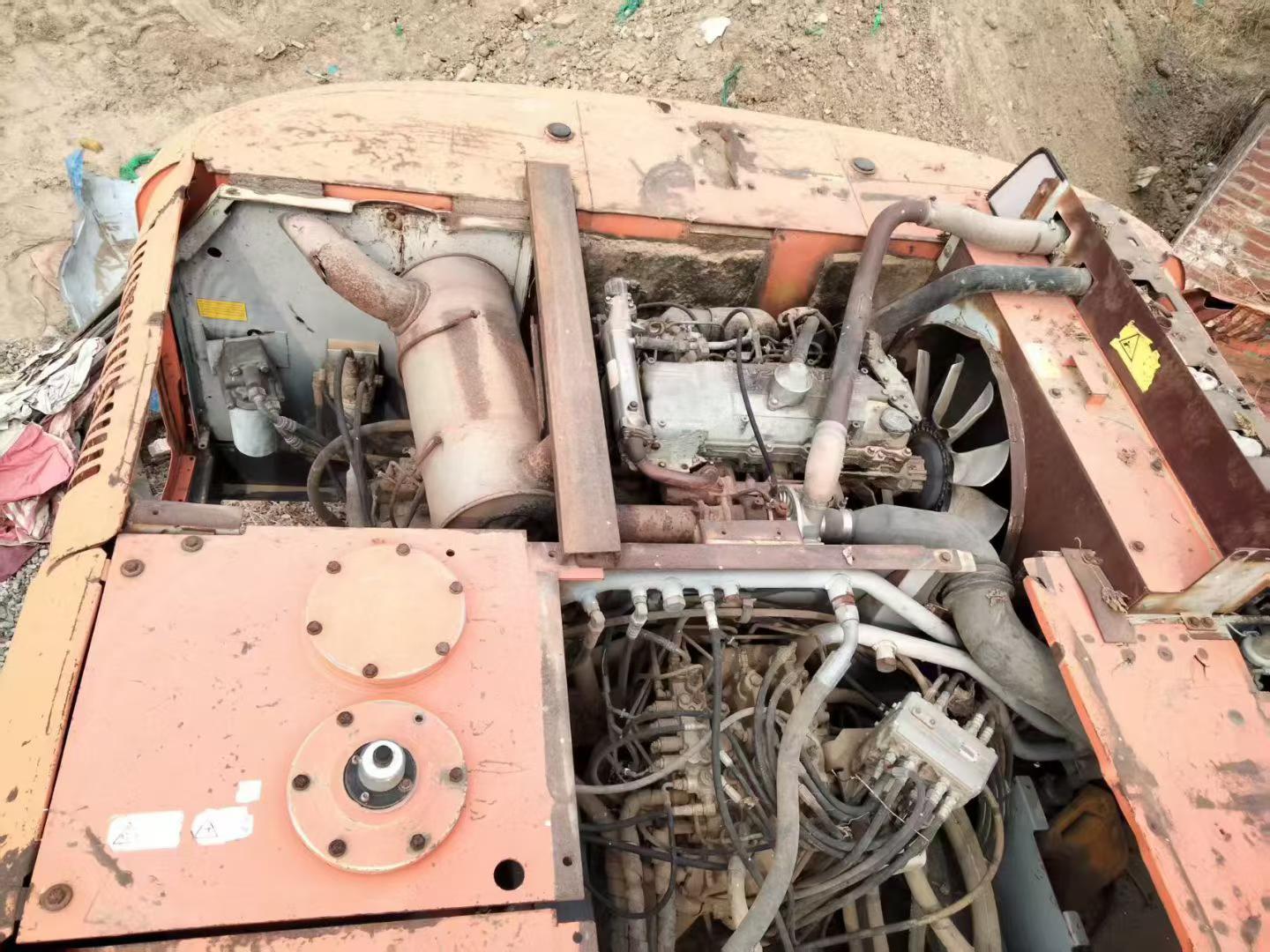

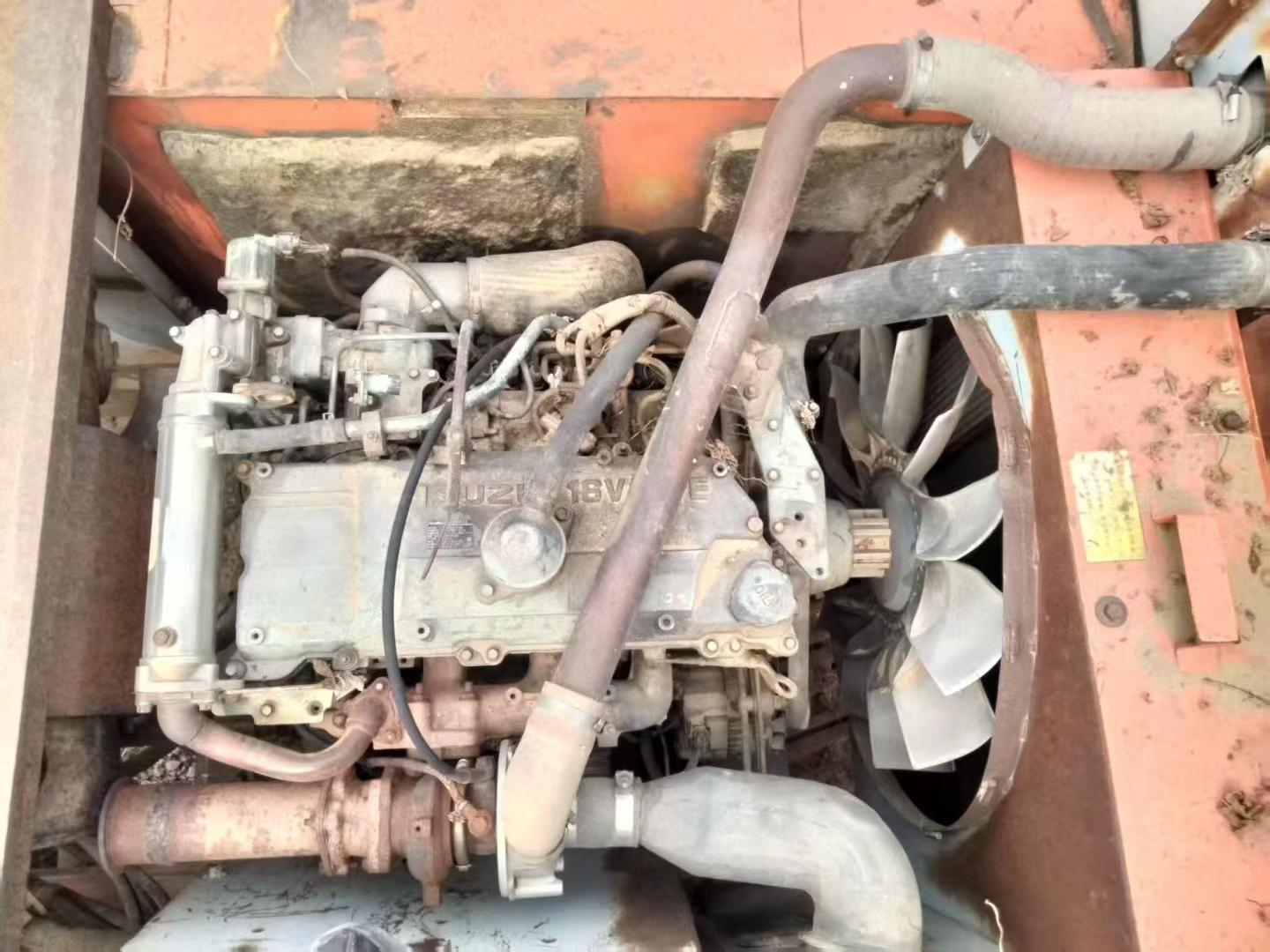

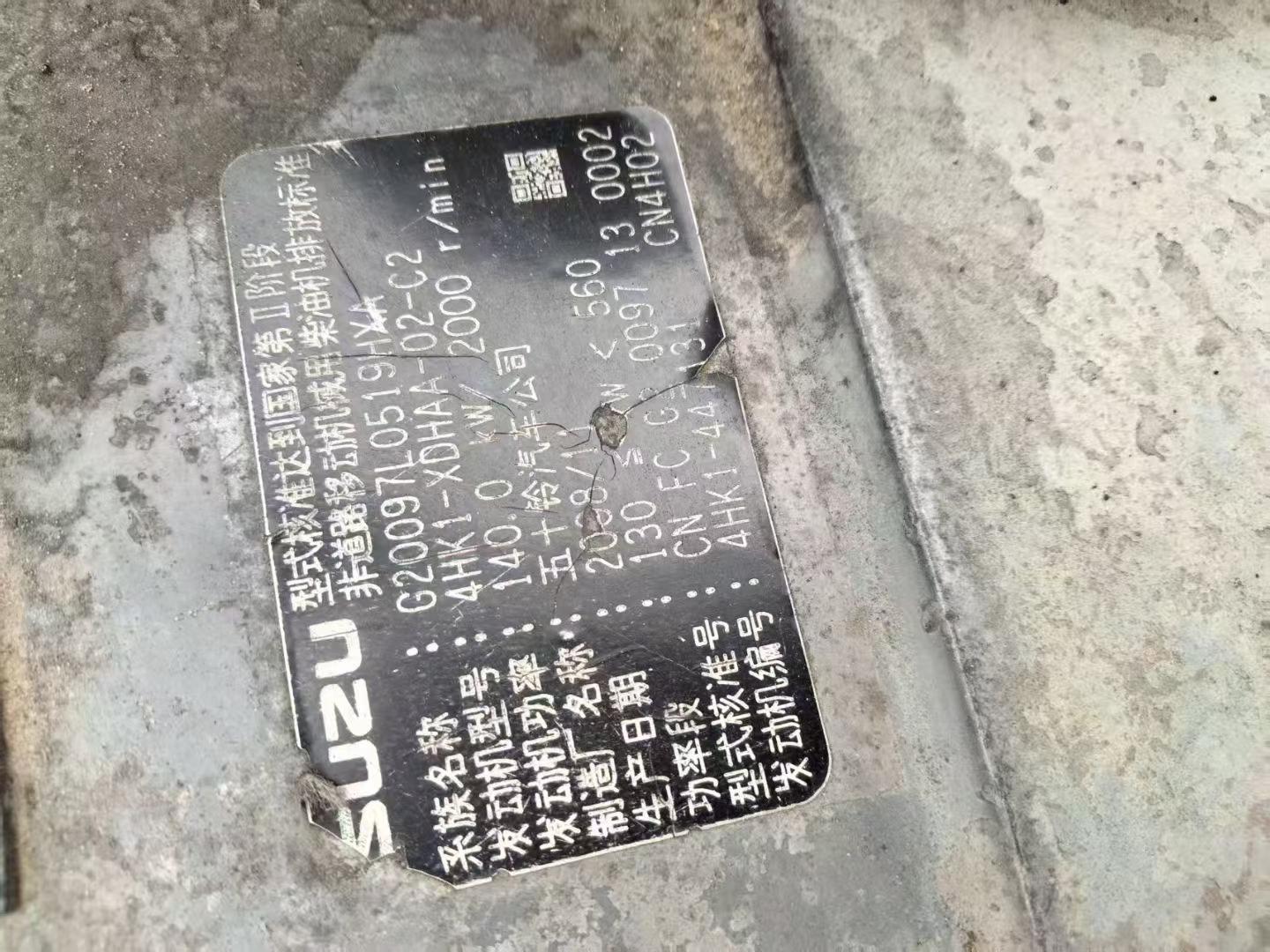

| Engine type | ISUZU AH-4HK1X |
| Rated power (kw/rpm) | 132/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.193 |
| Working form | Direct injection, turbocharged, with intercooler |
| Ground specific pressure (Kpa) | 56 |
| Rotation speed (rpm) | 12.6 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 193 |
| Rod digging force (kN) | 137 |
| Travel speed (km/h) | 3.3/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |

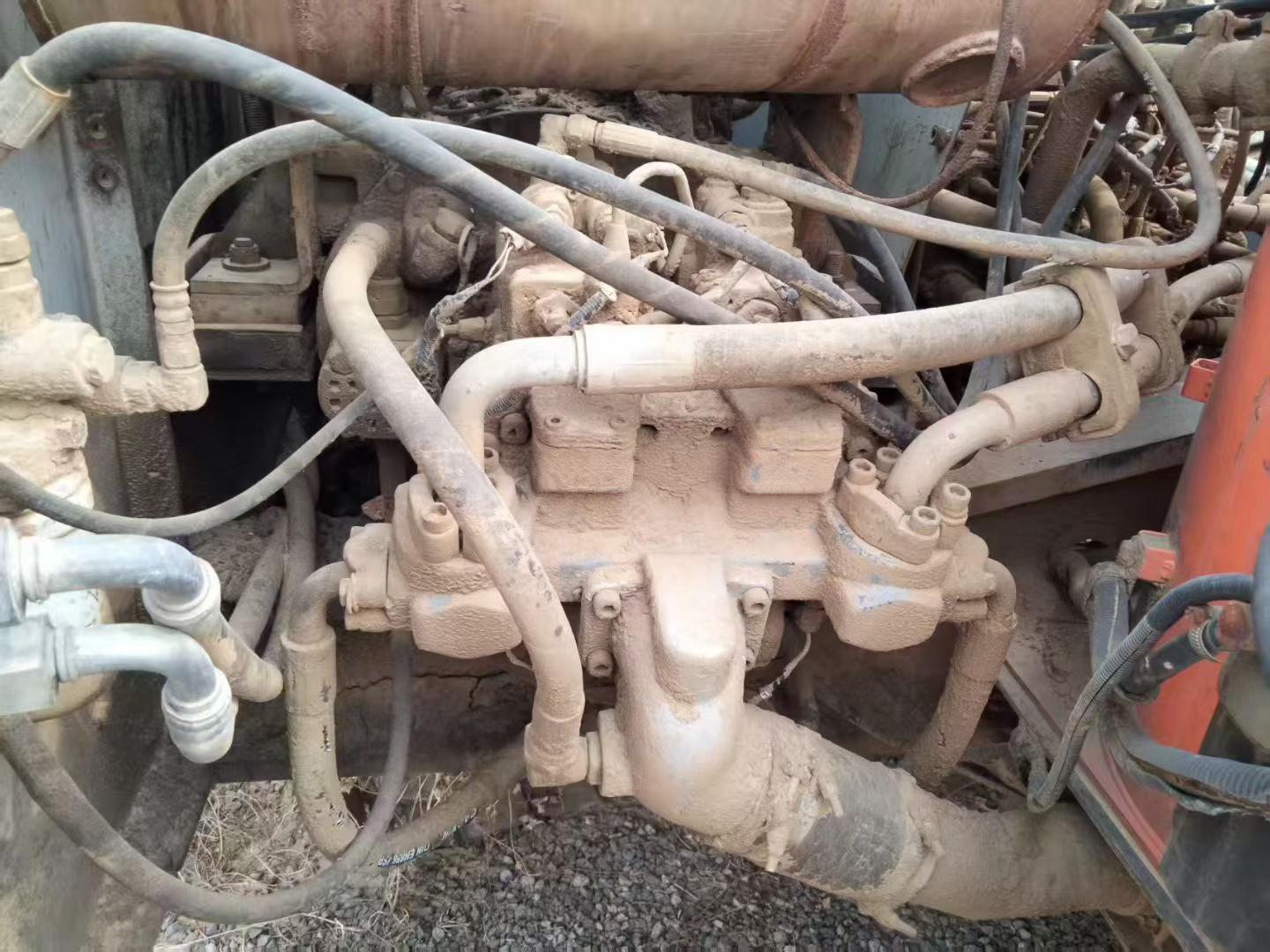

| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable axial piston motor ×2 |
| Maximum flow of main pump (l/min) | 2 x 224 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 32.4 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 130 x 90 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 x 100 |
| Boom cylinders - Number × diameter × stroke (mm) | 126 x 90 |
| Fuel Tank (L) | 500 |
| Hydraulic Tank (L) | 156/243(full container) |
| Engine Oil changes (L) | 23 |
| Coolant (L) | 26 |
| Total transport length (mm) | 10340 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3170 |
| Full cab height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1180 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4670 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3730 |
| Maximum digging radius (mm) | 10710 |
| Maximum digging depth (mm) | 7230 |
| Maximum excavation height (mm) | 10260 |
| Maximum unloading height (mm) | 7310 |
| Maximum vertical digging depth (mm) | 6480 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
