Product Description

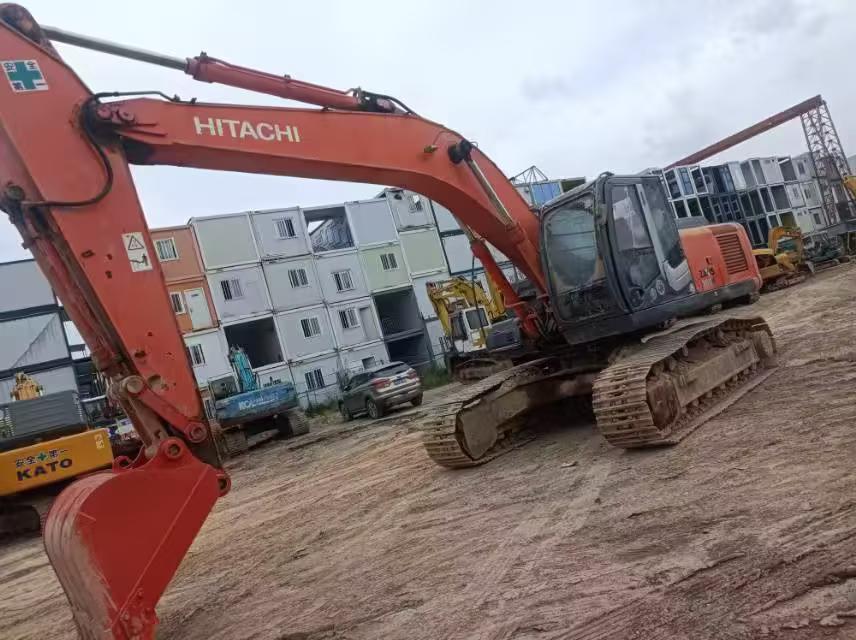

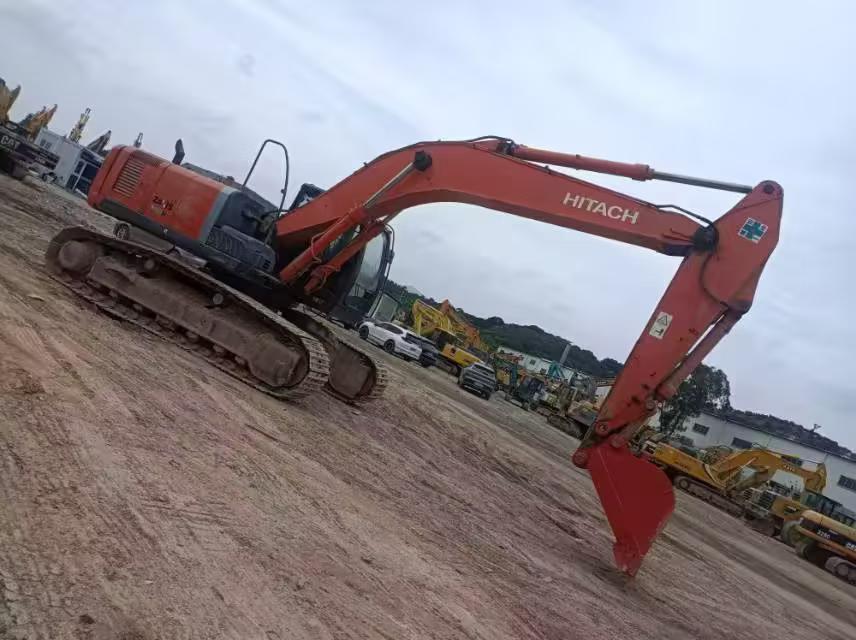

This 2020 Hitachi ZX270-3 excavator is currently located in Guangdong, China and available for immediate inspection. The machine presents in excellent cosmetic condition with competitive pricing that reflects its well-maintained status and operational readiness.
The ZX270-3 represents Hitachi's proven hydraulic excavator platform, offering reliable performance for general earthmoving, site development, and material handling applications. This unit benefits from Hitachi's HIOS III hydraulic system, delivering efficient fuel consumption and responsive control across varied jobsite demands.
- Operating weight class: approximately 27 tonnes
- Engine: Isuzu turbocharged diesel
- Suitable for infrastructure, mining, and construction projects
- Current location: Guangdong Province, China
- Competitive pricing for quality and year
Inspection and third-party verification can be arranged. Contact us for detailed specifications, service records, and export documentation assistance.
| Specifications | Value |
|---|---|
| No. | 1145834 |
| Tonnage (tons) | 27 |
| Working weight (kg) | 27700 |
| Bucket capacity (m³) | 1.3 |
| Boom length (mm) | 6.2 |
| Rod length (mm) | 3.11 |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

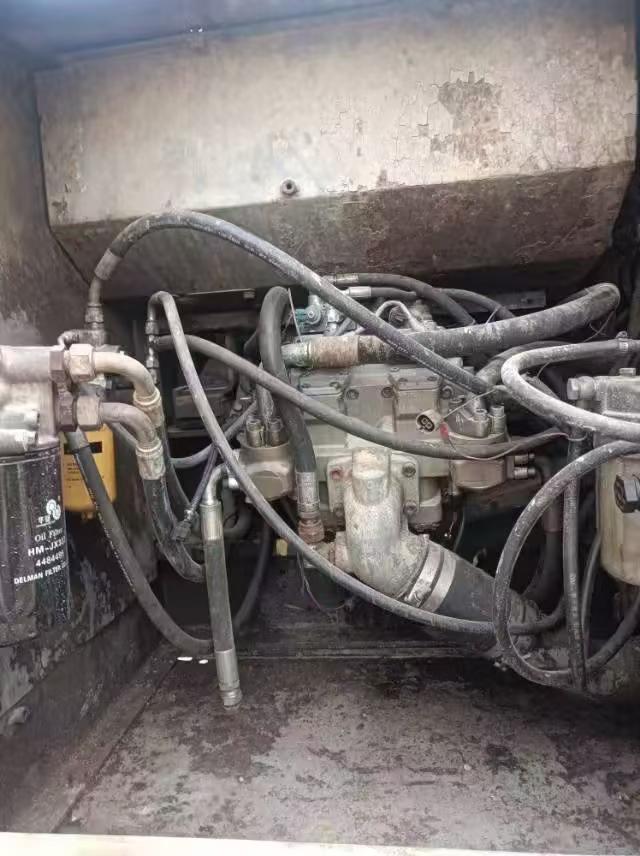

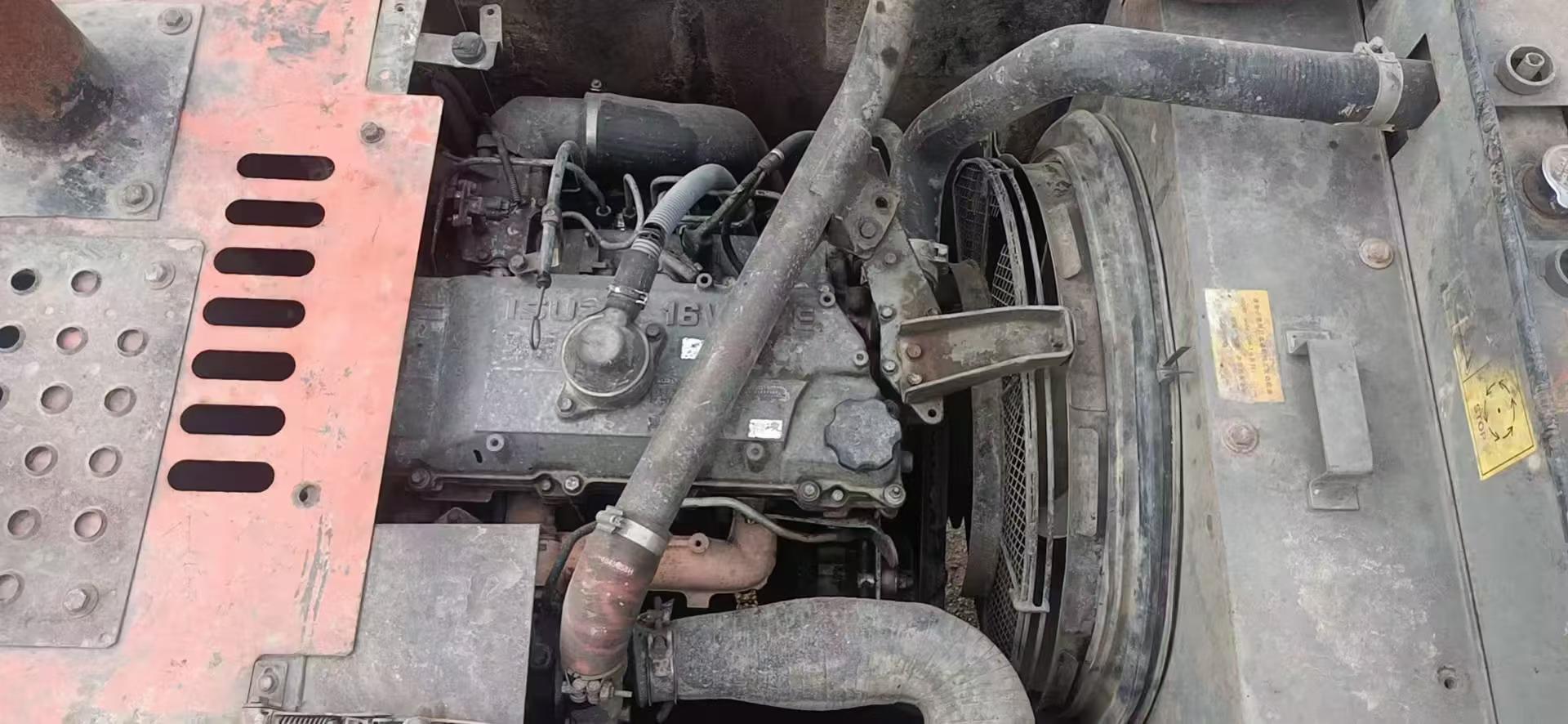

| Engine type | ISUZU AH-4HK1X |
| Rated power (kw/rpm) | 132/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.193 |
| Working form | Direct injection, turbocharged, with intercooler |
| Ground specific pressure (Kpa) | 56 |
| Rotation speed (rpm) | 12.6 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 193 |
| Rod digging force (kN) | 137 |
| Travel speed (km/h) | 3.3/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |

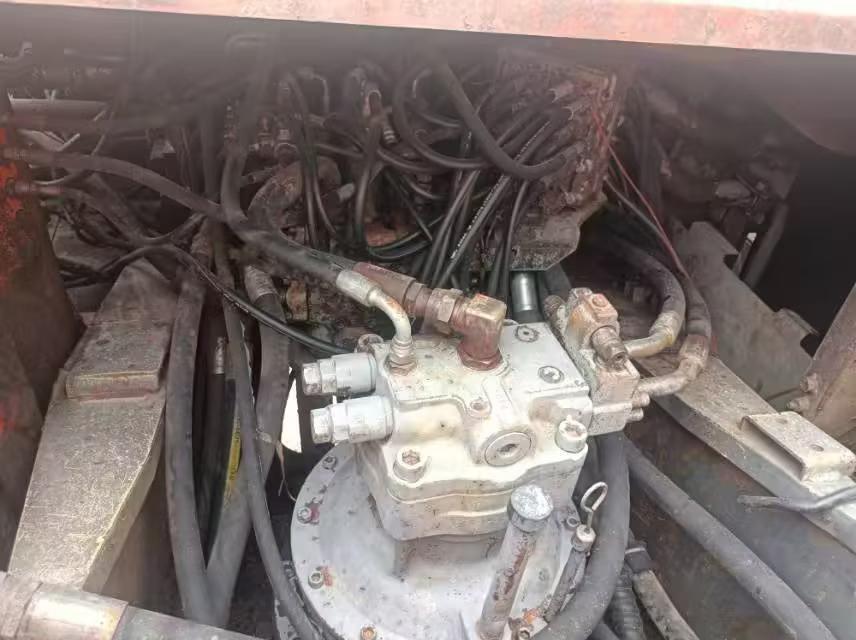

| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable axial piston motor ×2 |
| Maximum flow of main pump (l/min) | 2 x 224 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 32.4 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 130 x 90 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 x 100 |
| Boom cylinders - Number × diameter × stroke (mm) | 126 x 90 |
| Fuel Tank (L) | 500 |
| Hydraulic Tank (L) | 156/243(full container) |
| Engine Oil changes (L) | 23 |
| Coolant (L) | 26 |
| Total transport length (mm) | 10340 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3170 |
| Full cab height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1180 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4670 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3730 |
| Maximum digging radius (mm) | 10710 |
| Maximum digging depth (mm) | 7230 |
| Maximum excavation height (mm) | 10260 |
| Maximum unloading height (mm) | 7310 |
| Maximum vertical digging depth (mm) | 6480 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
