Product Description

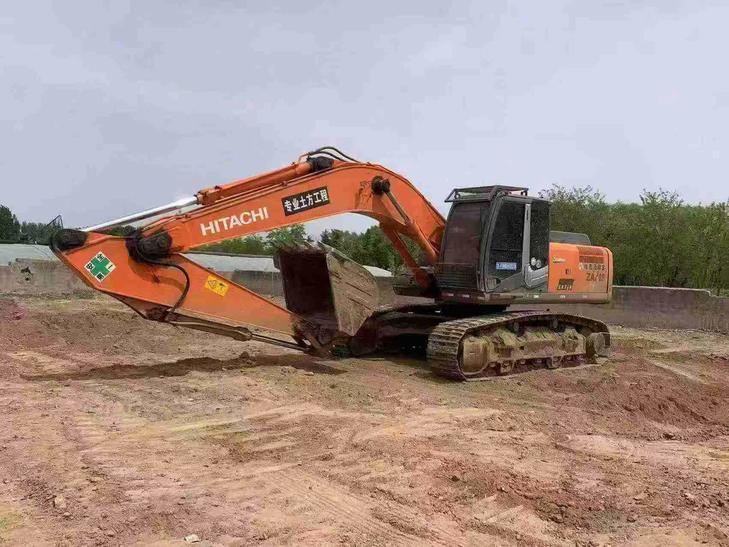

This 2020 Hitachi ZX270-3 hydraulic excavator is available in Beijing, China. Known for its operational efficiency and smooth digging performance, this machine has been well-maintained and is ready for immediate deployment on your worksite.
Key features include:
- Fast cycle times with responsive hydraulic system
- Smooth, controlled digging action for precision work
- Fully functional electrical systems verified
- Available for on-site inspection and test operation
- Comprehensive photo and video documentation available
The ZX270-3 delivers reliable performance for excavation, grading, and material handling applications. This unit has been thoroughly inspected and is supplied with detailed visual documentation. Prospective buyers are welcome to arrange field testing at the Beijing location to verify machine condition and operational capabilities.
| Specifications | Value |
|---|---|
| No. | 1172023 |
| Tonnage (tons) | 27 |
| Working weight (kg) | 27700 |
| Bucket capacity (m³) | 1.3 |
| Boom length (mm) | 6.2 |
| Rod length (mm) | 3.11 |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AH-4HK1X |
| Rated power (kw/rpm) | 132/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.193 |
| Working form | Direct injection, turbocharged, with intercooler |
| Ground specific pressure (Kpa) | 56 |
| Rotation speed (rpm) | 12.6 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 193 |
| Rod digging force (kN) | 137 |
| Travel speed (km/h) | 3.3/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable axial piston motor ×2 |
| Maximum flow of main pump (l/min) | 2 x 224 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 32.4 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 130 x 90 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 x 100 |
| Boom cylinders - Number × diameter × stroke (mm) | 126 x 90 |
| Fuel Tank (L) | 500 |
| Hydraulic Tank (L) | 156/243(full container) |
| Engine Oil changes (L) | 23 |
| Coolant (L) | 26 |
| Total transport length (mm) | 10340 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3170 |
| Full cab height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1180 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4670 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3730 |
| Maximum digging radius (mm) | 10710 |
| Maximum digging depth (mm) | 7230 |
| Maximum excavation height (mm) | 10260 |
| Maximum unloading height (mm) | 7310 |
| Maximum vertical digging depth (mm) | 6480 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
