Product Description

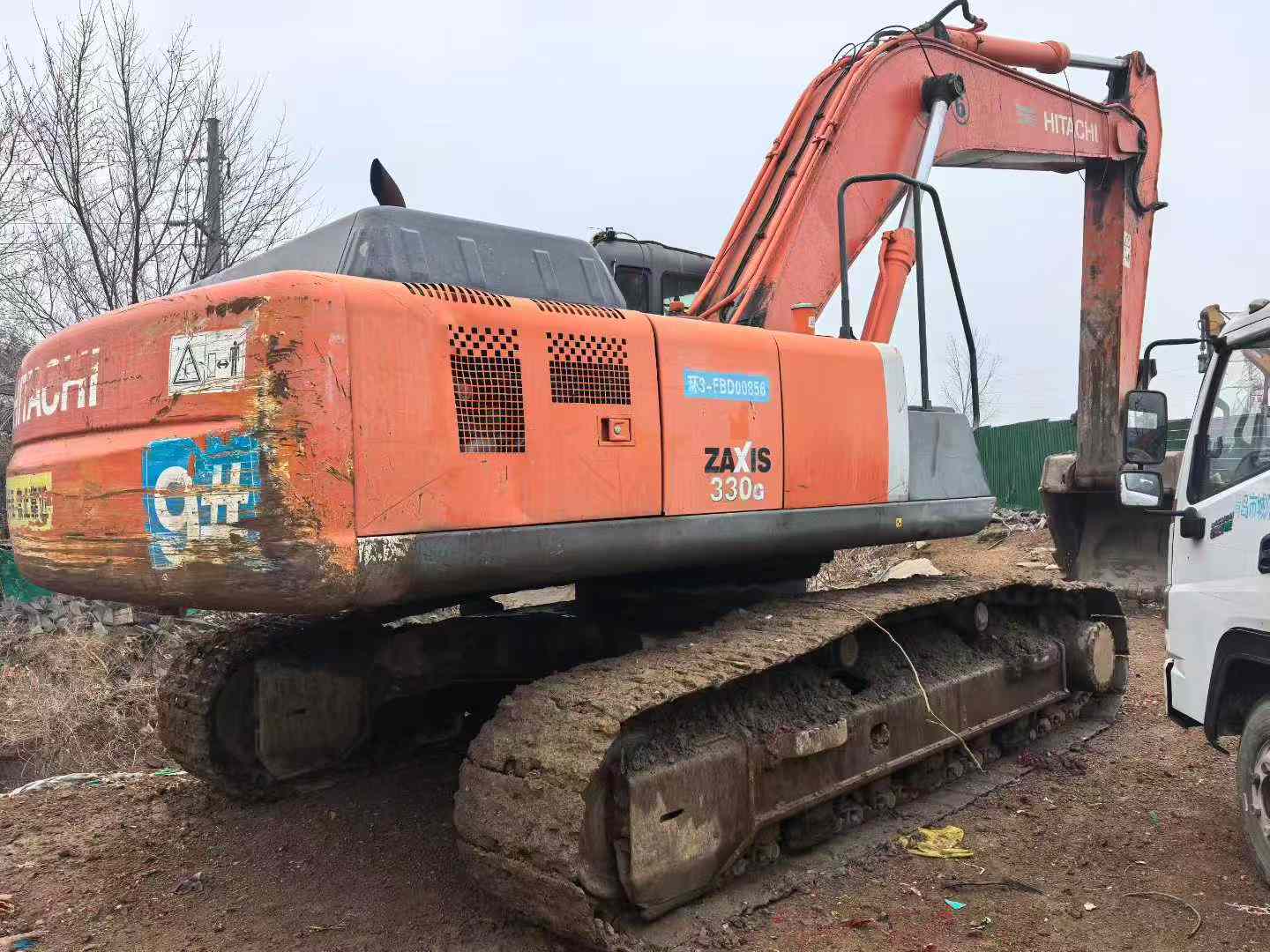

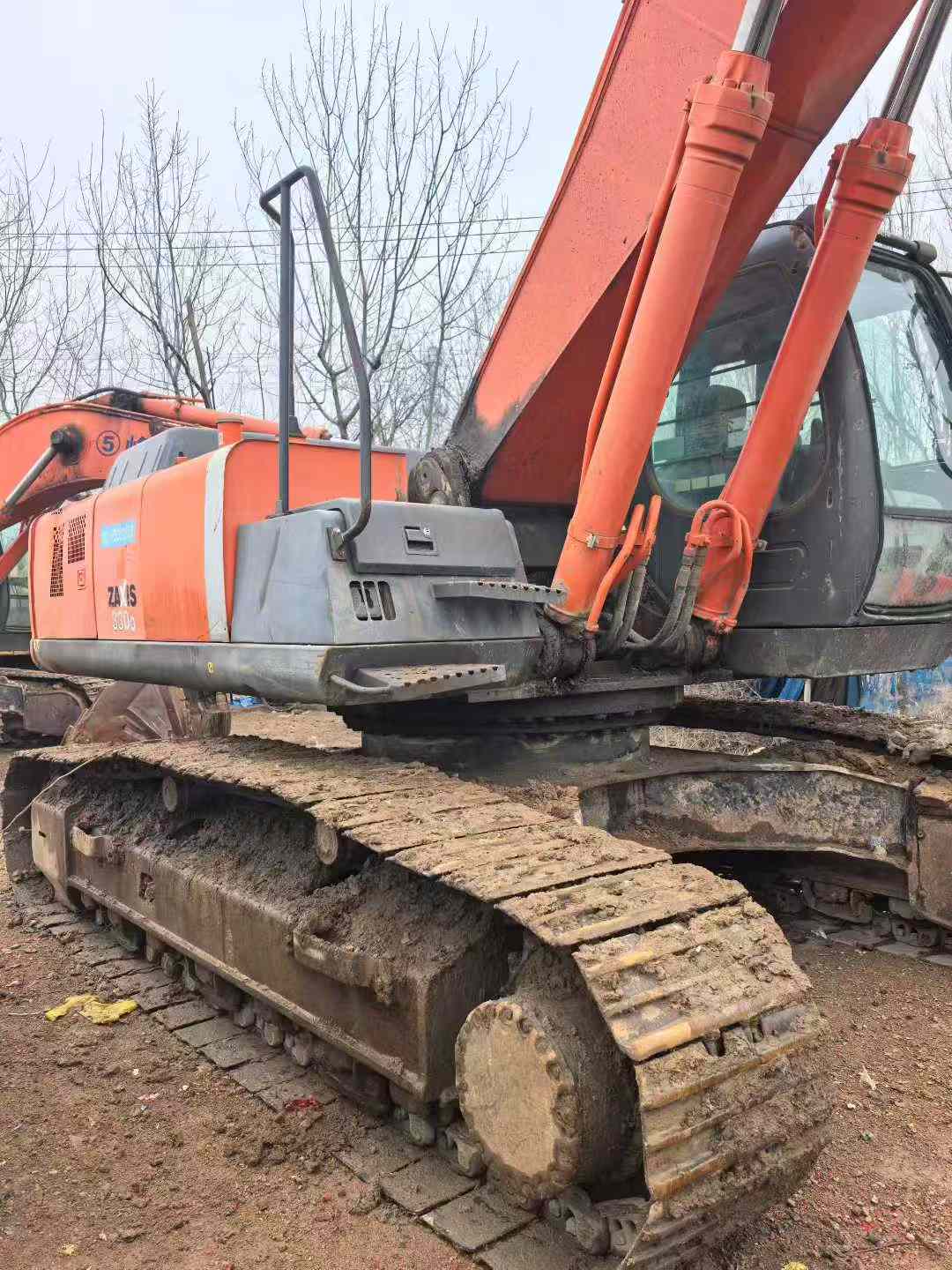

Built for demanding excavation work, this 2011 Hitachi ZX330-3G delivers 33-ton performance with proven ISUZU AA-6HK1XQA power. Operating weight of 31,900 kg and 1.38 m³ bucket capacity tackle high-volume earthmoving, foundation digging, and demolition projects without hesitation. Maximum digging depth reaches 7,360 mm while the 11,100 mm working radius covers extensive site areas from a single position.

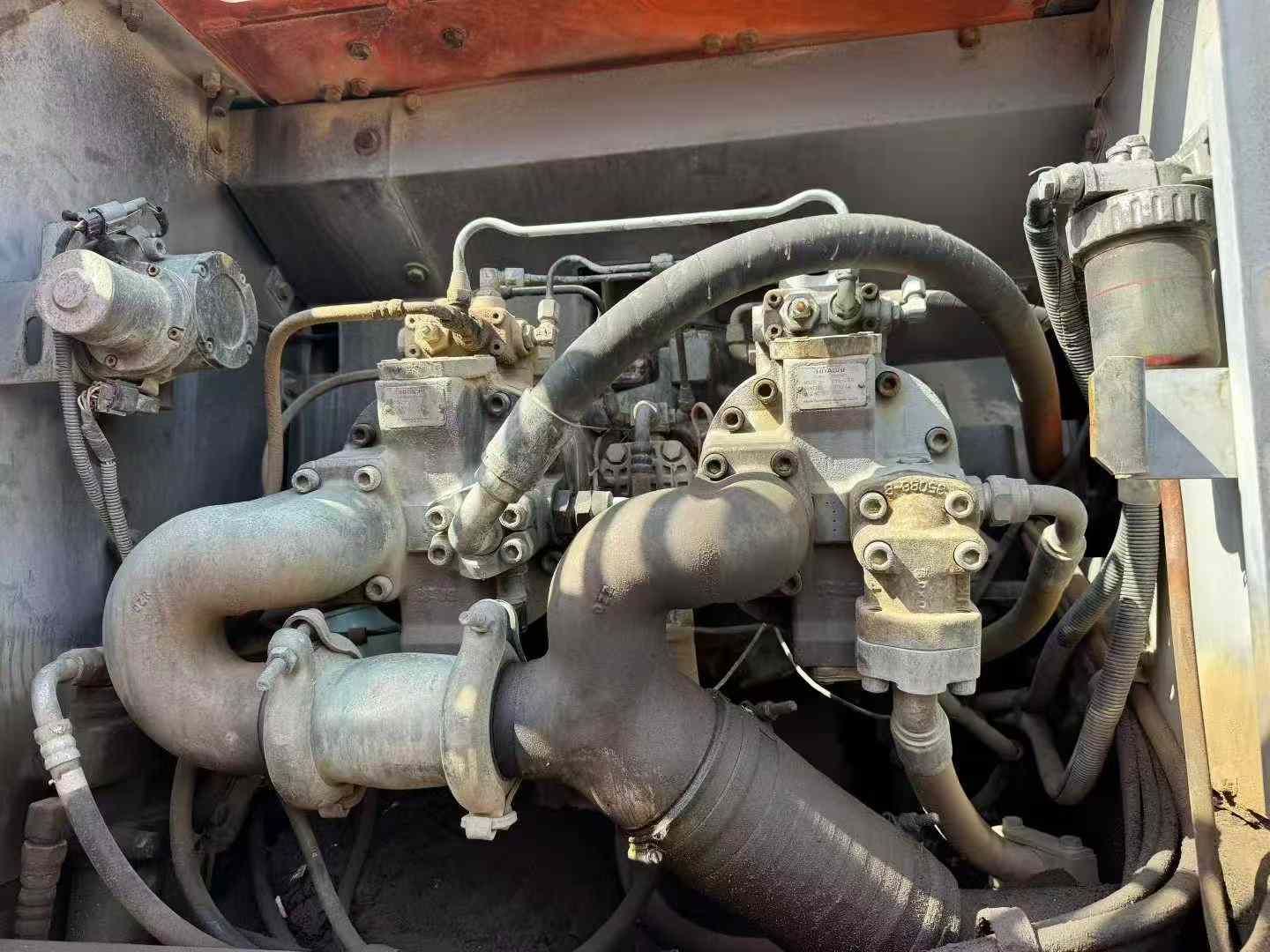

Dual variable axial piston pumps provide 2×288 L/min hydraulic flow for responsive control during grading and trenching operations. Bucket digging force of 237 kN breaks through compacted soil and rocky ground efficiently. Track-mounted stability on 600 mm plates ensures secure footing across uneven terrain. Currently located in Dezhou, Shandong, this machine arrives site-ready with 6.4-meter boom and 3.2-meter arm configuration for immediate deployment on construction, infrastructure, or mining applications.

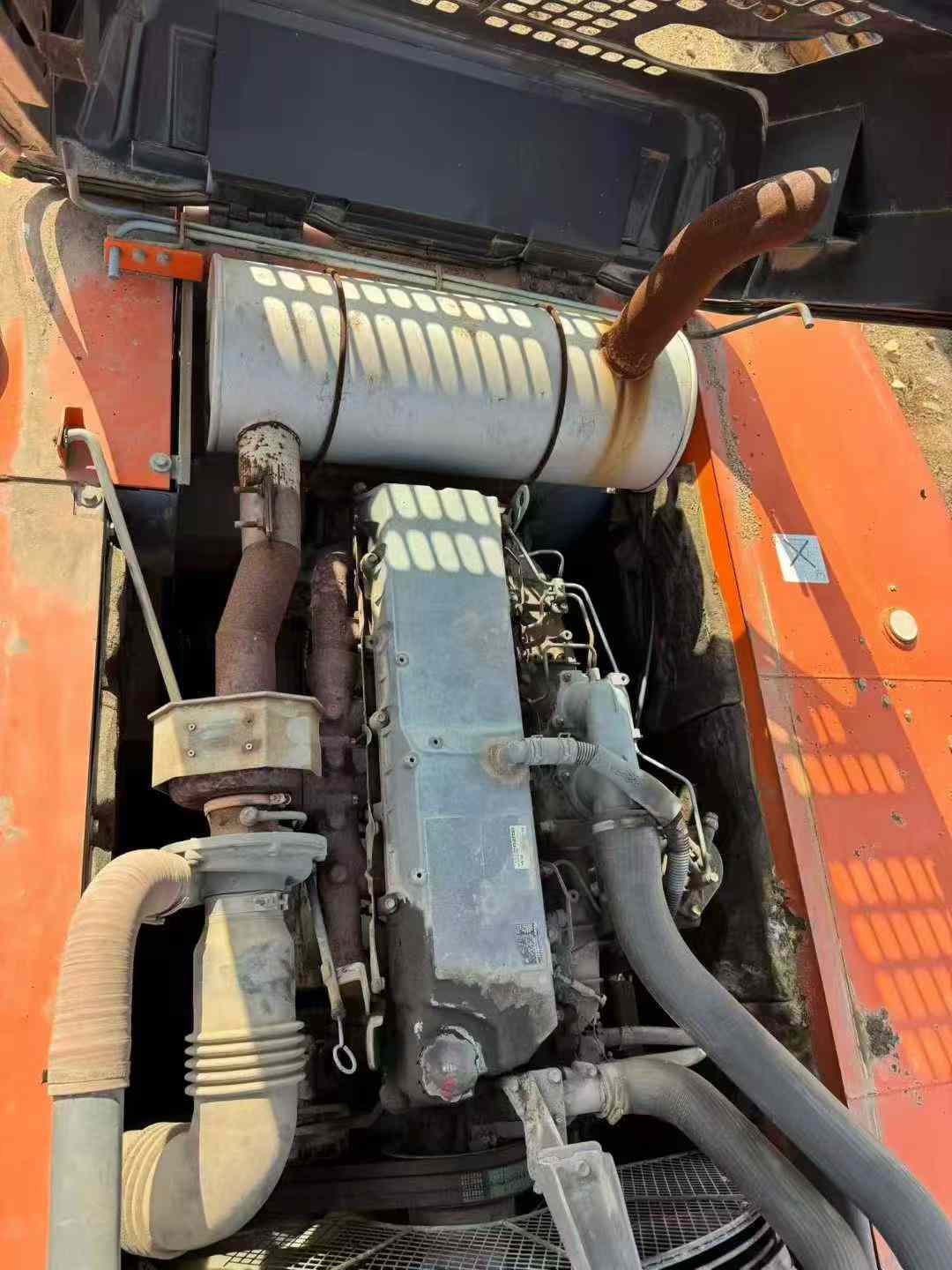

- 184 kW turbocharged engine with intercooler
- 7,150 mm maximum dump height for truck loading
- Water-cooled 6-cylinder diesel for extended runtime
- 70% gradeability on steep terrain
| Specifications | Value |
|---|---|
| No. | 1022673 |
| Tonnage (tons) | 33 |
| Working weight (kg) | 3190 |
| Bucket capacity (m³) | 1.38 |
| Boom length (mm) | 6.4 |
| Rod length (mm) | 3.2 |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU Isuzu AA-6HK1XQA |
| Rated power (kw/rpm) | 184/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.79 |
| Working form | Direct injection, turbocharged, with intercooler |
| Ground specific pressure (Kpa) | 65 |
| Rotation speed (rpm) | 11.8 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 237 |
| Rod digging force (kN) | 172 |
| Travel speed (km/h) | 3.2/5.0 |
| Main overflow set pressure (Mpa) | 31.4 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable axial piston motor ×2 |
| Maximum flow of main pump (l/min) | 2 x 288 + 30.2 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 32.4 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable axial piston pump ×2+ gear pump ×1 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 140 x 95 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 170 x 115 |
| Boom cylinders - Number × diameter × stroke (mm) | 146 x 100 |
| Fuel Tank (L) | 630 |
| Hydraulic Tank (L) | 180 |
| Engine Oil changes (L) | 41 |
| Coolant (L) | 32 |
| Total transport length (mm) | 10970 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3230 |
| Full cab height (mm) | 3140 |
| Counterweight ground clearance (mm) | 1160 |
| Minimum ground clearance (mm) | 500 |
| Back end turning radius (mm) | 3320 |
| Total track length (mm) | 4640 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3730 |
| Maximum digging radius (mm) | 11100 |
| Maximum digging depth (mm) | 7360 |
| Maximum excavation height (mm) | 10250 |
| Maximum unloading height (mm) | 7150 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10890 |
| Maximum effective digging depth (mm) | 7200 |
