Product Description

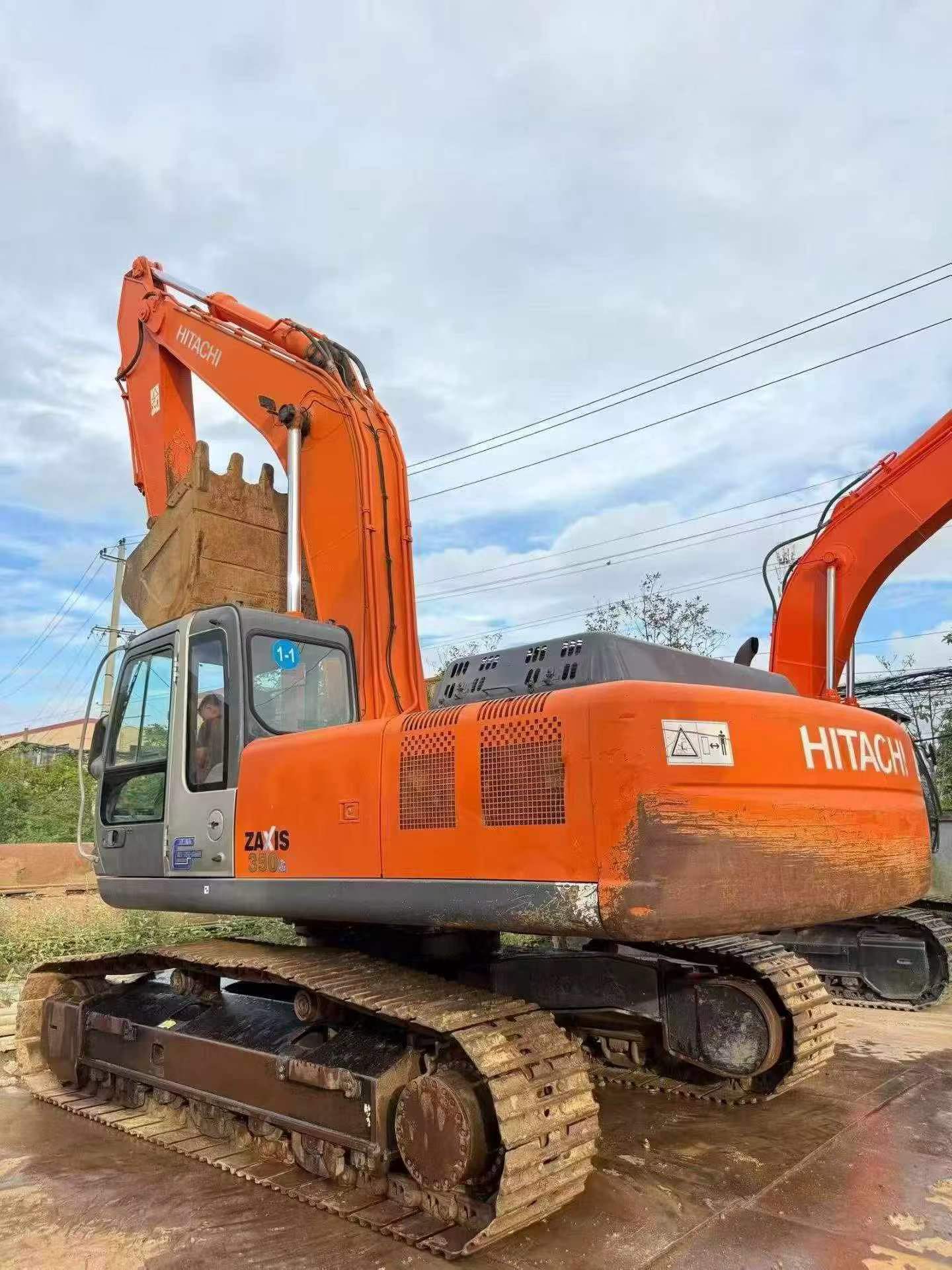

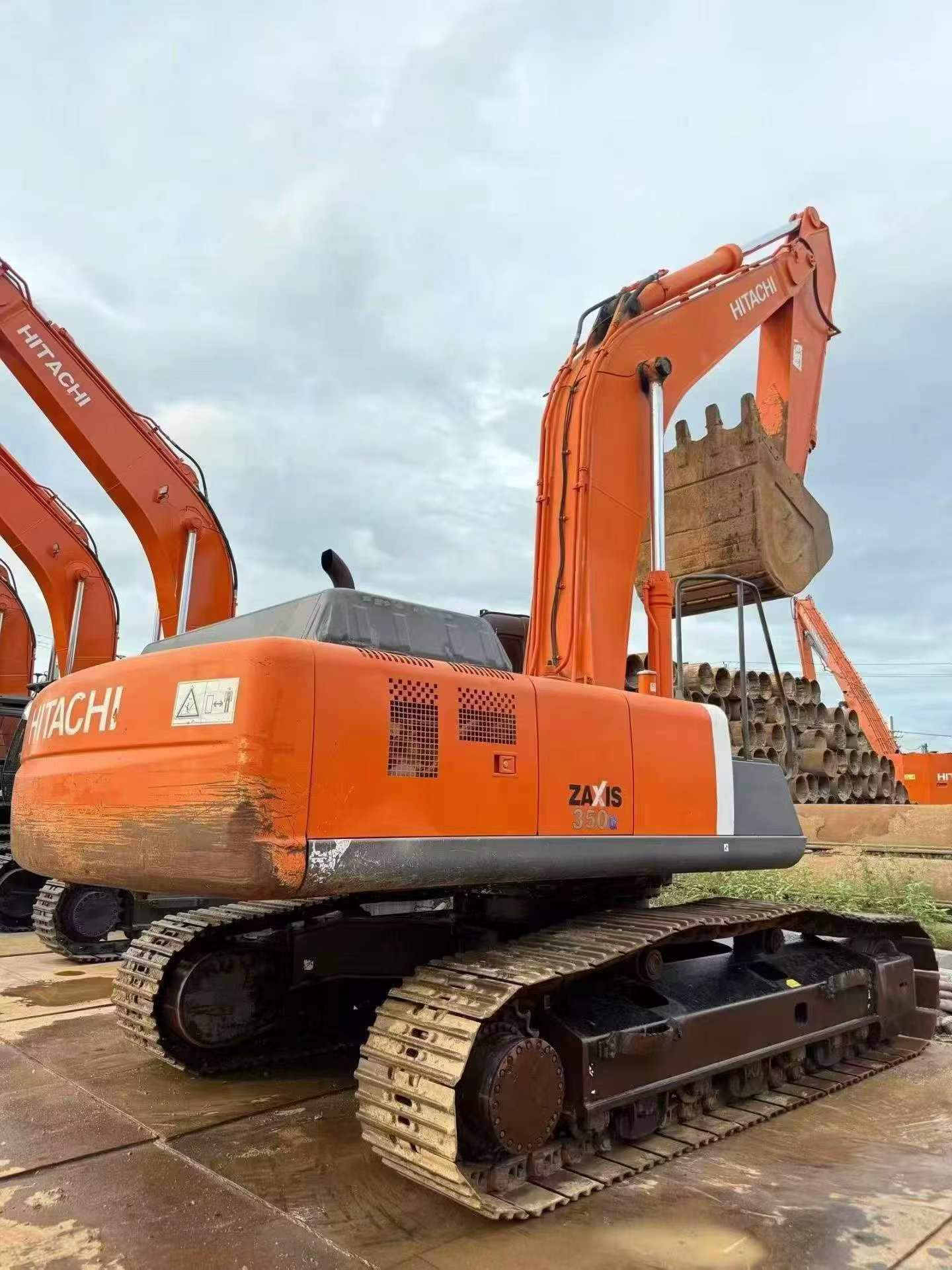

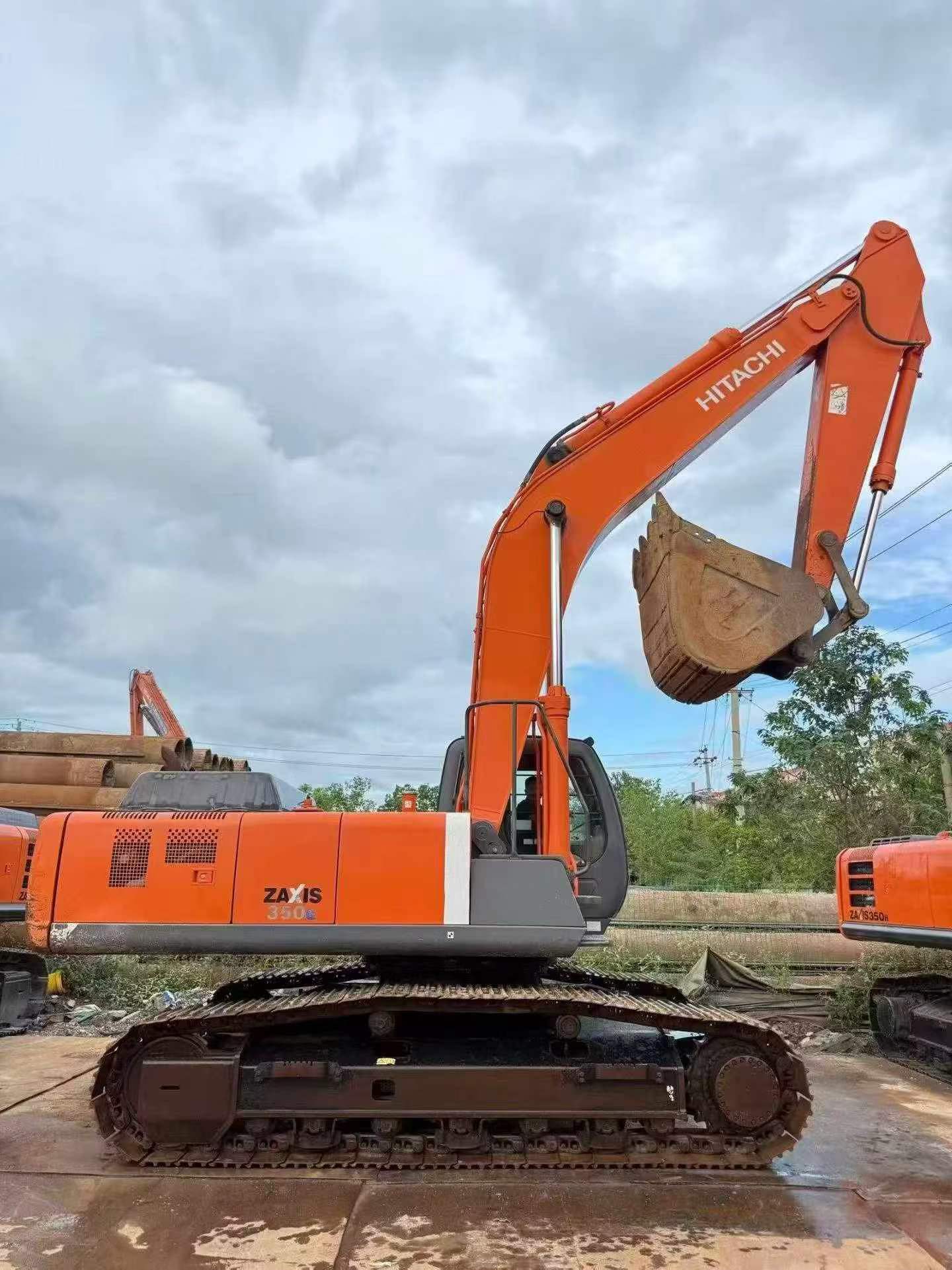

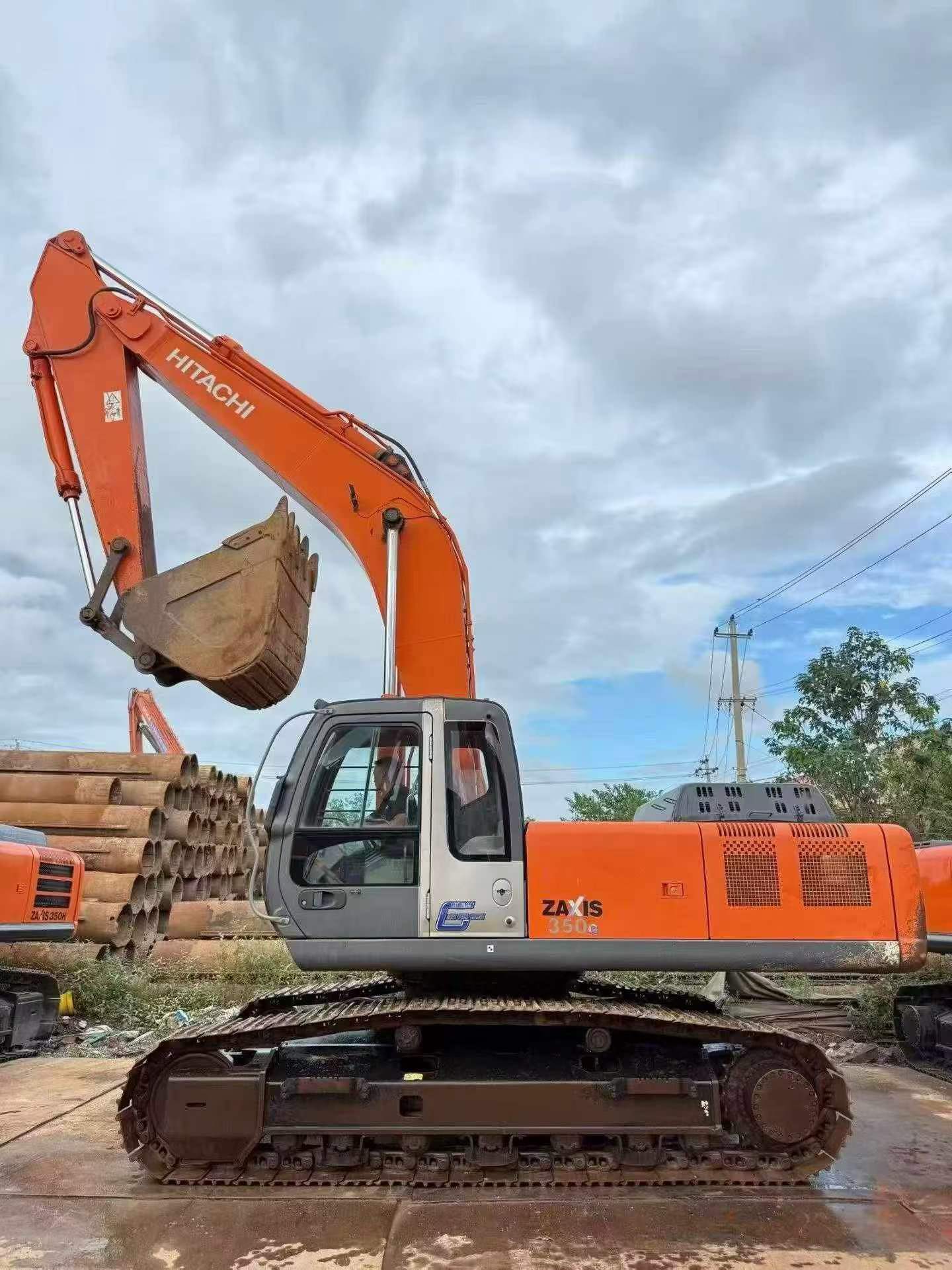

This 2020 Hitachi ZX330-3G excavator represents exceptional value in the used heavy equipment market. Currently located in Zhejiang, China, this machine features the advanced suspension seat system for enhanced operator comfort during extended work shifts. The undercarriage exhibits sharp, well-defined edges indicating minimal wear, while the original track links and chains remain in excellent working condition.
Key features include:

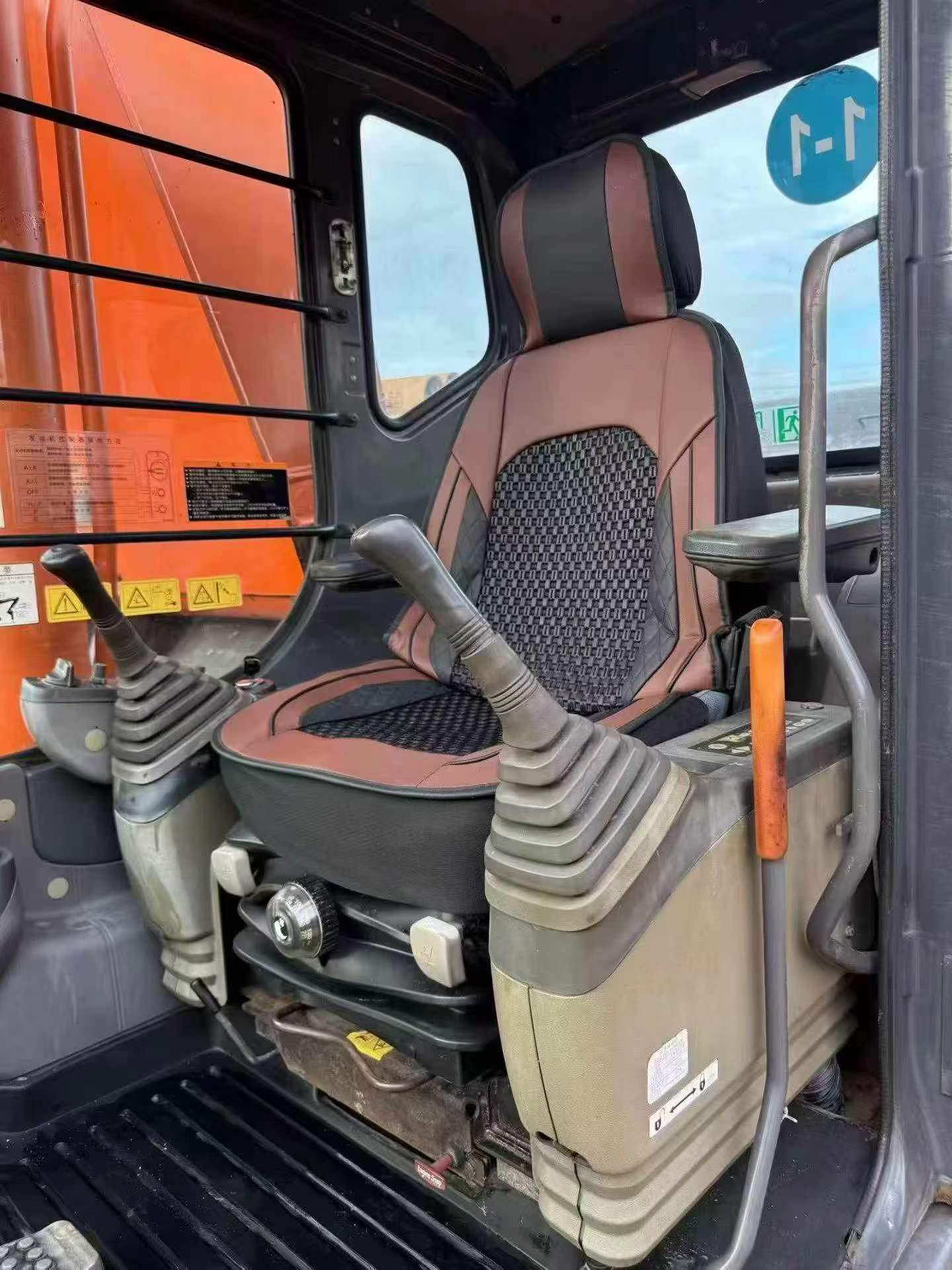

- Advanced operator suspension seating for reduced fatigue

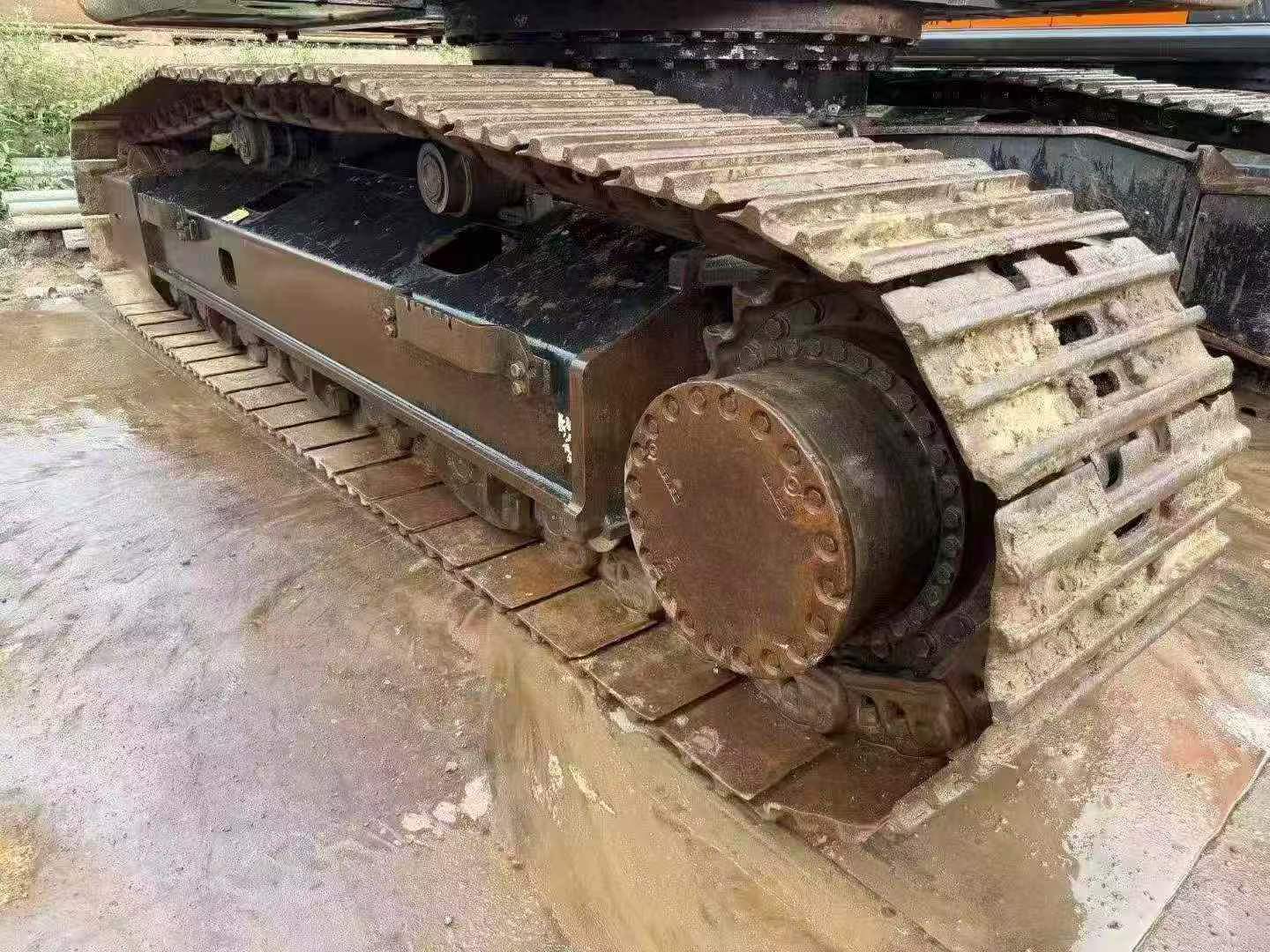

- Original equipment track components with strong structural integrity
- Well-maintained undercarriage with minimal wear patterns
- Verified mechanical performance and operational reliability
- Suitable for construction, excavation, and earthmoving applications
This ZX330-3G delivers the proven performance and durability expected from Hitachi's construction equipment lineup, making it an excellent choice for contractors seeking reliable used machinery.
| Specifications | Value |
|---|---|
| No. | 1145061 |
| Tonnage (tons) | 33 |
| Working weight (kg) | 3190 |
| Bucket capacity (m³) | 1.38 |
| Boom length (mm) | 6.4 |
| Rod length (mm) | 3.2 |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

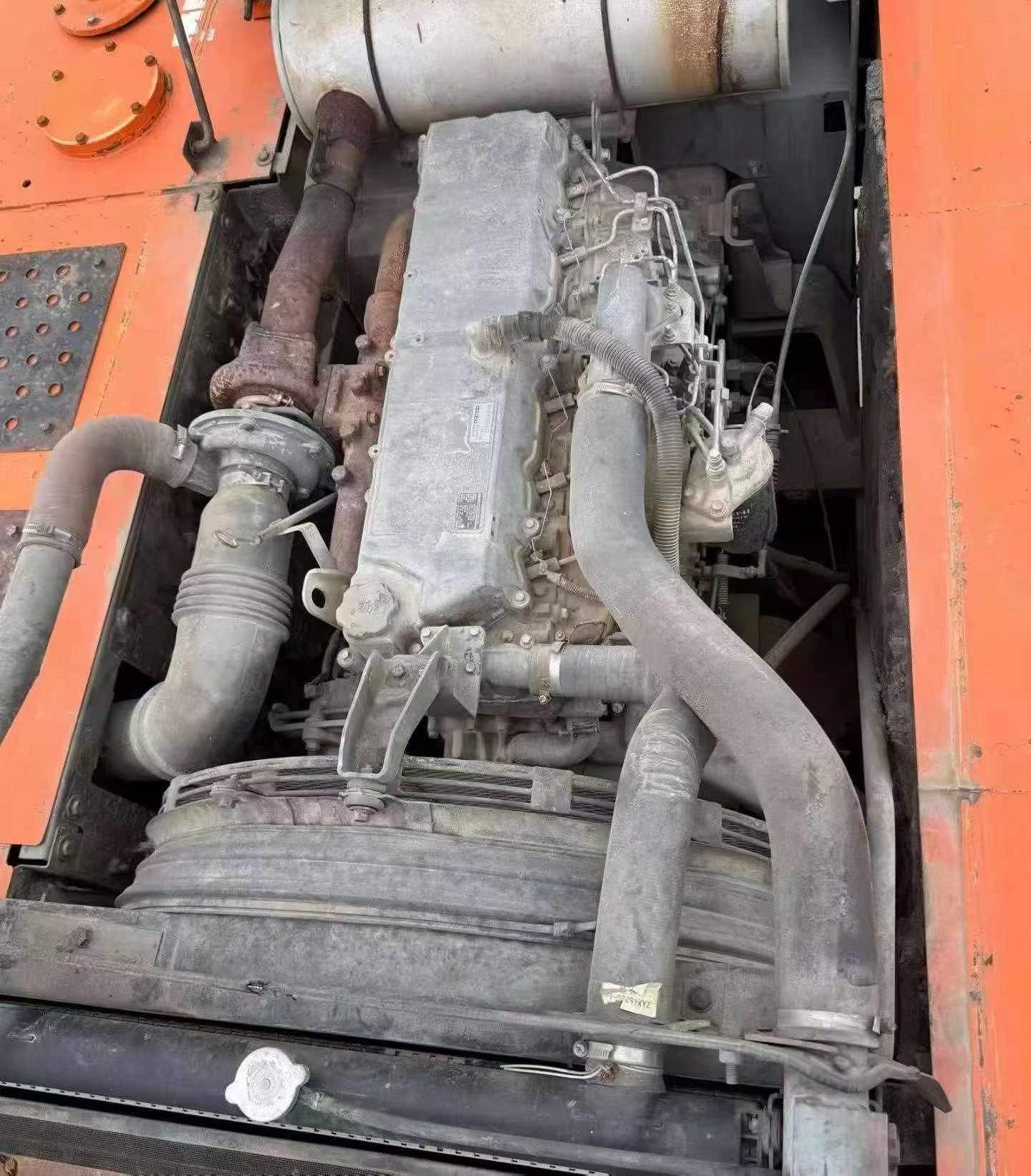

| Engine type | ISUZU Isuzu AA-6HK1XQA |
| Rated power (kw/rpm) | 184/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.79 |
| Working form | Direct injection, turbocharged, with intercooler |
| Ground specific pressure (Kpa) | 65 |
| Rotation speed (rpm) | 11.8 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 237 |
| Rod digging force (kN) | 172 |
| Travel speed (km/h) | 3.2/5.0 |
| Main overflow set pressure (Mpa) | 31.4 |

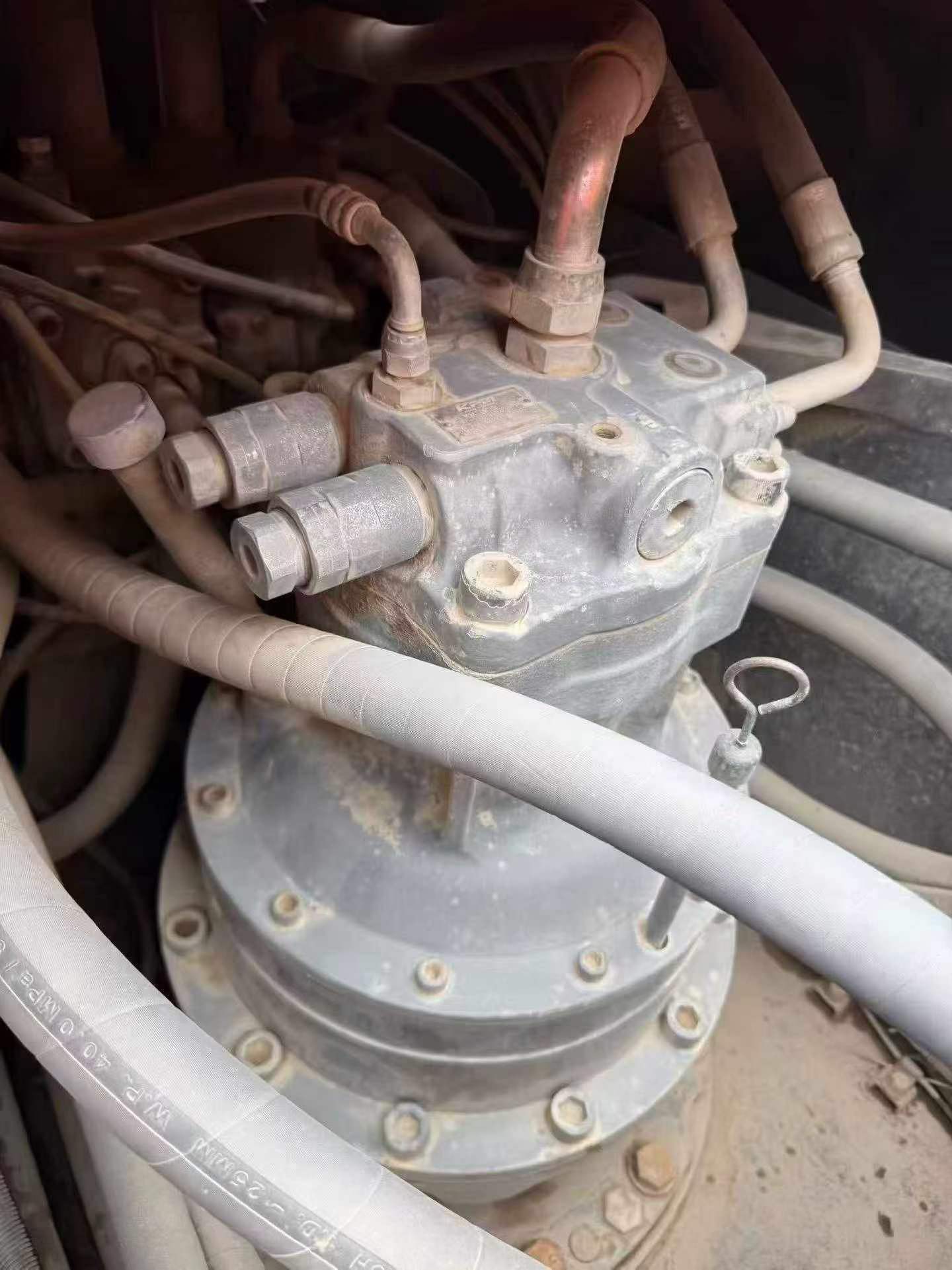

| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable axial piston motor ×2 |
| Maximum flow of main pump (l/min) | 2 x 288 + 30.2 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 32.4 |
| Hydraulic crushing pipeline is standard | no |

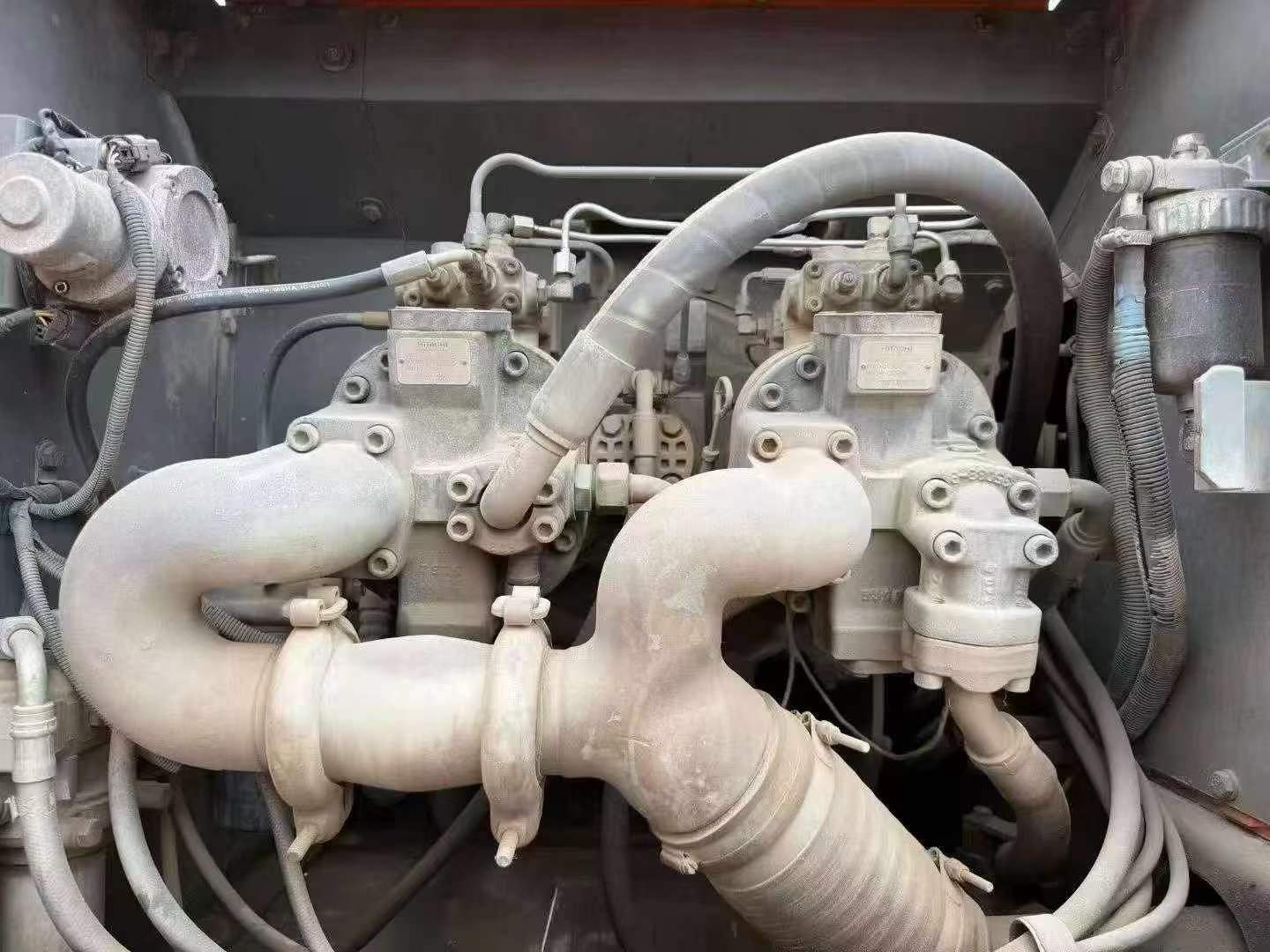

| Main pump type | Variable axial piston pump ×2+ gear pump ×1 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 140 x 95 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 170 x 115 |
| Boom cylinders - Number × diameter × stroke (mm) | 146 x 100 |
| Fuel Tank (L) | 630 |
| Hydraulic Tank (L) | 180 |
| Engine Oil changes (L) | 41 |
| Coolant (L) | 32 |
| Total transport length (mm) | 10970 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3230 |
| Full cab height (mm) | 3140 |
| Counterweight ground clearance (mm) | 1160 |
| Minimum ground clearance (mm) | 500 |
| Back end turning radius (mm) | 3320 |
| Total track length (mm) | 4640 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3730 |
| Maximum digging radius (mm) | 11100 |
| Maximum digging depth (mm) | 7360 |
| Maximum excavation height (mm) | 10250 |
| Maximum unloading height (mm) | 7150 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10890 |
| Maximum effective digging depth (mm) | 7200 |
