Product Description

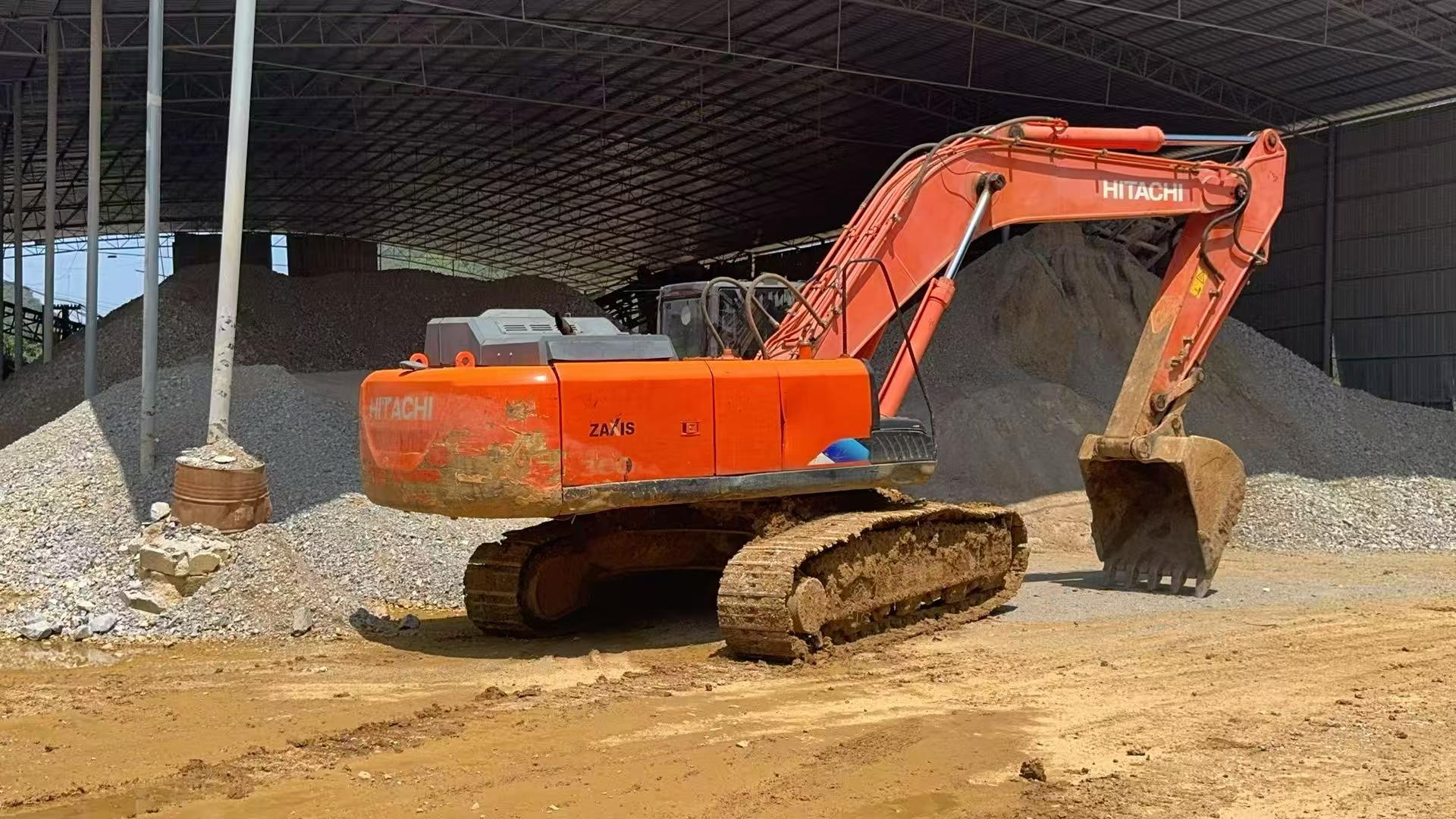

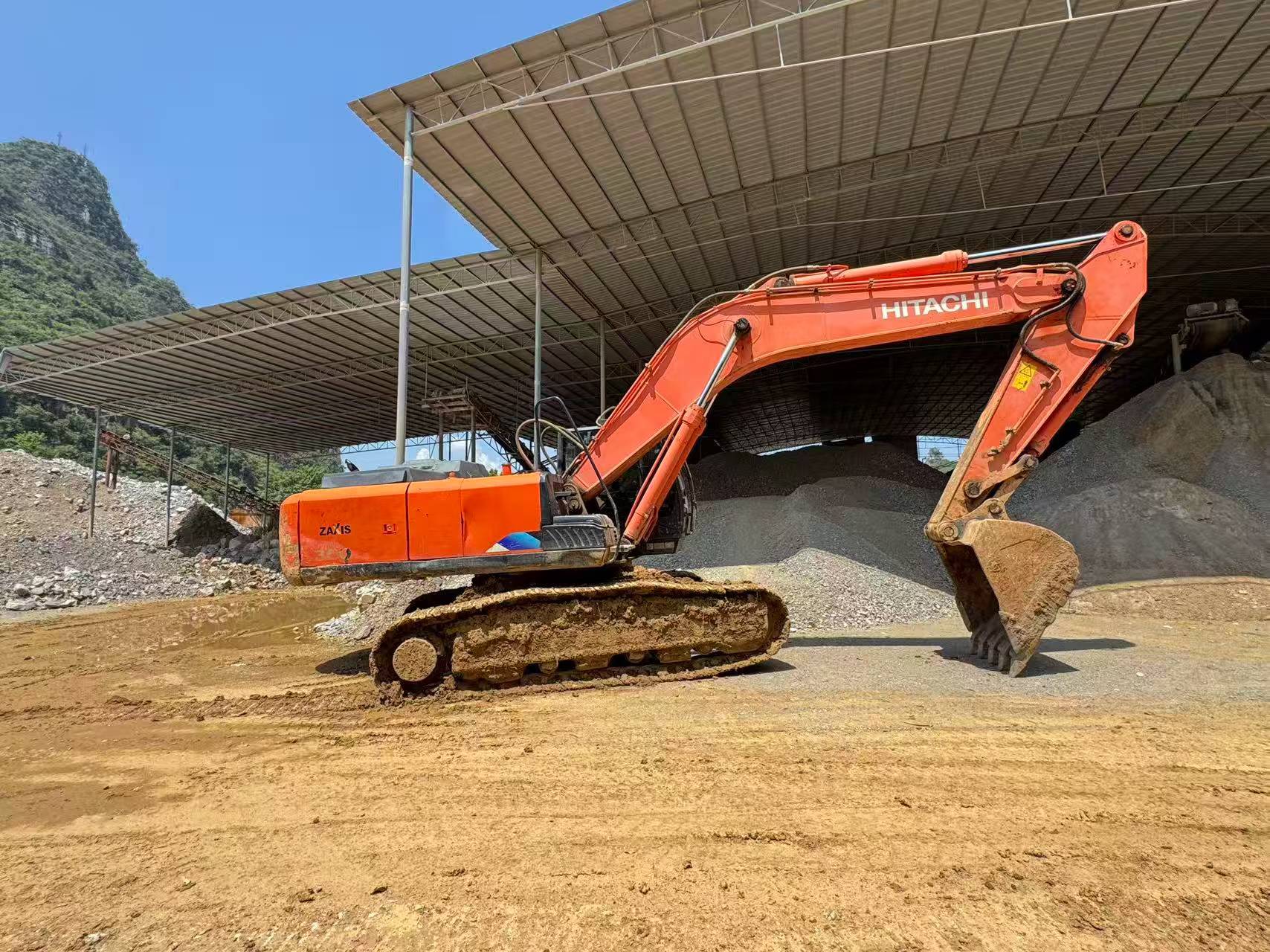

Discover the 2018 Hitachi ZX330-5A, a robust and reliable excavator now available for immediate purchase in Guangdong, China. This machine has been meticulously maintained and is in excellent working condition, ready to meet the demands of your next project. With over 23,000 hours of operational experience, it comes with detailed images and videos that showcase its superior performance and maintenance history. Ideal for construction, mining, and infrastructure development, this excavator offers the durability and efficiency you need. Contact us directly for more information or to arrange a viewing.
- Year: 2018
- Brand: Hitachi
- Model: ZX330-5A
- Location: Guangdong, China
- Operational Hours: Over 23,000
| Specifications | Value |
|---|---|
| No. | 1121786 |
| Tonnage (tons) | 33 |
| Working weight (kg) | 32700 |
| Bucket capacity (m³) | 1.45-1.62 |
| Boom length (mm) | 6400 |
| Rod length (mm) | 3200 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu GH-6HK1XKSA-01 |
| Rated power (kw/rpm) | 190/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Maximum torque (N.m) | 1037/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.790 |
| Working form | 4 stroke, water cooled, electrically controlled direct injection, turbocharged, intercooled |
| Ground specific pressure (Kpa) | 66 |
| Rotation speed (rpm) | 10.7 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 246 |
| Rod digging force (kN) | 185 |
| Maximum tractive force (kN) | 298 |
| Travel speed (km/h) | 3.2-5.0 |
| Turning torque (Nm) | 120 |
| Rotary hydraulic motor type | 1 swashplate plunger motor |
| Type of walking hydraulic motor | 2 variable swash plate plunger motor |
| Maximum flow of main pump (l/min) | 2 x 288 |
| Traveling Hydraulic Circuit (Mpa) | 34.8 |
| Rotary Hydraulic Circuit (Mpa) | 32.4 |
| Main pump type | 2 variable axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 30.2 |
| Pilot pump type | 1 gear pump |
| Fuel Tank (L) | 630 |
| Hydraulic Tank (L) | 180 |
| Engine Oil changes (L) | 41 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 340 |
| Total transport length (mm) | 11220 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3270 |
| Full cab height (mm) | 3160 |
| Counterweight ground clearance (mm) | 1160 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4610 |
| Back end turning radius (mm) | 3590 |
| Onboard width (mm) | 2990 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3730 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 11100 |
| Maximum digging depth (mm) | 7380 |
| Maximum excavation height (mm) | 10360 |
| Maximum unloading height (mm) | 7240 |
| Maximum vertical digging depth (mm) | 6420 |
| Maximum excavation radius of stop surface (mm) | 10890 |
