Product Description

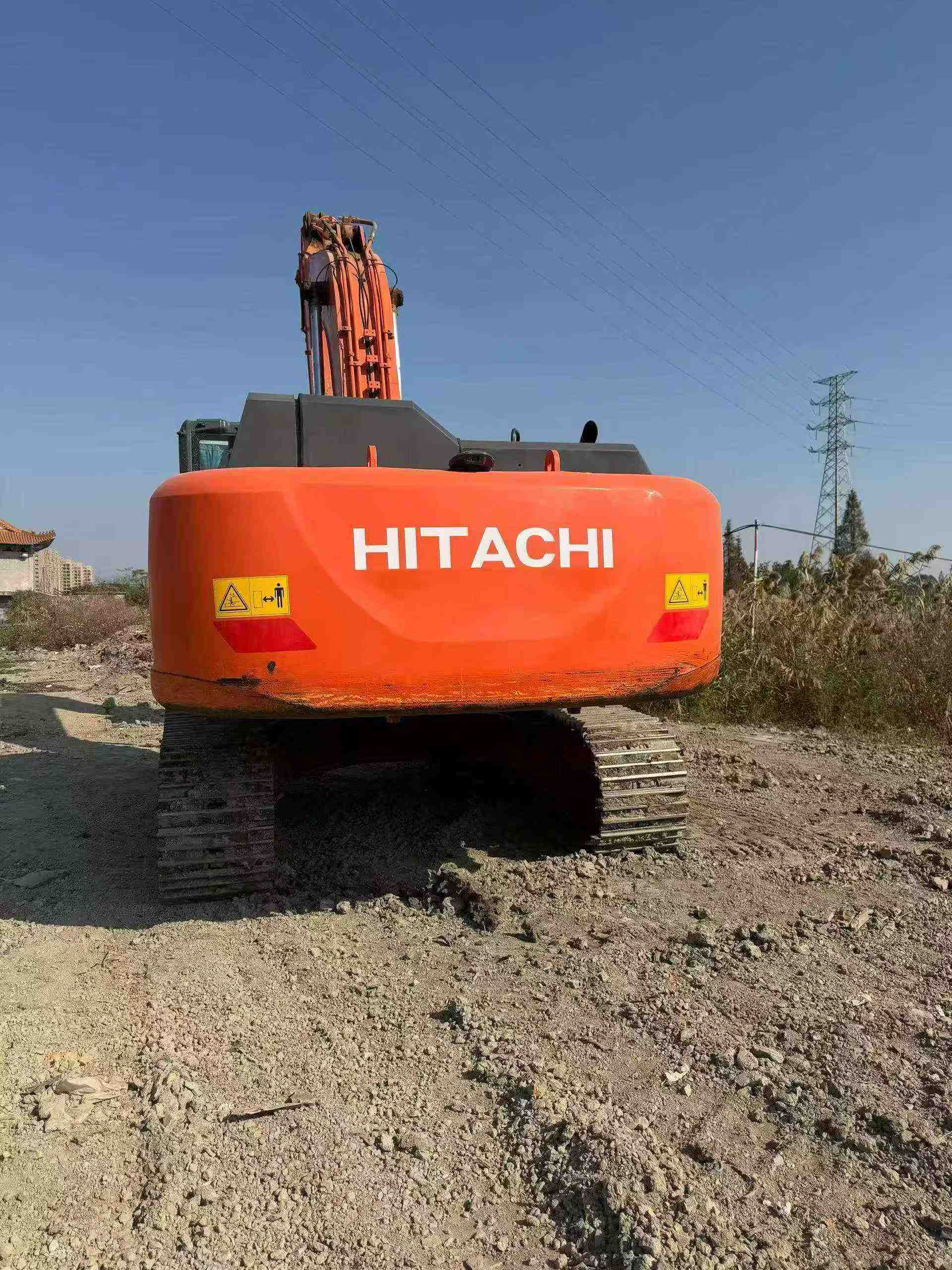

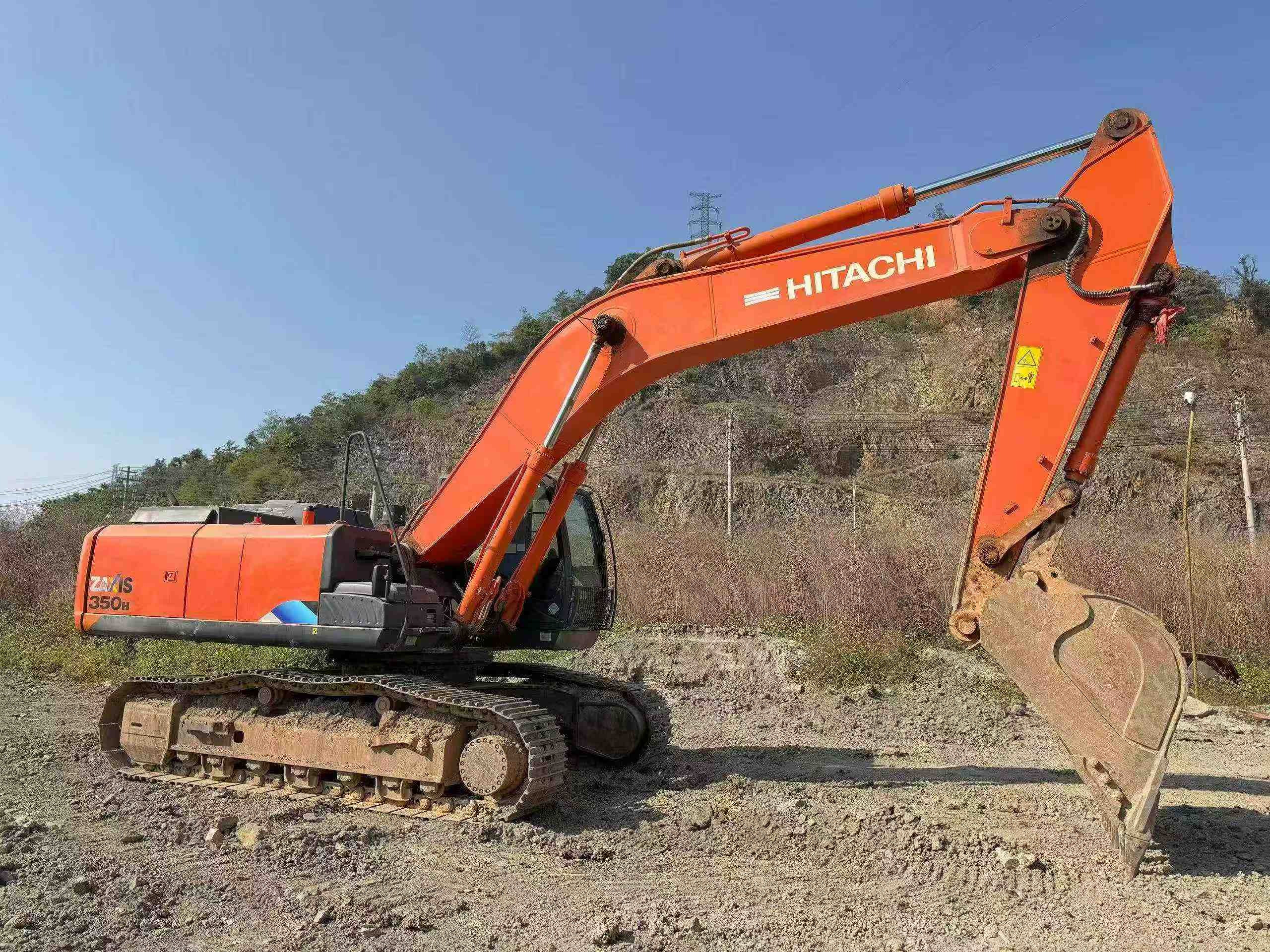

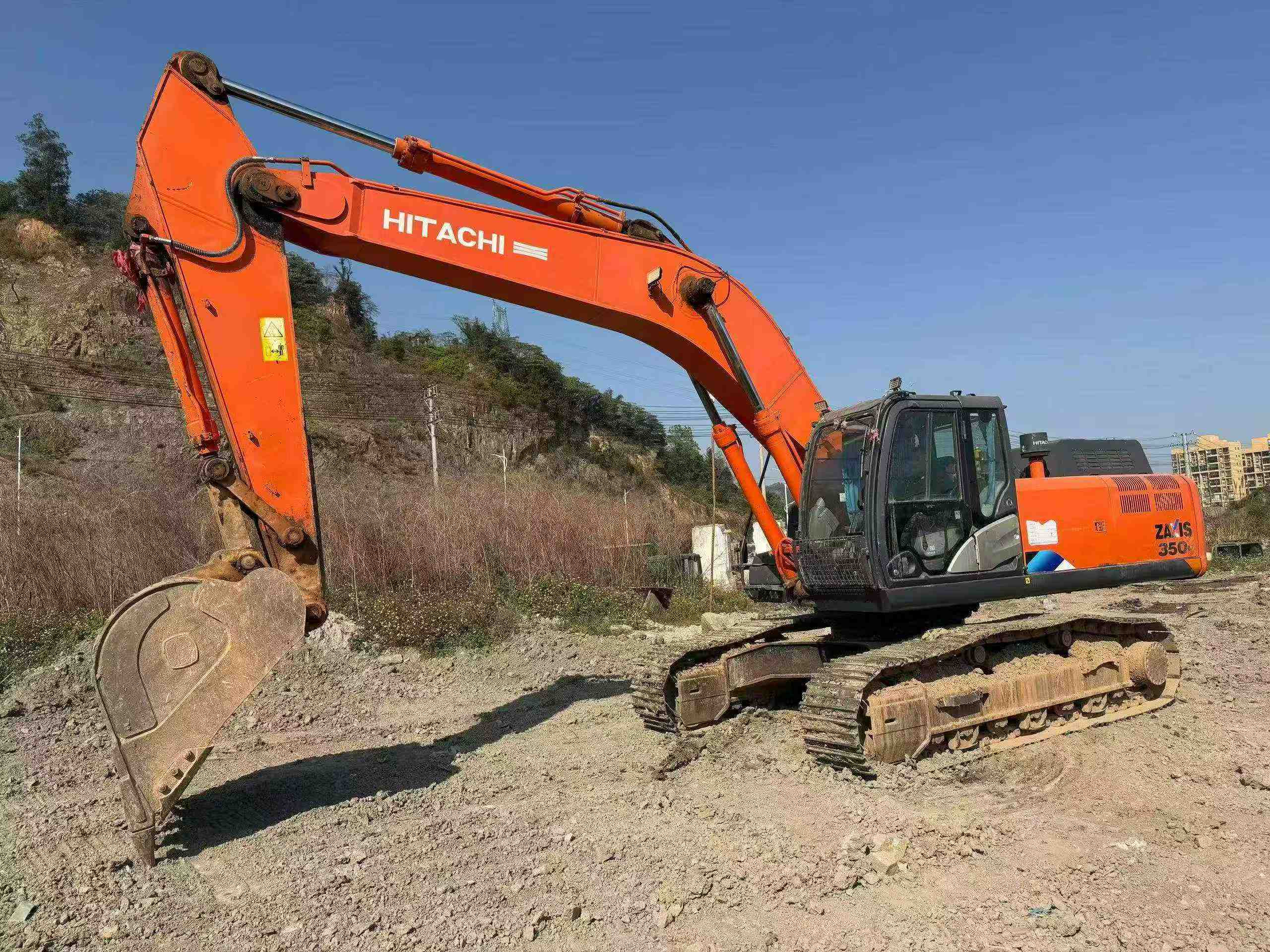

This 2021 Hitachi ZX350H-5A hydraulic excavator offers exceptional value for demanding earthmoving operations. Imported with original factory paint in excellent condition, this machine demonstrates careful ownership and proper maintenance throughout its service life. The ZX350H-5A features Hitachi's proven hydraulic system and fuel-efficient engine technology, delivering reliable performance for medium to heavy-duty applications including site preparation, foundation work, and material handling.
- Year: 2021
- Model: Hitachi ZX350H-5A
- Location: Zhejiang, China
- Condition: Well-maintained with original paint

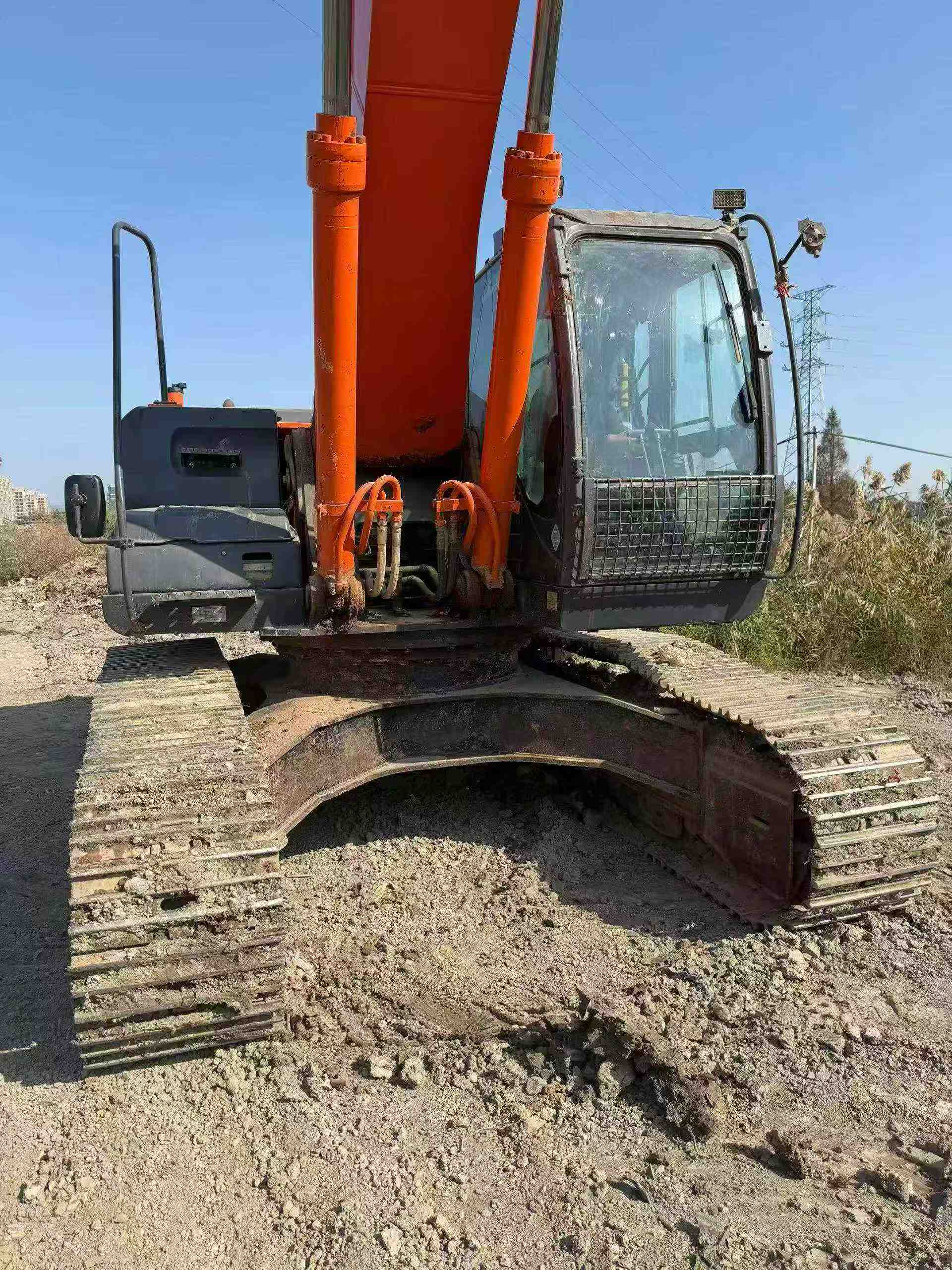

- Undercarriage and bucket: Approximately 90% remaining
- Operational status: Fully functional, ready for immediate deployment

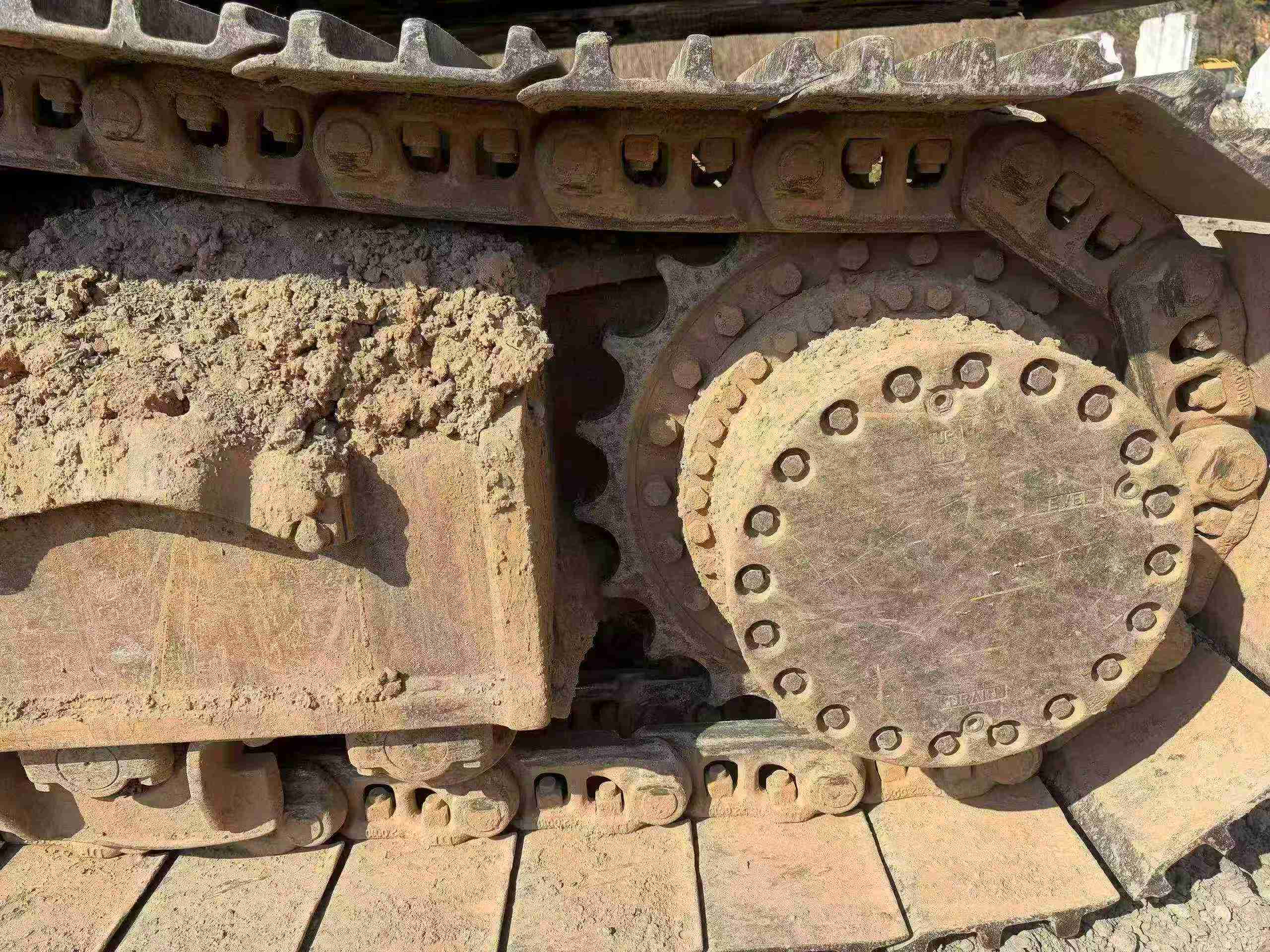

The undercarriage components and excavation bucket show minimal wear at approximately 90% condition, reducing your near-term maintenance costs. This unit is priced competitively for quick sale and represents an excellent opportunity to acquire premium Japanese engineering at used equipment value.
| Specifications | Value |
|---|---|
| No. | 1174164 |
| Tonnage (tons) | 34 |
| Working weight (kg) | 34000 |
| Bucket capacity (m³) | 1.4-1.8 |
| Boom length (mm) | 6400 |
| Rod length (mm) | 2670 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

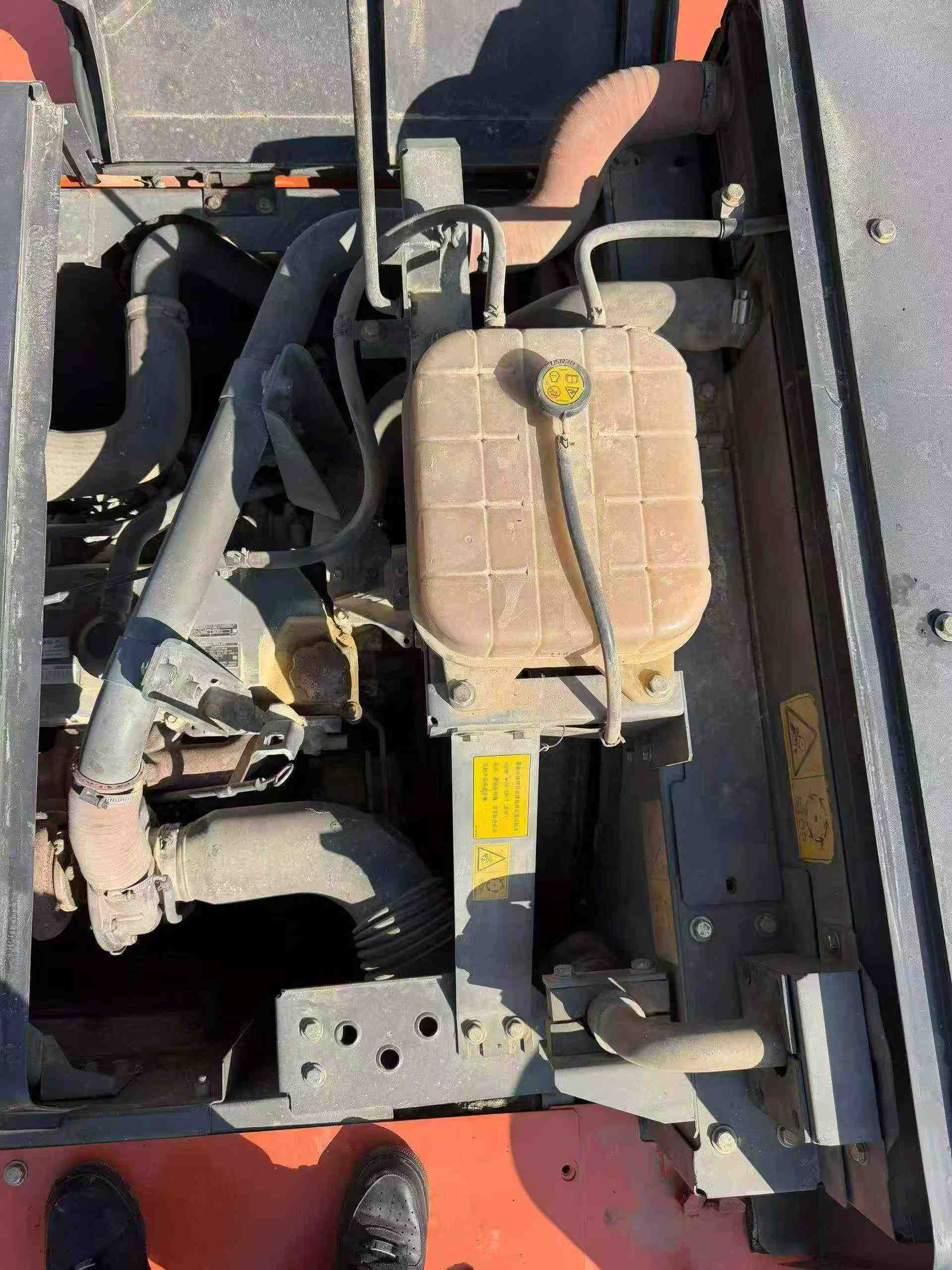

| Engine type | Isuzu GH-6HK1X |
| Rated power (kw/rpm) | 190 |
| Cylinder diameter × stroke (mm) | 115 mm x 125 mm |
| Maximum torque (N.m) | 1 037 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.790 |
| Ground specific pressure (Kpa) | 65 |
| Rotation speed (rpm) | 10.7 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 214-246 |
| Rod digging force (kN) | 213-222 |
| Maximum tractive force (kN) | 298 |
| Travel speed (km/h) | 0 ~ 5.0 |

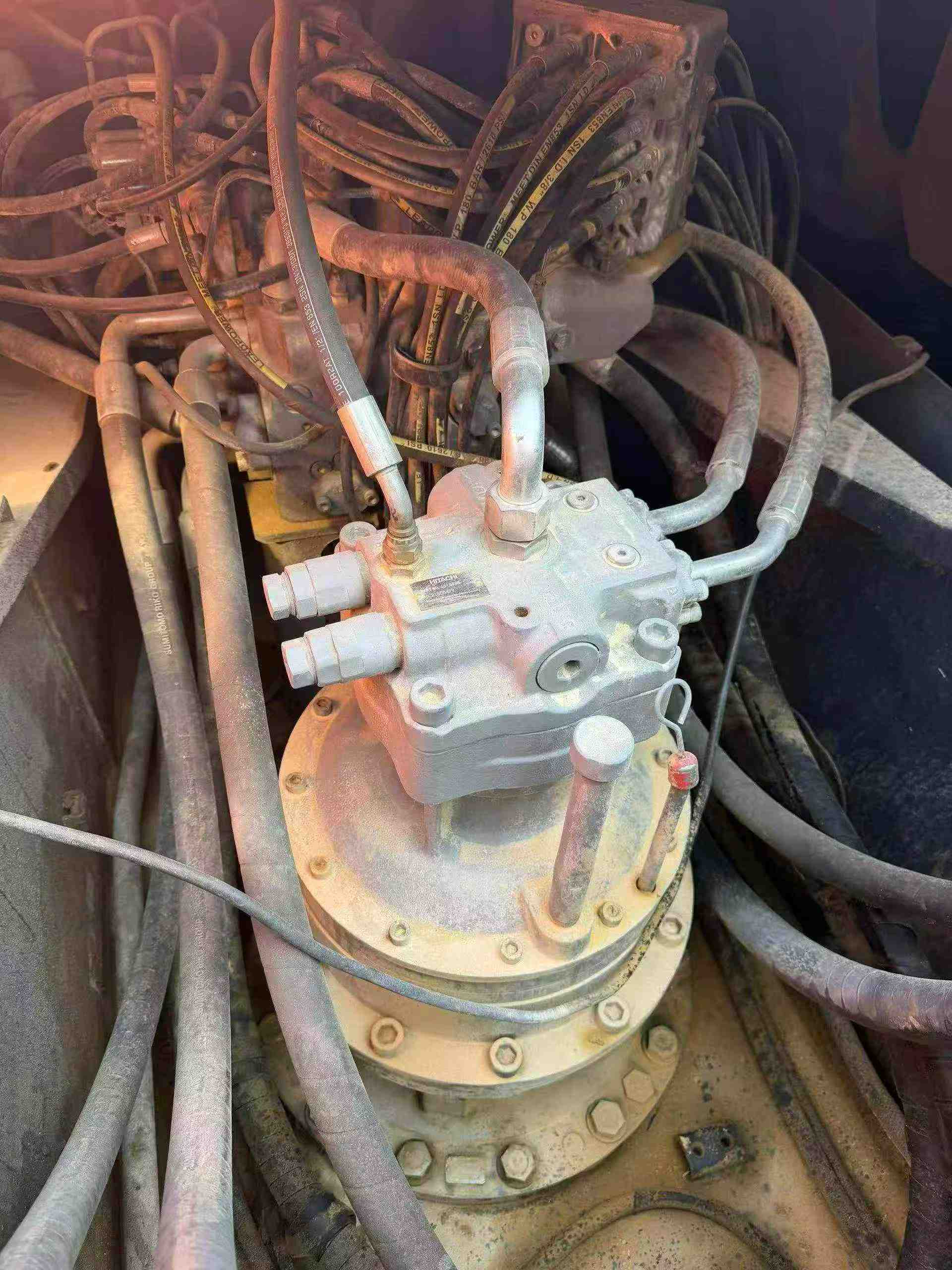

| Rotary hydraulic motor type | 1 axial plunger motor |
| Type of walking hydraulic motor | 2 variable axial piston motors |
| Maximum flow of main pump (l/min) | 2 x 288 |
| Traveling Hydraulic Circuit (Mpa) | 34.8 |
| Rotary Hydraulic Circuit (Mpa) | 32.4 |

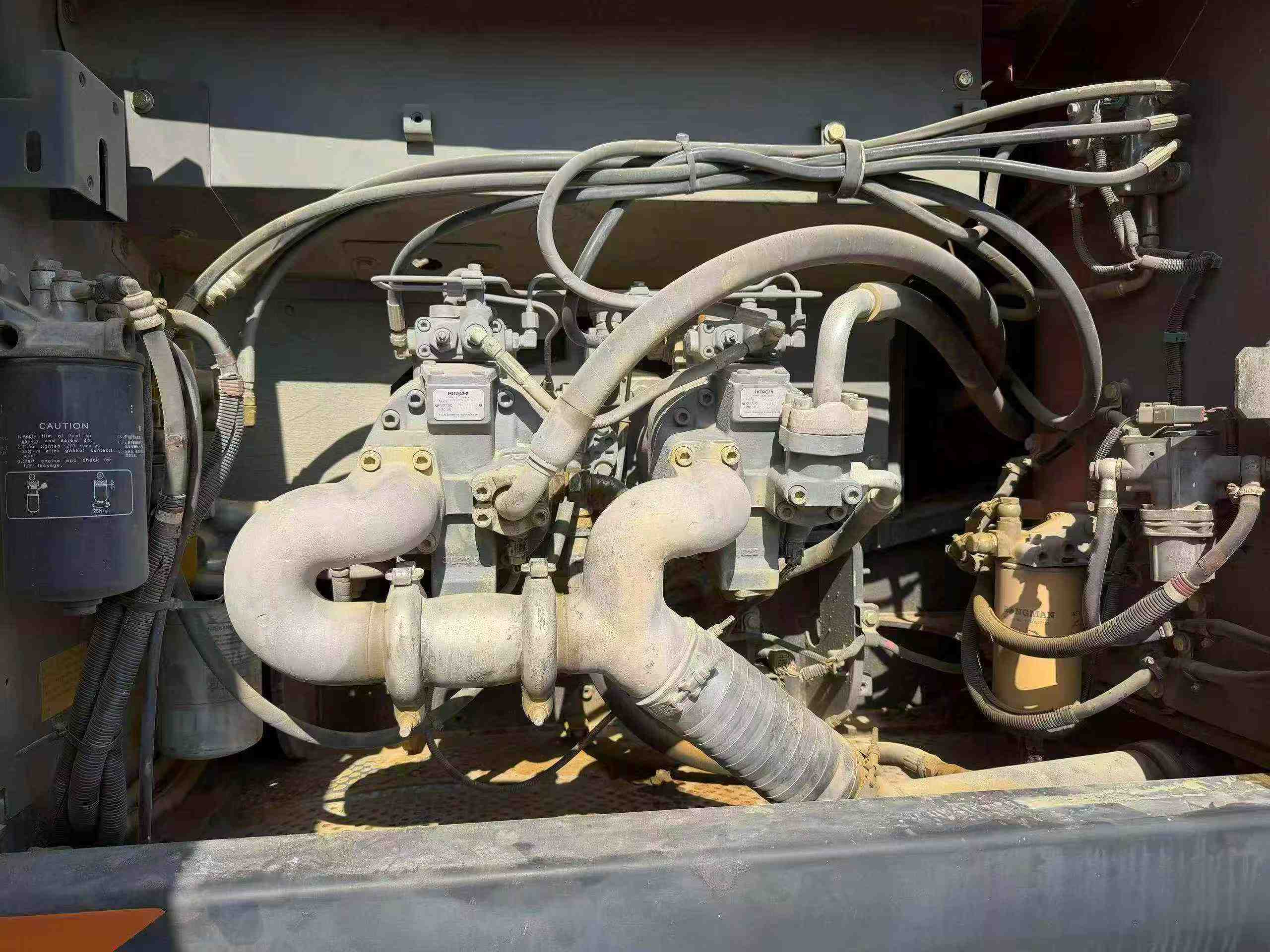

| Main pump type | 2 variable axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 140 x 95 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 170 x 115 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 145 x 100 |
| Pilot pump type | 1 gear pump |
| Fuel Tank (L) | 630 |
| Hydraulic Tank (L) | 180 |
| Engine Oil changes (L) | 41 |
| Coolant (L) | 35 |
| Maximum digging radius (mm) | 10570 |
| Maximum digging depth (mm) | 6840 |
| Maximum excavation height (mm) | 9990 |
| Maximum unloading height (mm) | 6940 |
| Maximum vertical digging depth (mm) | 5510 |
| Maximum excavation radius of stop surface (mm) | 10360 |
| Number of wheels (single side) (each) | 7 : ZX330-5A/ZX350H-5A |
| Number of track plates (single side) (PCS) | 45 : ZX330-5A/ZX350H-5A |
