Product Description

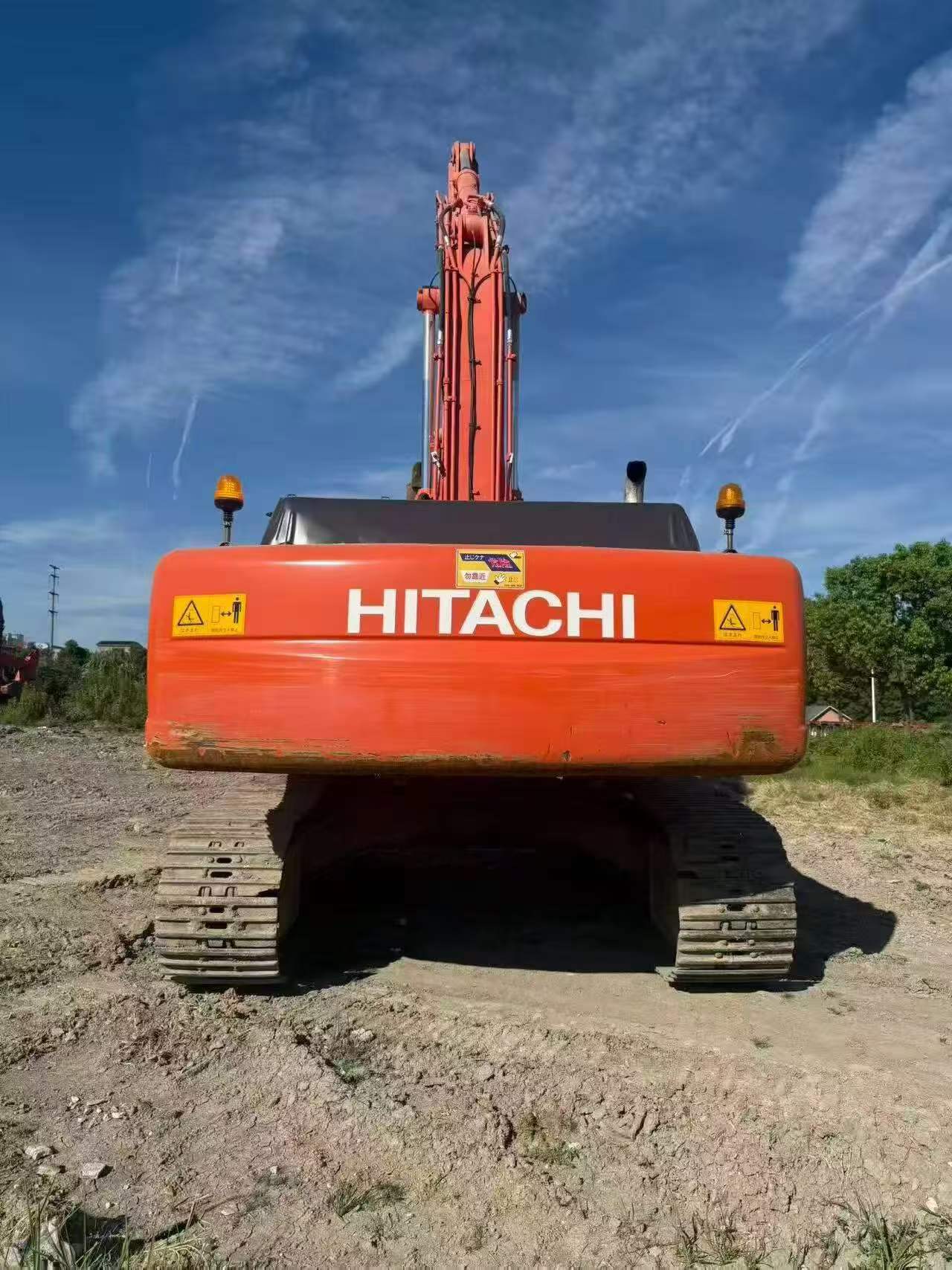

This 2020 Hitachi ZX350LC-3 excavator represents exceptional value in the used equipment market. Currently located in Zhejiang, China, this machine has been primarily utilized for earthmoving applications and maintains strong operational condition.
Key features include:
- Reliable hydraulic system with no reported leaks from major components
- Factory-installed air conditioning system for operator comfort
- Responsive controls and efficient cycle times
- Well-maintained undercarriage and working components
- Competitive pricing for the specification and year
The ZX350LC-3 is known for its robust construction and suitability for demanding excavation work. This unit offers an economical entry point for contractors seeking proven Japanese engineering in the 35-ton class. Available for inspection in Zhejiang province.
| Specifications | Value |
|---|---|
| No. | 1124481 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 35049 |
| Bucket capacity (m³) | 2.3 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

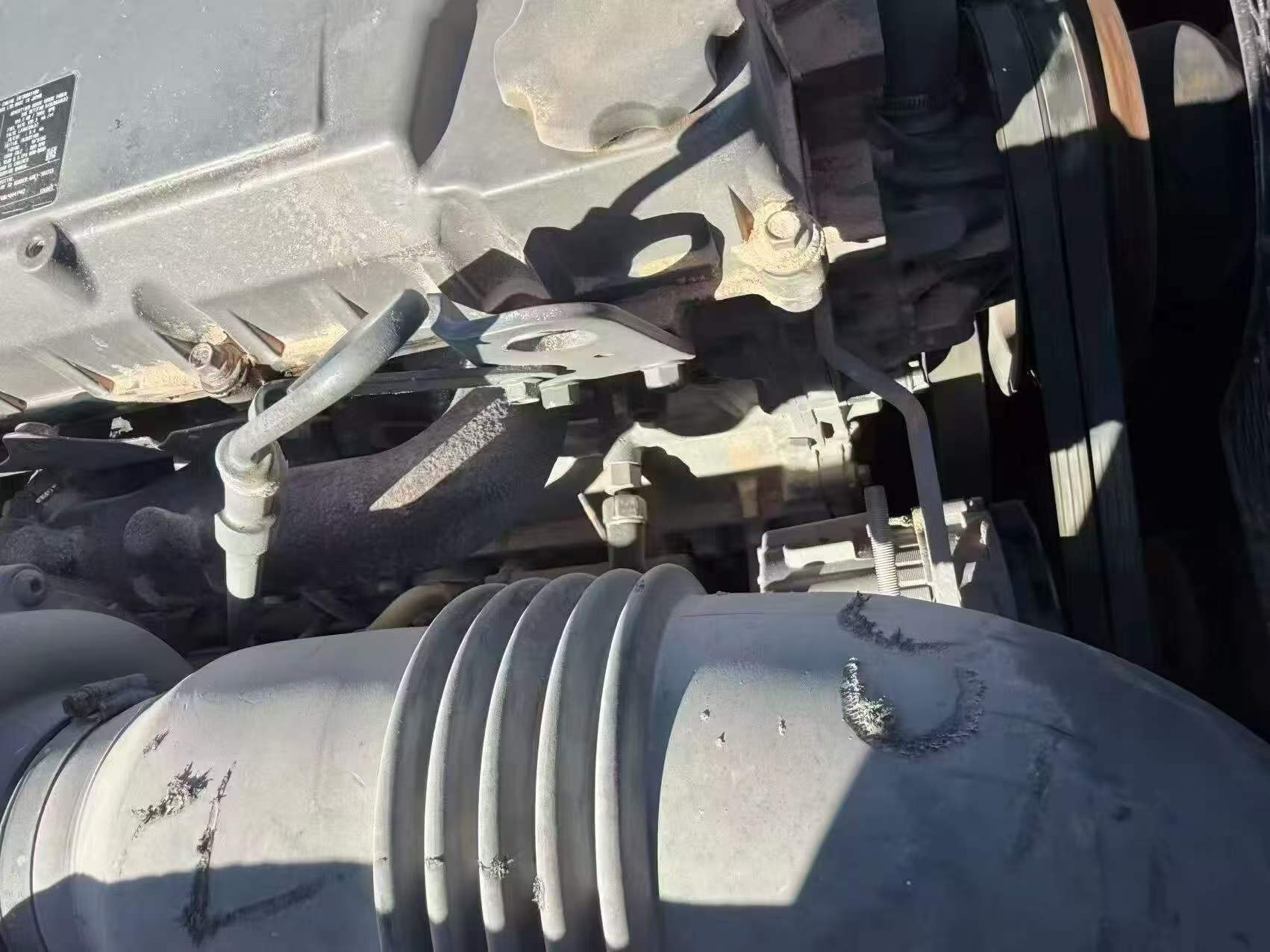

| Engine type | Isuzu AH-6HK1XYSA-01 |
| Rated power (kw/rpm) | 202/1900 |
| Displacement (L) | 7.8 |
| Ground specific pressure (Kpa) | 49.4 |
| Bucket digging force (kN) | 302.2 |
| Travel speed (km/h) | 5.5 |
| Fuel Tank (L) | 630 |
| Engine Oil changes (L) | 41 |
| Coolant (L) | 32 |
| Hydraulic System (L) | 340 |
| Total transport length (mm) | 11130 |
| Total transport width (mm) | 3390 |
| Total transport height (mm) | 3470 |
| Full cab height (mm) | 3140 |
| Counterweight ground clearance (mm) | 1160 |
| Minimum ground clearance (mm) | 500 |
| Back end turning radius (mm) | 3390 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 800 |
| Track ground length (mm) | 4050 |
| Maximum digging depth (mm) | 6480 |
| Maximum excavation height (mm) | 9990 |
| Maximum unloading height (mm) | 6940 |
| Maximum vertical digging depth (mm) | 5510 |
| Maximum excavation radius of stop surface (mm) | 10360 |
