Product Description

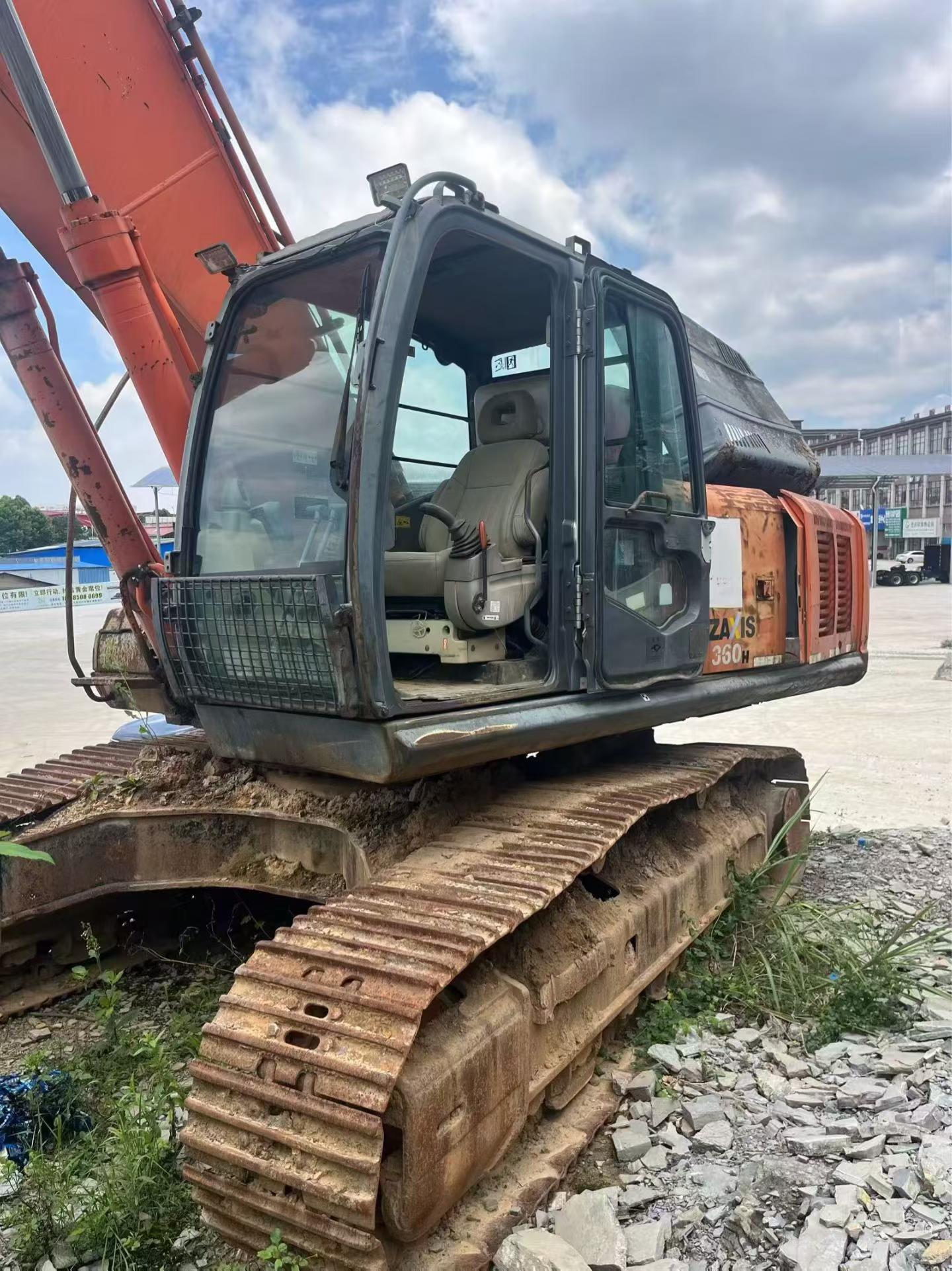

Discover the reliability and robust performance of the 2020 Hitachi ZX360H-3, now available in Yunnan, China. This used excavator, with just over 90,000 operational hours, has proven its durability and efficiency in various challenging environments. Ideal for construction, mining, and large-scale earthmoving projects, the ZX360H-3 is designed to deliver exceptional digging force, speed, and fuel efficiency, making it a cost-effective choice for your fleet.
- Year: 2020
- Brand: Hitachi
- Model: ZX360H-3
- Location: Yunnan, China
- Operational Hours: Over 90,000
| Specifications | Value |
|---|---|
| No. | 1120679 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 33700 |
| Bucket capacity (m³) | 1.6(Rock bucket) |
| Boom length (mm) | 6.4 |
| Rod length (mm) | 3.2 Type H (4 stiffeners) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AH-6HK1X |
| Rated power (kw/rpm) | 202/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.79 |
| Working form | Direct injection, turbocharged, with intercooler |
| Ground specific pressure (Kpa) | 68 |
| Rotation speed (rpm) | 10.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 234 |
| Rod digging force (kN) | 204 |
| Travel speed (km/h) | 3.2/5.0 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable axial piston motor ×2 |
| Maximum flow of main pump (l/min) | 2 x 288 + 30.2 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 32.4 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable axial piston pump ×2+ gear pump ×1 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 140 x 95 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 170 x 115 |
| Boom cylinders - Number × diameter × stroke (mm) | 146 x 100 |
| Fuel Tank (L) | 630 |
| Hydraulic Tank (L) | 180 |
| Engine Oil changes (L) | 41 |
| Coolant (L) | 32 |
| Total transport length (mm) | 11000 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3370 |
| Full cab height (mm) | 3160 |
| Counterweight ground clearance (mm) | 1160 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4460 |
| Back end turning radius (mm) | 3390 |
| Total track length (mm) | 4950 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3460 |
| Maximum digging radius (mm) | 11100 |
| Maximum digging depth (mm) | 7380 |
| Maximum excavation height (mm) | 10360 |
| Maximum unloading height (mm) | 7240 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10890 |
| Maximum effective digging depth (mm) | 7210 |
