Product Description

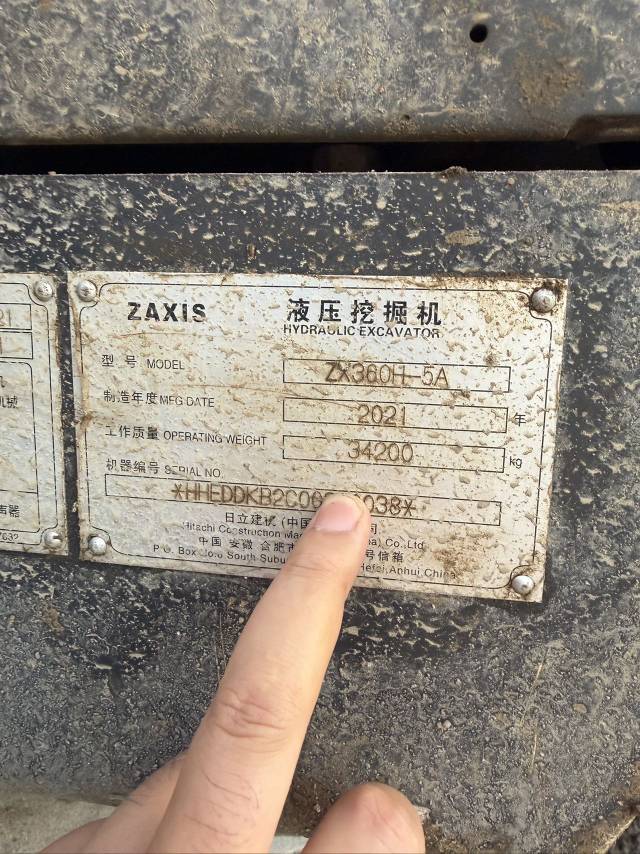

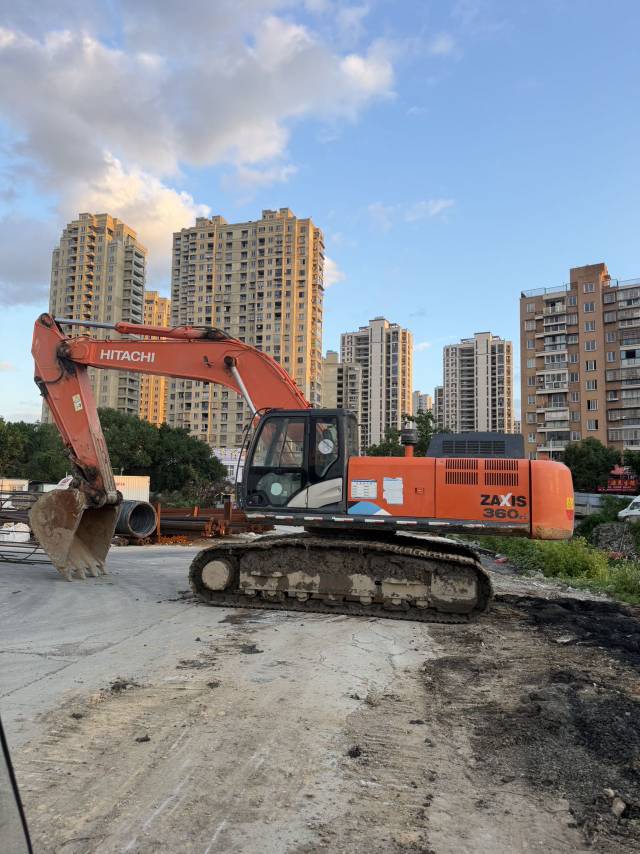

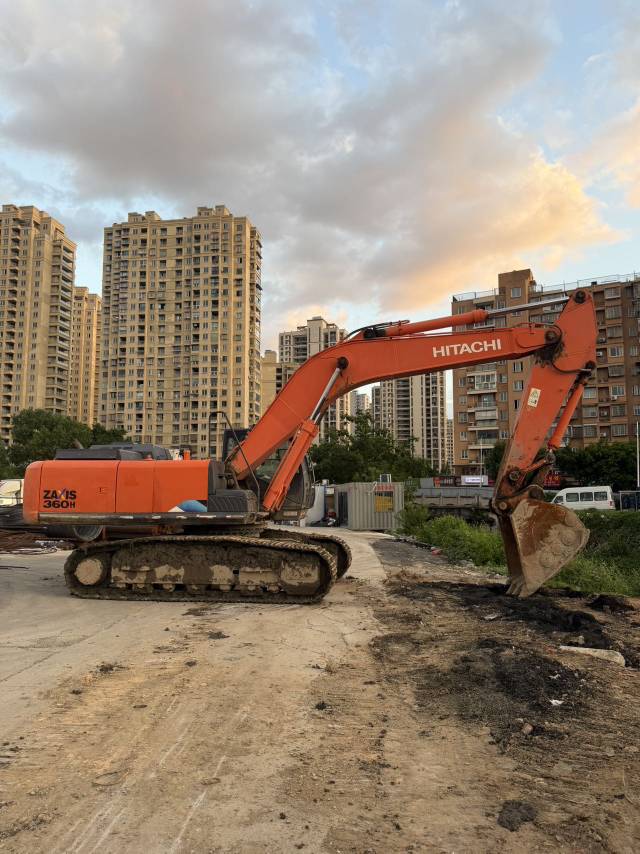

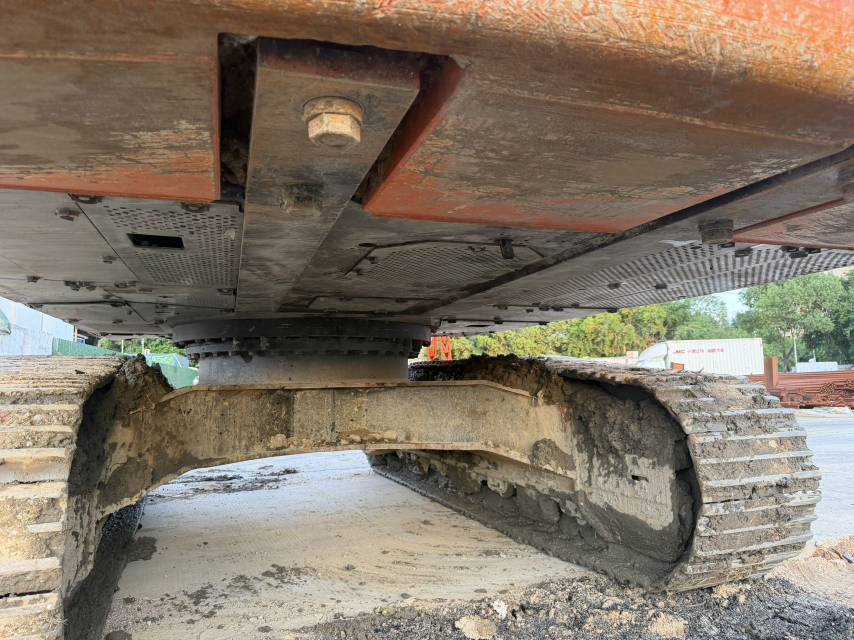

This 2021 Hitachi ZX360H-5A hydraulic excavator offers proven performance in excellent original condition. Located in Zhejiang, China, this 36-ton class machine has been well-maintained since purchase and is ready for immediate deployment. The undercarriage shows approximately 90% remaining life, reflecting careful operation and proper maintenance practices.
Key features include:
- Original factory configuration with no major modifications
- Hitachi's fuel-efficient HIOS III hydraulic system
- Reliable Isuzu engine meeting current emissions standards
- Spacious ROPS/FOPS certified cab with climate control
- Multiple working modes for varied applications
This excavator is available for inspection and performance testing at the seller's site. The machine requires no immediate repairs or component replacement, ensuring a smooth transition to your operation. Suitable for earthmoving, demolition, and general construction applications.
| Specifications | Value |
|---|---|
| No. | 1139122 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 34200-34300 |
| Bucket capacity (m³) | 2.0 |
| Boom length (mm) | 6400 |
| Rod length (mm) | 3200 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

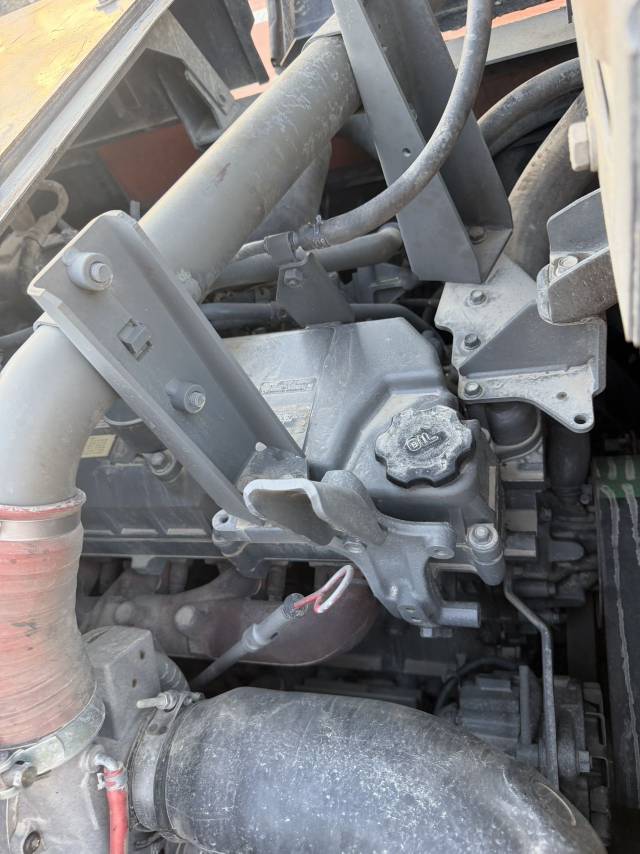

| Engine type | Isuzu GH-6HK1XKSA-01 |
| Rated power (kw/rpm) | 190/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Maximum torque (N.m) | 1037/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.790 |
| Working form | 4-stroke, water-cooled, electronically controlled direct injection, turbocharged, intercooled |
| Ground specific pressure (Kpa) | 69 |
| Rotation speed (rpm) | 10.7 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 246 |
| Rod digging force (kN) | 185 |
| Travel speed (km/h) | 5.0/3.2 |
| Turning torque (Nm) | 120 |

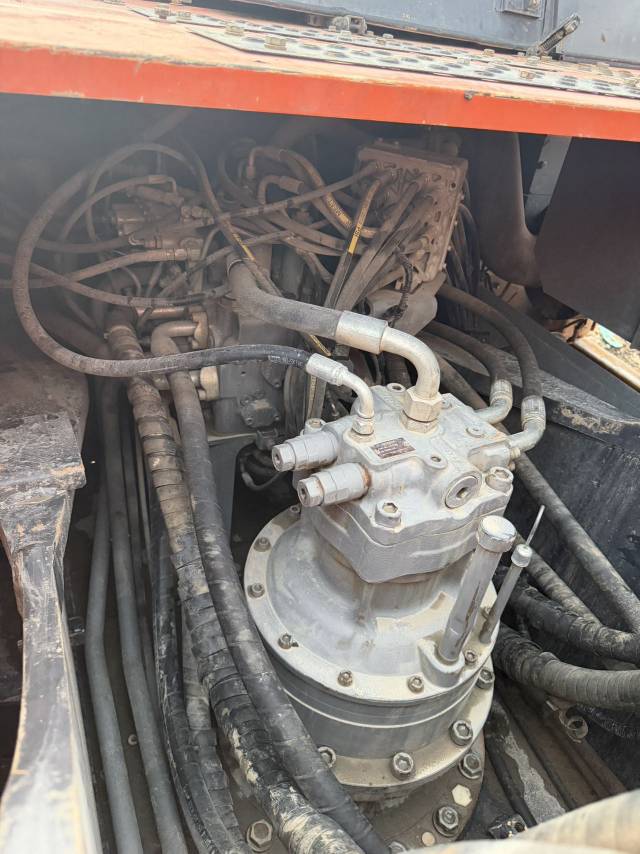

| Rotary hydraulic motor type | 1 swashplate plunger motor |
| Type of walking hydraulic motor | 2 variable swash plate plunger motor |
| Maximum flow of main pump (l/min) | 2 x 288 + 30.2 |
| Traveling Hydraulic Circuit (Mpa) | 34.8 |
| Rotary Hydraulic Circuit (Mpa) | 32.4 |
| Control Hydraulic Circuit (Mpa) | 38.0 |

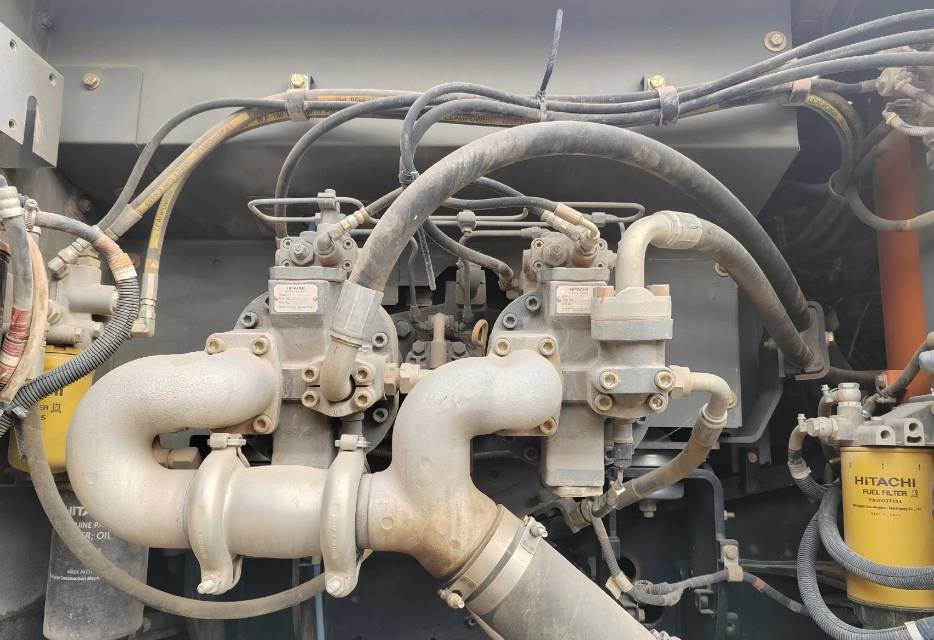

| Main pump type | 2 variable axial piston pumps +1 gear pump |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 140 x 95 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 170 x 115 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 145 x 100 |
| Fuel Tank (L) | 630 |
| Hydraulic Tank (L) | 180 |
| Engine Oil changes (L) | 41 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 340 |
| Total transport length (mm) | 11,220 |
| Total transport width (mm) | 3,190 |
| Total transport height (mm) | 3,270 |
| Full cab height (mm) | 3,160 |
| Counterweight ground clearance (mm) | 1,160 |
| Minimum ground clearance (mm) | 500 |
| Total track length (mm) | 4,650 |
| Track gauge (mm) | 2,590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3,190 |
| Track ground length (mm) | 3,730 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 11,100 |
| Maximum digging depth (mm) | 7,380 |
| Maximum excavation height (mm) | 10,360 |
| Maximum unloading height (mm) | 7,240 |
| Maximum vertical digging depth (mm) | 6,420 |
| Maximum excavation radius of stop surface (mm) | 10,890 |
