Product Description

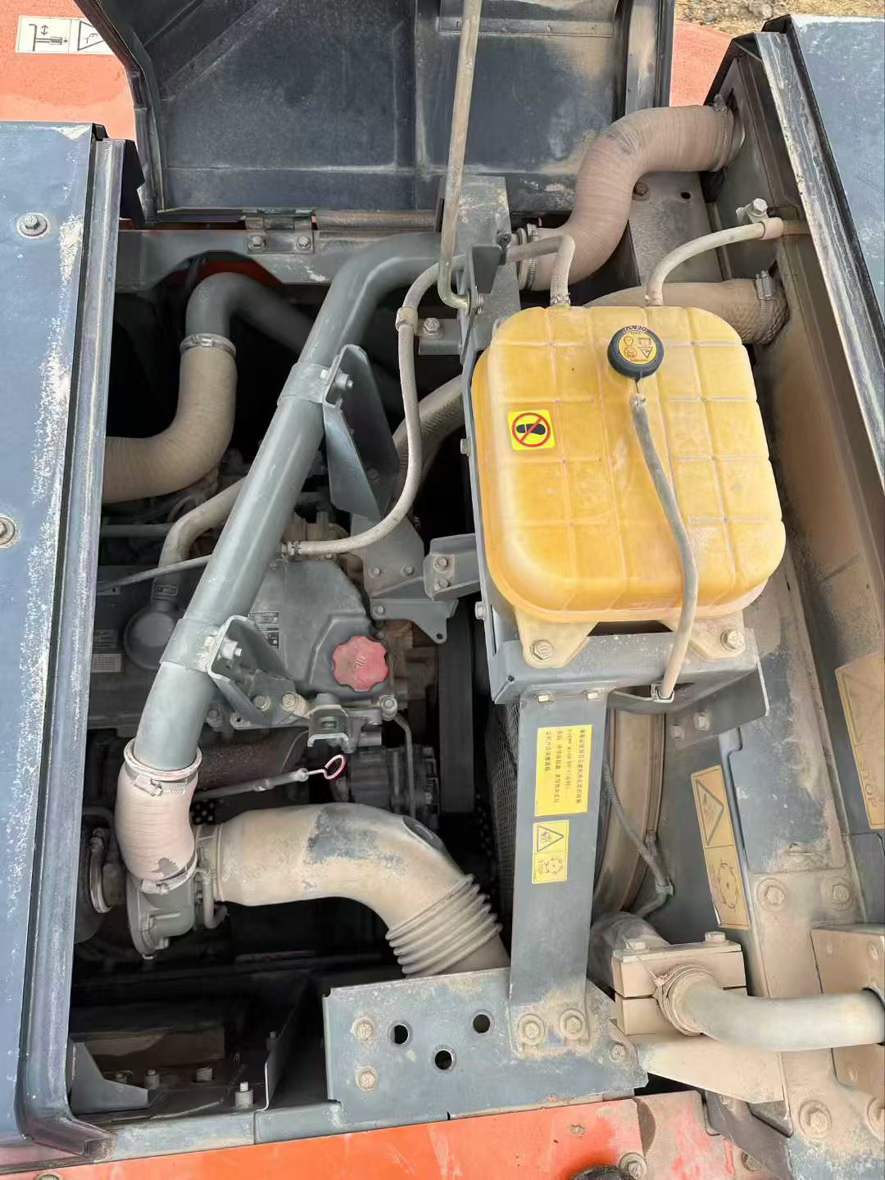

With a working weight of 35,200 kg and a bucket capacity ranging from 1.6 to 1.8 m³, the 2018 Hitachi ZX360K-5A excavator offers robust performance for demanding jobs. Located in 广西, this machine is powered by an Isuzu GH-6HK1XKSA-01 engine, delivering 190 kW of power with a 7.790 L displacement. Its water-cooled, 4-stroke, electronically controlled injection, turbocharged, and intercooled engine ensures reliable operation even in challenging conditions.
- High parts availability and strong resale value make Hitachi a trusted choice in the used market.
- Featuring a 630 L fuel tank and 298 L hydraulic tank, it provides extended operational hours.
- Maximum digging depth of 7380 mm and maximum excavation height of 10360 mm enhance its versatility on various job sites.
- Travel speeds of 5.0 km/h and 3.2 km/h, combined with a 70% climbing ability, ensure efficient movement across diverse terrains.
| Specifications | Value |
|---|---|
| No. | 1022741 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 35,200 |
| Bucket capacity (m³) | 1.6~1.8 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu GH-6HK1XKSA-01 |
| Rated power (kw/rpm) | 190 |
| Cooling mode | water-cooling |
| Displacement (L) | 7.790 |
| Working form | 4 stroke, water cooled, electronically controlled injection, turbocharged, intercooled |
| Ground specific pressure (Kpa) | 71 |
| Rotation speed (rpm) | 10.7 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.0 / 3.2 |
| Fuel Tank (L) | 630 |
| Hydraulic Tank (L) | 298 |
| Engine Oil changes (L) | 41 |
| Total transport length (mm) | 11220 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3270 |
| Counterweight ground clearance (mm) | 1160 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4460 |
| Back end turning radius (mm) | 3590 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 11100 |
| Maximum digging depth (mm) | 7380 |
| Maximum excavation height (mm) | 10360 |
| Maximum unloading height (mm) | 7240 |
| Maximum vertical digging depth (mm) | 6420 |
| Maximum excavation radius of stop surface (mm) | 10890 |
