Product Description

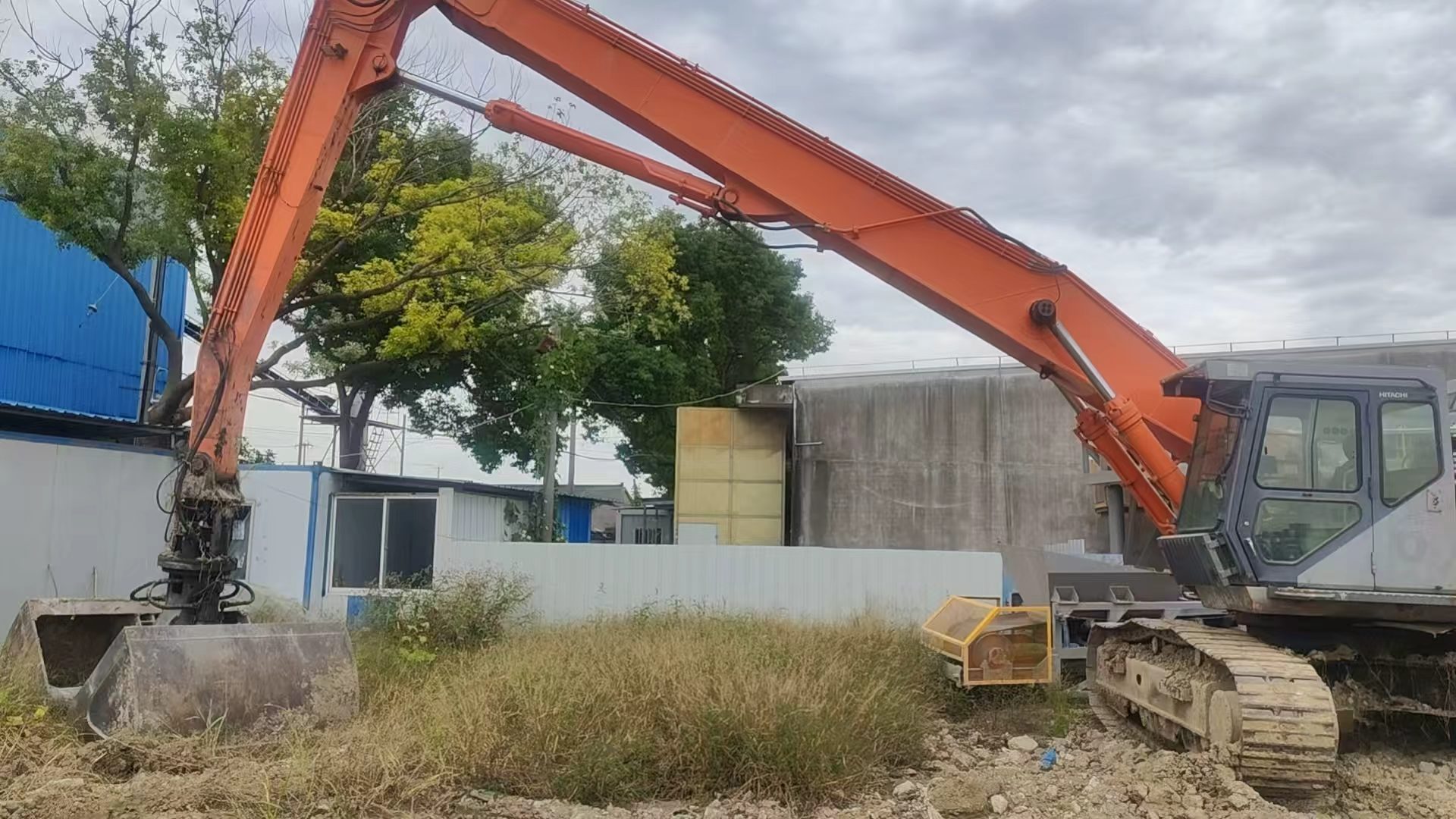

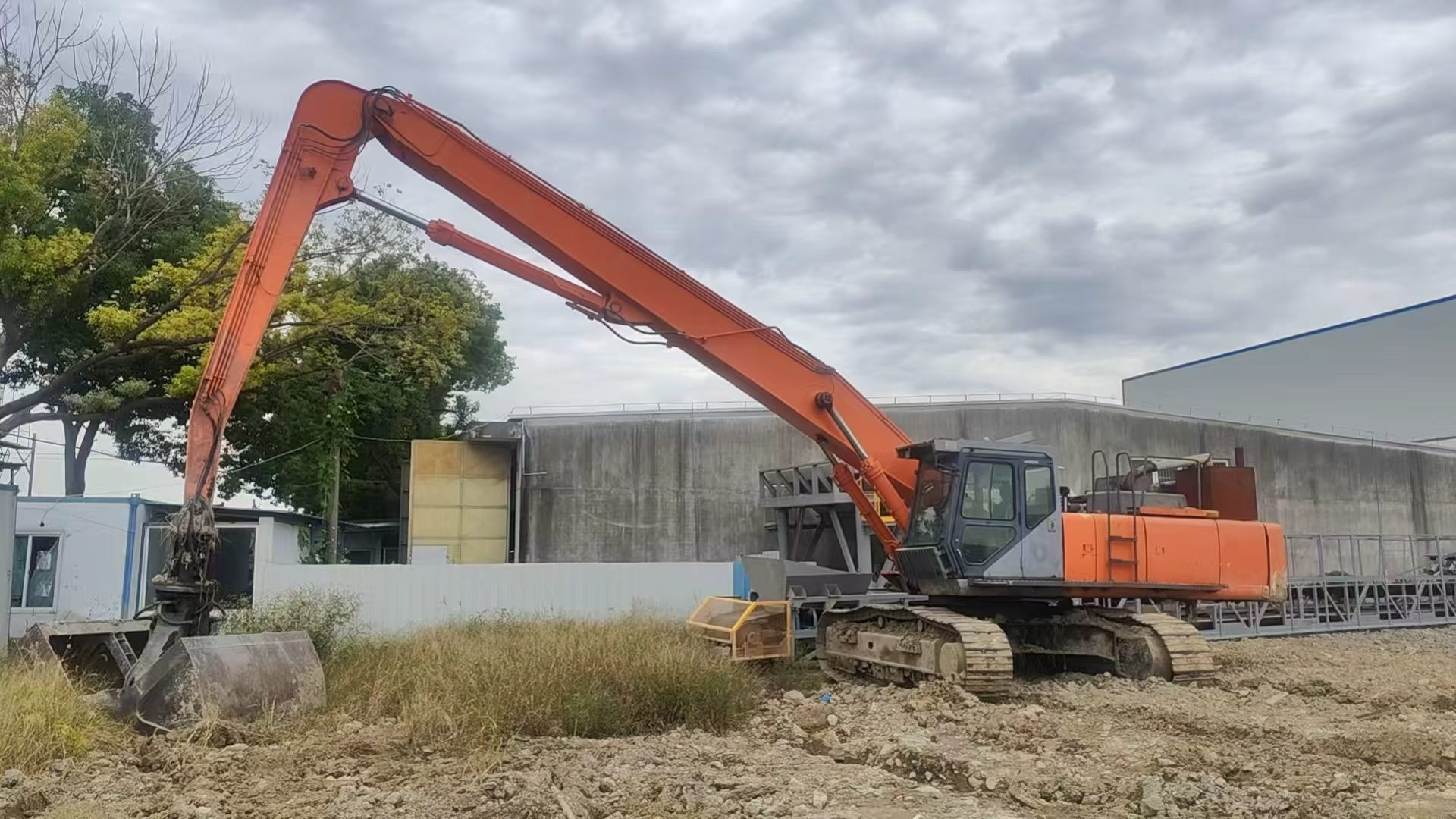

This 2020 Hitachi ZX450 material handler is purpose-configured for dock operations in Jiangsu, China. Originally deployed as a port grapple machine, this excavator has been adapted for continuous material handling duties at waterfront facilities. The ZX450 platform provides the reach and lifting capacity required for loading and unloading bulk cargo from vessels and barges.
Key features include:
- Hitachi ZX450 base machine with reinforced undercarriage
- Material handler configuration for grapple attachment
- Dock service history in controlled port environment
- Located in Jiangsu Province, China
- 2020 model year with documented operational records
This unit suits buyers seeking proven material handling equipment for port, scrapyard, or bulk transfer operations. Inspection and technical documentation available upon request.
| Specifications | Value |
|---|---|
| No. | 1163939 |
| Tonnage (tons) | 45 |
| Working weight (kg) | 42500 |
| Bucket capacity (m³) | 1.9/1.2/2.7 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu AA-6WG1TQA |
| Rated power (kw/rpm) | 234.1/1800 |
| Displacement (L) | 15.7 |
| Ground specific pressure (Kpa) | 79 |
| Travel speed (km/h) | 5.5 |
| Fuel Tank (L) | 650 |
| Engine Oil changes (L) | 55 |
| Coolant (L) | 61 |
| Hydraulic System (L) | 510 |
| Total transport length (mm) | 11850 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3260 |
| Full cab height (mm) | 3260 |
| Counterweight ground clearance (mm) | 1230 |
| Minimum ground clearance (mm) | 496 |
| Back end turning radius (mm) | 3500 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4050 |
| Maximum digging depth (mm) | 6020 |
| Maximum excavation height (mm) | 10620 |
| Maximum unloading height (mm) | 7100 |
| Maximum vertical digging depth (mm) | 4810 |
| Maximum excavation radius of stop surface (mm) | 10340 |
