Product Description

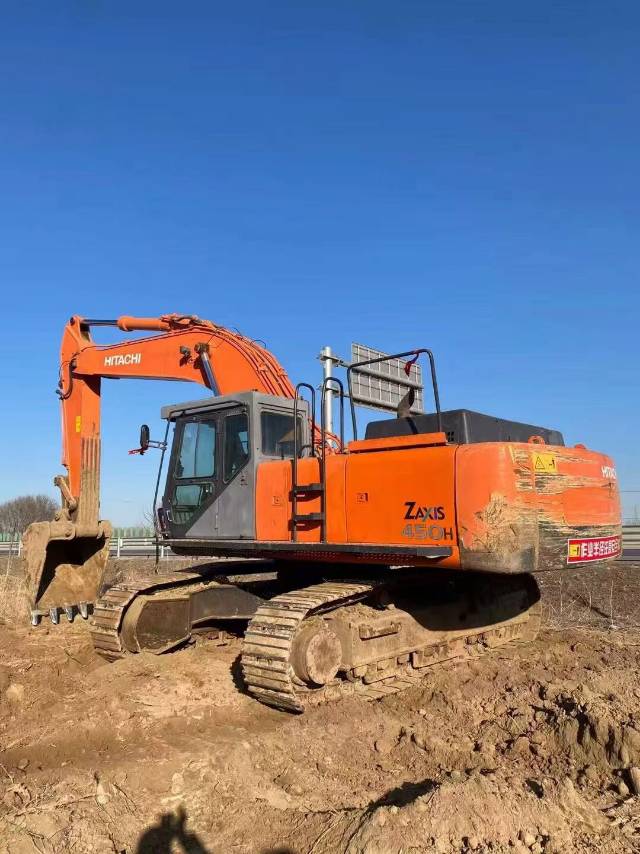

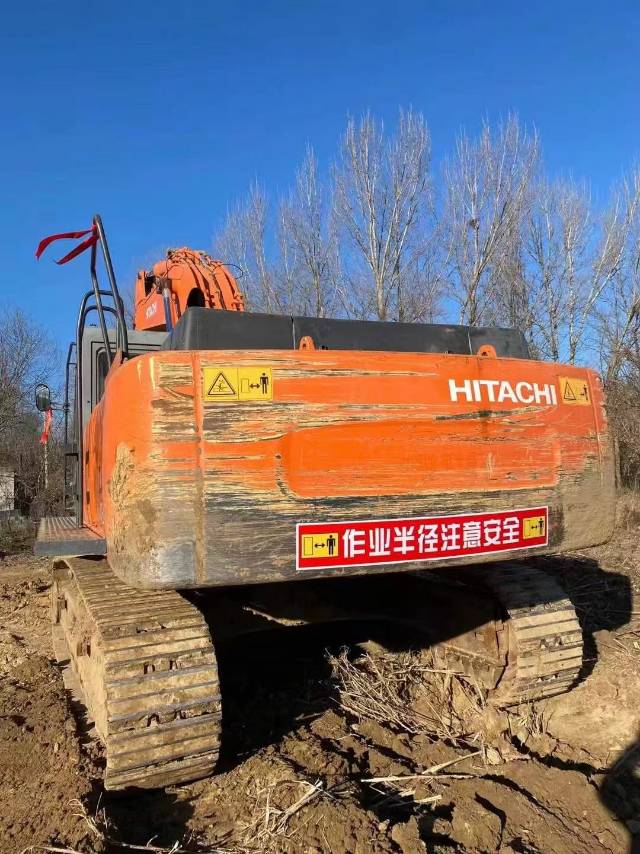

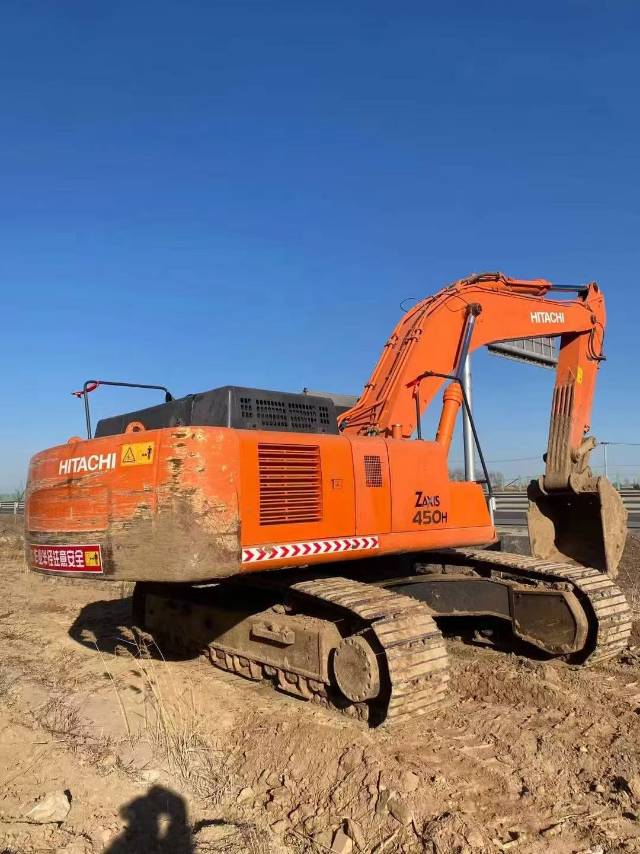

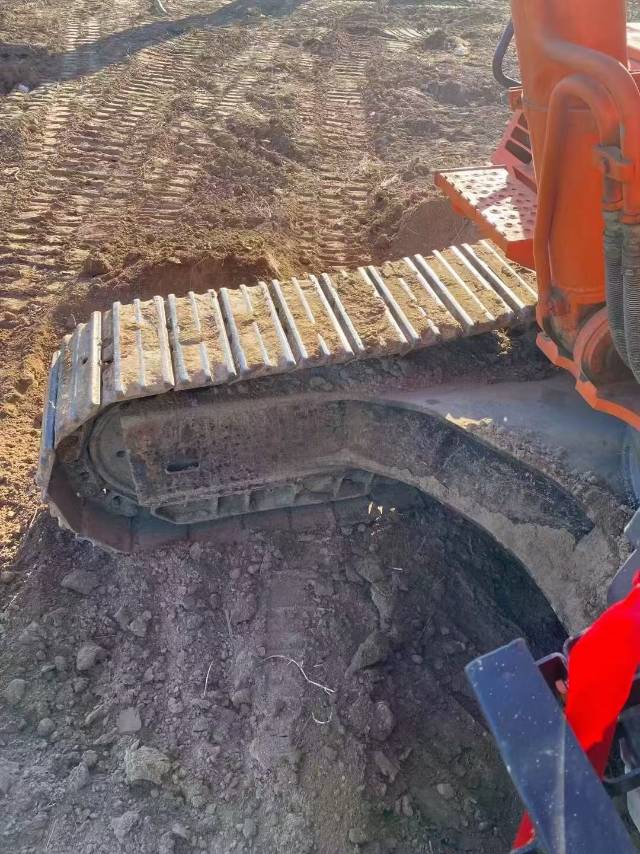

This 2018 Hitachi ZX450H hydraulic excavator represents proven Japanese engineering and reliability. Currently located in Beijing, China, this machine has completed its project cycle and is now available for resale. The ZX450H is a well-regarded model in Hitachi's medium-to-large excavator lineup, known for its robust construction and operational efficiency.
- Year of Manufacture: 2018
- Make: Hitachi
- Model: ZX450H
- Current Location: Beijing, China
- Availability: Ready for immediate transfer
- Source: Direct from project completion
This unit offers an opportunity for contractors and operators seeking dependable equipment at competitive pricing. The ZX450H's design emphasizes durability and performance for demanding excavation applications. Interested buyers are encouraged to conduct thorough inspections and request operational documentation prior to purchase.
| Specifications | Value |
|---|---|
| No. | 1119455 |
| Tonnage (tons) | 45 |
| Working weight (kg) | 44100 |
| Bucket capacity (m³) | 1.9(Rock bucket) |
| Boom length (mm) | 7.0H |
| Rod length (mm) | 3.4H type (5 stiffeners) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

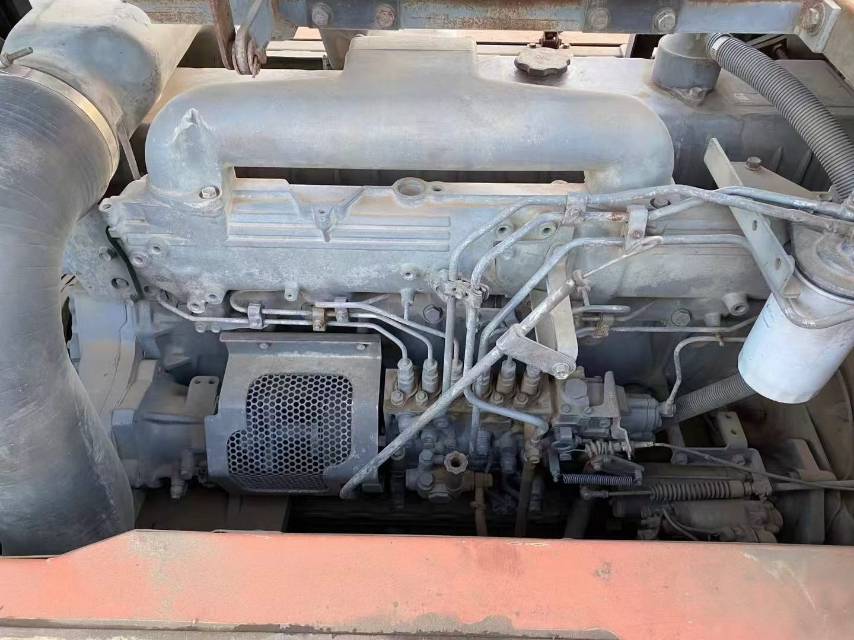

| Engine type | ISUZU AH-6WG1TQA |
| Rated power (kw/rpm) | 235/1800 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 15.681 |

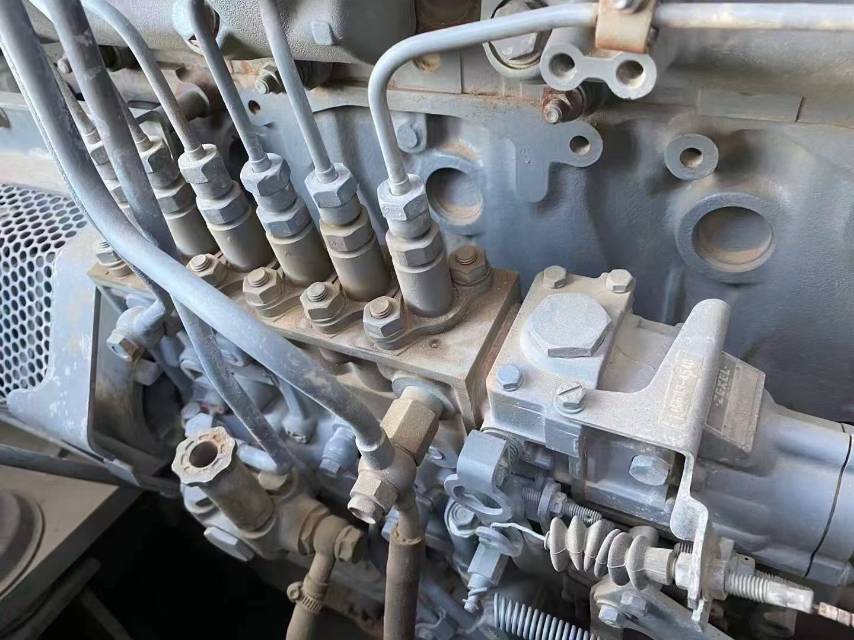

| Working form | Direct injection |
| Ground specific pressure (Kpa) | 81 |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 269 |
| Rod digging force (kN) | 202 |
| Travel speed (km/h) | 3.4/5.0 |
| Main overflow set pressure (Mpa) | 30.4 |

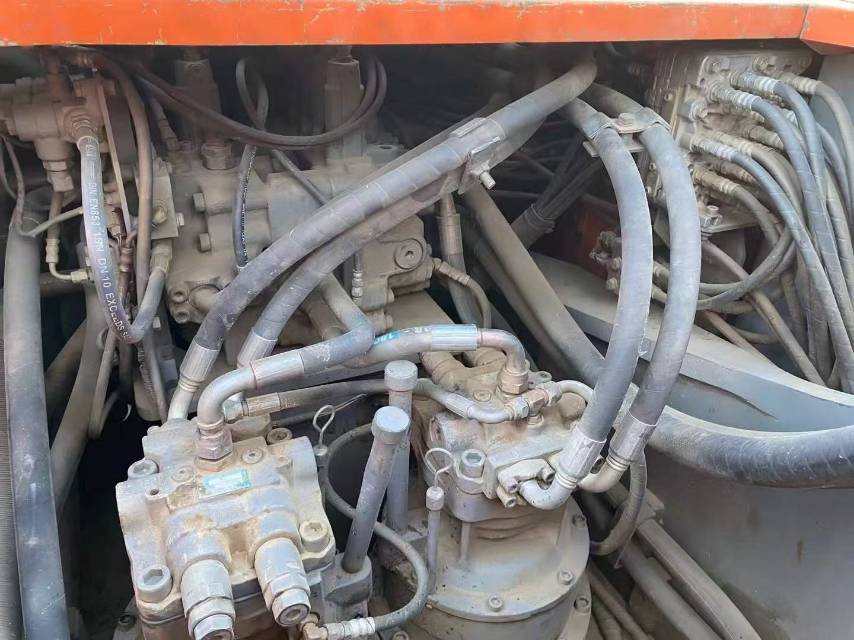

| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable axial piston motor ×2 |
| Maximum flow of main pump (l/min) | 2 x 288 + 30.2 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Hydraulic crushing pipeline is standard | no |

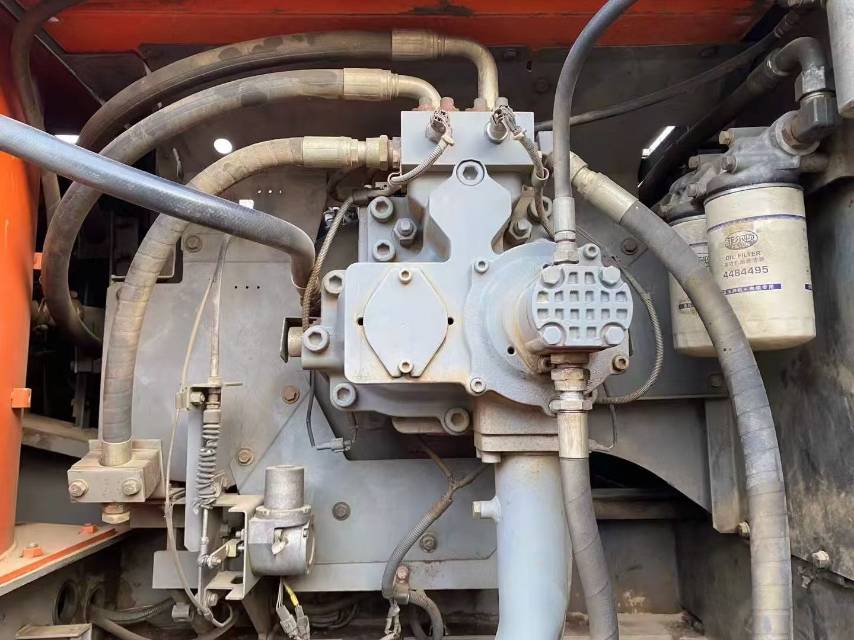

| Main pump type | Variable swashplate plunger pump ×2 |
| Working Hydraulic Circuit (Mpa) | 30.4 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 170 x 115 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 190 x 130 |
| Boom cylinders - Number × diameter × stroke (mm) | 170 x 115 |
| Fuel Tank (L) | 650 |
| Hydraulic Tank (L) | 280/610 |
| Engine Oil changes (L) | 55 |
| Coolant (L) | 6170 |
| Total transport length (mm) | 11850 |
| Total transport width (mm) | 3670 |
| Total transport height (mm) | 3450 |
| Full cab height (mm) | 3250 |
| Counterweight ground clearance (mm) | 1230 |
| Minimum ground clearance (mm) | 496 |
| Back end turning radius (mm) | 3500 |
| Total track length (mm) | 5050 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3340 |
| Track ground length (mm) | 4050 |
| Maximum digging radius (mm) | 12050 |
| Maximum digging depth (mm) | 7890 |
| Maximum excavation height (mm) | 10950 |
| Maximum unloading height (mm) | 7540 |
| Maximum vertical digging depth (mm) | 6780 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 11850 |
