Product Description

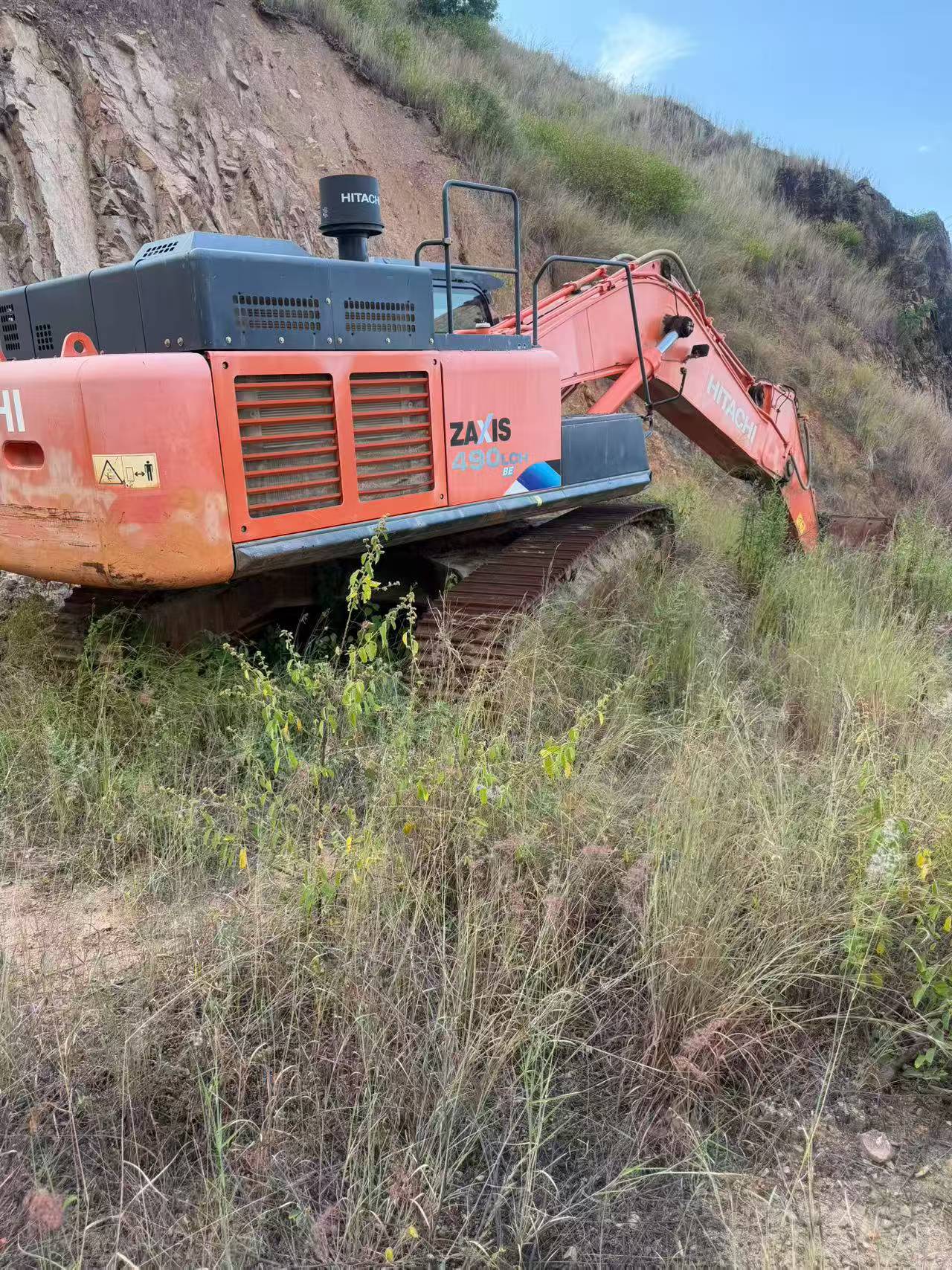

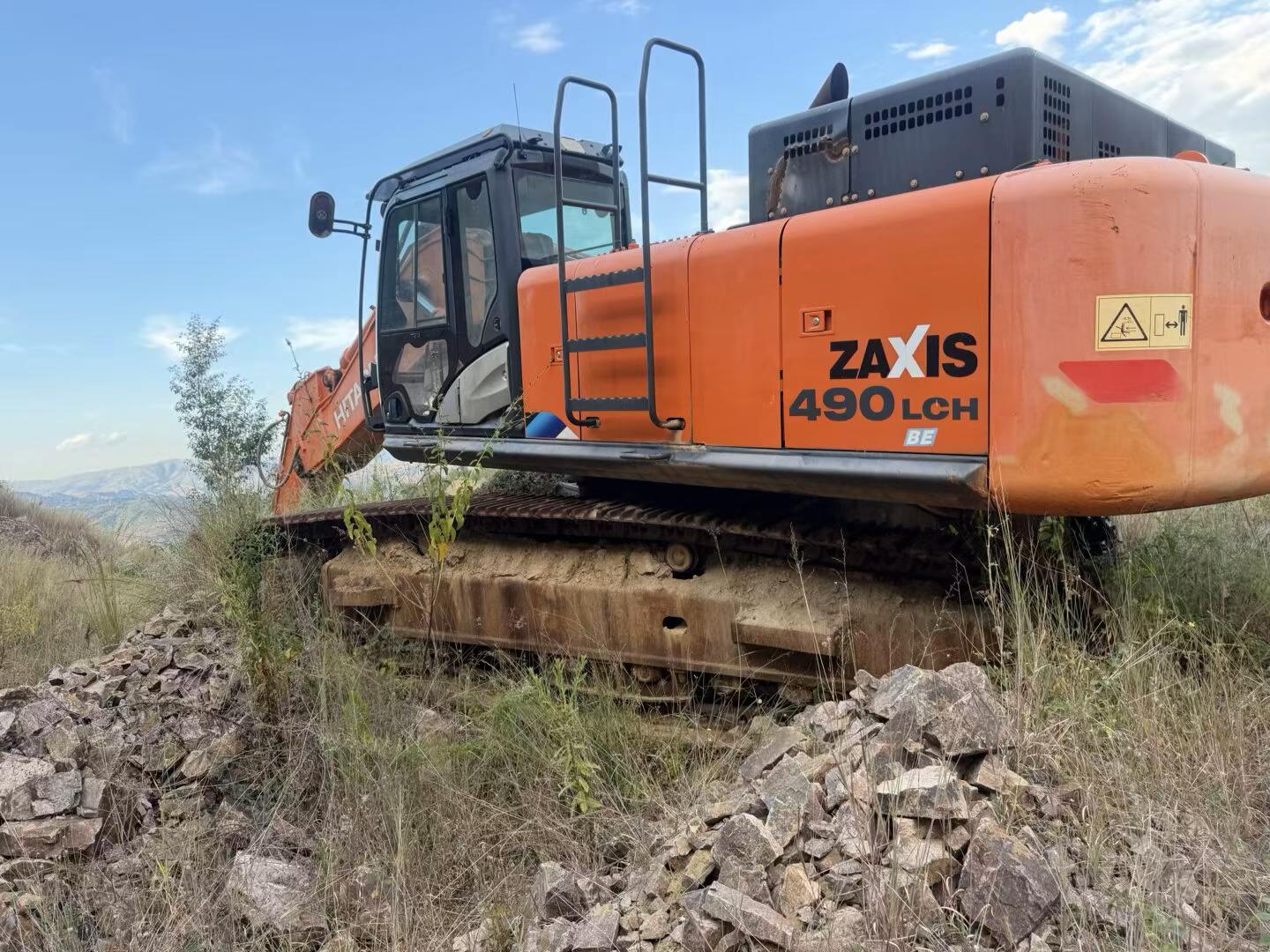

This 2017 Hitachi ZX490LCH-5A excavator delivers exceptional performance with low operational hours, making it an outstanding value for demanding applications. Currently located in Yunnan, China, this premium machine features Hitachi's renowned hydraulic system and fuel-efficient engine technology that defined the fifth-generation ZX series.
Key attributes include:

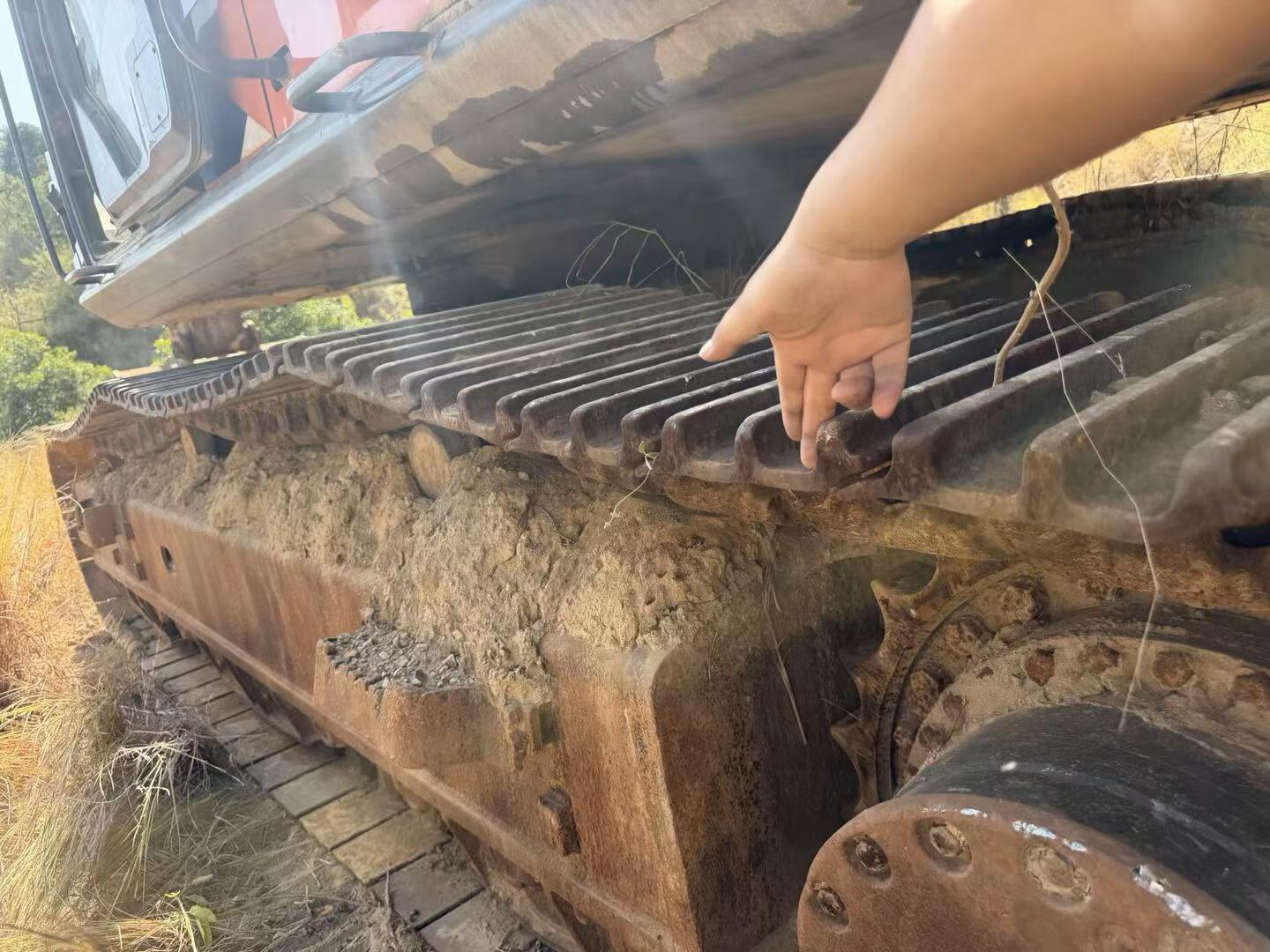

- Robust undercarriage and chassis in excellent condition
- Low hour meter reading indicating minimal wear
- 48-ton operating weight class for heavy-duty earthmoving
- Advanced hydraulic system for superior digging force
- Well-maintained by original operator
The ZX490LCH-5A combines productivity with reliability, ideal for mining, quarrying, and large-scale construction projects. This unit represents a cost-effective solution for operators seeking proven Japanese engineering without compromising on performance standards.
| Specifications | Value |
|---|---|
| No. | 1173637 |
| Tonnage (tons) | 49 |
| Working weight (kg) | 47200-47500 |
| Bucket capacity (m³) | 2.1-3.0 |
| Boom length (mm) | 7000 |
| Rod length (mm) | 3400 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

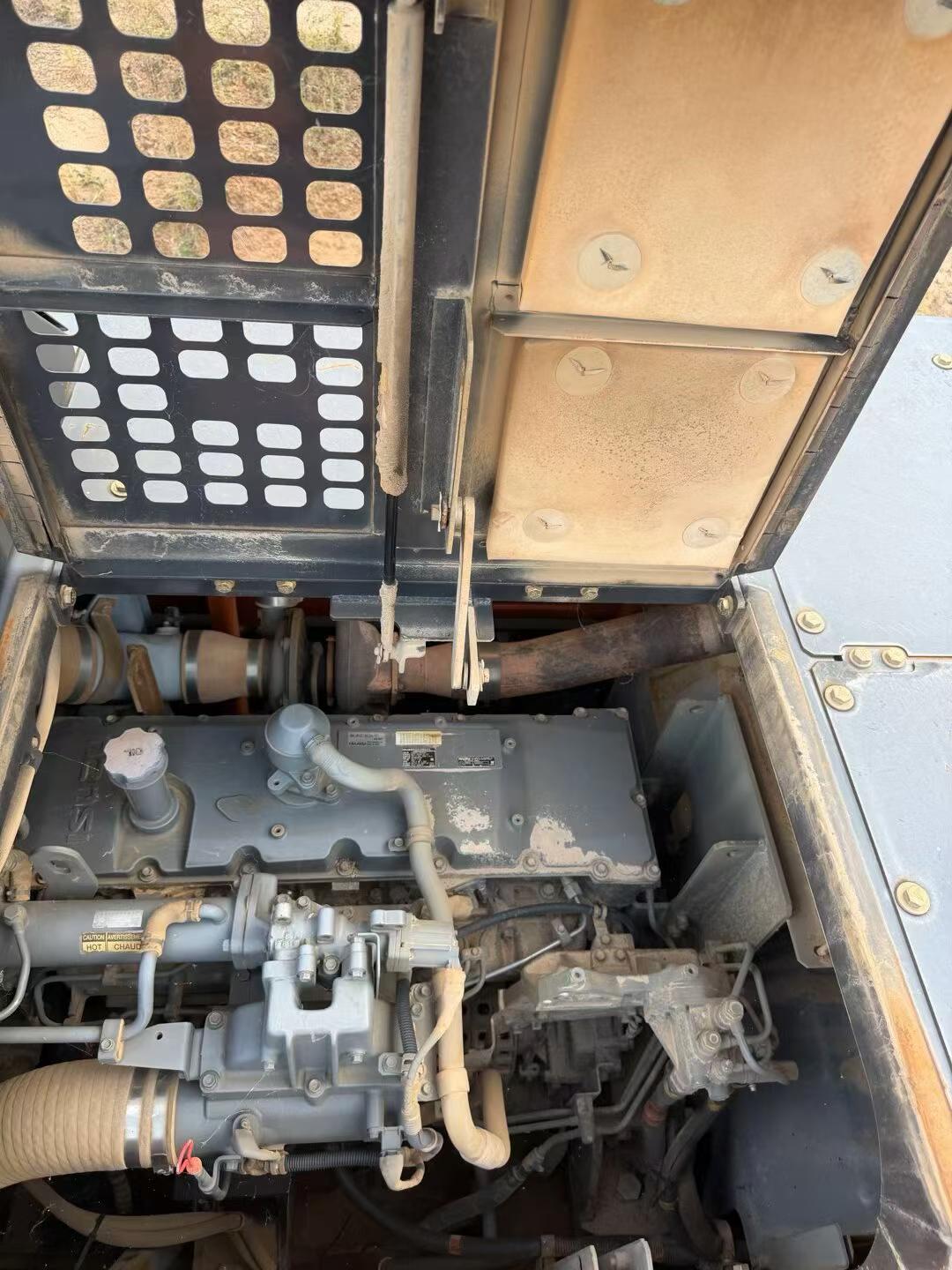

| Engine type | Isuzu GH-6UZ1XKSA-01 |
| Rated power (kw/rpm) | 257/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 120 x 145 |
| Maximum torque (N.m) | 1363/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 9.839 |
| Working form | 4-stroke, water-cooled, electronically controlled direct injection, turbocharged, intercooled |
| Ground specific pressure (Kpa) | 80 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 296 |
| Rod digging force (kN) | 224 |
| Travel speed (km/h) | 5.5 (High) /3.9 (Low) |
| Turning torque (Nm) | 148 |
| Rotary hydraulic motor type | Two swashplate quantitative axial piston motors |
| Type of walking hydraulic motor | 2 swashplate variable axial piston motors (with parking brake) |
| Maximum flow of main pump (l/min) | 2 x 400 + 30 |
| Traveling Hydraulic Circuit (Mpa) | 35.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.4 |

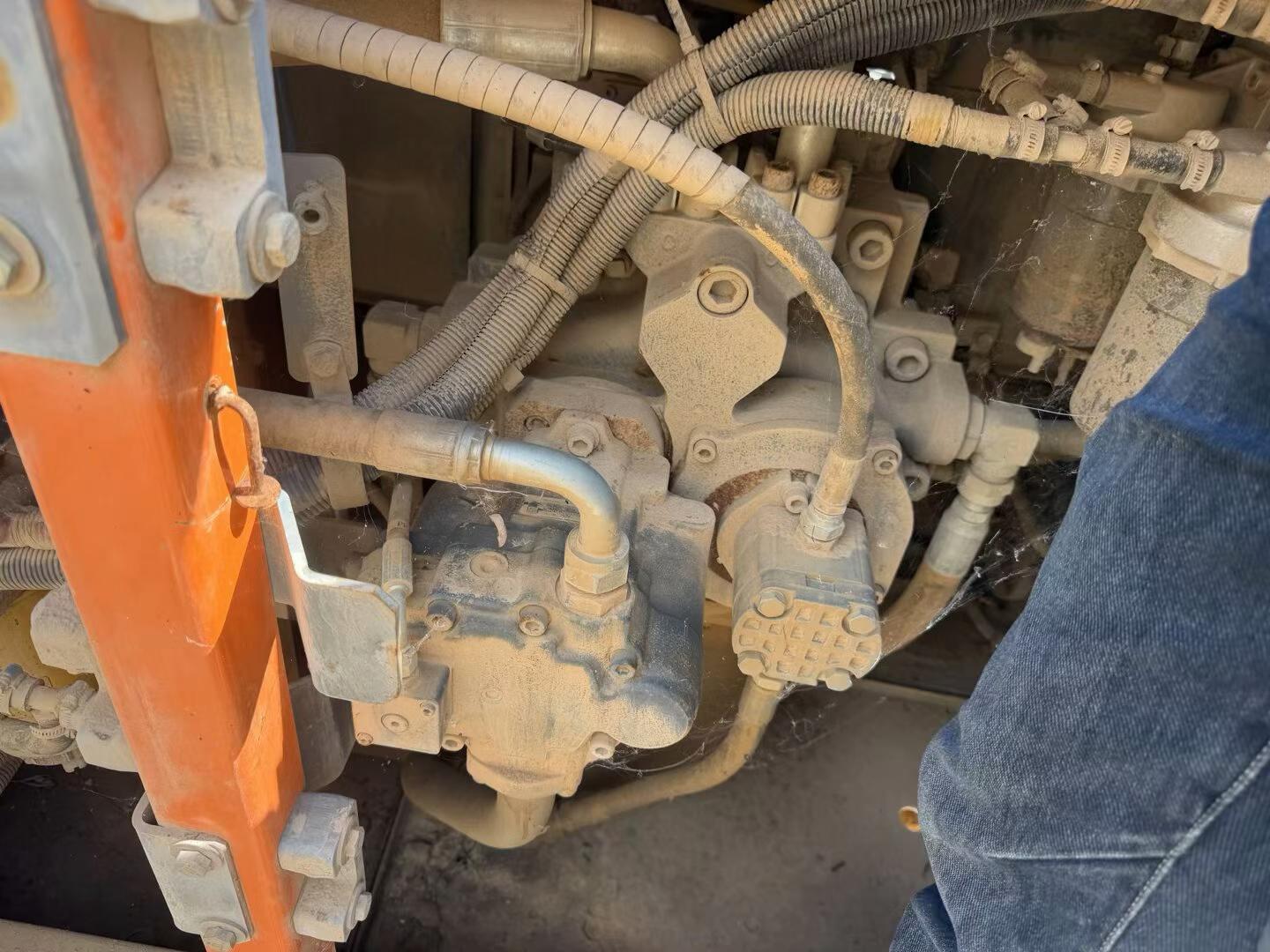

| Main pump type | 2 variable axial piston pumps +1 gear pump |
| Working Hydraulic Circuit (Mpa) | 31.9 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 170 x 120 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 190 x 130 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 170 x 115 |
| Fuel Tank (L) | 725.0 |
| Hydraulic Tank (L) | 310.0 |
| Engine Oil changes (L) | 41.0 |
| Coolant (L) | 58.0 |
| Total transport length (mm) | 12040 |
| Total transport width (mm) | 3550 |
| Total transport height (mm) | 3450 |
| Full cab height (mm) | 3320 |
| Counterweight ground clearance (mm) | 1270 |
| Minimum ground clearance (mm) | 535 |
| Minimum turning radius of front working device (mm) | 4840 |
| Back end turning radius (mm) | 3670 |
| Total track length (mm) | 5470 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3340 |
| Track ground length (mm) | 4470 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 53 |
| Maximum digging radius (mm) | 12060 |
| Maximum digging depth (mm) | 7850 |
| Maximum excavation height (mm) | 10980 |
| Maximum unloading height (mm) | 7580 |
| Maximum vertical digging depth (mm) | 7170 |
| Maximum excavation radius of stop surface (mm) | 11860 |
see more
Overview
No.1173637
Brand Name：
HitachiModel Number：
ZX490LCH-5AYear：
2017
Location：
Yunnan China
Pub Date：
