Product Description

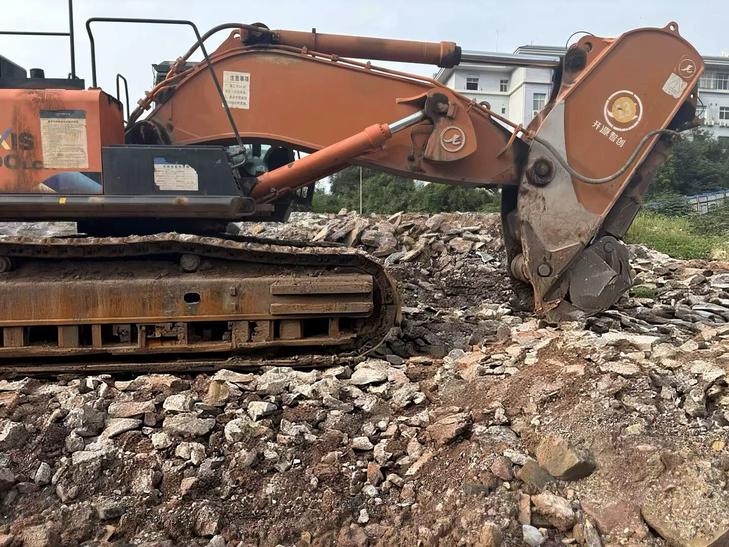

This 2021 Hitachi ZX490LCH-5A hydraulic excavator features the advanced Heavy Duty (HD) arm configuration, delivered in November 2021. Located in Jiangsu, China, this late-model machine represents Hitachi's -5A generation with proven reliability and performance in demanding excavation applications.
The ZX490LCH-5A offers a robust operating weight class around 49 tonnes, powered by Isuzu engine technology meeting current emission standards. The HD arm variant provides enhanced durability for heavy-duty digging, demolition, and material handling operations.
- Year: 2021
- Model: ZX490LCH-5A with HD arm
- Delivery: November 2021
- Location: Jiangsu Province, China
- Configuration: Long Carriage (LC) with Heavy Duty arm
This excavator combines low operating hours with modern cab comfort, hydraulic efficiency, and the structural strength required for intensive earthmoving projects. Ideal for contractors seeking reliable performance in mining, quarrying, or large-scale construction environments.
| Specifications | Value |
|---|---|
| No. | 1168619 |
| Tonnage (tons) | 49 |
| Working weight (kg) | 47200-47500 |
| Bucket capacity (m³) | 2.1-3.0 |
| Boom length (mm) | 7000 |
| Rod length (mm) | 3400 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu GH-6UZ1XKSA-01 |
| Rated power (kw/rpm) | 257/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 120 x 145 |
| Maximum torque (N.m) | 1363/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 9.839 |
| Working form | 4-stroke, water-cooled, electronically controlled direct injection, turbocharged, intercooled |
| Ground specific pressure (Kpa) | 80 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 296 |
| Rod digging force (kN) | 224 |
| Travel speed (km/h) | 5.5 (High) /3.9 (Low) |
| Turning torque (Nm) | 148 |
| Rotary hydraulic motor type | Two swashplate quantitative axial piston motors |
| Type of walking hydraulic motor | 2 swashplate variable axial piston motors (with parking brake) |
| Maximum flow of main pump (l/min) | 2 x 400 + 30 |
| Traveling Hydraulic Circuit (Mpa) | 35.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.4 |
| Main pump type | 2 variable axial piston pumps +1 gear pump |
| Working Hydraulic Circuit (Mpa) | 31.9 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 170 x 120 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 190 x 130 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 170 x 115 |
| Fuel Tank (L) | 725.0 |
| Hydraulic Tank (L) | 310.0 |
| Engine Oil changes (L) | 41.0 |
| Coolant (L) | 58.0 |
| Total transport length (mm) | 12040 |
| Total transport width (mm) | 3550 |
| Total transport height (mm) | 3450 |
| Full cab height (mm) | 3320 |
| Counterweight ground clearance (mm) | 1270 |
| Minimum ground clearance (mm) | 535 |
| Minimum turning radius of front working device (mm) | 4840 |
| Back end turning radius (mm) | 3670 |
| Total track length (mm) | 5470 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3340 |
| Track ground length (mm) | 4470 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 53 |
| Maximum digging radius (mm) | 12060 |
| Maximum digging depth (mm) | 7850 |
| Maximum excavation height (mm) | 10980 |
| Maximum unloading height (mm) | 7580 |
| Maximum vertical digging depth (mm) | 7170 |
| Maximum excavation radius of stop surface (mm) | 11860 |
Overview
No.1168619
Brand Name：
HitachiModel Number：
ZX490LCH-5AYear：
2021
Location：
Jiangsu China
