2020 Hitachi ZX60

1/7
Buy Hitachi ZX60 Used Excavator / 1
Buy Hitachi ZX60 Used Excavator / 2

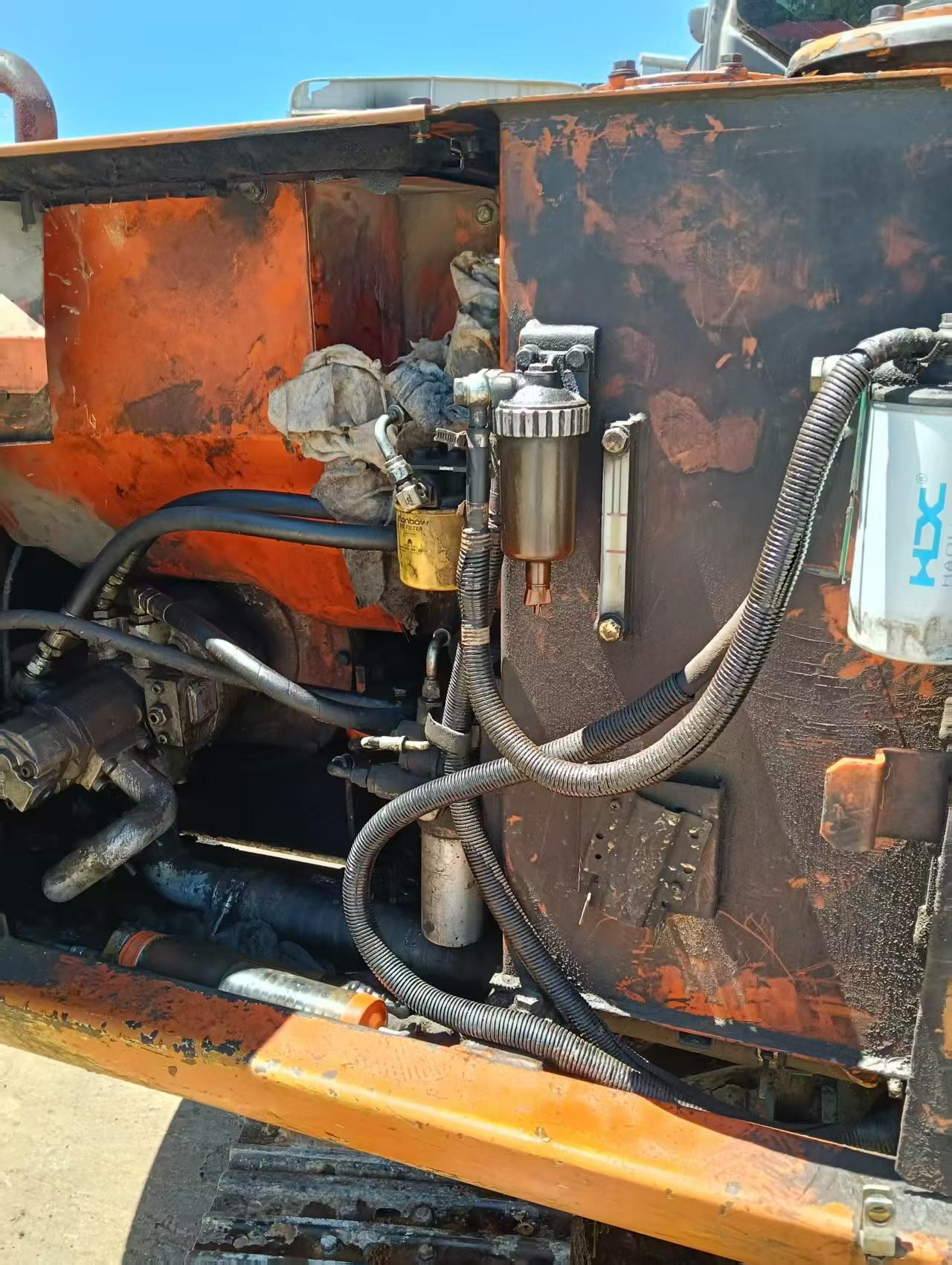

Buy Hitachi ZX60 Used Excavator / 3

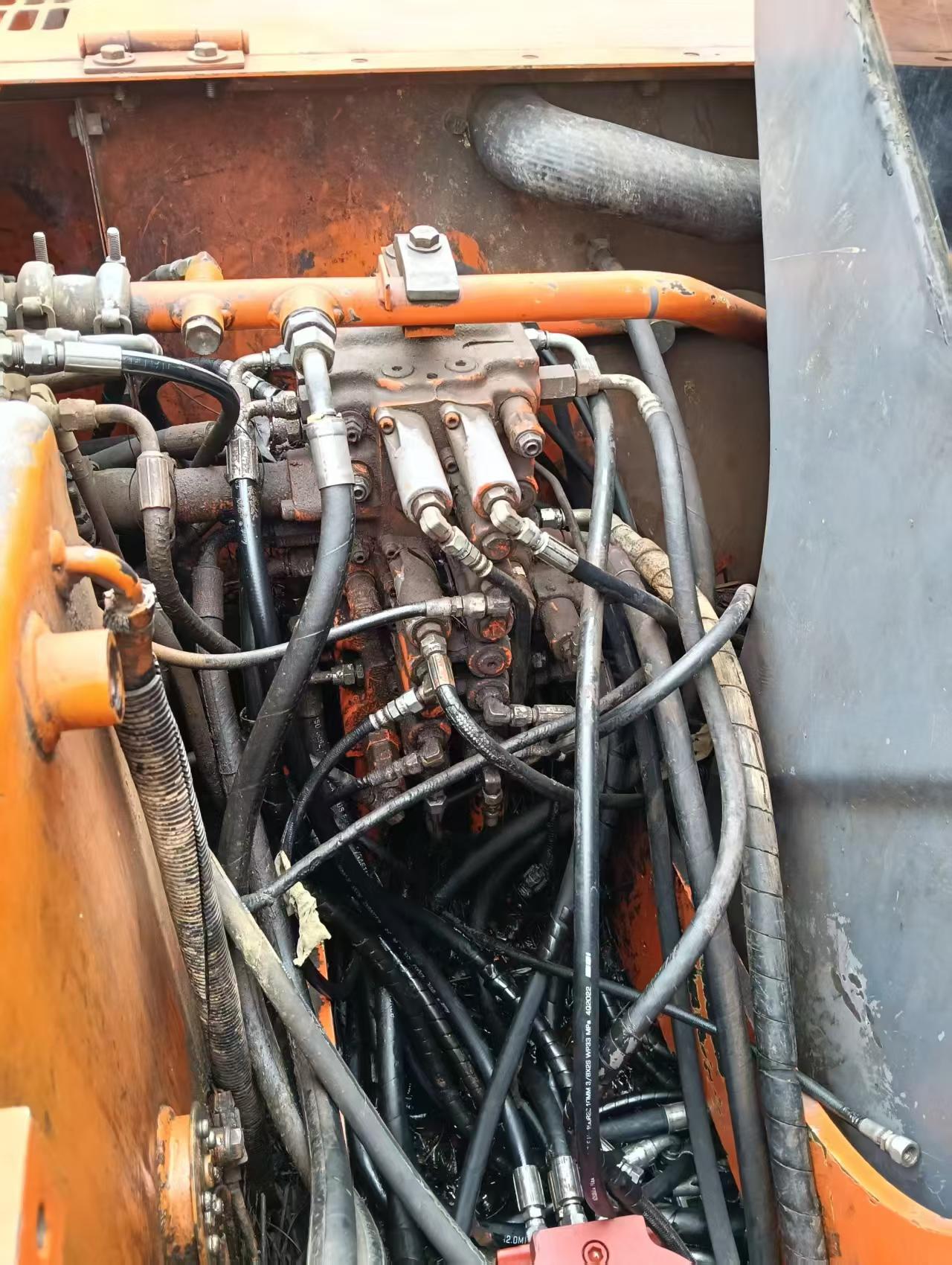

Buy Hitachi ZX60 Used Excavator / 4

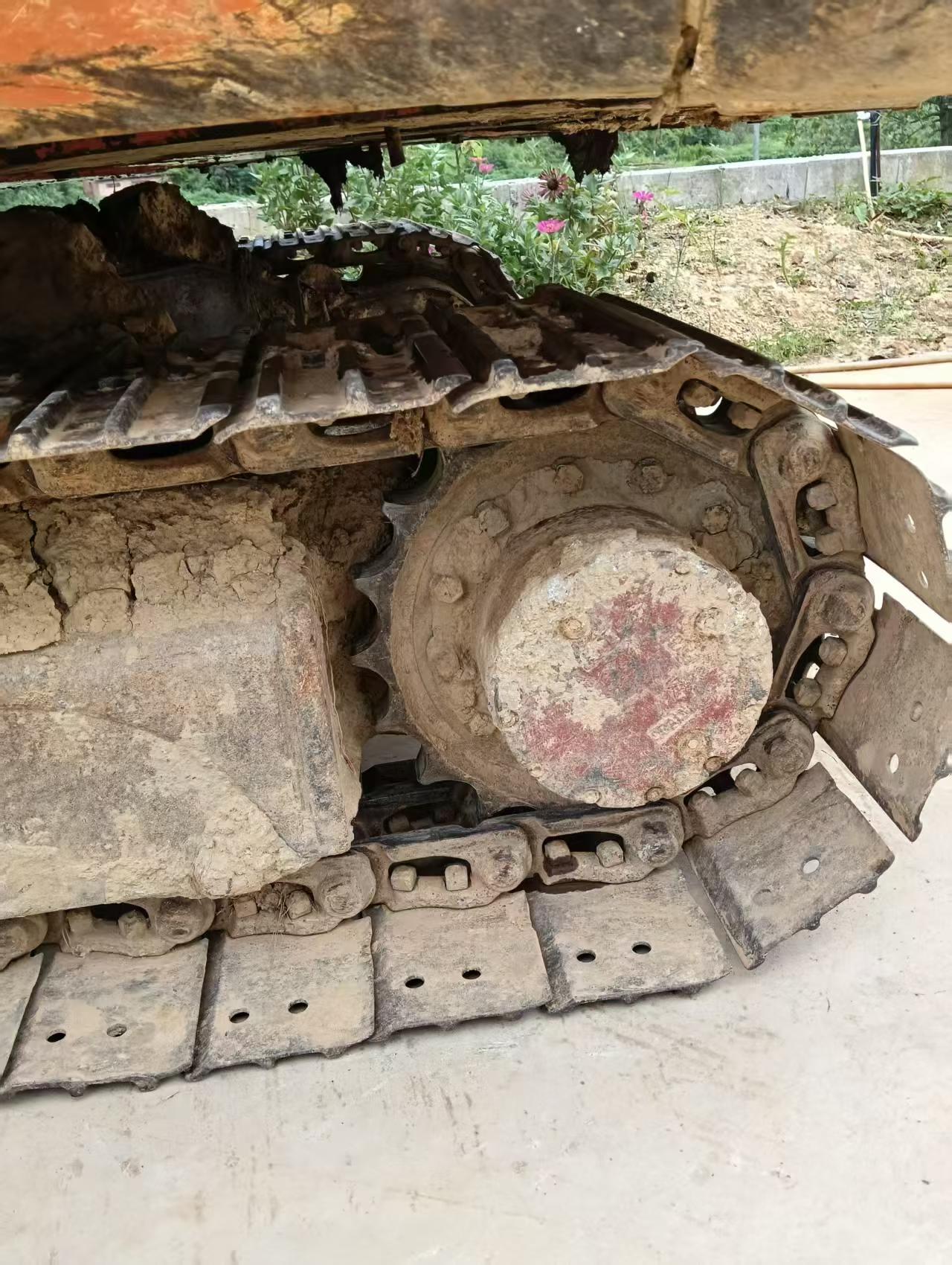

Buy Hitachi ZX60 Used Excavator / 5

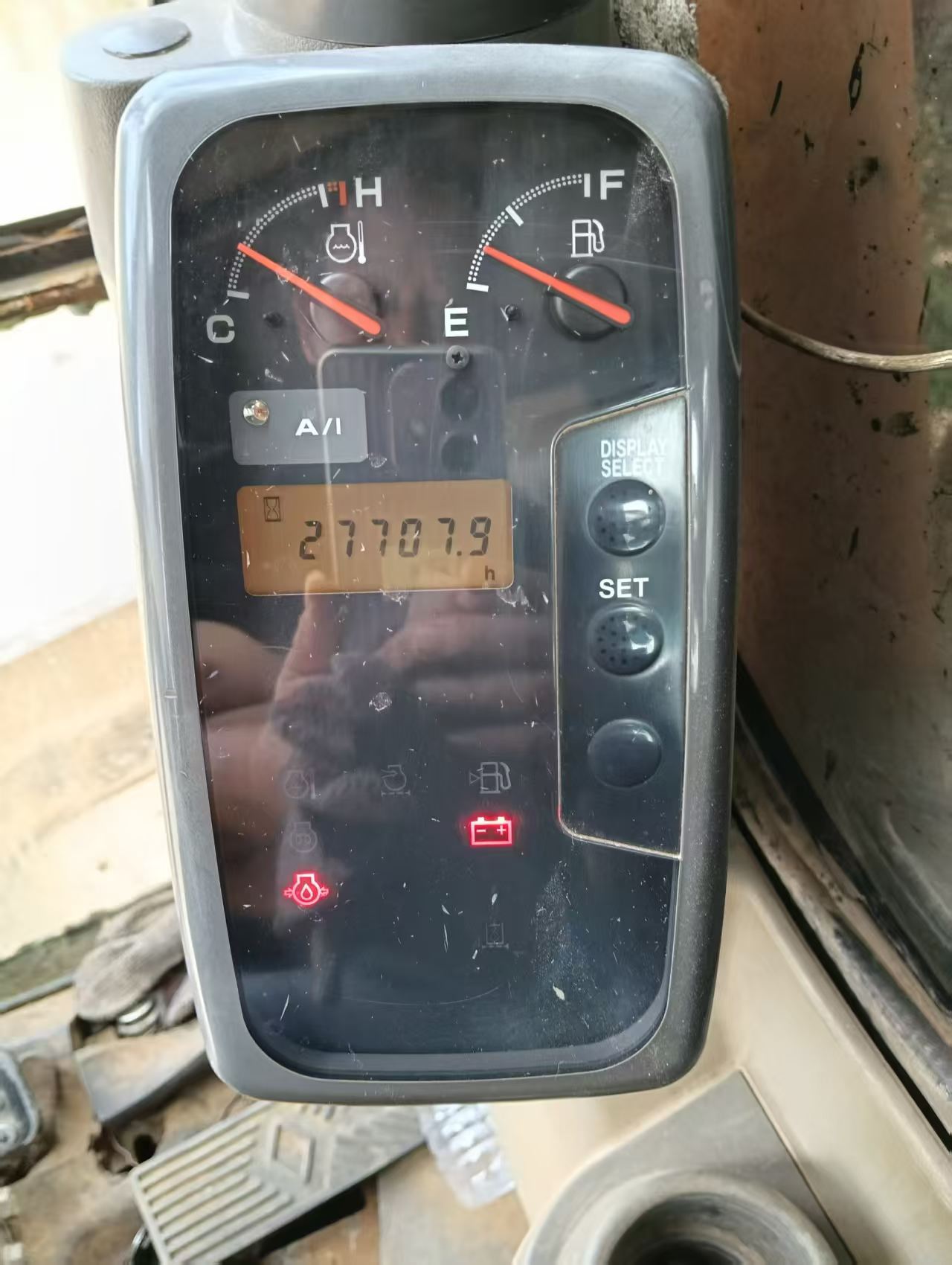

Buy Hitachi ZX60 Used Excavator / 6

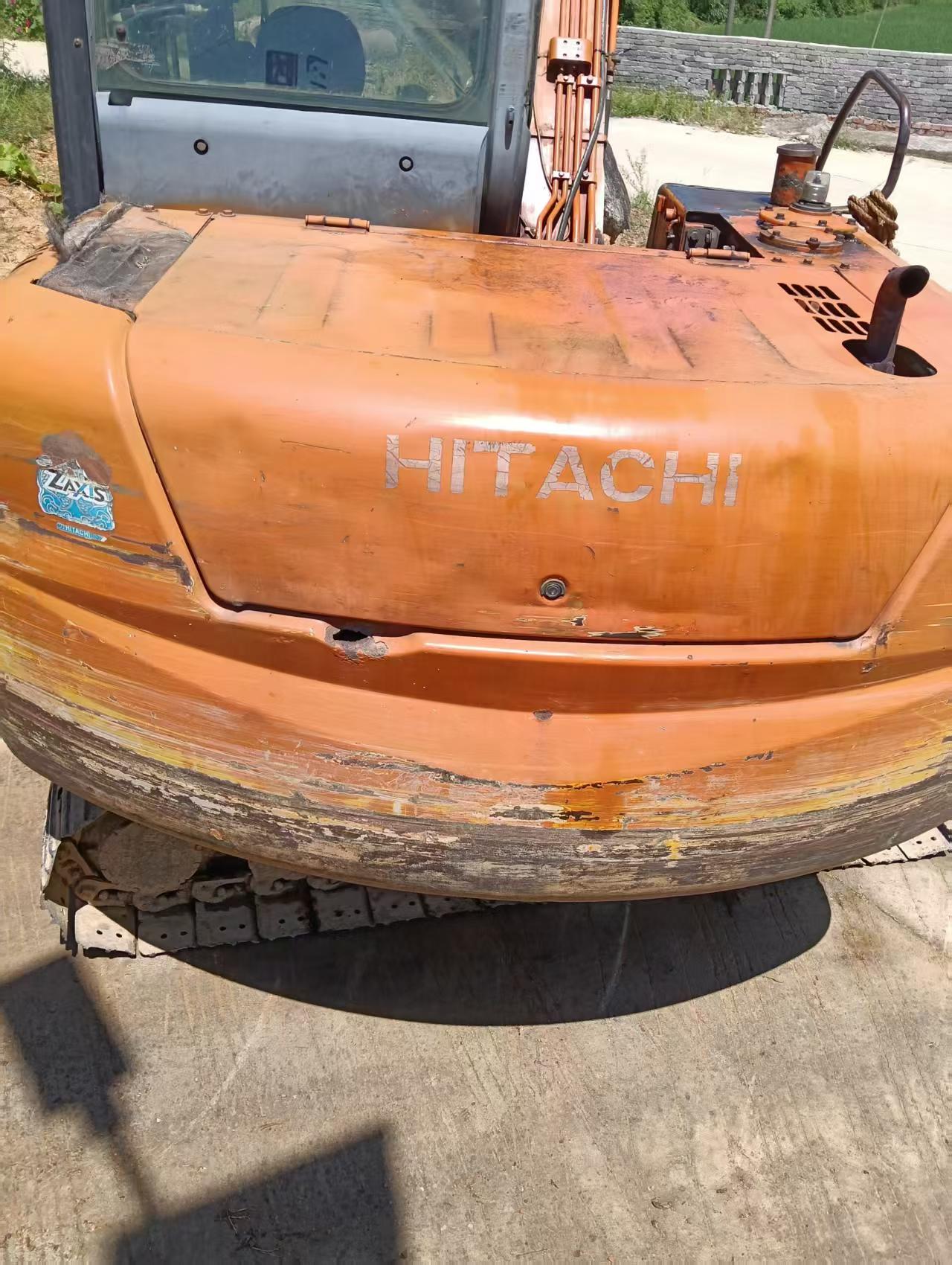

Buy Hitachi ZX60 Used Excavator / 7

Product Description

This 2020 Hitachi ZX60 mini excavator is currently available in Jiangxi, China. The ZX60 is a reliable 6-ton class machine known for its compact footprint and efficient operation in confined work sites. Hitachi's engineering delivers dependable hydraulic performance and fuel economy for general excavation, trenching, and light demolition applications.

Key features of the ZX60 platform include:

  • Compact design suitable for urban construction and utility work
  • Proven Hitachi hydraulic system for responsive control
  • Comfortable operator station with good visibility
  • Versatile attachment compatibility for various job requirements

With approximately six years of service, this unit represents a cost-effective option for contractors seeking proven mid-size excavator capability. Inspection is recommended to verify current mechanical condition and maintenance history prior to purchase.

SpecificationsValue
No.1122001
Tonnage (tons)6
Working weight (kg)5850
Bucket capacity (m³)0.22
Boom length (mm)3.49
Rod length (mm)1.6(Enhanced version)
Country of originHefei, Anhui Province
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeISUZU CC-4JG1
Rated power (kw/rpm)40.5/2100
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)3.059
Working formDirect injection
Ground specific pressure (Kpa)33
Rotation speed (rpm)9.3
Climbing ability (%)70/35 °
Bucket digging force (kN)41.4
Rod digging force (kN)28.4
Travel speed (km/h)2.5/4.5
Main overflow set pressure (Mpa)24.5
Rotary hydraulic motor typeAxial piston motor ×1
Type of walking hydraulic motorVariable swash plate plunger motor ×2
Main pump typeVariable piston pump ×2+ gear pump ×2
Fuel Tank (L)120
Hydraulic Tank (L)61(Full box 95)
Engine Oil changes (L)12
Total transport length (mm)6060
Total transport width (mm)2060
Total transport height (mm)2470
Full cab height (mm)2470
Counterweight ground clearance (mm)620
Minimum ground clearance (mm)310
Minimum turning radius of front working device (mm)2510
Back end turning radius (mm)1650
Total track length (mm)2480
Track gauge (mm)1600
Track plate width (mm)400
Total track width (mm)2000
Track ground length (mm)2000
Maximum digging radius (mm)6250
Maximum digging depth (mm)3850
Maximum excavation height (mm)5800
Maximum unloading height (mm)4080
Maximum vertical digging depth (mm)3300
Bulldozer lift or depth (mm)430/400
see more

Overview

No.1122001

Brand Name:

Hitachi

Model Number:

ZX60

Year:

2020

Location:

Jiangxi China

Pub Date
