Product Description

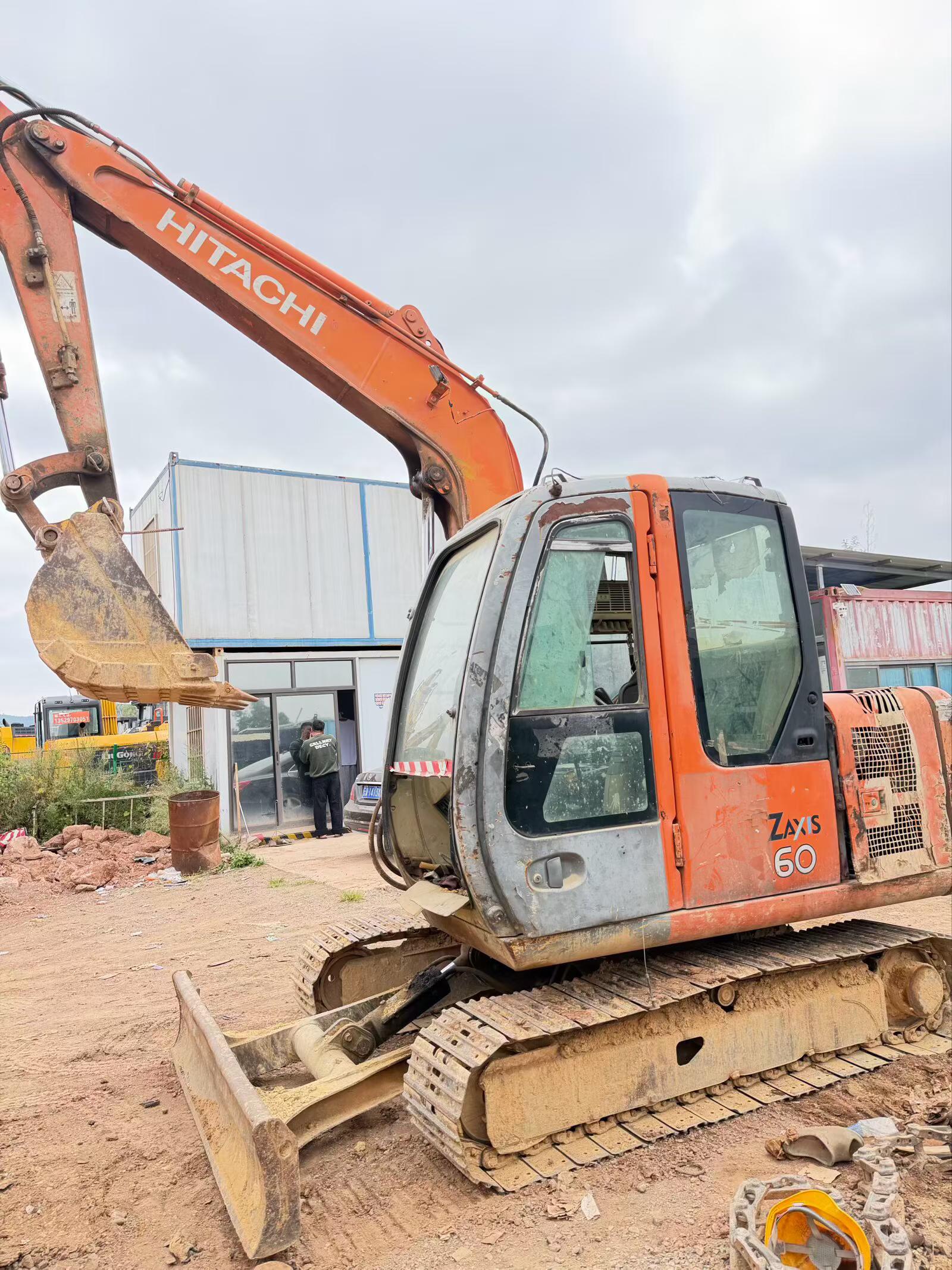

Available in Zhejiang, China: a 2020 Hitachi ZX60 compact excavator, offered as a used working unit at RMB 38,800. This machine retains its grey control valve — the factory-spec hydraulic block that trade buyers use as a quick reference point when judging whether a ZX60 has stayed on original components rather than being rebuilt with aftermarket parts.
- Model year: 2020, Hitachi ZX60, 6-ton class

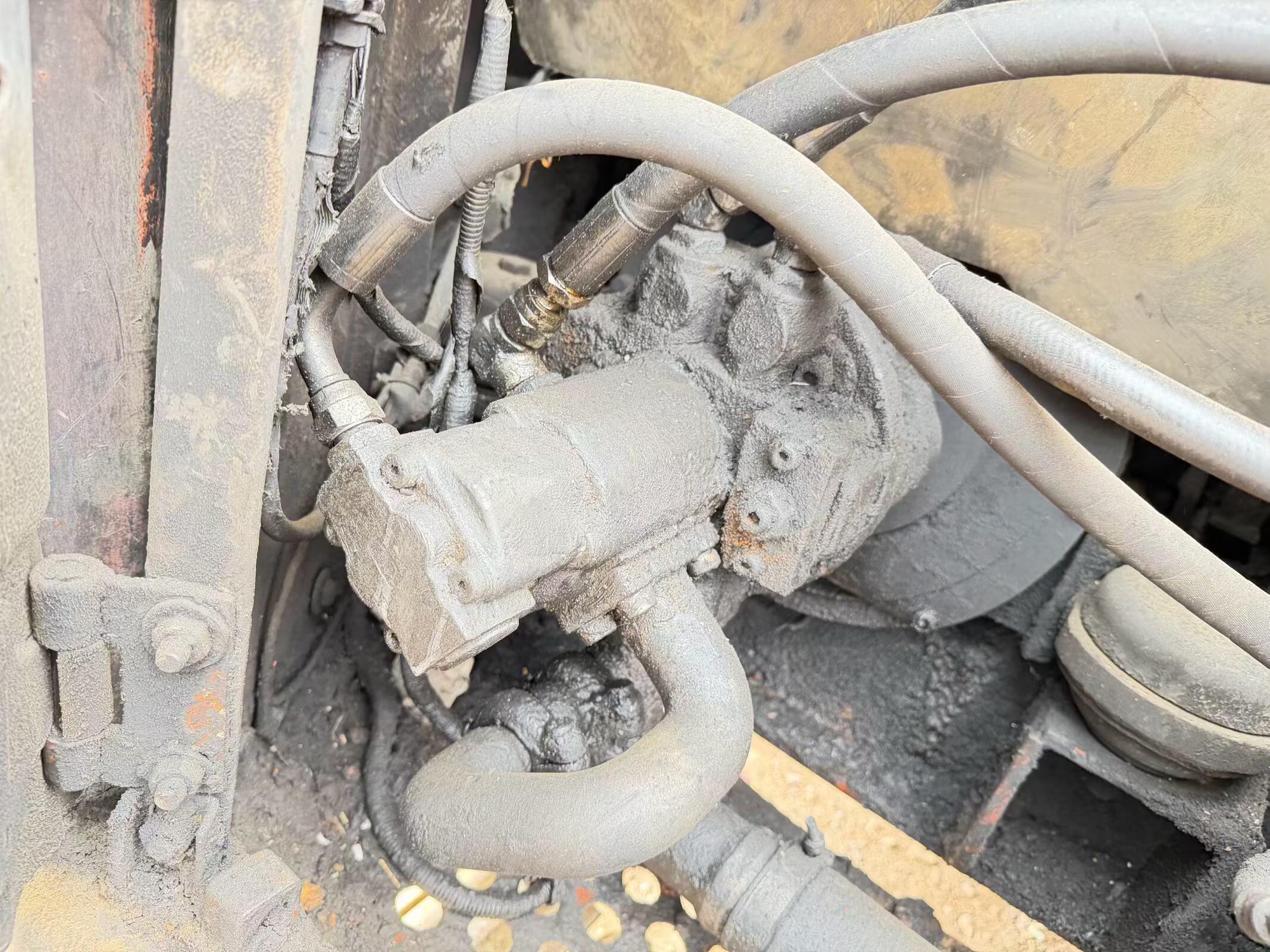

- Hydraulics: grey valve, original-spec configuration
- Location: Zhejiang, China; on-site inspection can be arranged

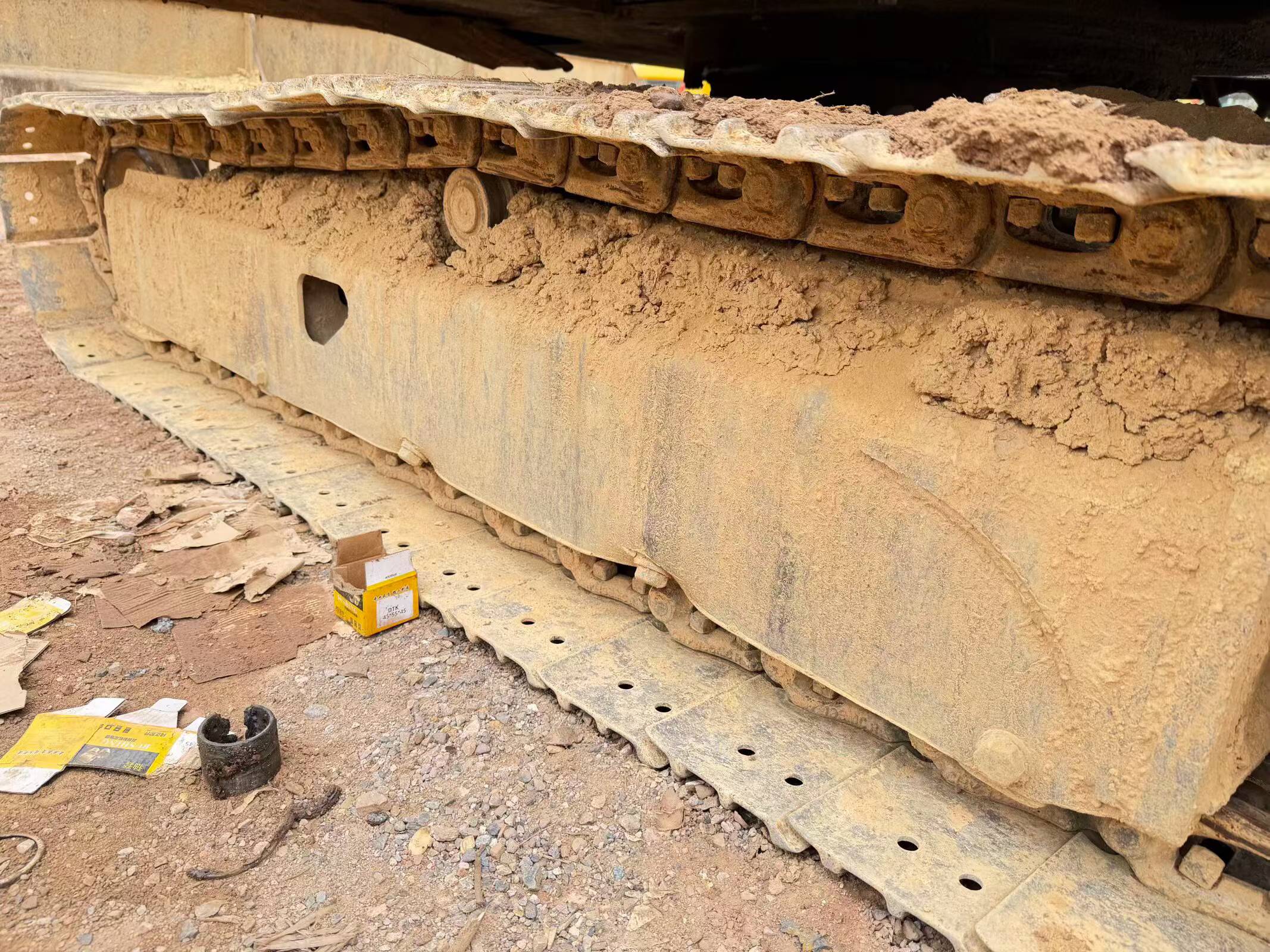

- Condition: used, operational; undercarriage and hydraulic checks available before purchase
- Price: RMB 38,800, positioned at the lower end of the current used ZX60 market
Suited to utility trenching, landscaping, and light civil work. Hour meter readings, service history, and full inspection findings are released on request, and buyers are welcome to send their own inspector or request a video walkaround before committing. Contact our sales desk to confirm availability, schedule a viewing, or discuss shipping terms.
| Specifications | Value |
|---|---|
| No. | 1156862 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.22 |
| Boom length (mm) | 3.49 |
| Rod length (mm) | 1.6(Enhanced version) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

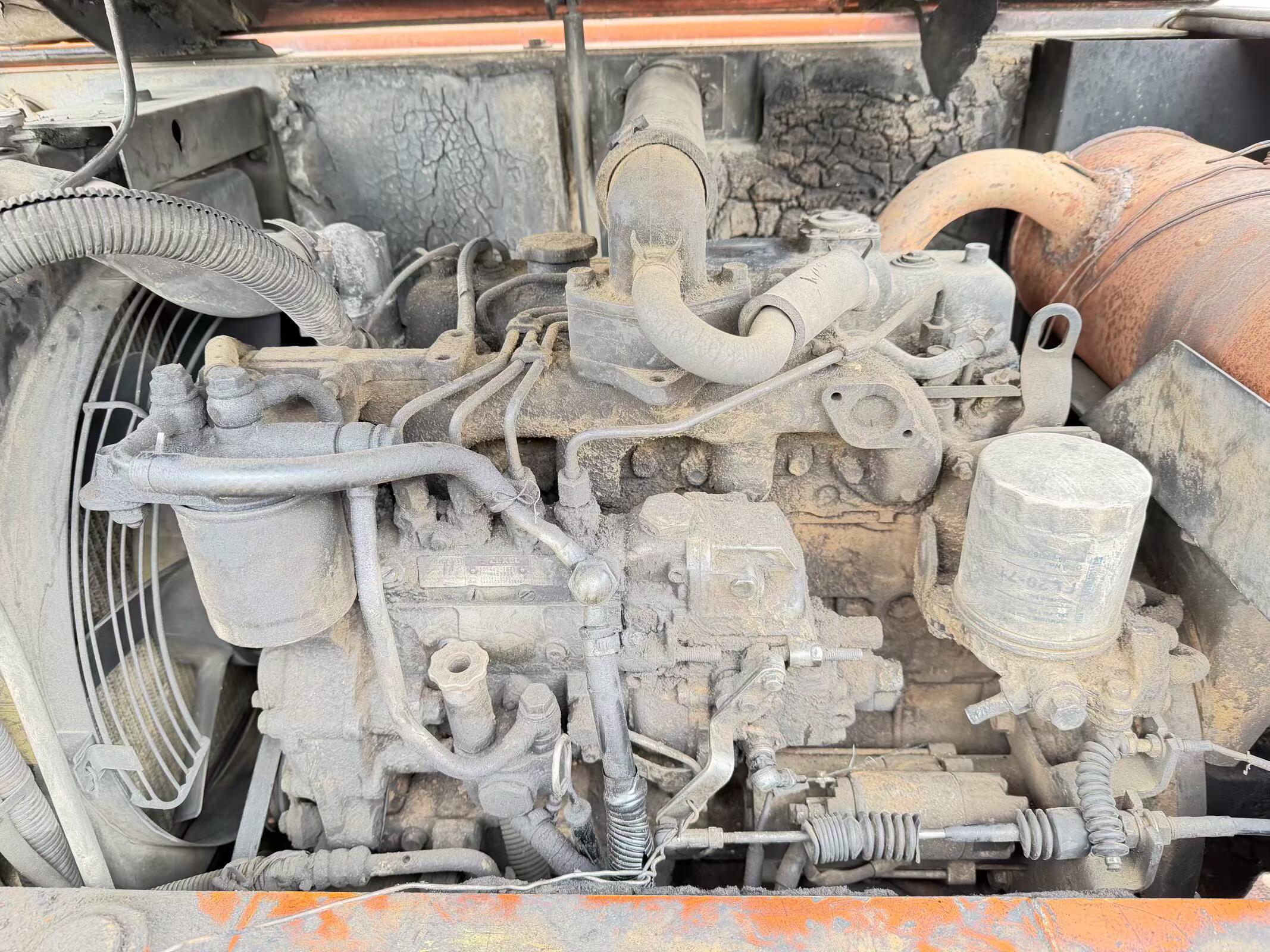

| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 41.4 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.5/4.5 |
| Main overflow set pressure (Mpa) | 24.5 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable swash plate plunger motor ×2 |
| Main pump type | Variable piston pump ×2+ gear pump ×2 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 61(Full box 95) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2470 |
| Full cab height (mm) | 2470 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2480 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Track ground length (mm) | 2000 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 5800 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3300 |
| Bulldozer lift or depth (mm) | 430/400 |
