Product Description

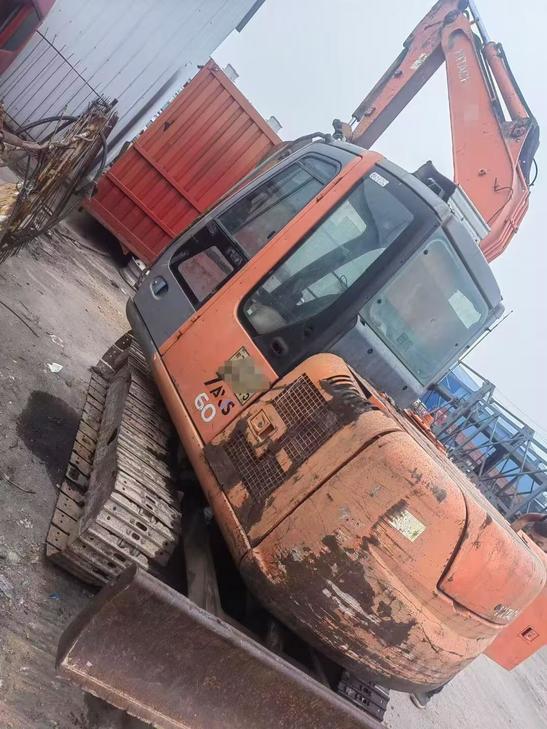

This 2020 Hitachi ZX60 compact excavator is available from Hunan, China. As a reliable workhorse in the 6-ton class, this machine offers solid performance for construction, landscaping, and utility applications. The unit comes with verification documentation and operational video available for review.
- Year: 2020
- Manufacturer: Hitachi Construction Machinery
- Model: ZX60 Mini Excavator
- Operating Weight Class: Approximately 6 metric tons
- Location: Hunan Province, China
- Condition: Used, operational
The ZX60 is recognized for its compact dimensions and maneuverability in confined work sites while delivering consistent digging and lifting capacity. This unit represents an opportunity to acquire proven Japanese engineering at a competitive price point. Inspection and detailed specifications available upon serious inquiry.
| Specifications | Value |
|---|---|
| No. | 1167294 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.22 |
| Boom length (mm) | 3.49 |
| Rod length (mm) | 1.6(Enhanced version) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 41.4 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.5/4.5 |
| Main overflow set pressure (Mpa) | 24.5 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable swash plate plunger motor ×2 |
| Main pump type | Variable piston pump ×2+ gear pump ×2 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 61(Full box 95) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2470 |
| Full cab height (mm) | 2470 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2480 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Track ground length (mm) | 2000 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 5800 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3300 |
| Bulldozer lift or depth (mm) | 430/400 |
