2015 Hitachi ZX60-5G

1/6

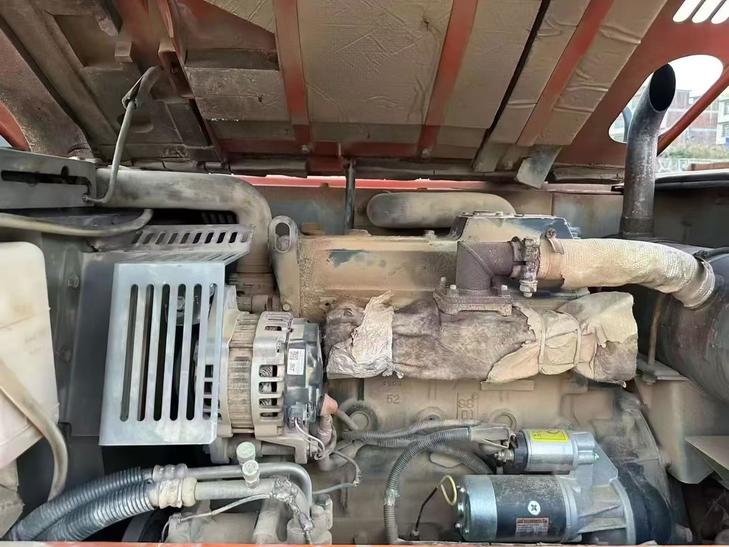

Buy Hitachi ZX60-5G Used Excavator / 1
Buy Hitachi ZX60-5G Used Excavator / 2
Buy Hitachi ZX60-5G Used Excavator / 3
Buy Hitachi ZX60-5G Used Excavator / 4
Buy Hitachi ZX60-5G Used Excavator / 5
Buy Hitachi ZX60-5G Used Excavator / 6

Product Description

This 2015 Hitachi ZX60-5G compact excavator offers reliable performance for construction and earthmoving applications. With approximately 5,000+ operating hours, this machine has been well-maintained and remains in serviceable condition. The ZX60-5G is known for its efficient hydraulic system, compact dimensions for working in confined spaces, and robust Isuzu engine delivering dependable power output.

Key features include:

  • Compact 6-ton class design ideal for urban construction and utility work
  • Zero tail swing configuration for enhanced maneuverability
  • Fuel-efficient operation reducing overall running costs
  • Currently located in Hunan, China
  • Available for inspection by qualified buyers

This unit represents solid value for contractors seeking a proven compact excavator from a trusted Japanese manufacturer. Suitable for trenching, landscaping, demolition, and general excavation duties.

SpecificationsValue
No.1173467
Tonnage (tons)6
Working weight (kg)5960
Bucket capacity (m³)0.24
Country of originHefei (Capital of Anhui Province)
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeYanmar 4TNV98-AVHBW
Rated power (kw/rpm)42.4/2100
Cooling modewater-cooling
Cylinder diameter × stroke (mm)98 x 110
Maximum torque (N.m)236
Number of cylinders (PCS)4
Working formFour-stroke, water-cooled, direct injection
Rotation speed (rpm)9.1
Climbing ability (%)70% (35°)
Maximum tractive force (kN)38.5
Travel speed (km/h)0-4.5/0-2.5
Turning torque (Nm)10
Rotary hydraulic motor type1 axial plunger motor
Type of walking hydraulic motor2 variable axial piston motors
Traveling Hydraulic Circuit (Mpa)24.5
Rotary Hydraulic Circuit (Mpa)17.6
Main pump type3 variable axial piston pumps
Working Hydraulic Circuit (Mpa)24.5
Fuel Tank (L)120
Hydraulic Tank (L)60
Coolant (L)8
Hydraulic System (L)93
Total transport length (mm)6060
Total transport width (mm)2060
Total transport height (mm)2085
Full cab height (mm)2475
Counterweight ground clearance (mm)620
Minimum ground clearance (mm)310
Minimum turning radius of front working device (mm)2510
Back end turning radius (mm)1650
Onboard width (mm)2060
Track gauge (mm)1600
Track plate width (mm)400
Maximum digging radius (mm)6250
Maximum digging depth (mm)3850
Maximum excavation height (mm)4080
Maximum vertical digging depth (mm)3440
Dodging plate width × height (mm)200 x 400
Maximum excavation radius of stop surface (mm)6130
see more

Overview

No.1173467

Brand Name:

Hitachi

Model Number:

ZX60-5G

Year:

2015

Location:

Hunan China

Pub Date:
