Product Description
Built for dependability and backed by one of the most recognized names in construction equipment, this 2016 Hitachi ZX60-5G mini excavator represents a smart acquisition in the used heavy equipment market. Hitachi's global parts network ensures minimal downtime, and strong resale value makes this 6-ton machine a sound long-term investment for contractors and fleet operators alike.
Powered by a Yanmar 4TNV98-AVHBW four-cylinder, water-cooled diesel engine producing 42.4 kW at 2,100 RPM, this compact excavator delivers reliable performance across a wide range of excavation and grading applications. A maximum digging depth of 3,850 mm and a digging radius of 6,250 mm provide serious reach for its class, while a 70% gradeability rating confirms capability on demanding terrain.
- Operating Weight: 5,960 kg
- Bucket Capacity: 0.24 m³ (backhoe configuration)
- Engine: Yanmar 4TNV98-AVHBW | 42.4 kW / 2,100 RPM
- Max Digging Depth: 3,850 mm
- Max Digging Radius: 6,250 mm
- Travel Speed: Up to 4.5 km/h (high range)
- Fuel Tank Capacity: 120 L <
| Specifications | Value |
|---|---|
| No. | 1012247 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.24 |
| Country of origin | Hefei (Capital of Anhui Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

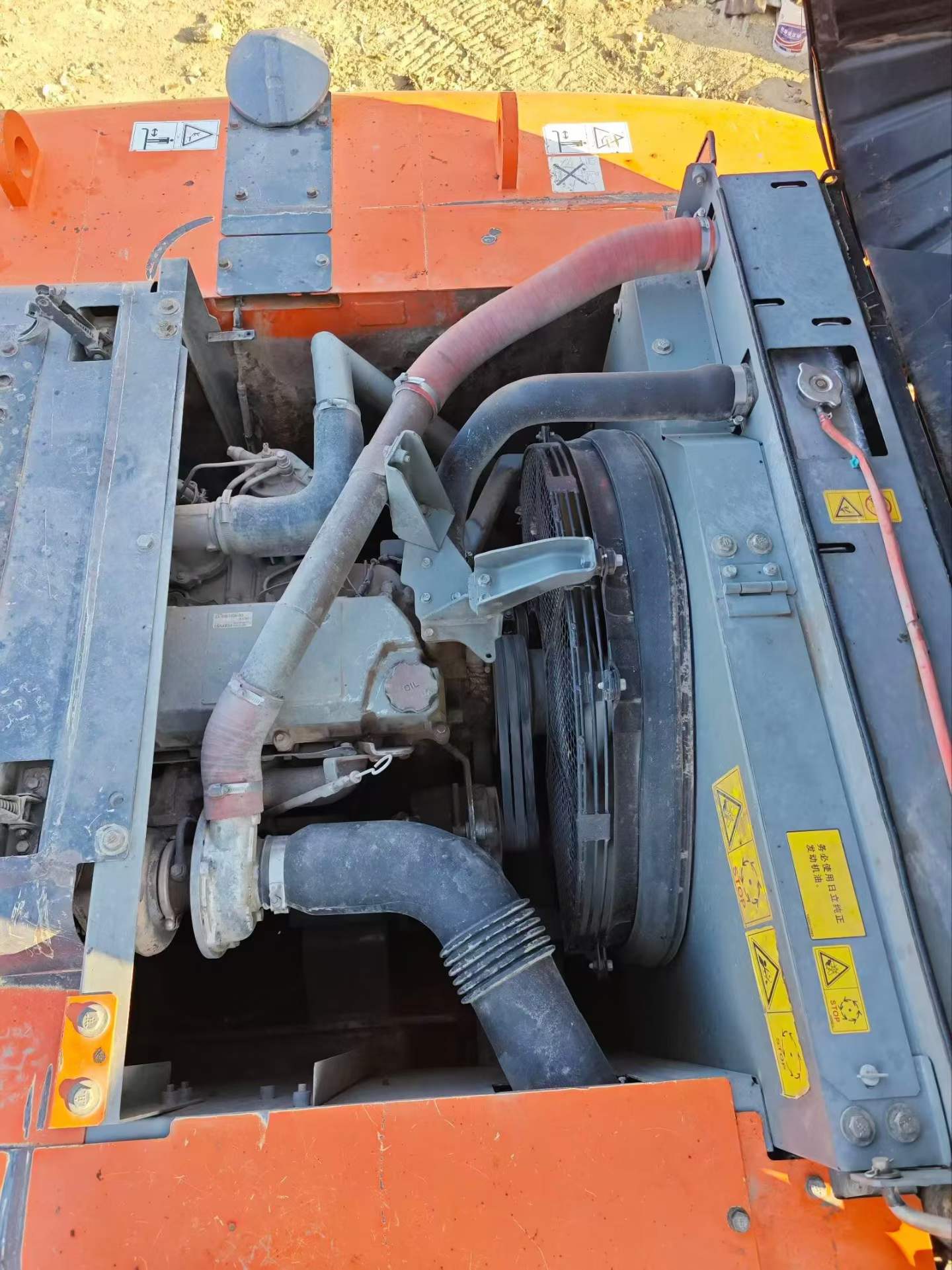

| Engine type | Yanmar 4TNV98-AVHBW |
| Rated power (kw/rpm) | 42.4/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Maximum torque (N.m) | 236 |
| Number of cylinders (PCS) | 4 |
| Working form | Four-stroke, water-cooled, direct injection |
| Rotation speed (rpm) | 9.1 |
| Climbing ability (%) | 70% (35°) |
| Maximum tractive force (kN) | 38.5 |
| Travel speed (km/h) | 0-4.5/0-2.5 |
| Turning torque (Nm) | 10 |
| Rotary hydraulic motor type | 1 axial plunger motor |
| Type of walking hydraulic motor | 2 variable axial piston motors |
| Traveling Hydraulic Circuit (Mpa) | 24.5 |
| Rotary Hydraulic Circuit (Mpa) | 17.6 |

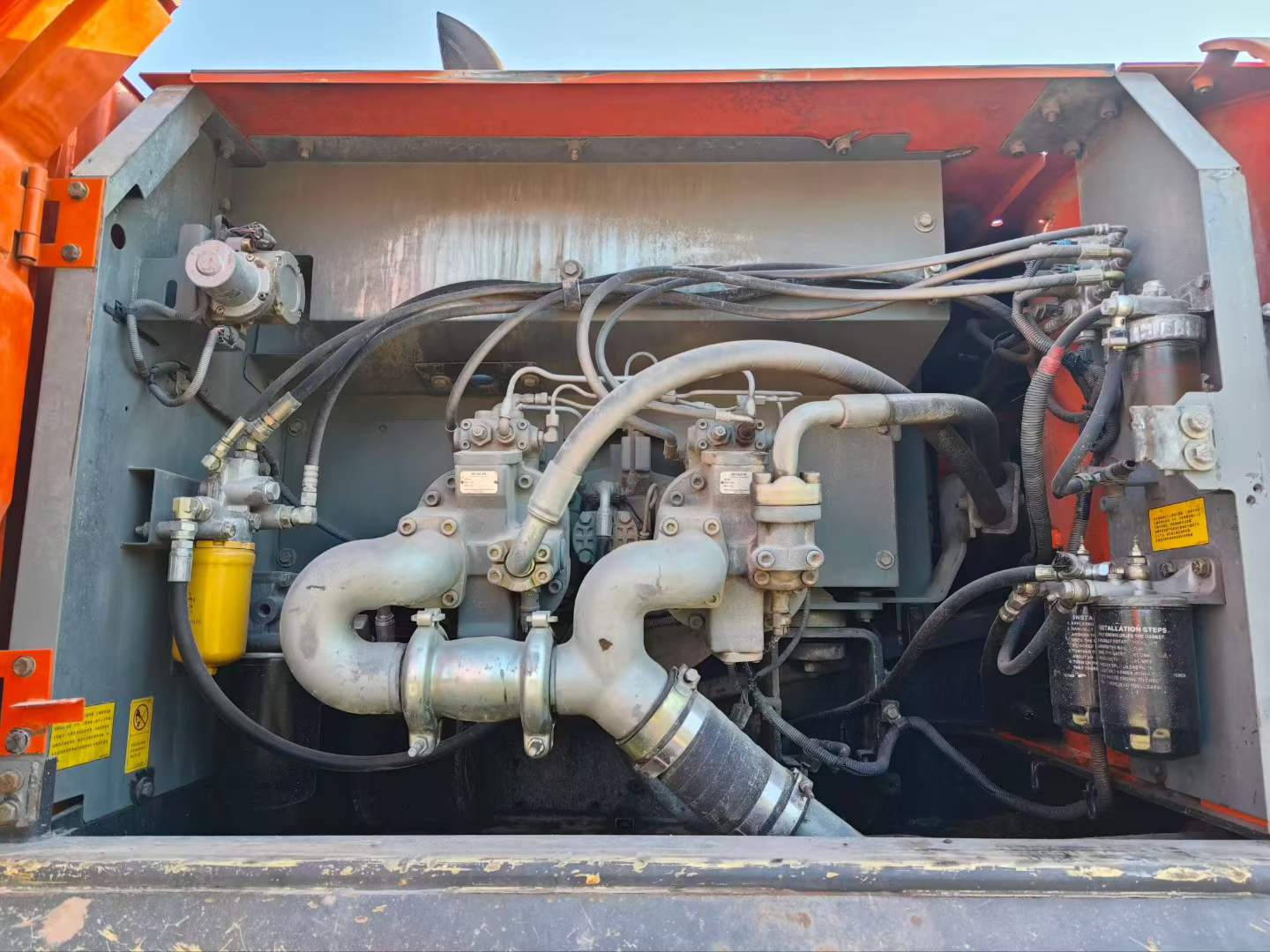

| Main pump type | 3 variable axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 24.5 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 60 |
| Coolant (L) | 8 |
| Hydraulic System (L) | 93 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2085 |
| Full cab height (mm) | 2475 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Onboard width (mm) | 2060 |
| Track gauge (mm) | 1600 |

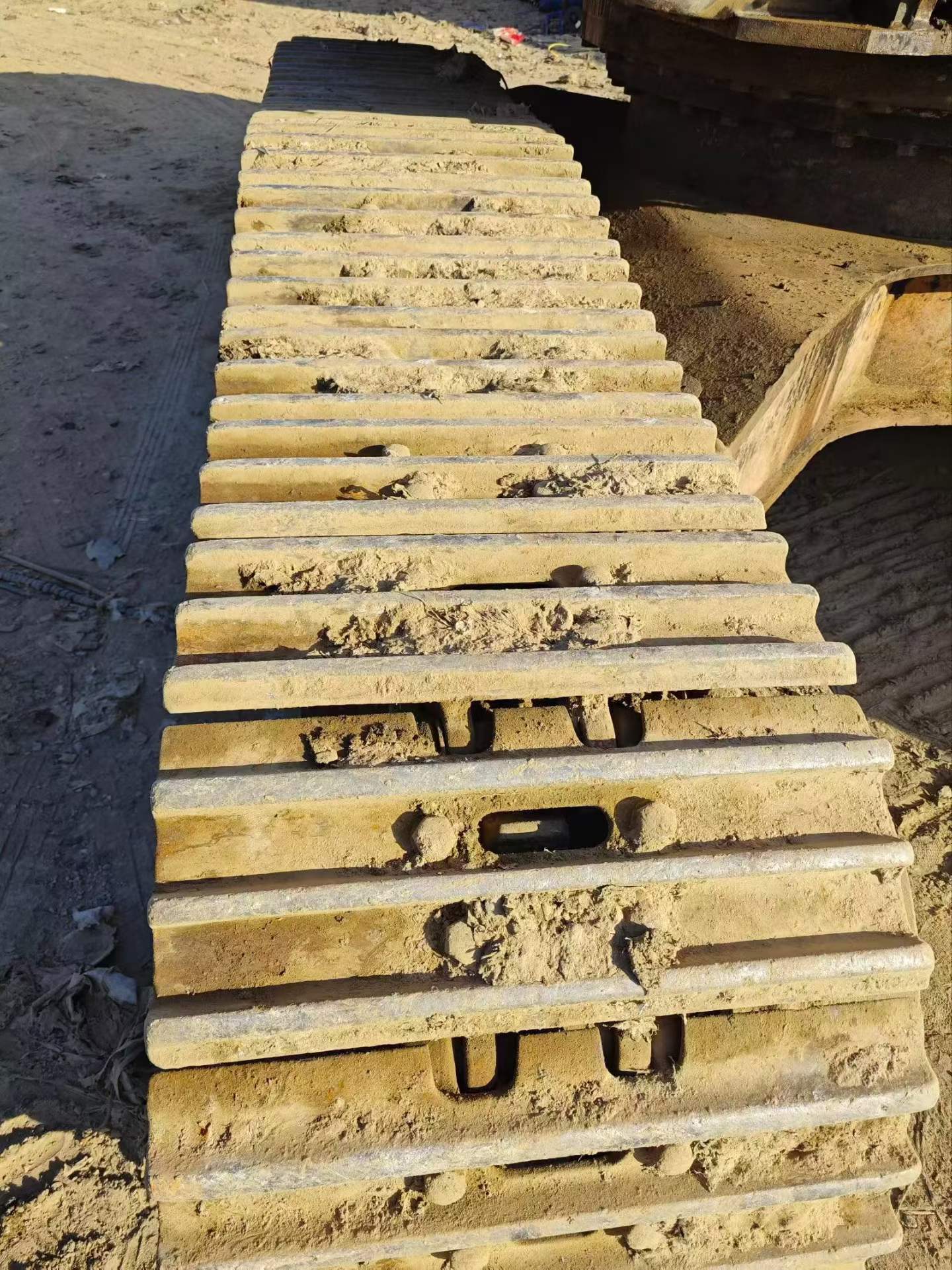

| Track plate width (mm) | 400 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3440 |
| Dodging plate width × height (mm) | 200 x 400 |
| Maximum excavation radius of stop surface (mm) | 6130 |
