Product Description

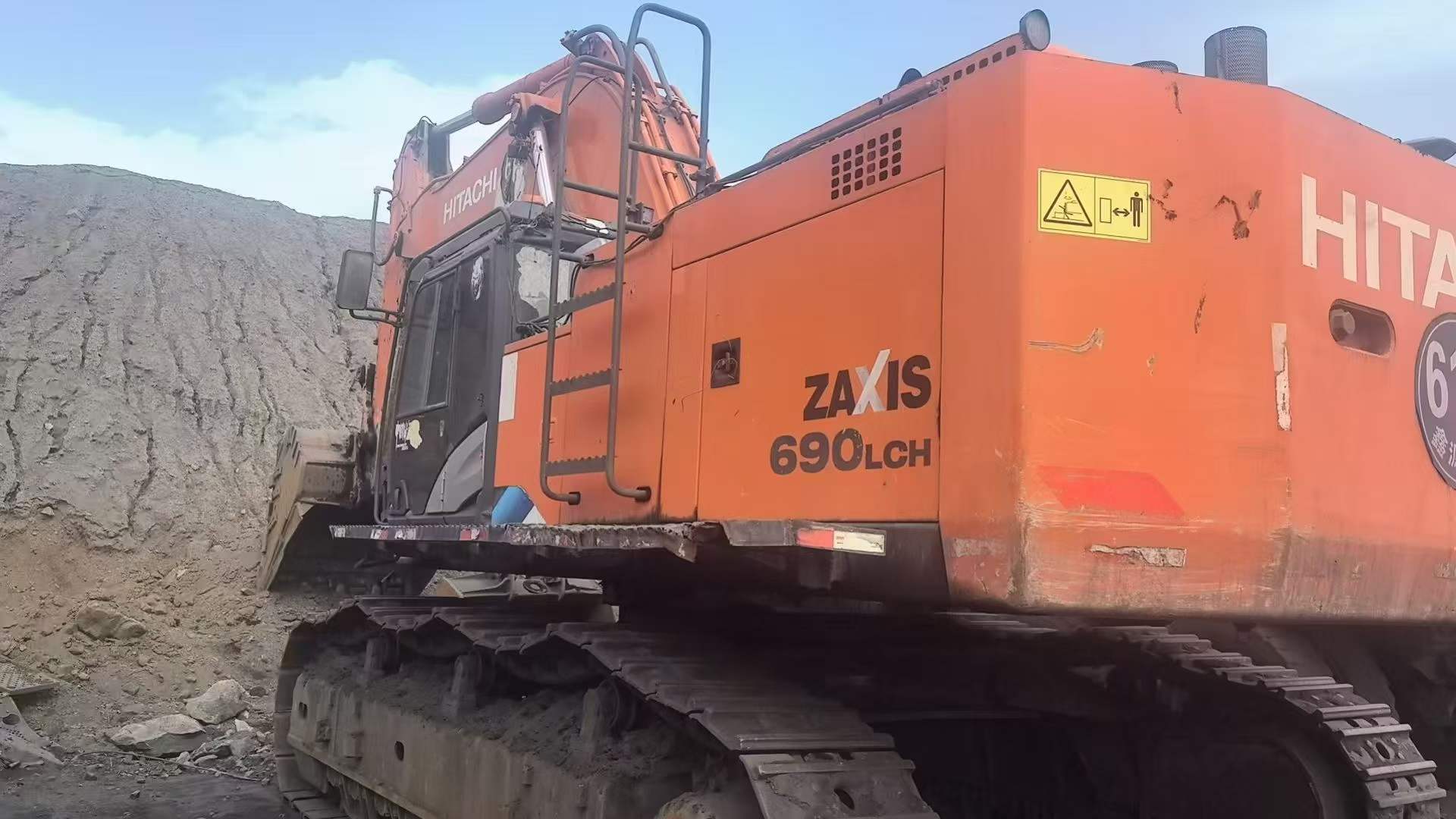

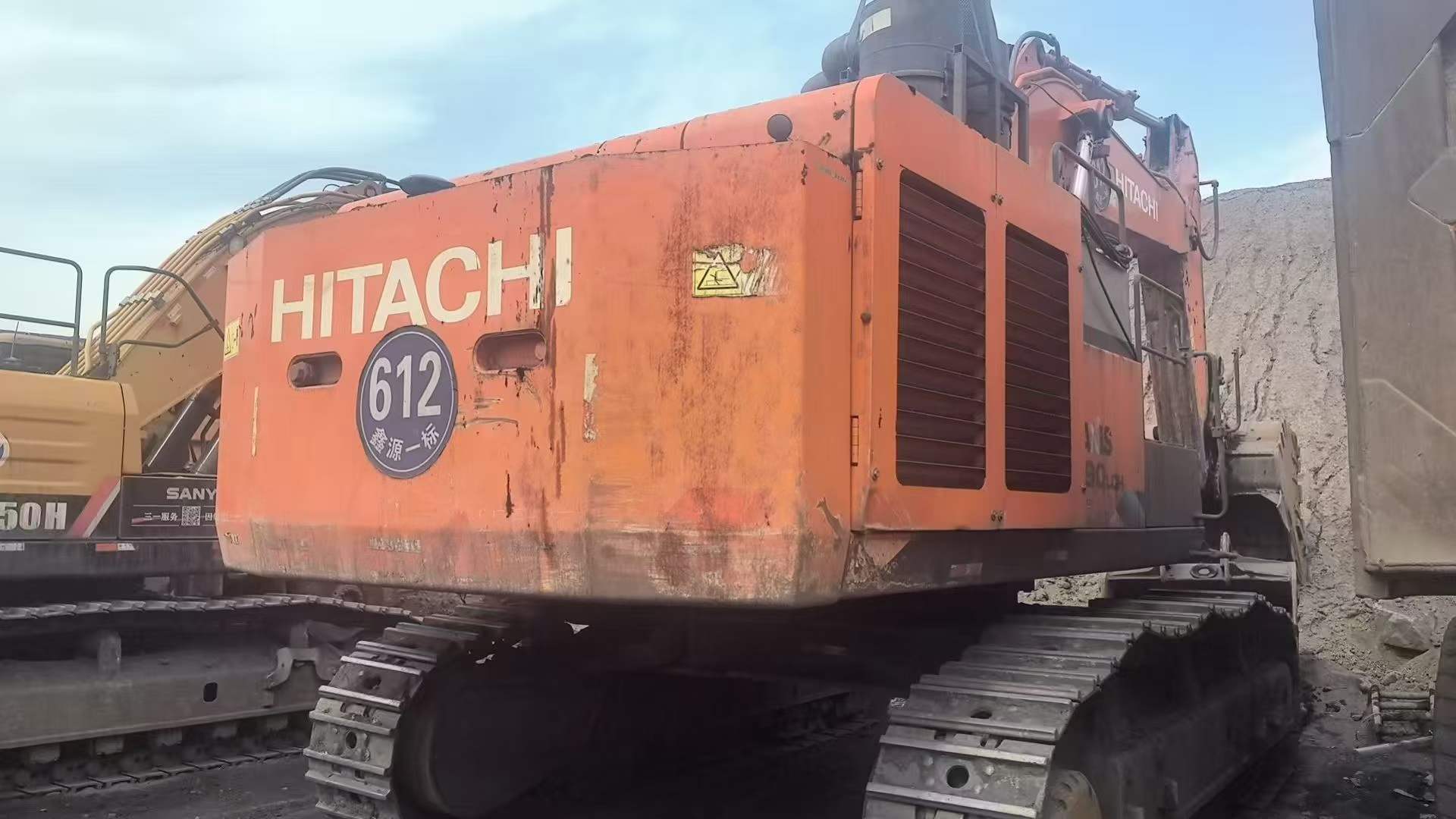

This 2019 Hitachi ZX690LCH-5A hydraulic excavator represents exceptional value in the heavy-duty excavator segment. Currently located in Shanghai, China, this machine offers substantial lifting capacity and reach for demanding applications including quarrying, heavy construction, and large-scale earthmoving projects.

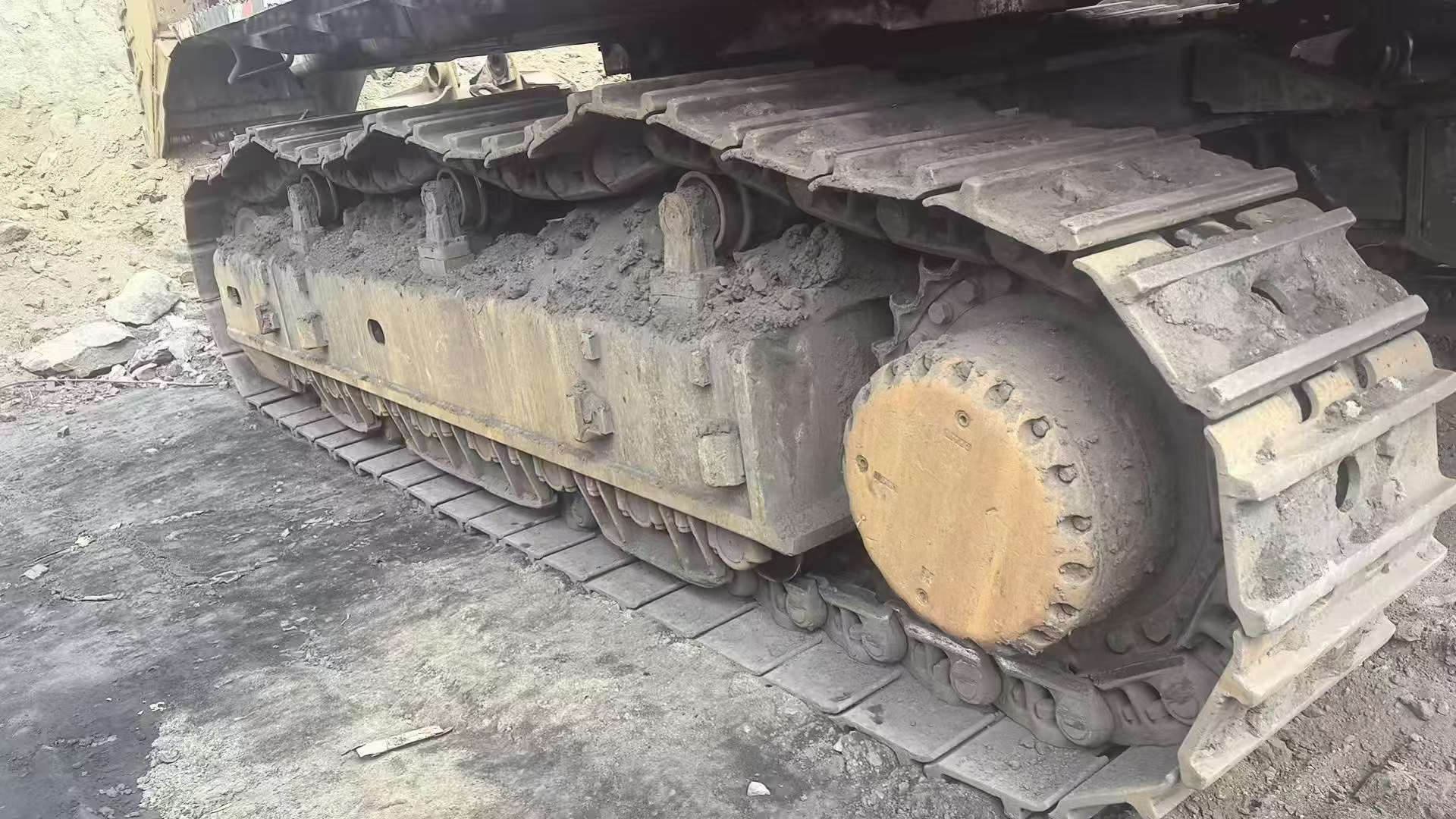

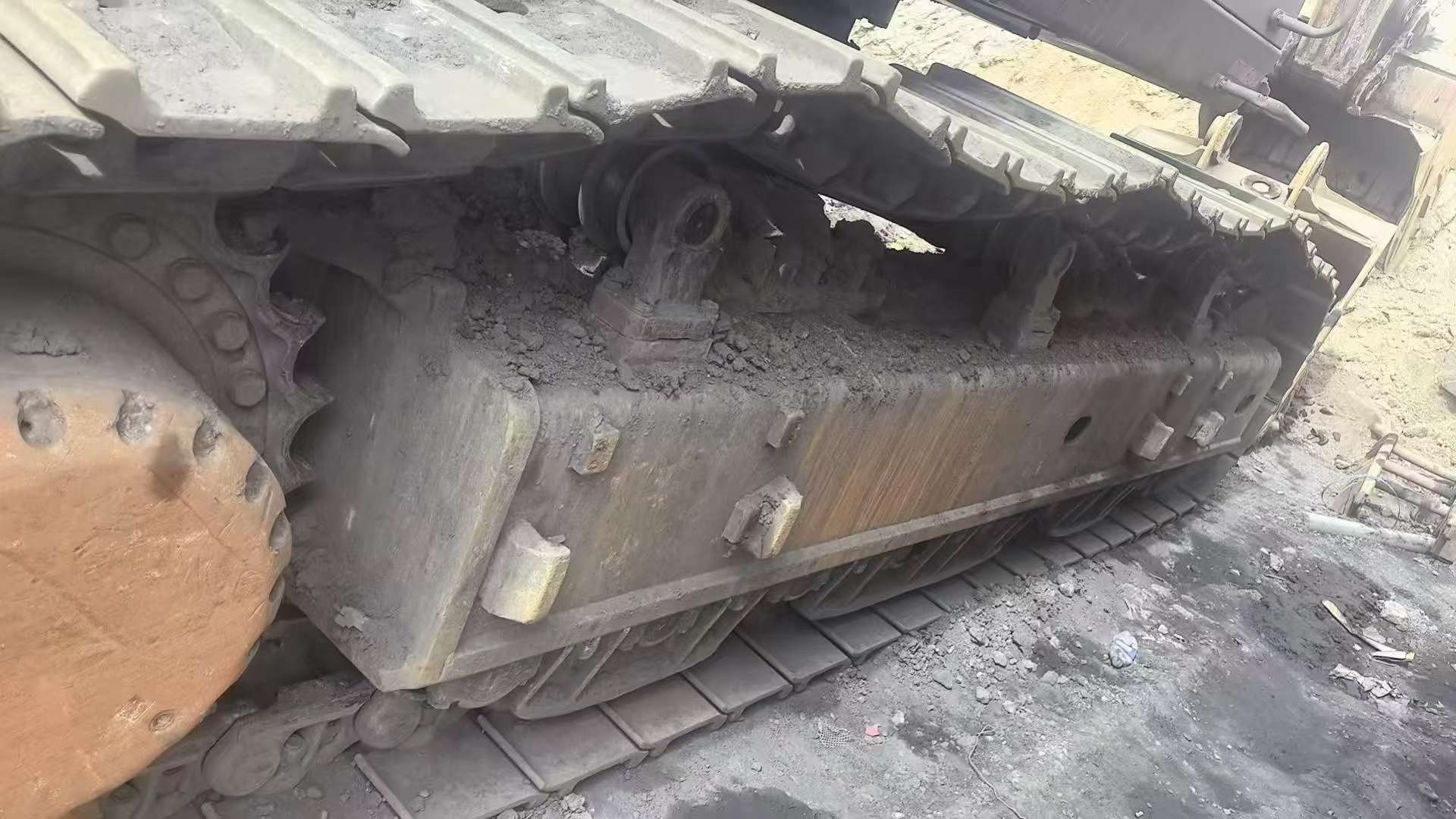

The ZX690LCH-5A features Hitachi's proven hydraulic system and reinforced undercarriage designed for extended service life. With its robust build quality and low operating hours relative to its age, this excavator delivers reliable performance for contractors seeking productive equipment at competitive pricing.
- Year of Manufacture: 2019
- Model: Hitachi ZX690LCH-5A
- Location: Shanghai, China

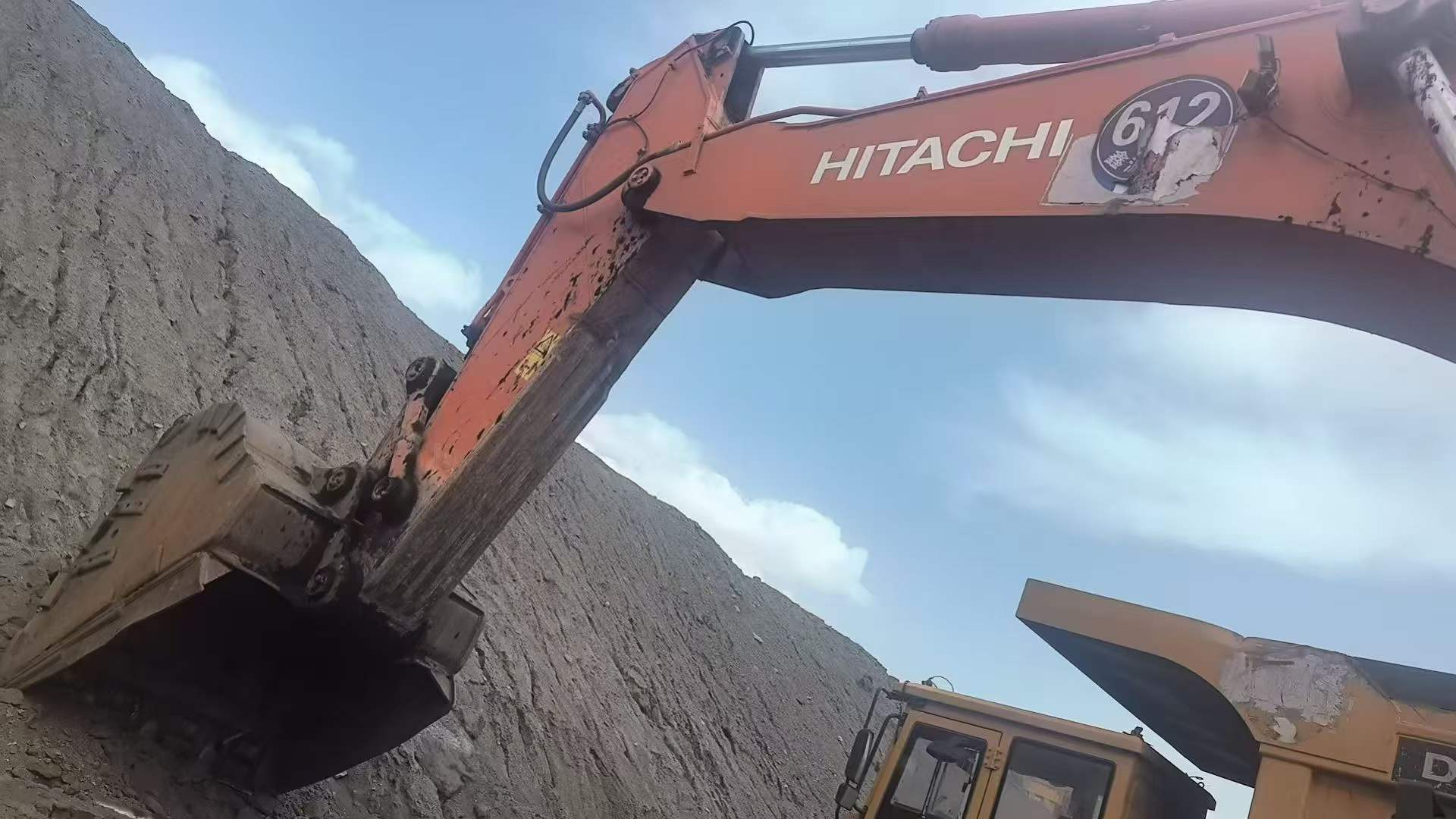

- Configuration: Standard boom and arm
- Condition: Available for immediate inspection
Interested buyers are encouraged to arrange on-site inspection to verify machine condition and operational status. Export documentation and logistics support can be coordinated upon request.
| Specifications | Value |
|---|---|
| No. | 1088506 |
| Tonnage (tons) | 69 |
| Working weight (kg) | 69100 |
| Bucket capacity (m³) | 4 |
| Boom length (mm) | 6800 |
| Rod length (mm) | 2900 |
| Bucket width (mm) | 1950 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

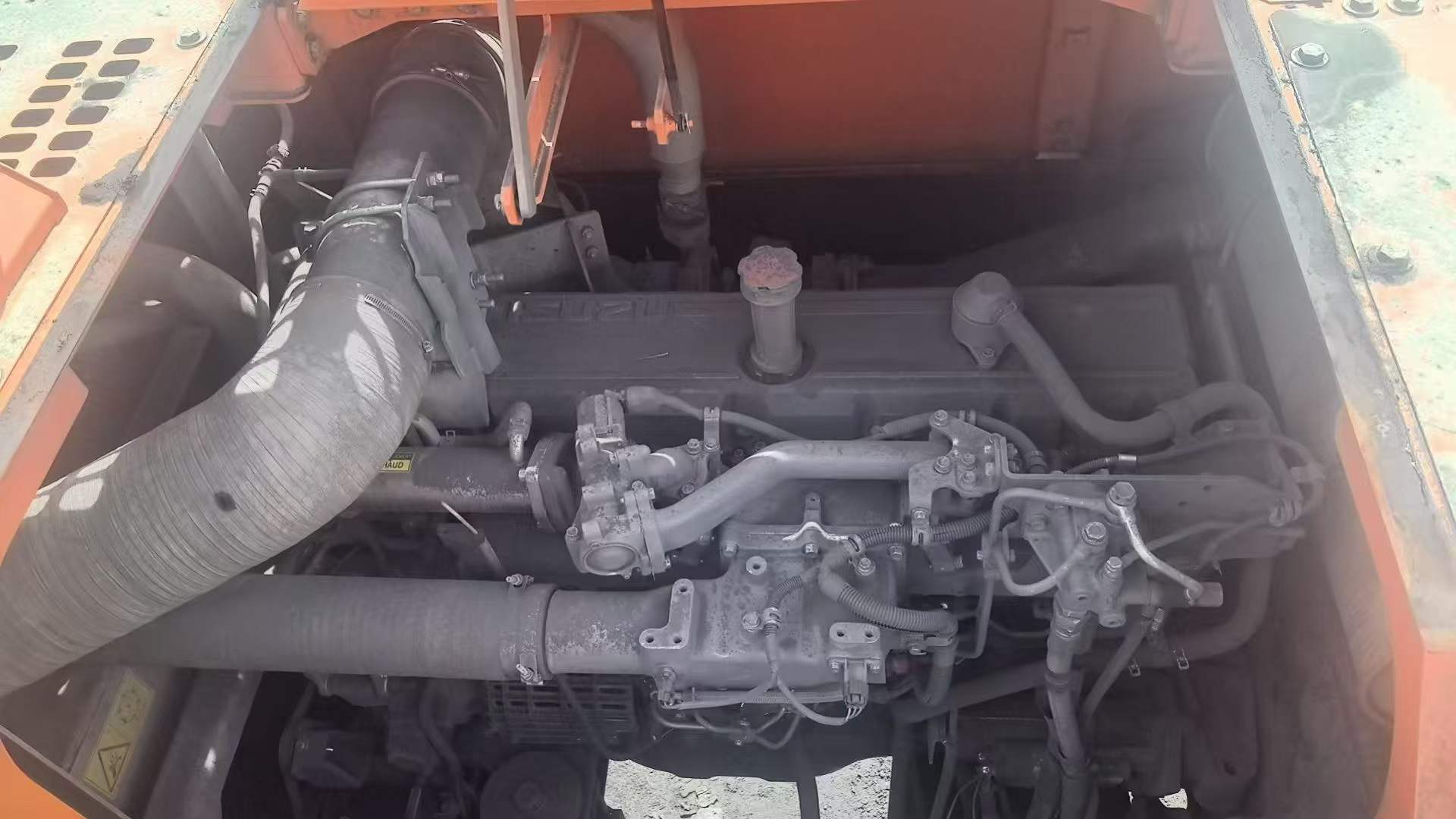

| Engine type | Isuzu GH-6WG1XKSA-02 |
| Rated power (kw/rpm) | 345/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 147*154 |
| Maximum torque (N.m) | 1980/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 15.681 |
| Working form | 4-stroke, water-cooled, electronically controlled direct injection, turbocharged, intercooled |
| Ground specific pressure (Kpa) | 104 |
| Rotation speed (rpm) | 9.0 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 369 |
| Rod digging force (kN) | 306 |
| Maximum tractive force (kN) | 460 |
| Travel speed (km/h) | 3.6/5.2 |
| Turning torque (Nm) | 194 |
| Rotary hydraulic motor type | Two swashplate quantitative axial piston motors |
| Type of walking hydraulic motor | 2 swash plate variable axial piston motors |
| Maximum flow of main pump (l/min) | 2 x 489 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 29.4 |

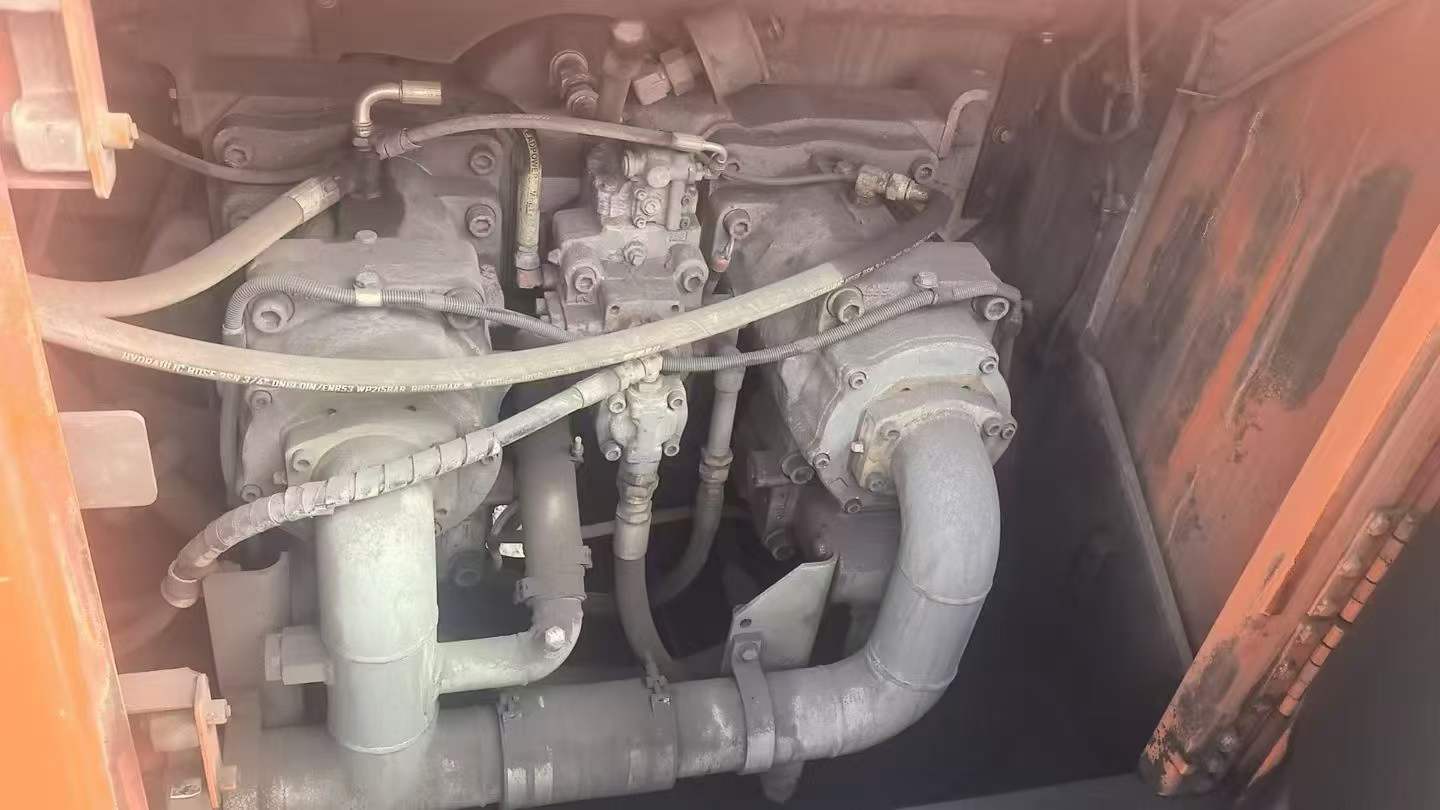

| Main pump type | 2 variable axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 31.9 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 50 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*190*130 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*200*140 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*190*130 |
| Pilot pump type | 1 gear pump |
| Fuel Tank (L) | 920 |
| Hydraulic Tank (L) | 380 |
| Engine Oil changes (L) | 57 |
| Coolant (L) | 70 |
| Hydraulic System (L) | 750 |
| Total transport length (mm) | 13,400 |
| Total transport width (mm) | 4,360 |
| Counterweight ground clearance (mm) | 1530 |
| Minimum ground clearance (mm) | 860 |
| Minimum turning radius of front working device (mm) | 5240 |
| Back end turning radius (mm) | 4020 |
| Track gauge (mm) | 3,300 / 2,830 |
| Track plate width (mm) | 650 |
| Number of sprockets (single side) (each) | 3 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 11780 |
| Maximum digging depth (mm) | 7170 |
| Maximum excavation height (mm) | 11150 |
| Maximum unloading height (mm) | 7340 |
| Maximum vertical digging depth (mm) | 5050 |
| Maximum excavation radius of stop surface (mm) | 11490 |
