Product Description

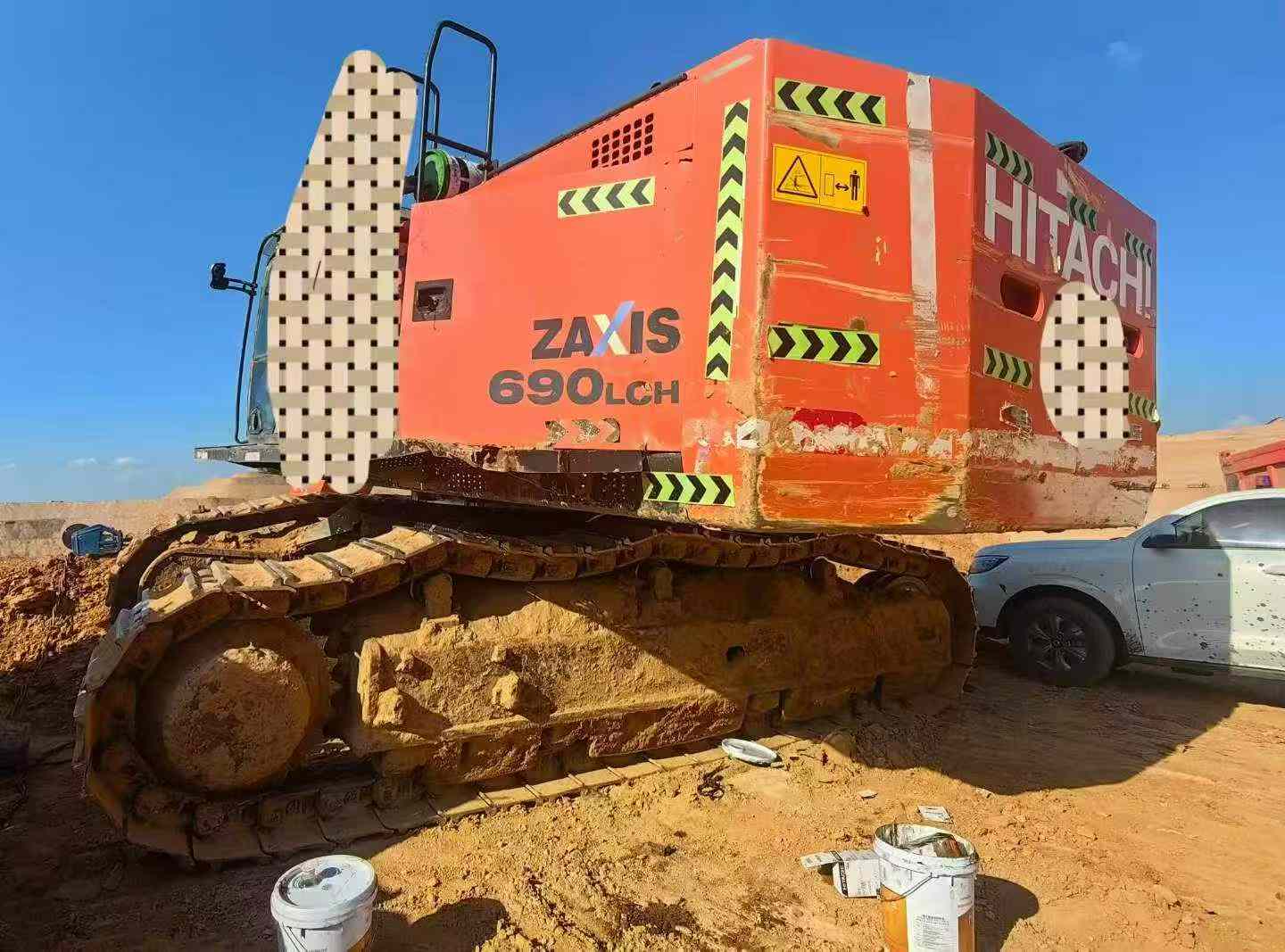

This 2021 Hitachi ZX690LCH-5A excavator represents a proven platform for heavy-duty earthmoving and mining operations. As part of Hitachi's flagship hydraulic excavator series, the ZX690LCH-5A delivers robust performance in demanding applications including large-scale excavation, loading, and material handling.

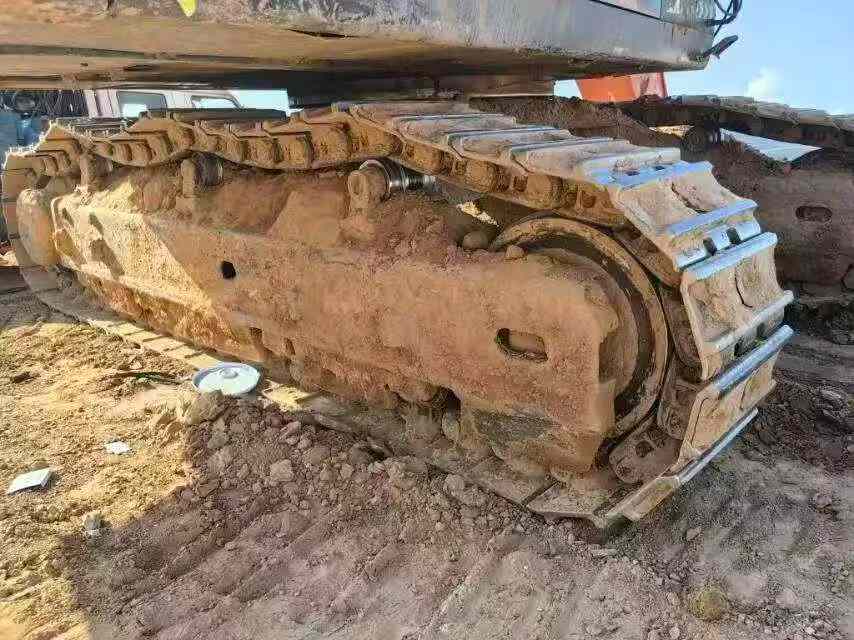

Currently located in Zhejiang, China, this machine features the extended undercarriage configuration designed for enhanced stability on challenging terrain. The unit benefits from Hitachi's HIOS III hydraulic system, which optimizes fuel efficiency while maintaining high productivity levels.
Key attributes include:
- Operating weight class: approximately 69 metric tons

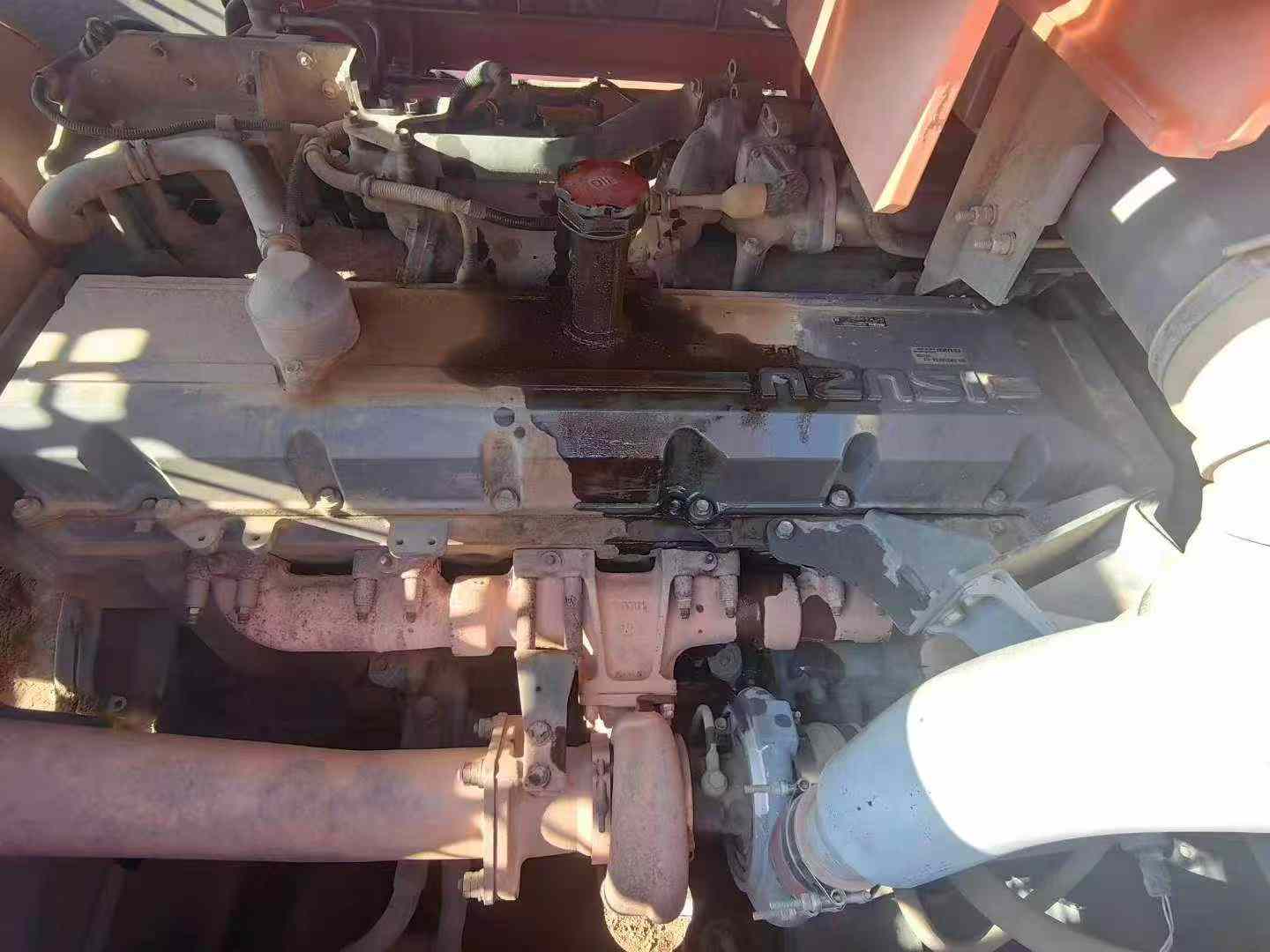

- Isuzu diesel engine with advanced emission controls
- Reinforced boom and arm structures for heavy-duty cycles
- Spacious ROPS/FOPS certified operator cabin
- Comprehensive hydraulic system with multi-mode settings
Suitable for contractors and operators requiring a high-capacity excavator with established parts support and service networks across Asia-Pacific markets.
| Specifications | Value |
|---|---|
| No. | 1138404 |
| Tonnage (tons) | 69 |
| Working weight (kg) | 69100 |
| Bucket capacity (m³) | 4 |
| Boom length (mm) | 6800 |
| Rod length (mm) | 2900 |
| Bucket width (mm) | 1950 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu GH-6WG1XKSA-02 |
| Rated power (kw/rpm) | 345/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 147*154 |
| Maximum torque (N.m) | 1980/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 15.681 |
| Working form | 4-stroke, water-cooled, electronically controlled direct injection, turbocharged, intercooled |
| Ground specific pressure (Kpa) | 104 |
| Rotation speed (rpm) | 9.0 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 369 |
| Rod digging force (kN) | 306 |
| Maximum tractive force (kN) | 460 |
| Travel speed (km/h) | 3.6/5.2 |
| Turning torque (Nm) | 194 |
| Rotary hydraulic motor type | Two swashplate quantitative axial piston motors |
| Type of walking hydraulic motor | 2 swash plate variable axial piston motors |
| Maximum flow of main pump (l/min) | 2 x 489 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 29.4 |
| Main pump type | 2 variable axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 31.9 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 50 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*190*130 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*200*140 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*190*130 |
| Pilot pump type | 1 gear pump |
| Fuel Tank (L) | 920 |
| Hydraulic Tank (L) | 380 |
| Engine Oil changes (L) | 57 |
| Coolant (L) | 70 |
| Hydraulic System (L) | 750 |
| Total transport length (mm) | 13,400 |
| Total transport width (mm) | 4,360 |
| Counterweight ground clearance (mm) | 1530 |
| Minimum ground clearance (mm) | 860 |
| Minimum turning radius of front working device (mm) | 5240 |
| Back end turning radius (mm) | 4020 |
| Track gauge (mm) | 3,300 / 2,830 |
| Track plate width (mm) | 650 |
| Number of sprockets (single side) (each) | 3 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 11780 |
| Maximum digging depth (mm) | 7170 |
| Maximum excavation height (mm) | 11150 |
| Maximum unloading height (mm) | 7340 |
| Maximum vertical digging depth (mm) | 5050 |
| Maximum excavation radius of stop surface (mm) | 11490 |
Overview
No.1138404
Brand Name：
HitachiModel Number：
ZX690LCH-5AYear：
2021
Location：
Zhejiang China
Pub Date：
