Product Description

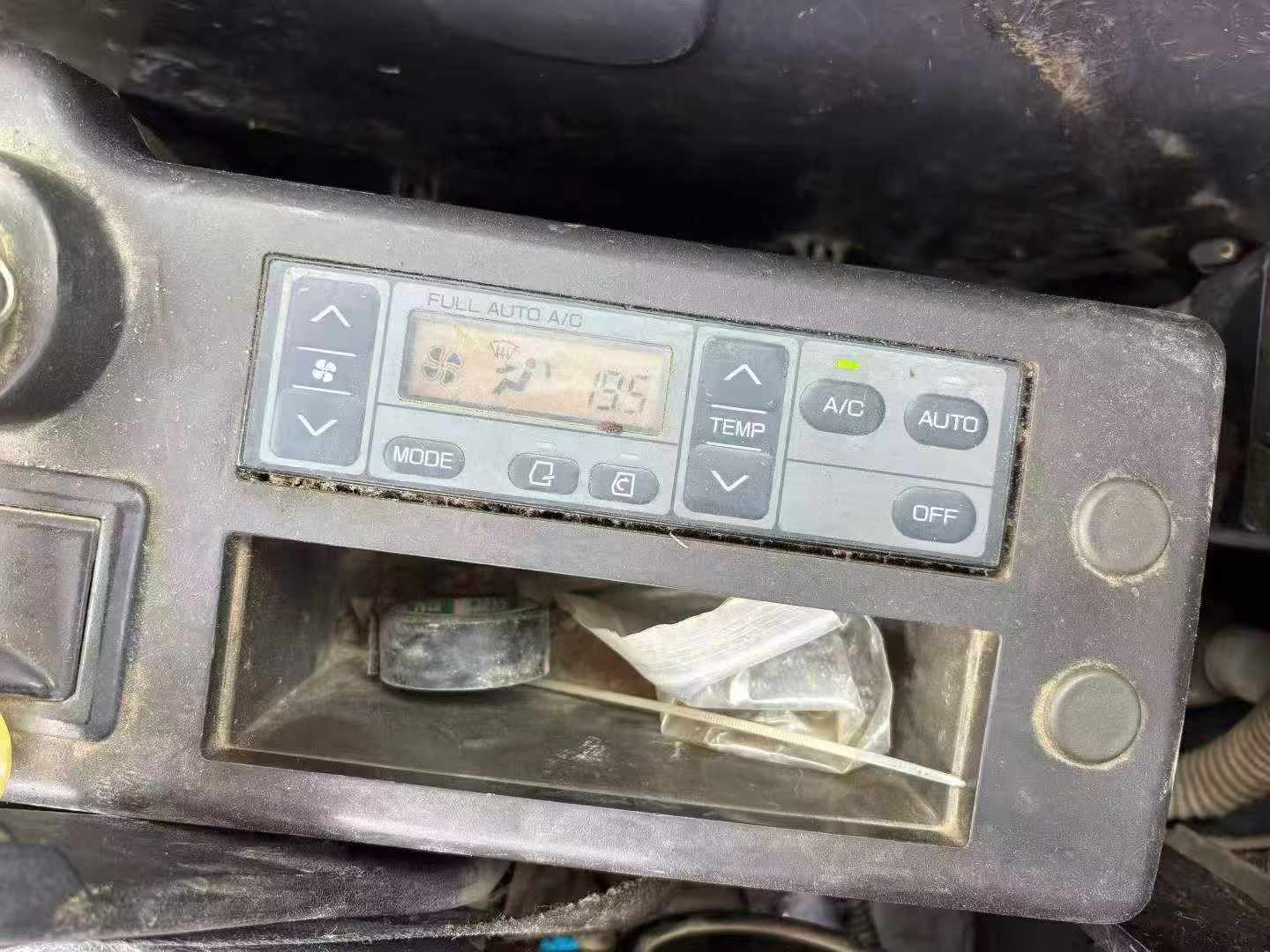

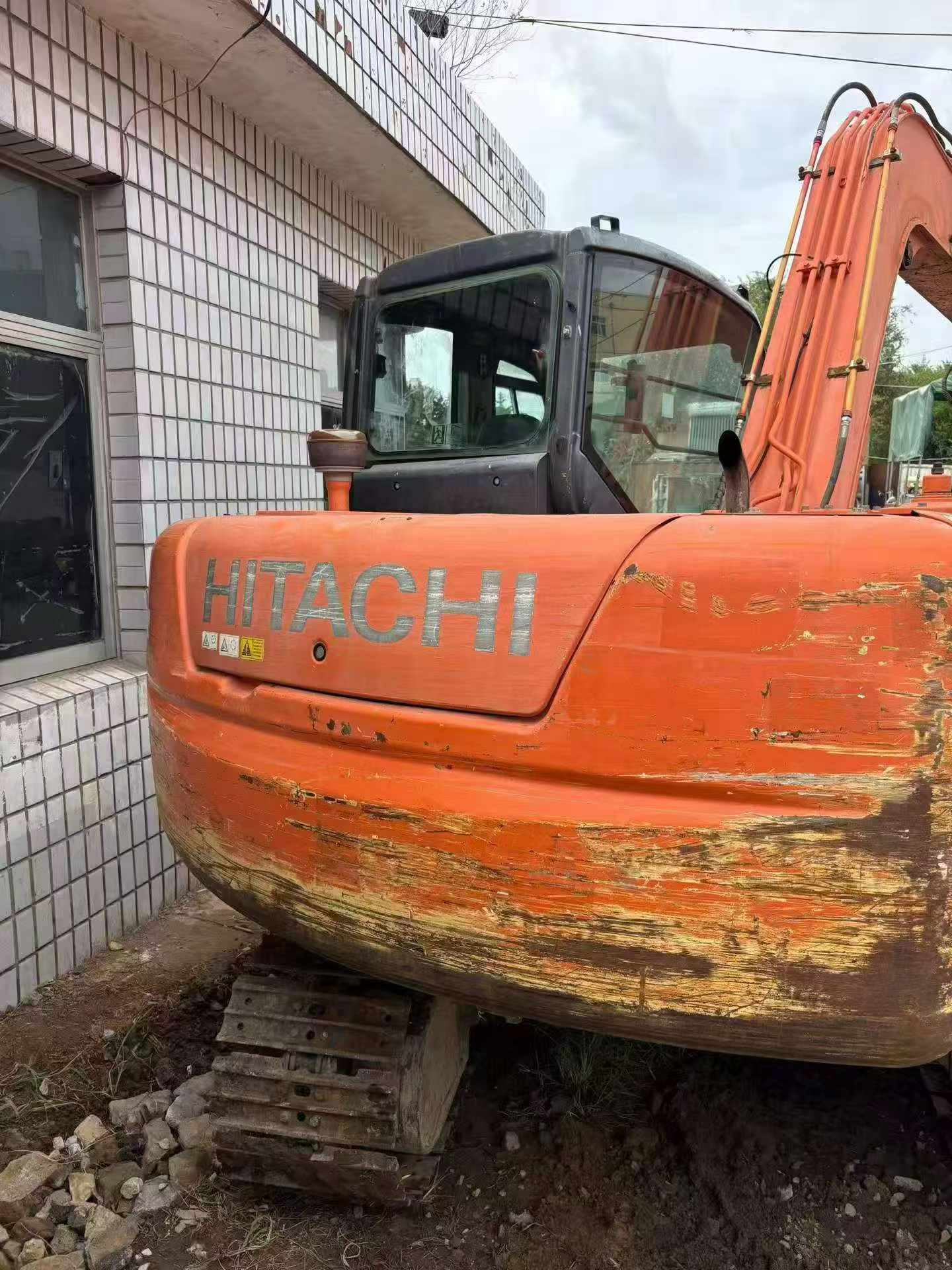

Discover the reliability and efficiency of this 2014 Hitachi ZX70-5G, currently available in Hunan, China. This machine has been meticulously maintained by a single owner, ensuring its performance remains consistently high. The air conditioning system is in excellent condition, providing optimal comfort for operators even in challenging environments. Known for its robust construction and dependable operation, this excavator is ideal for various construction and excavation tasks. With its stable performance, it's ready to meet your project needs. Priced to sell at 7.9, it's an opportunity not to be missed for those looking to enhance their fleet with a proven, cost-effective solution.
- Year: 2014
- Brand: Hitachi
- Model: ZX70-5G
- Location: Hunan, China
| Specifications | Value |
|---|---|
| No. | 1127610 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6700 |
| Bucket capacity (m³) | 0.33 |
| Country of origin | Hefei, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

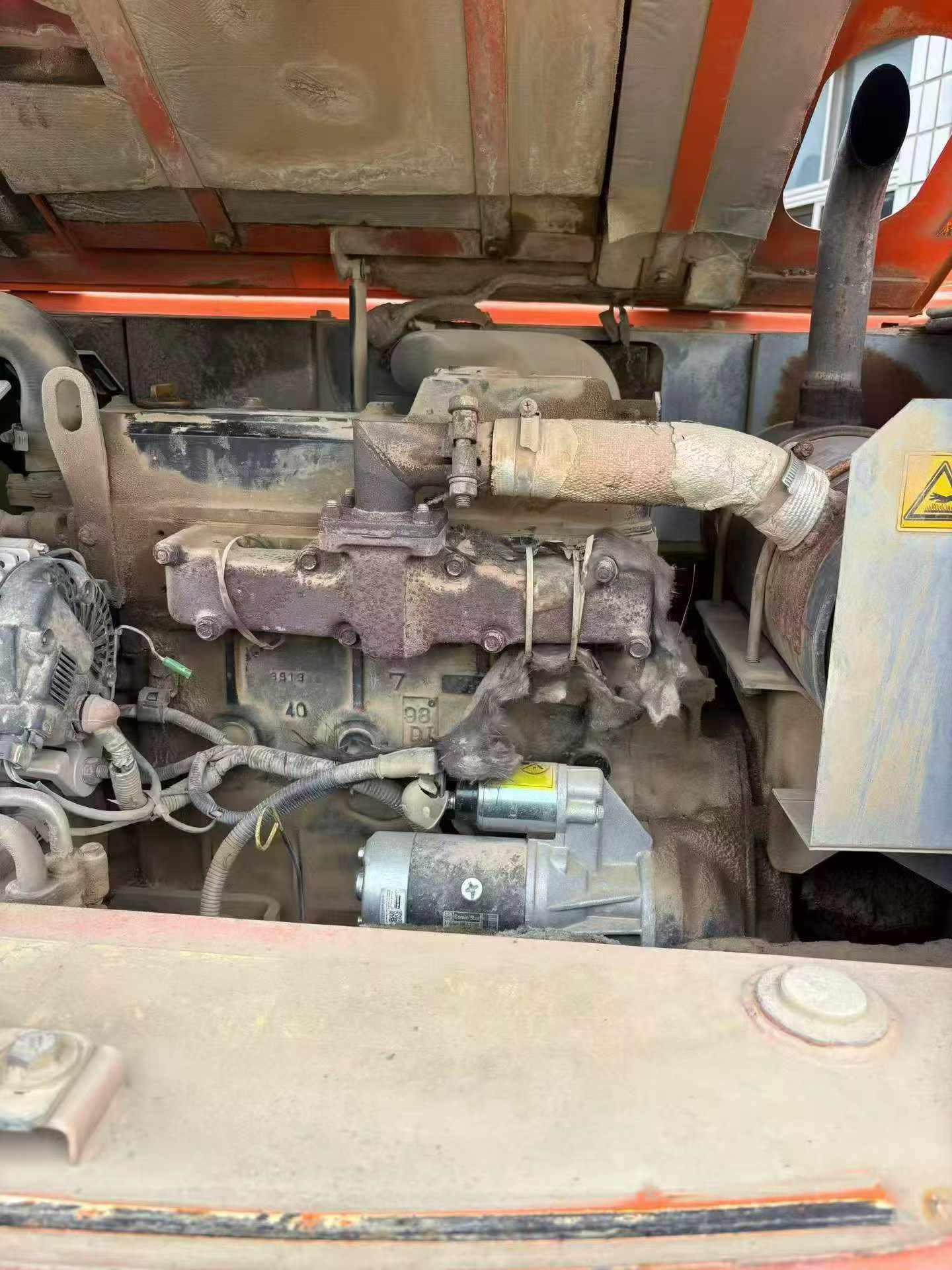

| Engine type | Yanmar Yanmar 4TNV98-AVHBW |
| Rated power (kw/rpm) | 42.4/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 mm×110 mm |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.318 |
| Working form | 4 stroke, water cooled, direct injection |
| Ground specific pressure (Kpa) | 31 |
| Rotation speed (rpm) | 10.7 |
| Climbing ability (%) | 70% (35 °) |
| Bucket digging force (kN) | 55 |
| Rod digging force (kN) | 40 |
| Maximum tractive force (kN) | 47.8 |
| Travel speed (km/h) | High 5.0/ Low 3.4 |
| Turning torque (Nm) | 12.9 |
| Rotary hydraulic motor type | 1 axial plunger motor |
| Type of walking hydraulic motor | 2 variable axial piston motors |
| Maximum flow of main pump (l/min) | 2 x 63 x 52.5 + 1 |
| Traveling Hydraulic Circuit (Mpa) | 31.4 |
| Rotary Hydraulic Circuit (Mpa) | 22.6 |
| Main pump type | 3 variable axial piston pumps +1 gear pump |
| Working Hydraulic Circuit (Mpa) | 26 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 21 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 85 x 55 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 95 x 60 |
| Boom cylinders - Number × diameter × stroke (mm) | 1 x 115 x 65 |
| Fuel Tank (L) | 135 |
| Hydraulic Tank (L) | 60 |
| Engine Oil changes (L) | 12.3 |
| Coolant (L) | 8 |
| Hydraulic System (L) | 100 |
| Total transport length (mm) | 6,080 |
| Total transport width (mm) | 2,260 |
| Total transport height (mm) | 2,600 |
| Full cab height (mm) | 2,600 |
| Counterweight ground clearance (mm) | 760 |
| Minimum ground clearance (mm) | 360 |
| Minimum turning radius of front working device (mm) | 1,720 |
| Back end turning radius (mm) | 1,750 |
| Onboard width (mm) | 2,260 |
| Total track length (mm) | 2,765 |
| Track gauge (mm) | 1,750 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2,200 |
| Maximum digging radius (mm) | 6320 |
| Maximum digging depth (mm) | 4,170 |
| Maximum excavation height (mm) | 7150 |
| Maximum unloading height (mm) | 5060 |
| Maximum vertical digging depth (mm) | 3,730 |
| Bulldozer lift or depth (mm) | 400 x 280 |
| Dodging plate width × height (mm) | 2320 x 435 |
| Maximum excavation radius of stop surface (mm) | 6,170 |
| Maximum effective digging depth (mm) | 3,800 |
