Product Description

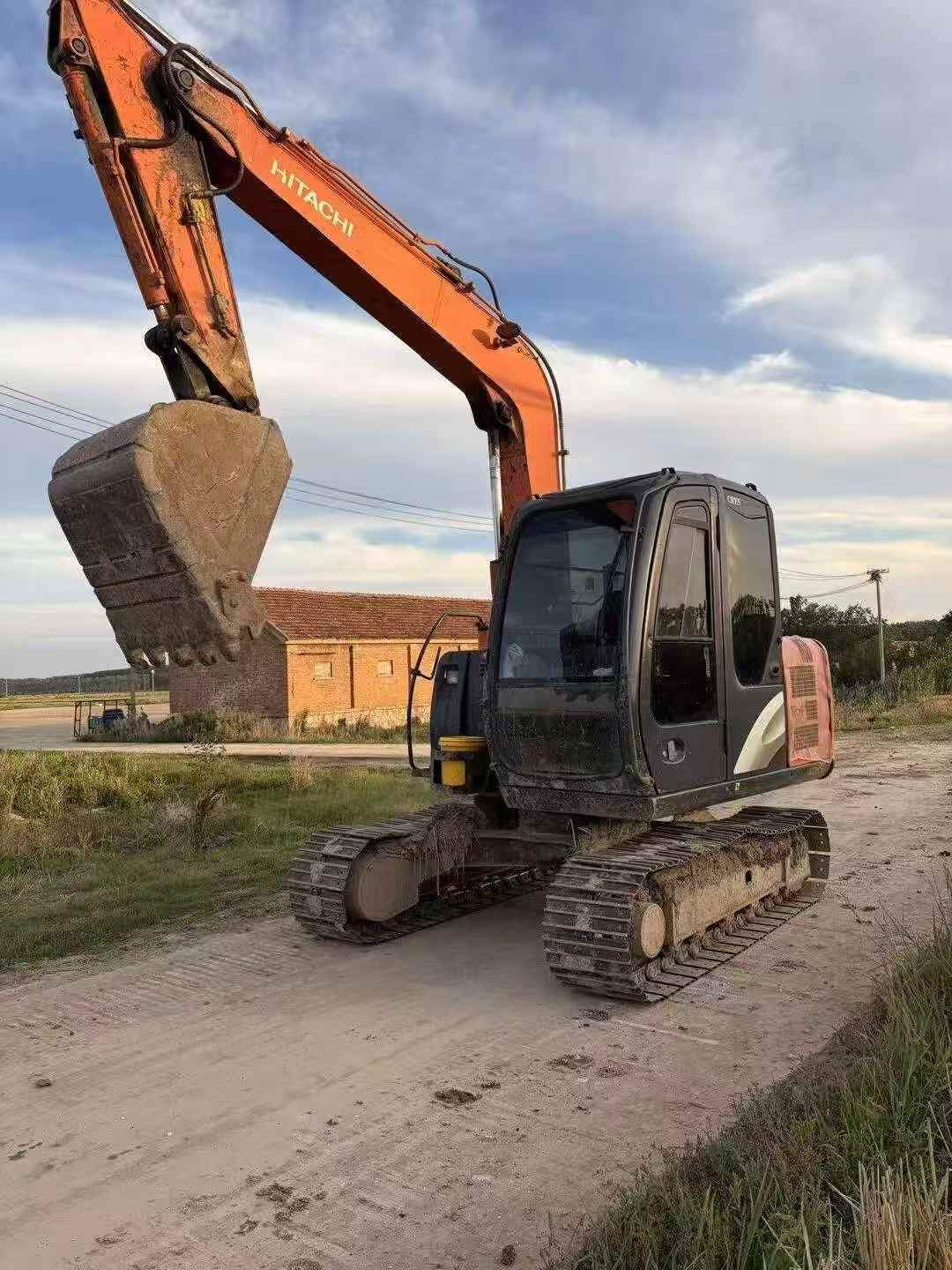

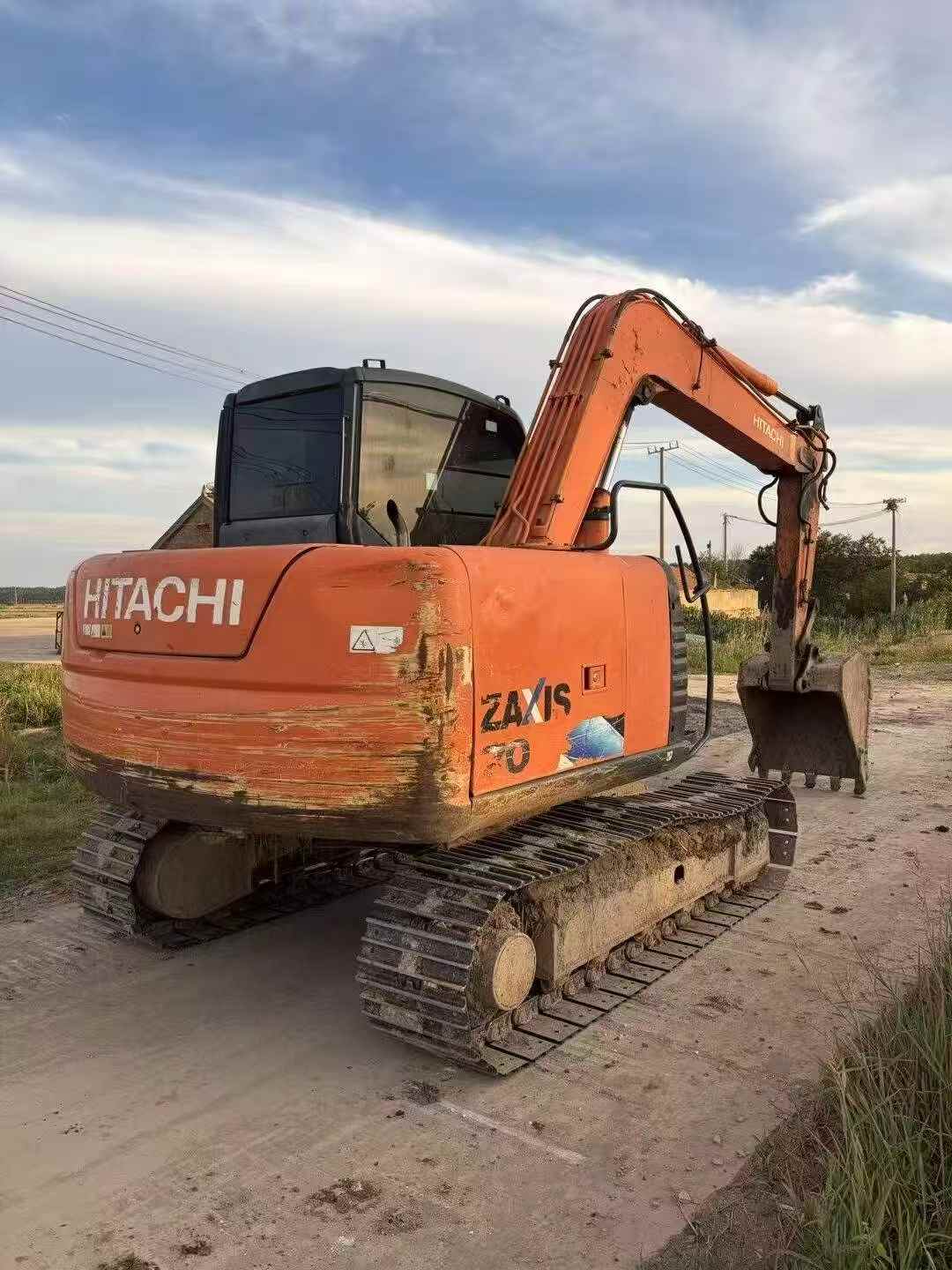

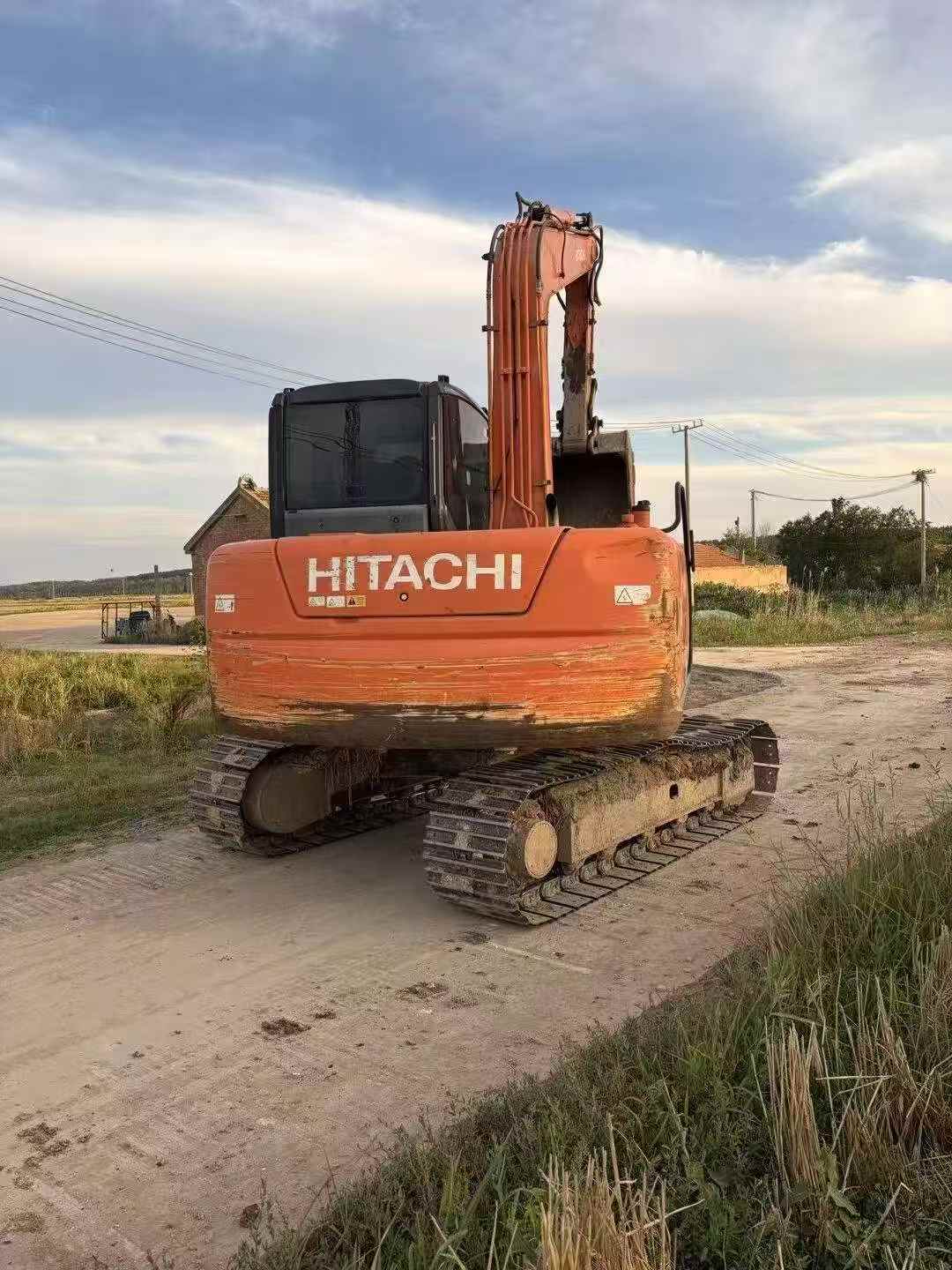

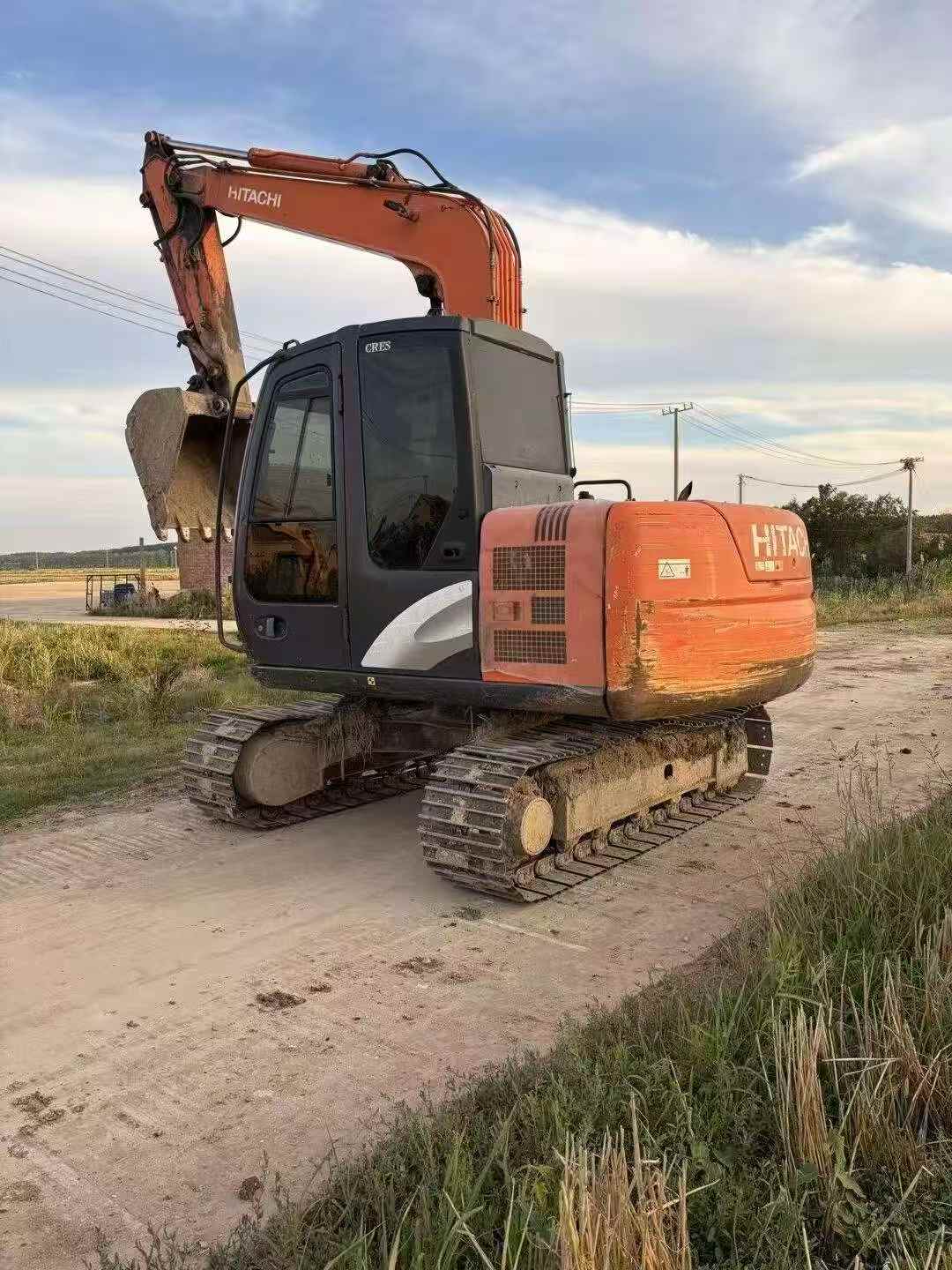

This 2019 Hitachi ZX70-5G excavator represents excellent value for operations requiring a reliable 7-ton class machine. Sourced from Jiangsu, China, this single-owner unit has been well-maintained throughout its service life, with all major components in excellent working condition.
Key features include:
- Original factory configuration with verified performance standards
- Clean electrical system with fully functional OEM air conditioning
- Well-preserved undercarriage and major assemblies
- Complete maintenance history from original operator
- Ready for immediate deployment without additional servicing
The ZX70-5G is known for its fuel efficiency and versatility in confined work areas. This particular unit has been operated in standard construction applications, making it suitable for general earthmoving, utility work, and landscaping projects. Currently located in Jiangsu, China, with shipping arrangements available upon request.
| Specifications | Value |
|---|---|
| No. | 1093394 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6700 |
| Bucket capacity (m³) | 0.33 |
| Country of origin | Hefei, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

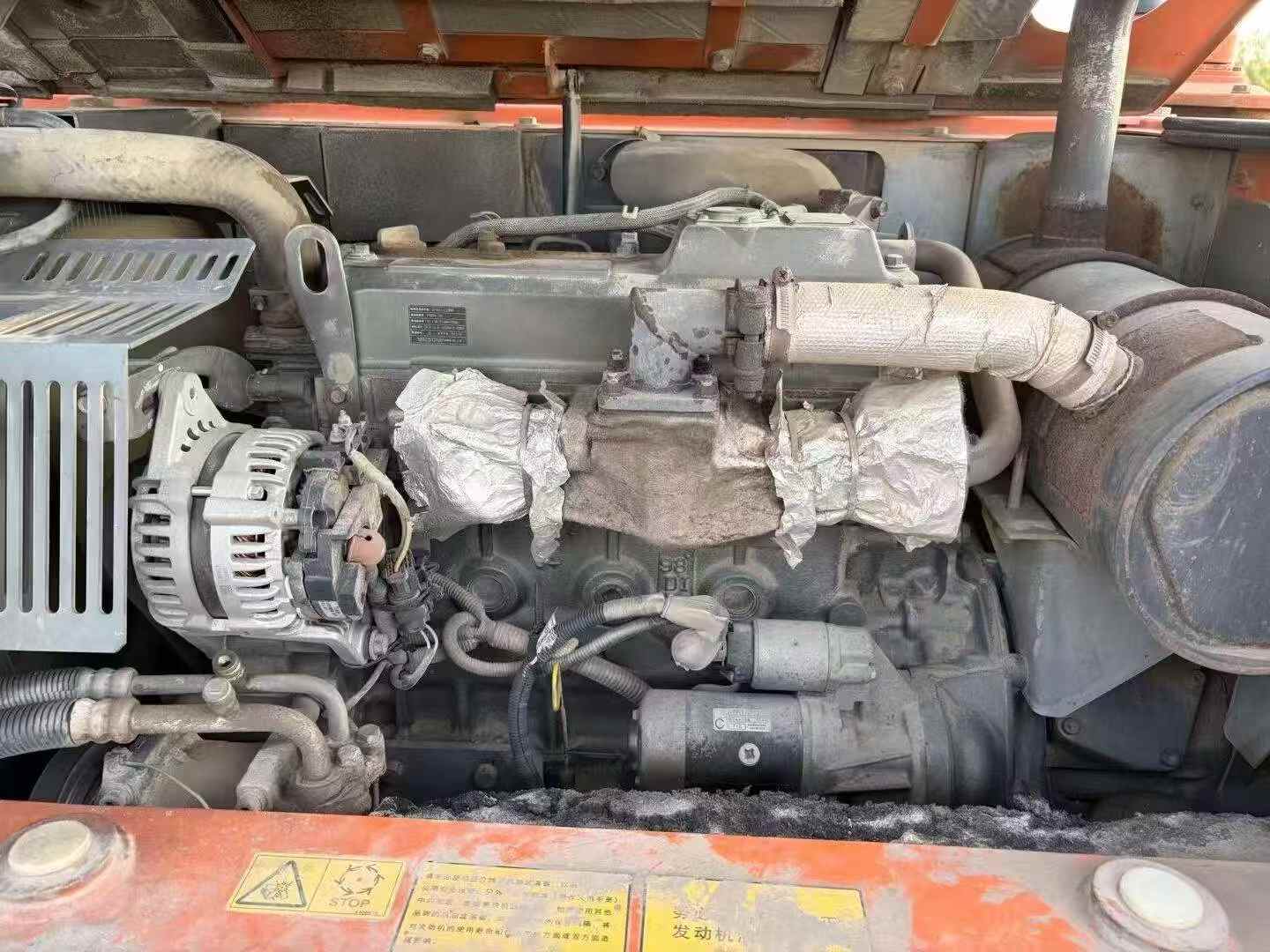

| Engine type | Yanmar Yanmar 4TNV98-AVHBW |
| Rated power (kw/rpm) | 42.4/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 mm×110 mm |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.318 |
| Working form | 4 stroke, water cooled, direct injection |
| Ground specific pressure (Kpa) | 31 |
| Rotation speed (rpm) | 10.7 |
| Climbing ability (%) | 70% (35 °) |
| Bucket digging force (kN) | 55 |
| Rod digging force (kN) | 40 |
| Maximum tractive force (kN) | 47.8 |
| Travel speed (km/h) | High 5.0/ Low 3.4 |
| Turning torque (Nm) | 12.9 |
| Rotary hydraulic motor type | 1 axial plunger motor |
| Type of walking hydraulic motor | 2 variable axial piston motors |
| Maximum flow of main pump (l/min) | 2 x 63 x 52.5 + 1 |
| Traveling Hydraulic Circuit (Mpa) | 31.4 |
| Rotary Hydraulic Circuit (Mpa) | 22.6 |
| Main pump type | 3 variable axial piston pumps +1 gear pump |
| Working Hydraulic Circuit (Mpa) | 26 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 21 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 85 x 55 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 95 x 60 |
| Boom cylinders - Number × diameter × stroke (mm) | 1 x 115 x 65 |
| Fuel Tank (L) | 135 |
| Hydraulic Tank (L) | 60 |
| Engine Oil changes (L) | 12.3 |
| Coolant (L) | 8 |
| Hydraulic System (L) | 100 |
| Total transport length (mm) | 6,080 |
| Total transport width (mm) | 2,260 |
| Total transport height (mm) | 2,600 |
| Full cab height (mm) | 2,600 |
| Counterweight ground clearance (mm) | 760 |
| Minimum ground clearance (mm) | 360 |
| Minimum turning radius of front working device (mm) | 1,720 |
| Back end turning radius (mm) | 1,750 |
| Onboard width (mm) | 2,260 |
| Total track length (mm) | 2,765 |
| Track gauge (mm) | 1,750 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2,200 |
| Maximum digging radius (mm) | 6320 |
| Maximum digging depth (mm) | 4,170 |
| Maximum excavation height (mm) | 7150 |
| Maximum unloading height (mm) | 5060 |
| Maximum vertical digging depth (mm) | 3,730 |
| Bulldozer lift or depth (mm) | 400 x 280 |
| Dodging plate width × height (mm) | 2320 x 435 |
| Maximum excavation radius of stop surface (mm) | 6,170 |
| Maximum effective digging depth (mm) | 3,800 |
