Product Description

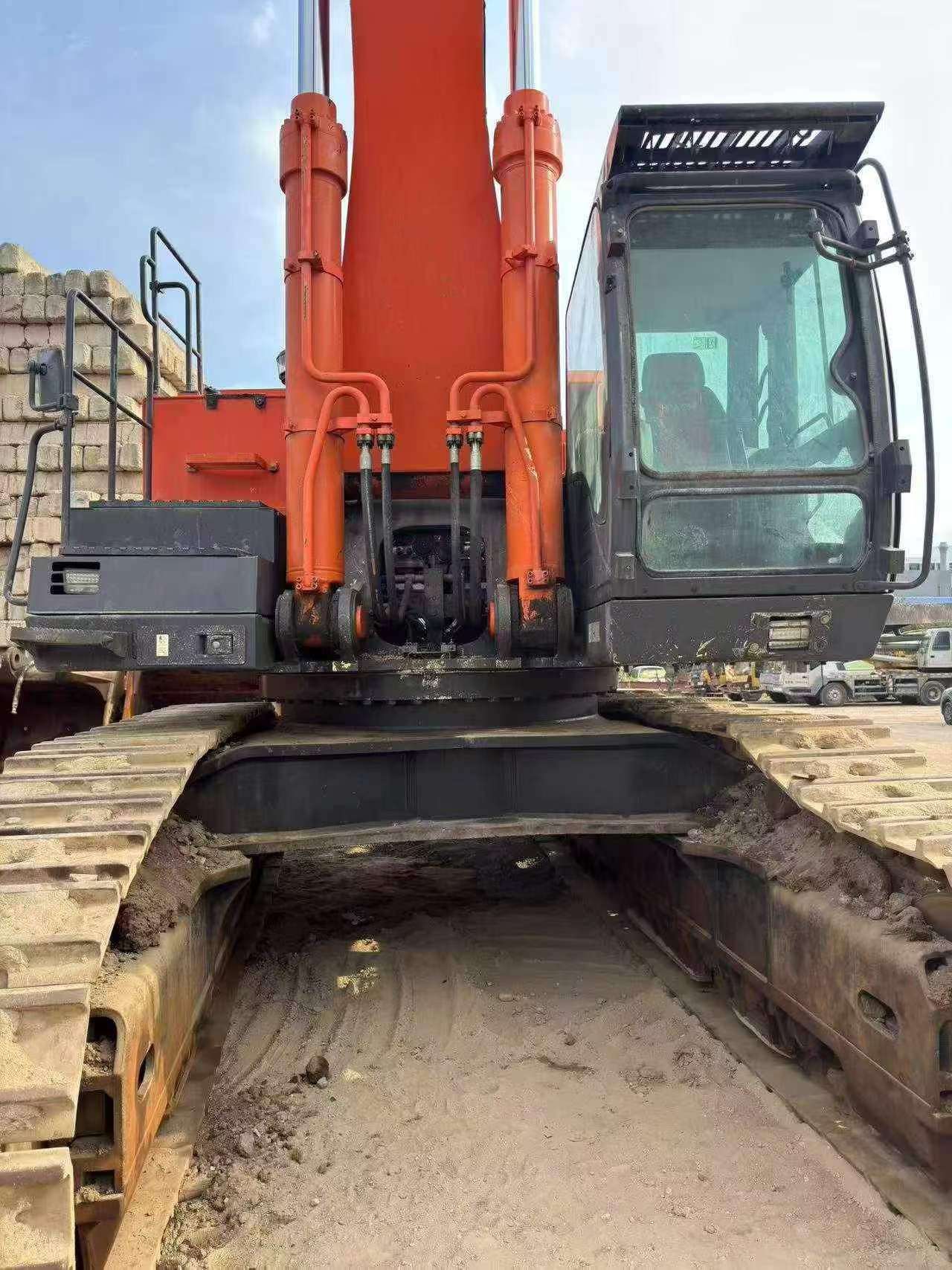

This 2019 Hitachi ZX890LCH-5A hydraulic excavator offers reliable performance for heavy-duty earthmoving and mining applications. With just over 6,000 operating hours, this machine represents excellent value in the used equipment market. The ZX890LCH-5A is built on Hitachi's proven large excavator platform, delivering the power and reach needed for demanding jobsites.
- Operating weight: Approximately 87 metric tons
- Engine: Isuzu diesel with after-treatment system
- Hydraulic system designed for efficient material handling
- Spacious, climate-controlled cab with ergonomic controls
- Currently located in Zhejiang Province, China
- Available for inspection by appointment
This excavator has been maintained in working condition and is ready for deployment. Suitable for mining, quarrying, large-scale construction, and infrastructure projects. Contact us for detailed service records, shipping arrangements, and competitive pricing.
| Specifications | Value |
|---|---|
| No. | 1153997 |
| Tonnage (tons) | 89 |
| Working weight (kg) | 85000 |
| Bucket capacity (m³) | 5.0 |
| Boom length (mm) | 7100 |
| Rod length (mm) | 2950 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu GH-6WG1XKSA-01 |
| Rated power (kw/rpm) | 377/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 147 x 154 |
| Maximum torque (N.m) | 2138/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 15.681 |
| Working form | 4-stroke, water-cooled, electronically controlled direct injection, turbocharged, intercooled |
| Ground specific pressure (Kpa) | 116 |
| Rotation speed (rpm) | 7.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 472 |
| Rod digging force (kN) | 394 |
| Maximum tractive force (kN) | 560 |
| Travel speed (km/h) | 4.7/3.2 |
| Turning torque (Nm) | 267 |
| Rotary hydraulic motor type | Two swashplate quantitative axial piston motors |
| Type of walking hydraulic motor | 2 swashplate variable axial piston motors (with parking brake) |
| Maximum flow of main pump (l/min) | 2 x 556 + 50 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.4 |
| Main pump type | 2 variable axial piston pumps +1 gear pump |
| Working Hydraulic Circuit (Mpa) | 31.9 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 215 x 150 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 225 x 160 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 215 x 150 |
| Fuel Tank (L) | 1110 |
| Hydraulic Tank (L) | 500 |
| Engine Oil changes (L) | 57 |
| Coolant (L) | 123 |
| Hydraulic System (L) | 1042 |
| Total transport length (mm) | 13550 |
| Total transport width (mm) | 4450 |
| Total transport height (mm) | 5200 |
| Full cab height (mm) | 3800 |
| Counterweight ground clearance (mm) | 1680 |
| Minimum ground clearance (mm) | 890 |
| Minimum turning radius of front working device (mm) | 5210 |
| Back end turning radius (mm) | 4600 |
| Total track length (mm) | 6360 |
| Track gauge (mm) | 3450/2830 |
| Track plate width (mm) | 650 |
| Total track width (mm) | 4100 |
| Track ground length (mm) | 5110 |
| Number of sprockets (single side) (each) | 3 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 51 |
| Maximum digging radius (mm) | 12340 |
| Maximum digging depth (mm) | 7140 |
| Maximum excavation height (mm) | 12010 |
| Maximum unloading height (mm) | 8130 |
| Maximum vertical digging depth (mm) | 4100 |
| Maximum excavation radius of stop surface (mm) | 12020 |
see more
Overview
No.1153997
Brand Name：
HitachiModel Number：
ZX890LCH-5AYear：
2019
Location：
Zhejiang China
