Product Description

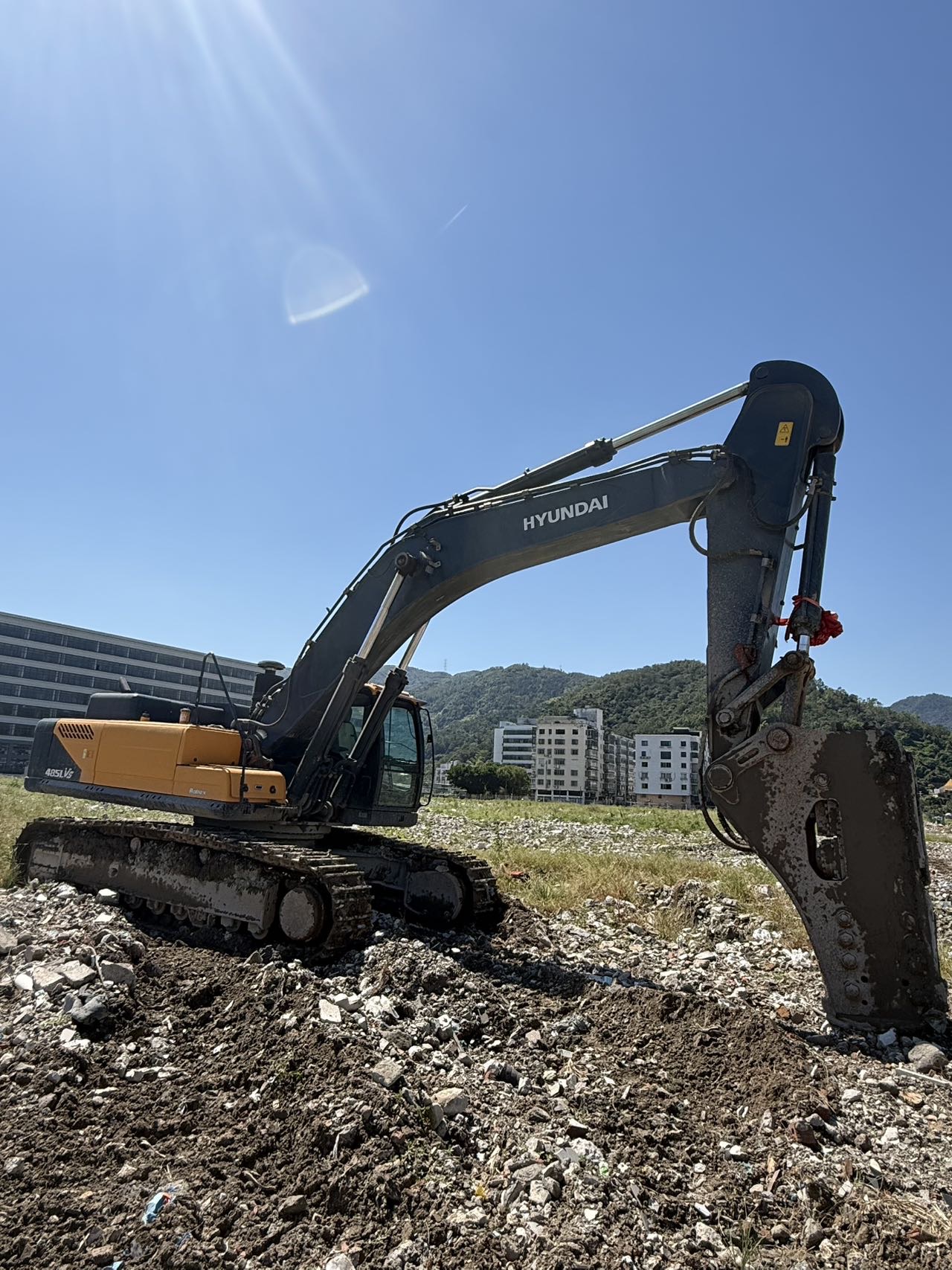

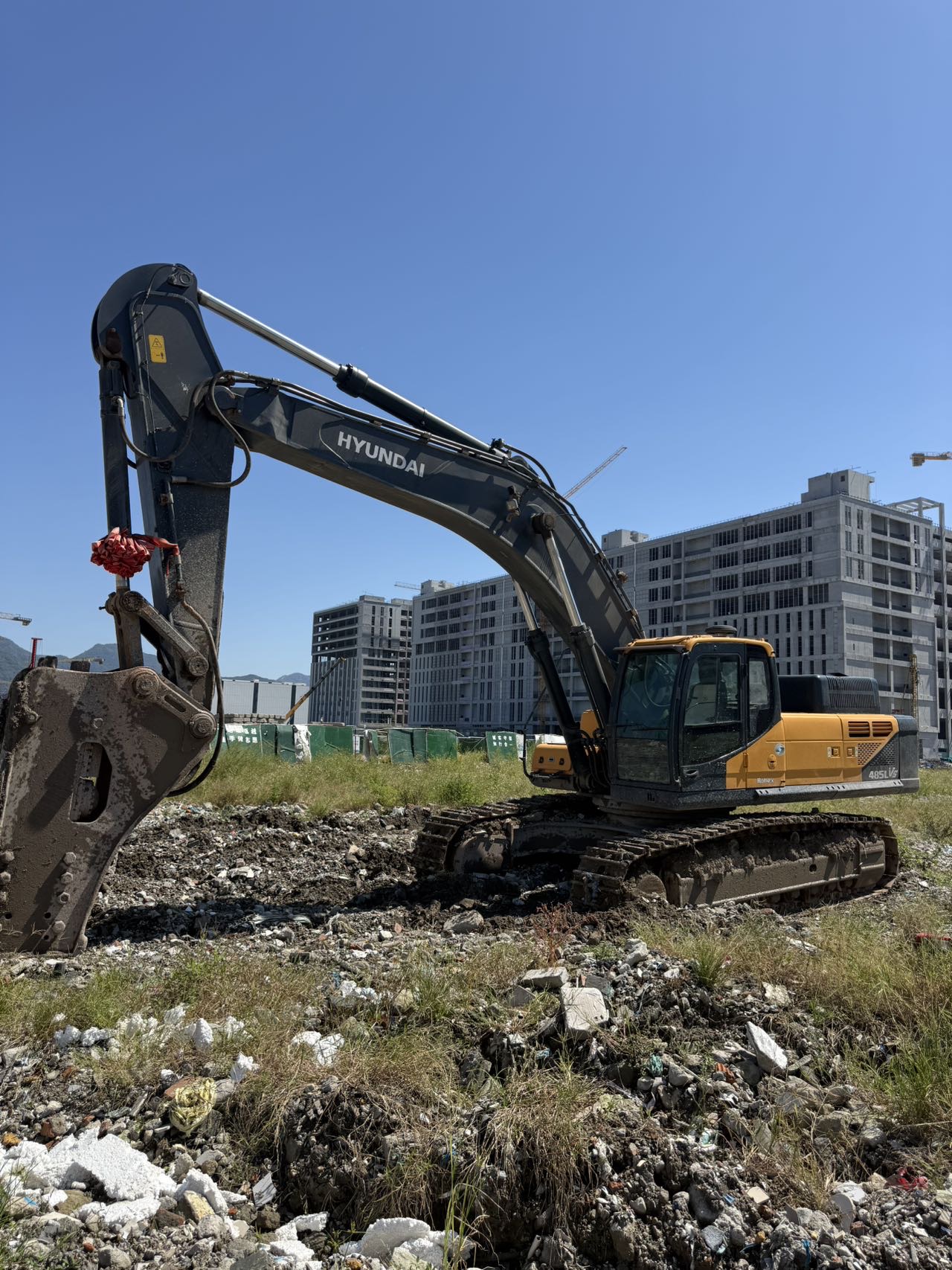

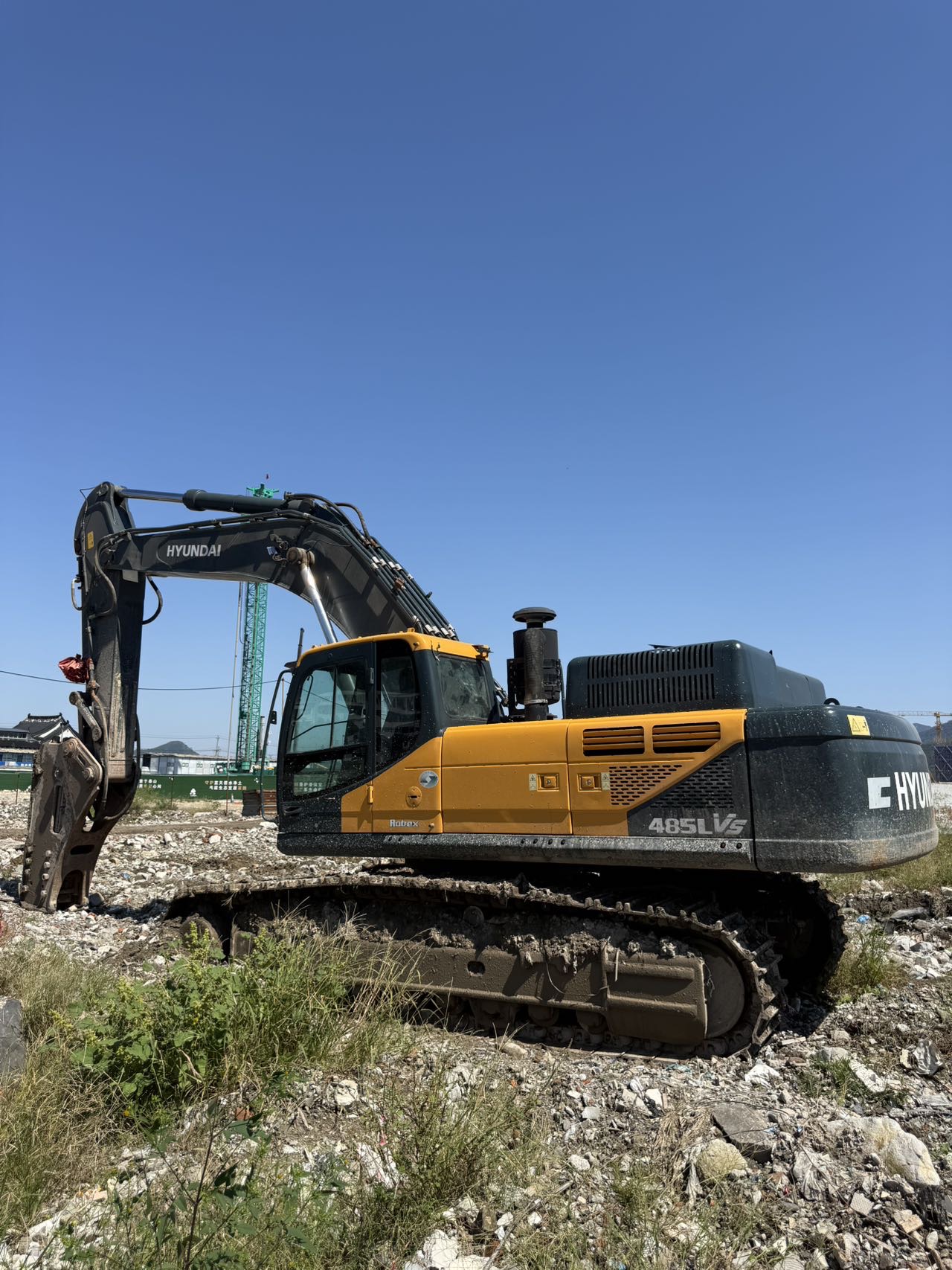

This 2020 Hyundai 485 excavator comes equipped with a 195-class hydraulic breaker attachment, ready for demanding demolition and breaking applications. With approximately 6,000 documented hours on the meter, this machine represents a well-maintained mid-life unit from a reputable manufacturer. Currently located in Zhejiang, China, the equipment has been pre-inspected and verified to meet performance standards without requiring additional technical evaluation.

  • Year of Manufacture: 2020
  • Make: Hyundai
  • Model: 485 Series Excavator
  • Operating Hours: Approximately 6,000 hours
  • Attachment: 195-Class Hydraulic Breaker
  • Condition: Performance-verified, inspection-ready
  • Current Location: Zhejiang Province, China

Suitable for construction contractors, demolition specialists, and quarry operations seeking reliable hydraulic excavation equipment with breaking capability. This unit offers proven Hyundai engineering with documented service history.

SpecificationsValue
No.1161832
Tonnage (tons)11
Bucket capacity (m³)0.45m3
Boom length (mm)4300mm
Rod length (mm)2260mm
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeMITSUBISHI 4FRC
Rated power (kw/rpm)99(74) / 2000
Cylinder diameter × stroke (mm)102 (4.02) x 130 (5.12)
Maximum torque (N.m)43.5(315) / 1350
Displacement (L)4.2
Working form4 cylinder 4 stroke water cooled direct injection engine
Climbing ability (%)70
Travel speed (km/h)5.5 km/h (3.4 mph) / 3.4 km/h (2.1 mph)
Maximum flow of main pump (l/min)2×112 (2×29.6)
Traveling Hydraulic Circuit (Mpa)330
Rotary Hydraulic Circuit (Mpa)240
Main pump typeTwo variable plunger pump
Working Hydraulic Circuit (Mpa)330
Bucket cylinders - Number × diameter × stroke (mm)1-95 x 65 x 855
Bucket rod cylinders - Number × diameter × stroke (mm)1-110 x 75 x 1070
Boom cylinders - Number × diameter × stroke (mm)2-95 x 70 x 1015
Fuel Tank (L)250
Hydraulic Tank (L)100
Engine Oil changes (L)17.5
Coolant (L)24
Hydraulic System (L)210
Full cab height (mm)2800
Counterweight ground clearance (mm)900
Back end turning radius (mm)2380mm
Total track length (mm)7270
Total track width (mm)2490
Maximum digging radius (mm)7740mm
Maximum digging depth (mm)5090mm
Maximum excavation height (mm)8070mm
Maximum unloading height (mm)5710mm
Maximum vertical digging depth (mm)4430mm
Maximum excavation radius of stop surface (mm)7610mm
