2015 Hyundai 110LVS

1/9
Buy Hyundai 110LVS Used Excavator / 1

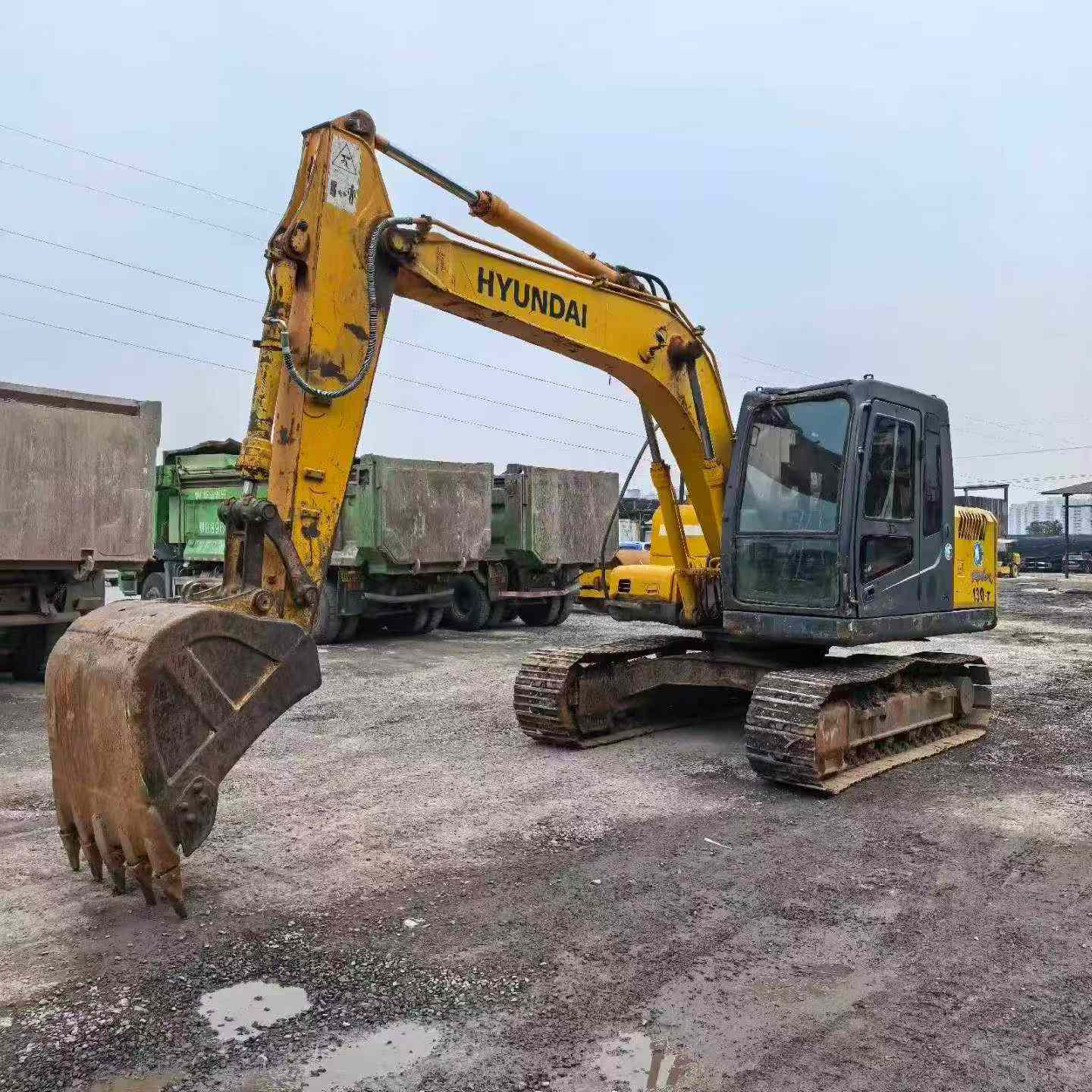

Buy Hyundai 110LVS Used Excavator / 2

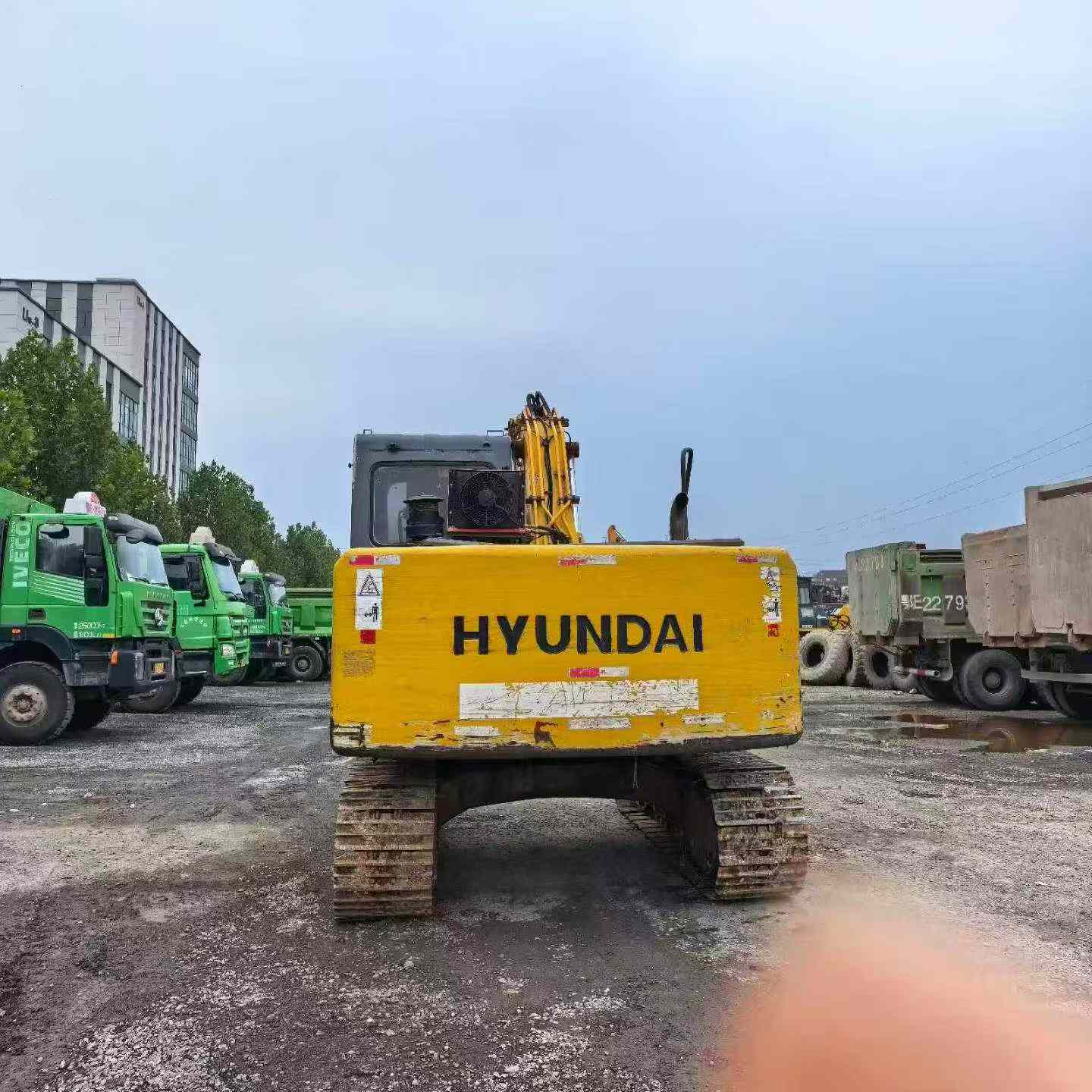

Buy Hyundai 110LVS Used Excavator / 3

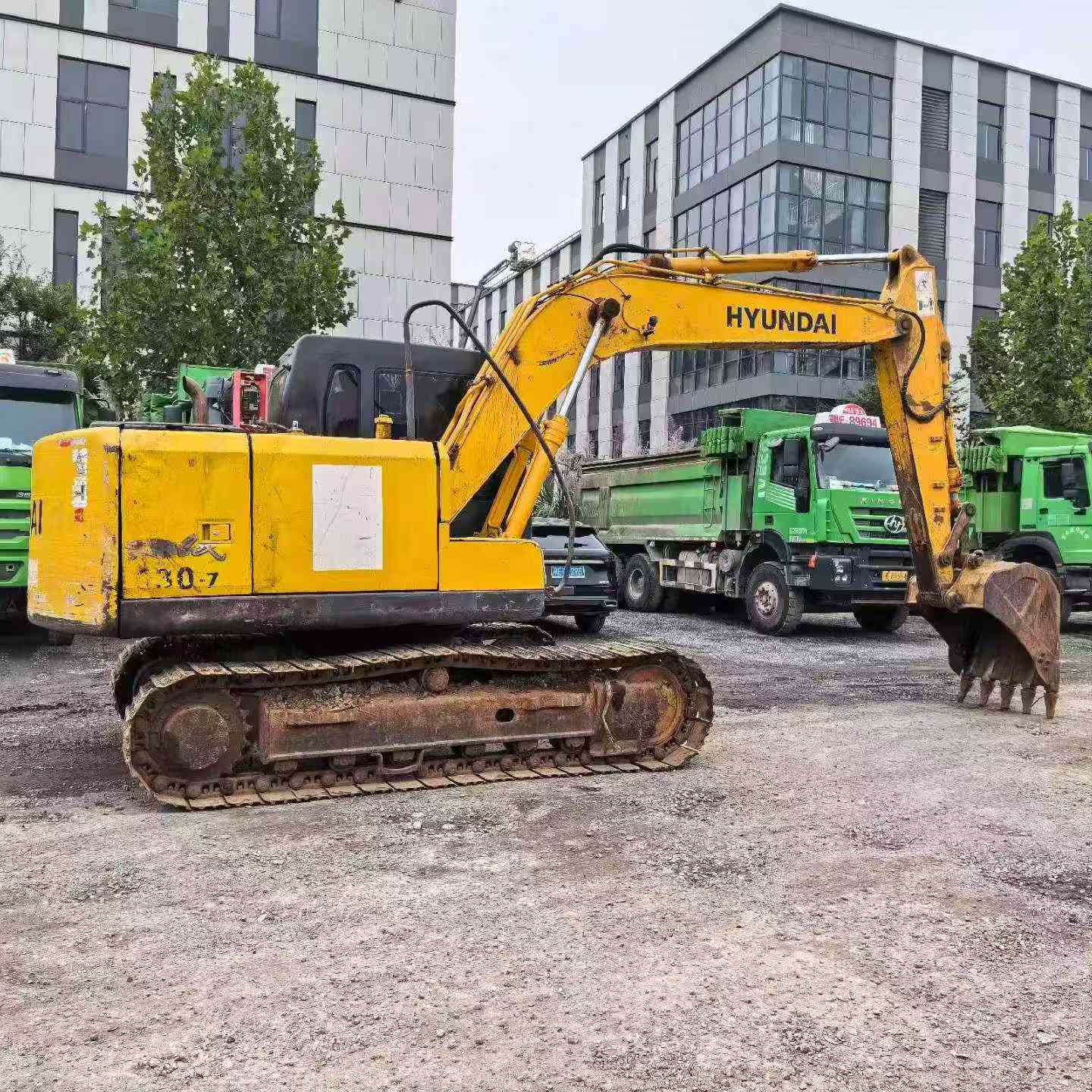

Buy Hyundai 110LVS Used Excavator / 4

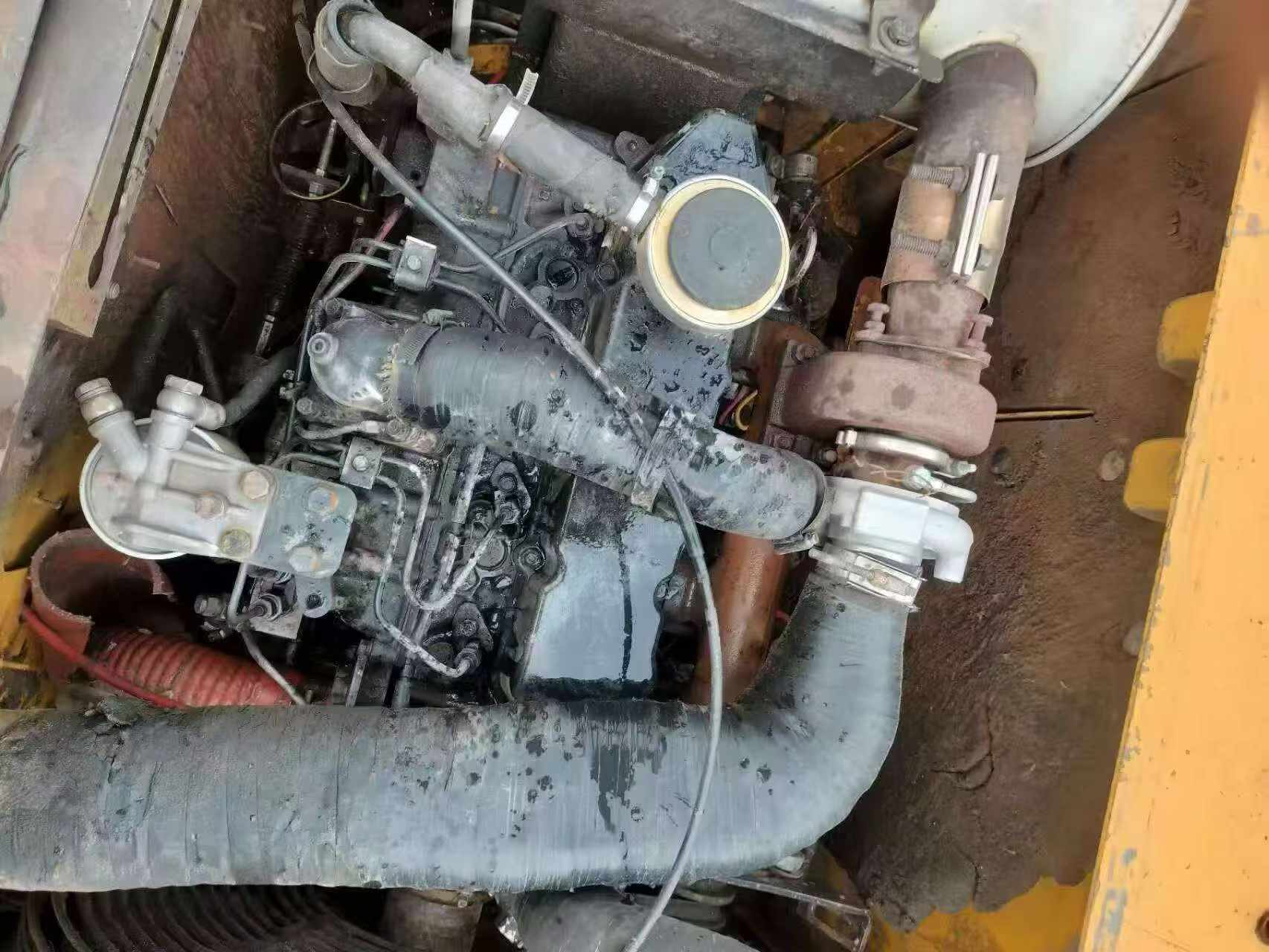

Buy Hyundai 110LVS Used Excavator / 5

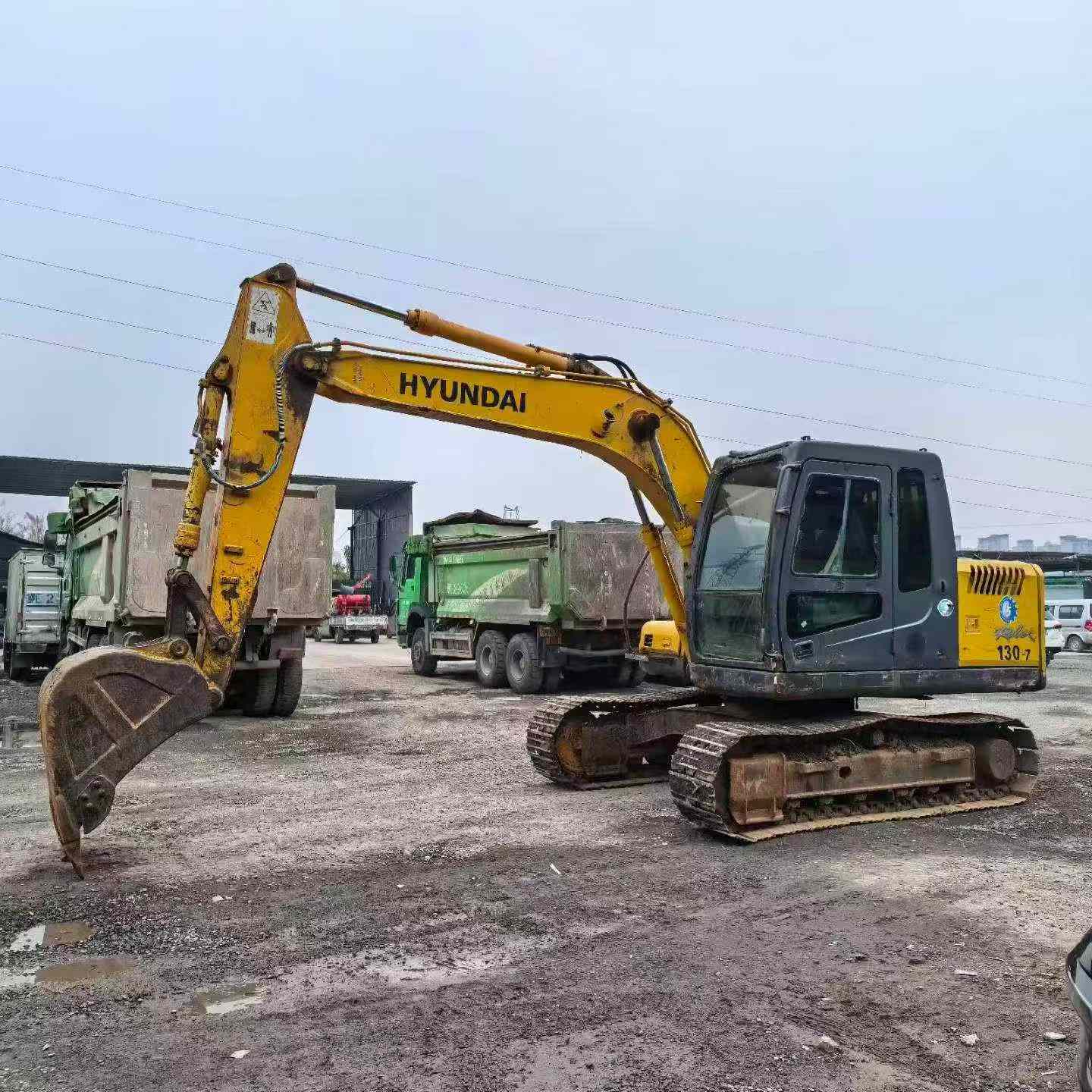

Buy Hyundai 110LVS Used Excavator / 6

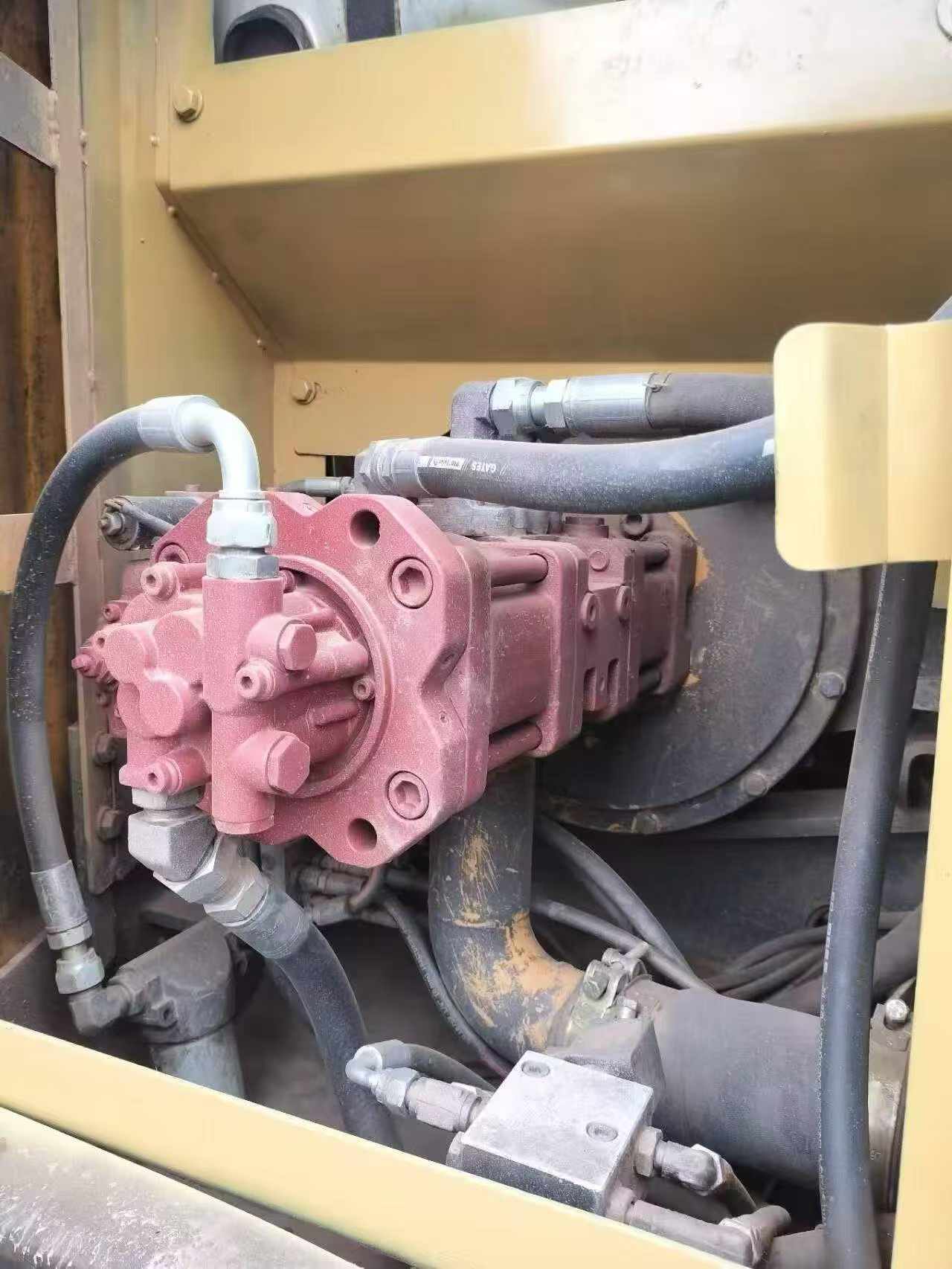

Buy Hyundai 110LVS Used Excavator / 7
Buy Hyundai 110LVS Used Excavator / 8

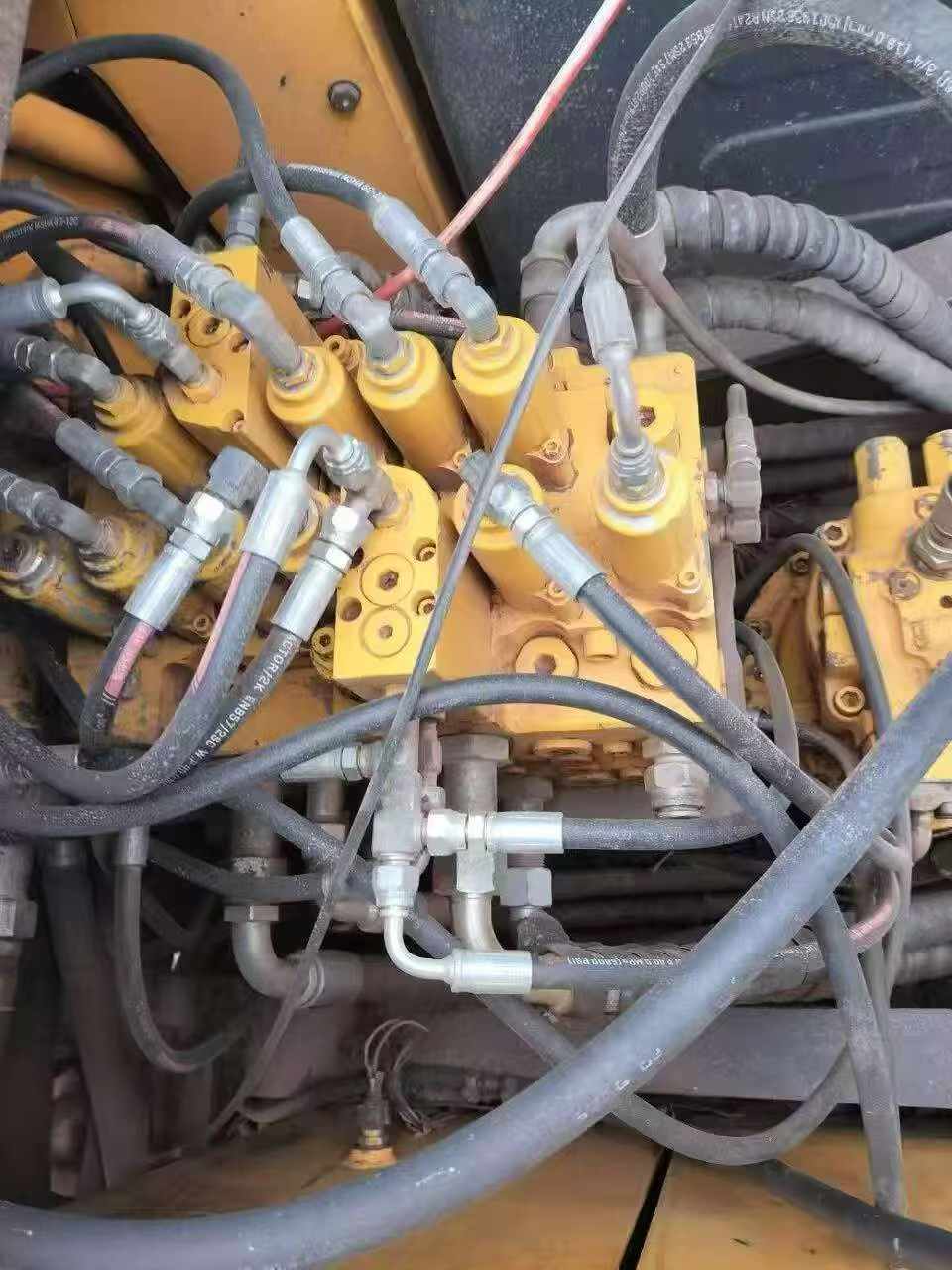

Buy Hyundai 110LVS Used Excavator / 9

Product Description

This 2015 Hyundai R110LVS excavator represents excellent value for operations requiring reliable mid-size performance. Currently located in Sichuan, China, this machine comes from a single owner with verified ownership documentation, ensuring transparent equipment history and proper maintenance records.

The R110LVS is known for its fuel-efficient engine and robust hydraulic system, making it suitable for construction, earthmoving, and utility projects. At nine years of operation, this unit falls within the productive mid-life range for Hyundai excavators when properly maintained.

  • Year of Manufacture: 2015
  • Model: Hyundai R110LVS
  • Ownership: Single owner with complete documentation
  • Current Location: Sichuan Province, China
  • Operating Weight Class: Approximately 11 tonnes

Ideal for contractors seeking dependable equipment at competitive pricing. Inspection welcome by appointment. Additional units from verified single-owner sources available upon request.

SpecificationsValue
No.1169779
Tonnage (tons)11
Bucket capacity (m³)0.45m3
Boom length (mm)4300mm
Rod length (mm)2260mm
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeMITSUBISHI 4FRC
Rated power (kw/rpm)99(74) / 2000
Cylinder diameter × stroke (mm)102 (4.02) x 130 (5.12)
Maximum torque (N.m)43.5(315) / 1350
Displacement (L)4.2
Working form4 cylinder 4 stroke water cooled direct injection engine
Climbing ability (%)70
Travel speed (km/h)5.5 km/h (3.4 mph) / 3.4 km/h (2.1 mph)
Maximum flow of main pump (l/min)2×112 (2×29.6)
Traveling Hydraulic Circuit (Mpa)330
Rotary Hydraulic Circuit (Mpa)240
Main pump typeTwo variable plunger pump
Working Hydraulic Circuit (Mpa)330
Bucket cylinders - Number × diameter × stroke (mm)1-95 x 65 x 855
Bucket rod cylinders - Number × diameter × stroke (mm)1-110 x 75 x 1070
Boom cylinders - Number × diameter × stroke (mm)2-95 x 70 x 1015
Fuel Tank (L)250
Hydraulic Tank (L)100
Engine Oil changes (L)17.5
Coolant (L)24
Hydraulic System (L)210
Full cab height (mm)2800
Counterweight ground clearance (mm)900
Back end turning radius (mm)2380mm
Total track length (mm)7270
Total track width (mm)2490
Maximum digging radius (mm)7740mm
Maximum digging depth (mm)5090mm
Maximum excavation height (mm)8070mm
Maximum unloading height (mm)5710mm
Maximum vertical digging depth (mm)4430mm
Maximum excavation radius of stop surface (mm)7610mm
