2015 Hyundai 110LVS

1/5
Buy Hyundai 110LVS Used Excavator / 1

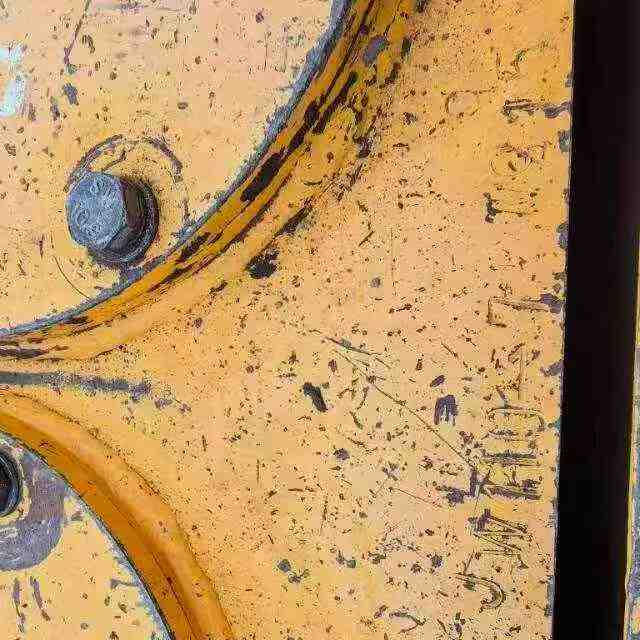

Buy Hyundai 110LVS Used Excavator / 2

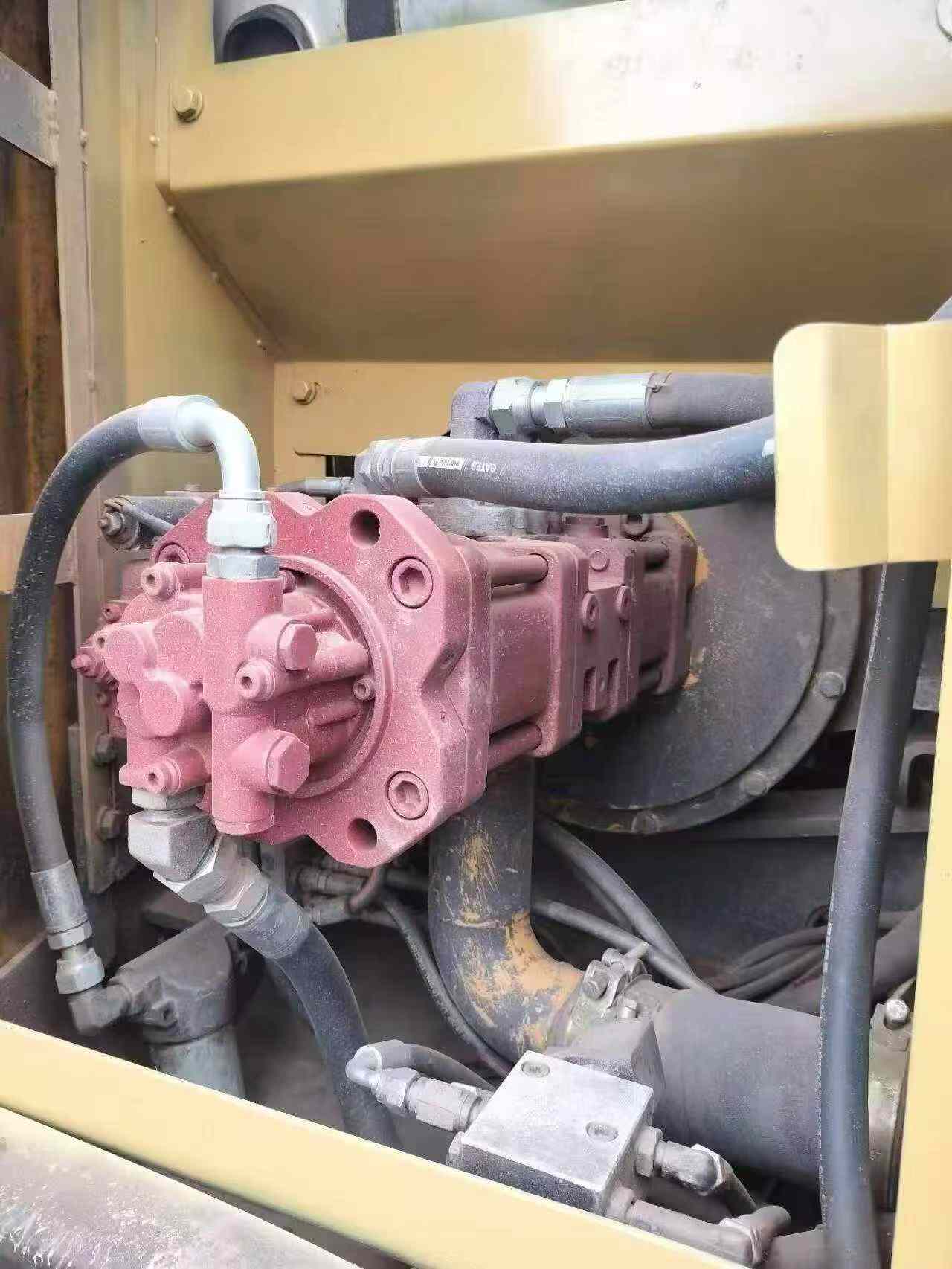

Buy Hyundai 110LVS Used Excavator / 3

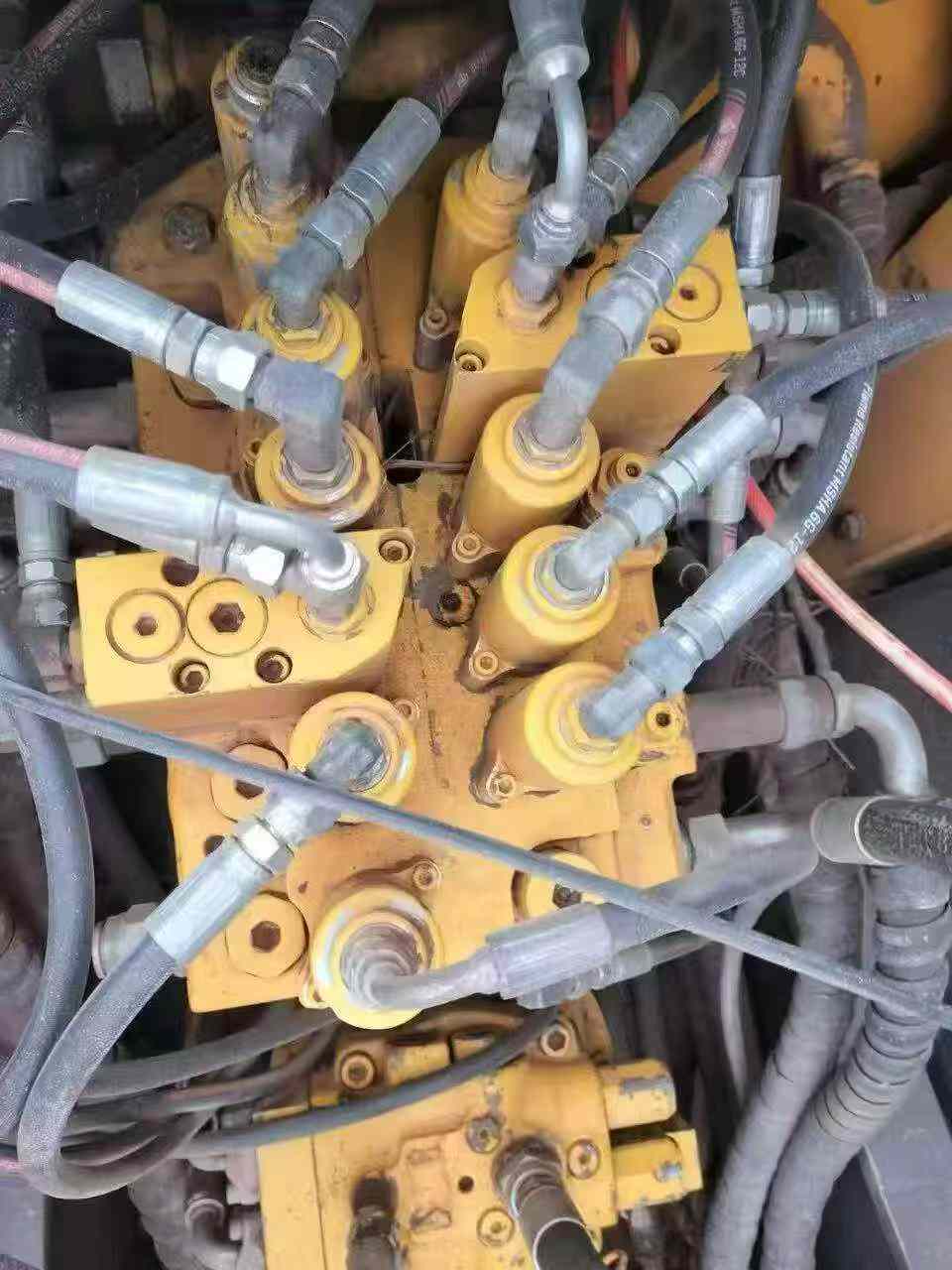

Buy Hyundai 110LVS Used Excavator / 4

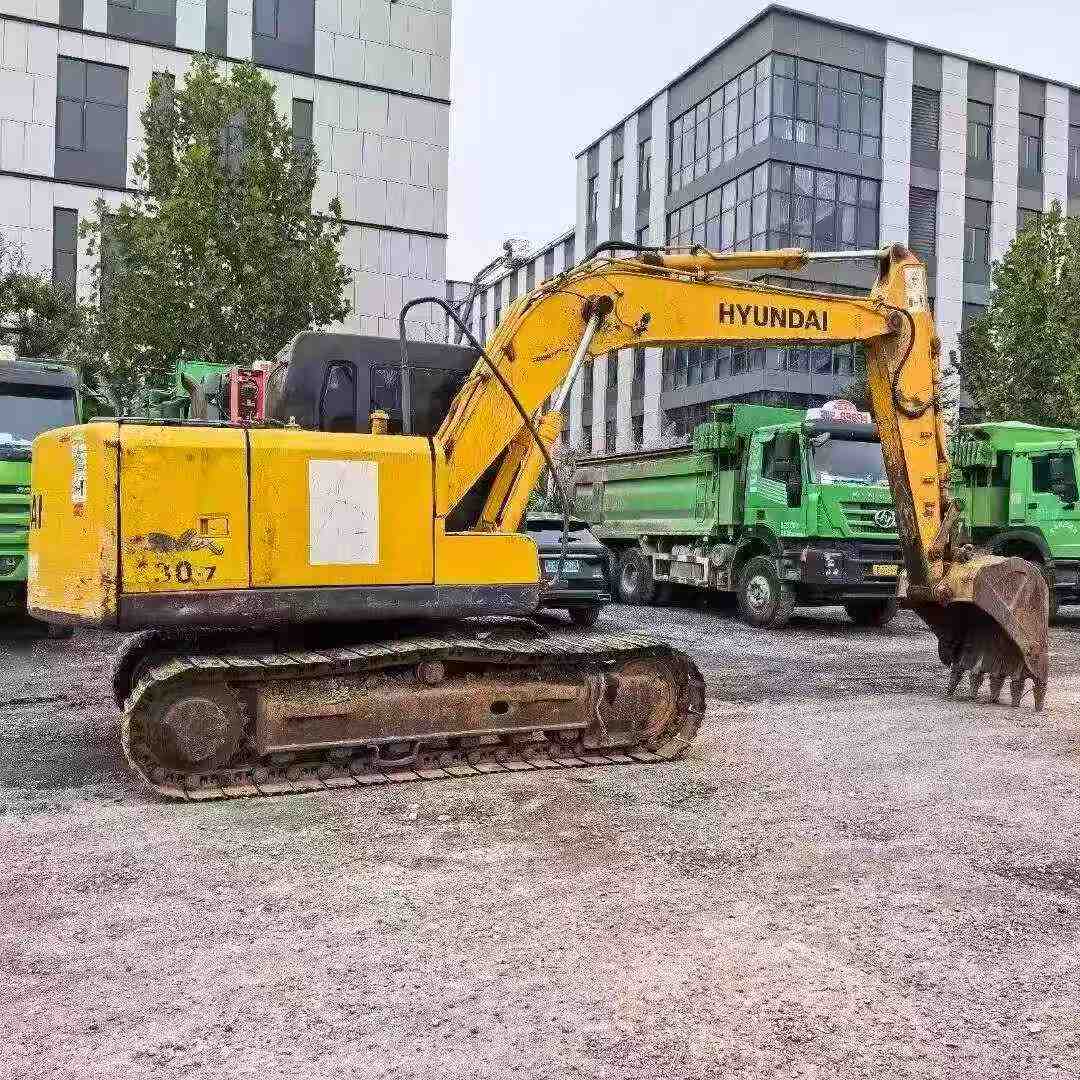

Buy Hyundai 110LVS Used Excavator / 5

Product Description

This 2015 Hyundai 110LVS excavator offers reliable performance for contractors seeking cost-effective earthmoving equipment. Currently located in Sichuan, China, this machine has been maintained in excellent working condition throughout its operational life. The 110LVS is known for its robust hydraulic system and operator-friendly cab design, making it suitable for a range of construction and excavation applications.

Key features include:

  • Efficient fuel consumption for reduced operating costs
  • Durable undercarriage components built for demanding job sites
  • Responsive hydraulic controls for precise digging operations
  • Well-maintained condition with documented service history

This unit represents a practical investment for businesses requiring dependable excavation capabilities without the premium of new equipment. Available for inspection in Sichuan province. Contact our team for detailed specifications, operating hours, and shipping arrangements to your location.

SpecificationsValue
No.1170073
Tonnage (tons)11
Bucket capacity (m³)0.45m3
Boom length (mm)4300mm
Rod length (mm)2260mm
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeMITSUBISHI 4FRC
Rated power (kw/rpm)99(74) / 2000
Cylinder diameter × stroke (mm)102 (4.02) x 130 (5.12)
Maximum torque (N.m)43.5(315) / 1350
Displacement (L)4.2
Working form4 cylinder 4 stroke water cooled direct injection engine
Climbing ability (%)70
Travel speed (km/h)5.5 km/h (3.4 mph) / 3.4 km/h (2.1 mph)
Maximum flow of main pump (l/min)2×112 (2×29.6)
Traveling Hydraulic Circuit (Mpa)330
Rotary Hydraulic Circuit (Mpa)240
Main pump typeTwo variable plunger pump
Working Hydraulic Circuit (Mpa)330
Bucket cylinders - Number × diameter × stroke (mm)1-95 x 65 x 855
Bucket rod cylinders - Number × diameter × stroke (mm)1-110 x 75 x 1070
Boom cylinders - Number × diameter × stroke (mm)2-95 x 70 x 1015
Fuel Tank (L)250
Hydraulic Tank (L)100
Engine Oil changes (L)17.5
Coolant (L)24
Hydraulic System (L)210
Full cab height (mm)2800
Counterweight ground clearance (mm)900
Back end turning radius (mm)2380mm
Total track length (mm)7270
Total track width (mm)2490
Maximum digging radius (mm)7740mm
Maximum digging depth (mm)5090mm
Maximum excavation height (mm)8070mm
Maximum unloading height (mm)5710mm
Maximum vertical digging depth (mm)4430mm
Maximum excavation radius of stop surface (mm)7610mm
see more

Overview

No.1170073

Brand Name:

Hyundai

Model Number:

110LVS

Year:

2015

Location:

Sichuan China

Pub Date:
