2020 Hyundai 110LVS

1/9
Buy Hyundai 110LVS Used Excavator / 1
Buy Hyundai 110LVS Used Excavator / 2
Buy Hyundai 110LVS Used Excavator / 3
Buy Hyundai 110LVS Used Excavator / 4
Buy Hyundai 110LVS Used Excavator / 5
Buy Hyundai 110LVS Used Excavator / 6
Buy Hyundai 110LVS Used Excavator / 7
Buy Hyundai 110LVS Used Excavator / 8
Buy Hyundai 110LVS Used Excavator / 9

Product Description

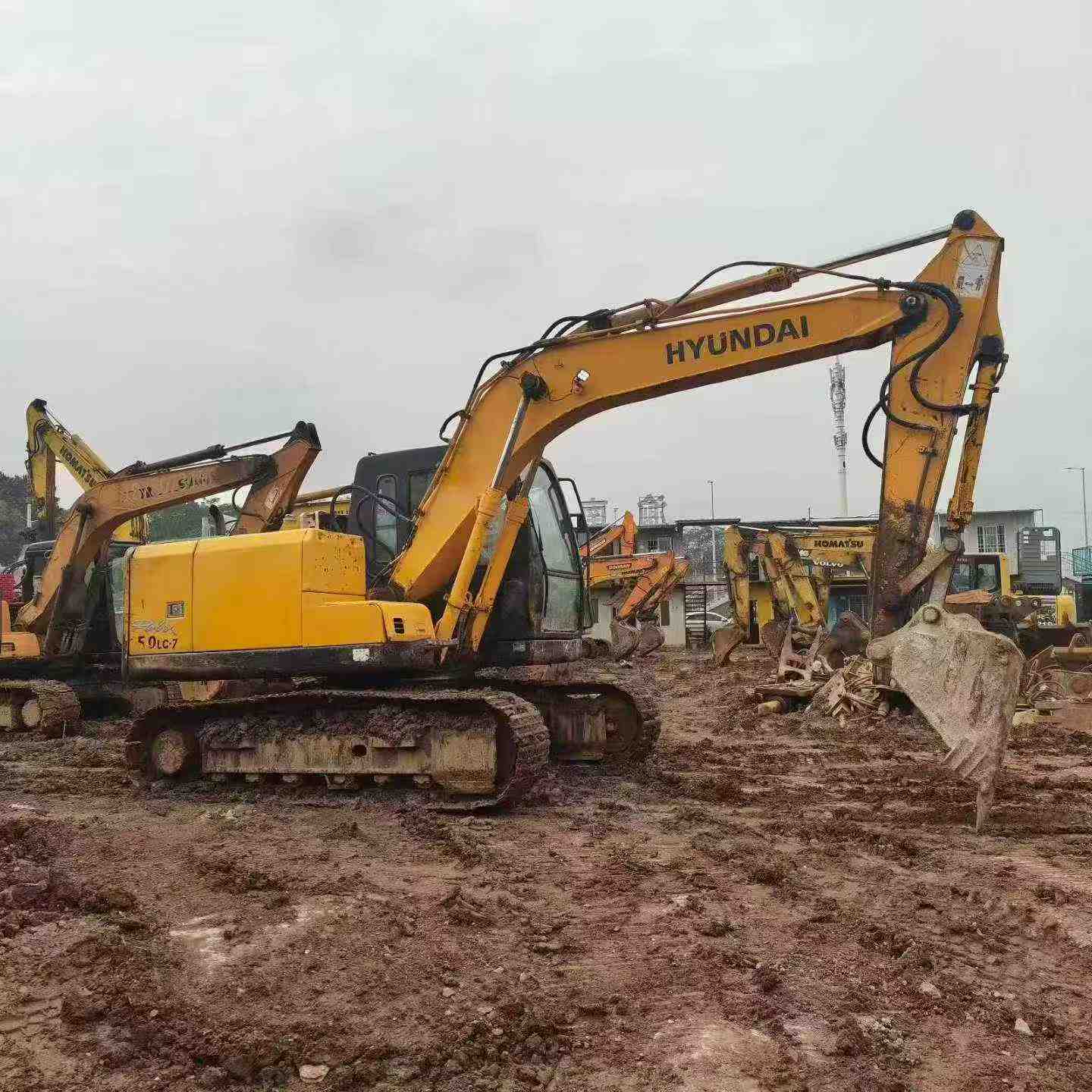

This 2020 Hyundai 110LVS excavator offers reliable performance for mid-sized construction and earthmoving operations. Currently located in Sichuan, China, this four-year-old machine represents solid value in the used equipment market. The 110LVS is part of Hyundai's proven lineup of compact to mid-range excavators, designed for versatility across various jobsite conditions.

  • Year of Manufacture: 2020
  • Make and Model: Hyundai 110LVS
  • Current Location: Sichuan Province, China
  • Condition: Well-maintained, operational unit
  • Suitable for: General excavation, trenching, loading, and site development

This machine is available for immediate inspection and purchase. Ideal for contractors seeking dependable equipment with manageable operating hours. International shipping arrangements can be coordinated upon request. Contact us for detailed specifications, service records, and pricing information.

SpecificationsValue
No.1167000
Tonnage (tons)11
Bucket capacity (m³)0.45m3
Boom length (mm)4300mm
Rod length (mm)2260mm
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeMITSUBISHI 4FRC
Rated power (kw/rpm)99(74) / 2000
Cylinder diameter × stroke (mm)102 (4.02) x 130 (5.12)
Maximum torque (N.m)43.5(315) / 1350
Displacement (L)4.2
Working form4 cylinder 4 stroke water cooled direct injection engine
Climbing ability (%)70
Travel speed (km/h)5.5 km/h (3.4 mph) / 3.4 km/h (2.1 mph)
Maximum flow of main pump (l/min)2×112 (2×29.6)
Traveling Hydraulic Circuit (Mpa)330
Rotary Hydraulic Circuit (Mpa)240
Main pump typeTwo variable plunger pump
Working Hydraulic Circuit (Mpa)330
Bucket cylinders - Number × diameter × stroke (mm)1-95 x 65 x 855
Bucket rod cylinders - Number × diameter × stroke (mm)1-110 x 75 x 1070
Boom cylinders - Number × diameter × stroke (mm)2-95 x 70 x 1015
Fuel Tank (L)250
Hydraulic Tank (L)100
Engine Oil changes (L)17.5
Coolant (L)24
Hydraulic System (L)210
Full cab height (mm)2800
Counterweight ground clearance (mm)900
Back end turning radius (mm)2380mm
Total track length (mm)7270
Total track width (mm)2490
Maximum digging radius (mm)7740mm
Maximum digging depth (mm)5090mm
Maximum excavation height (mm)8070mm
Maximum unloading height (mm)5710mm
Maximum vertical digging depth (mm)4430mm
Maximum excavation radius of stop surface (mm)7610mm
see more

Overview

No.1167000

Brand Name:

Hyundai

Model Number:

110LVS

Year:

2020

Location:

Sichuan China

Pub Date:
