HOME>>Hyundai>>Hyundai 110LVS

2020 Hyundai 110LVS

1/9
Buy Hyundai 110LVS Used Excavator / 1

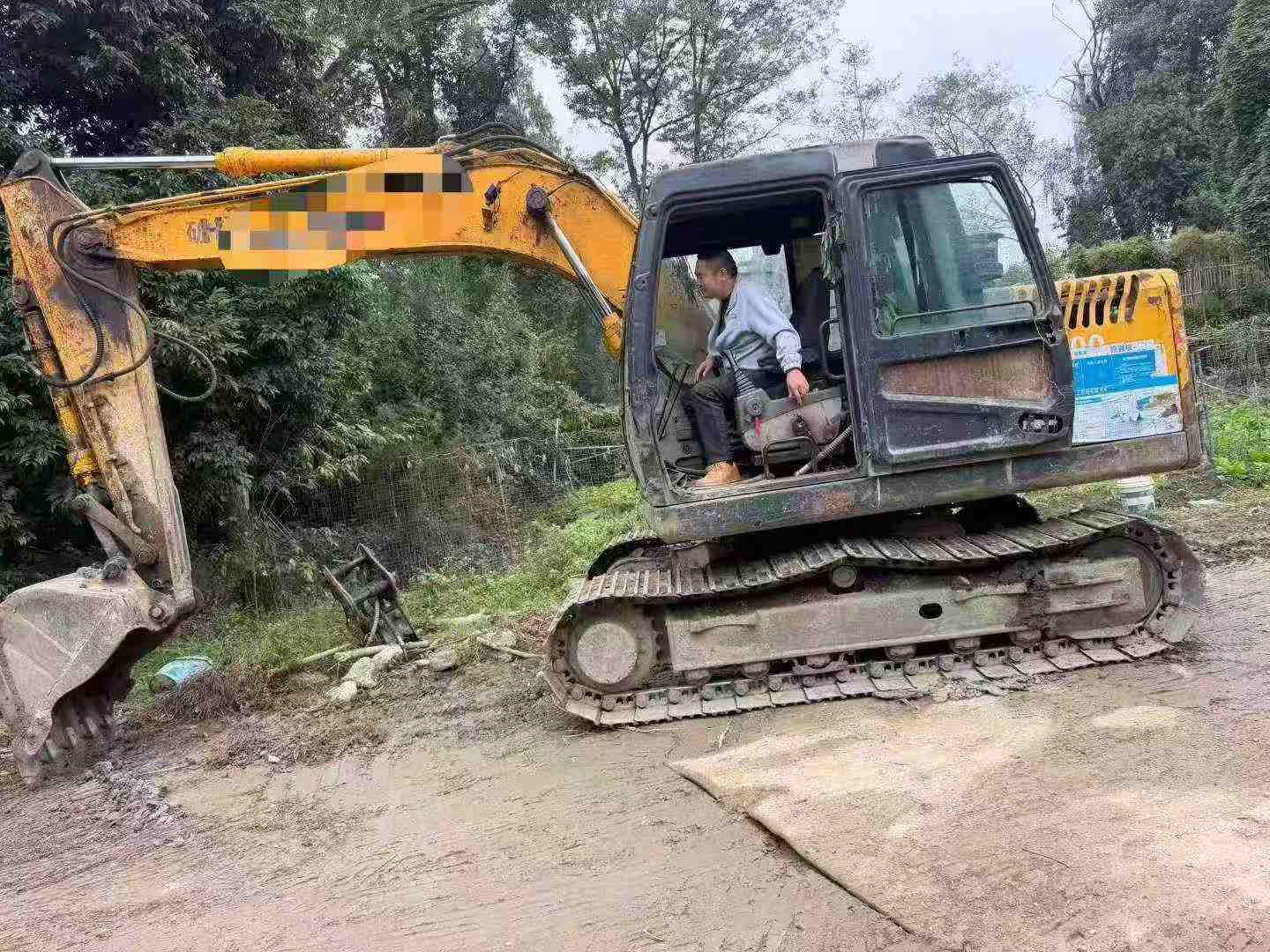

Buy Hyundai 110LVS Used Excavator / 2

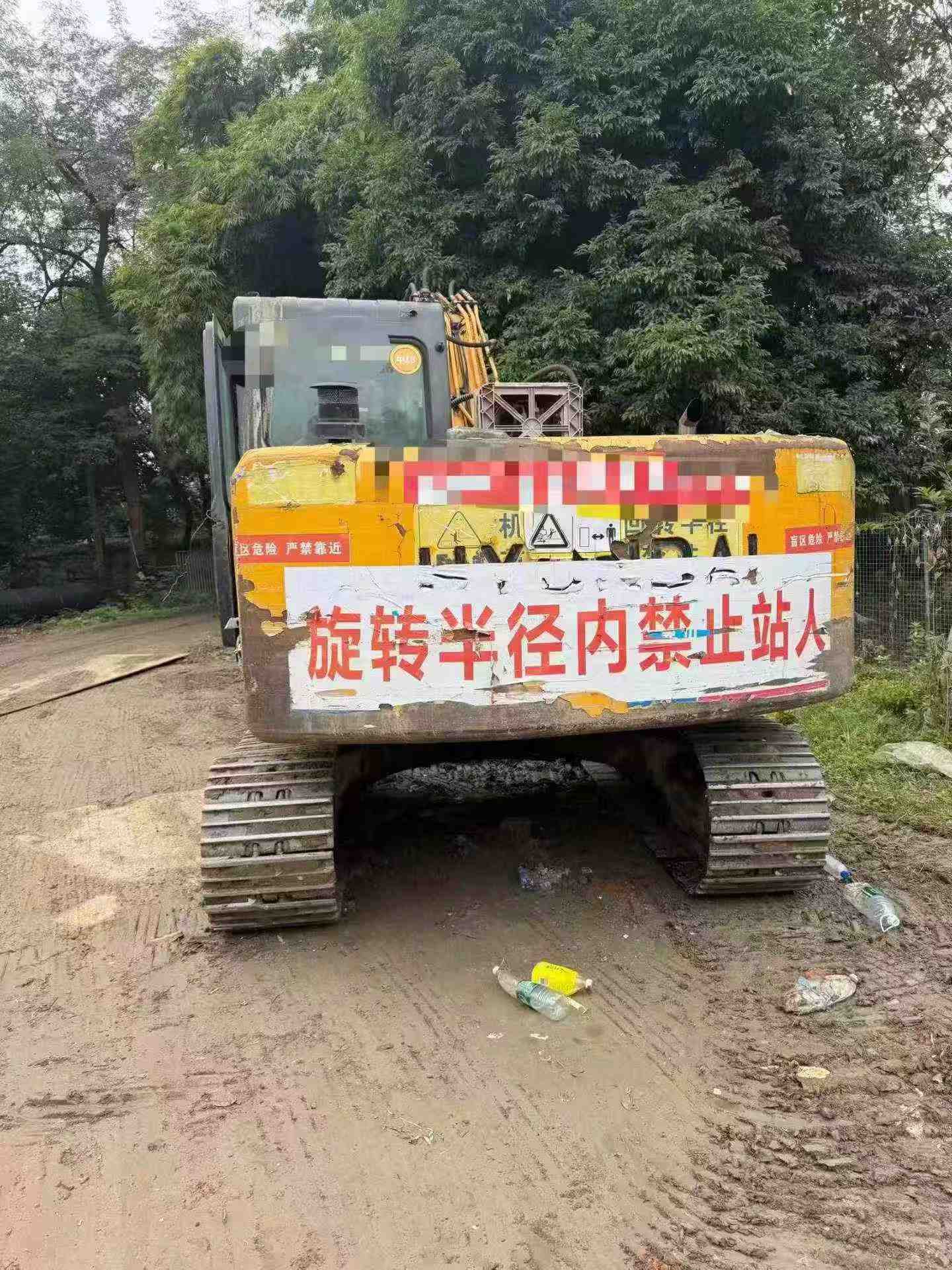

Buy Hyundai 110LVS Used Excavator / 3

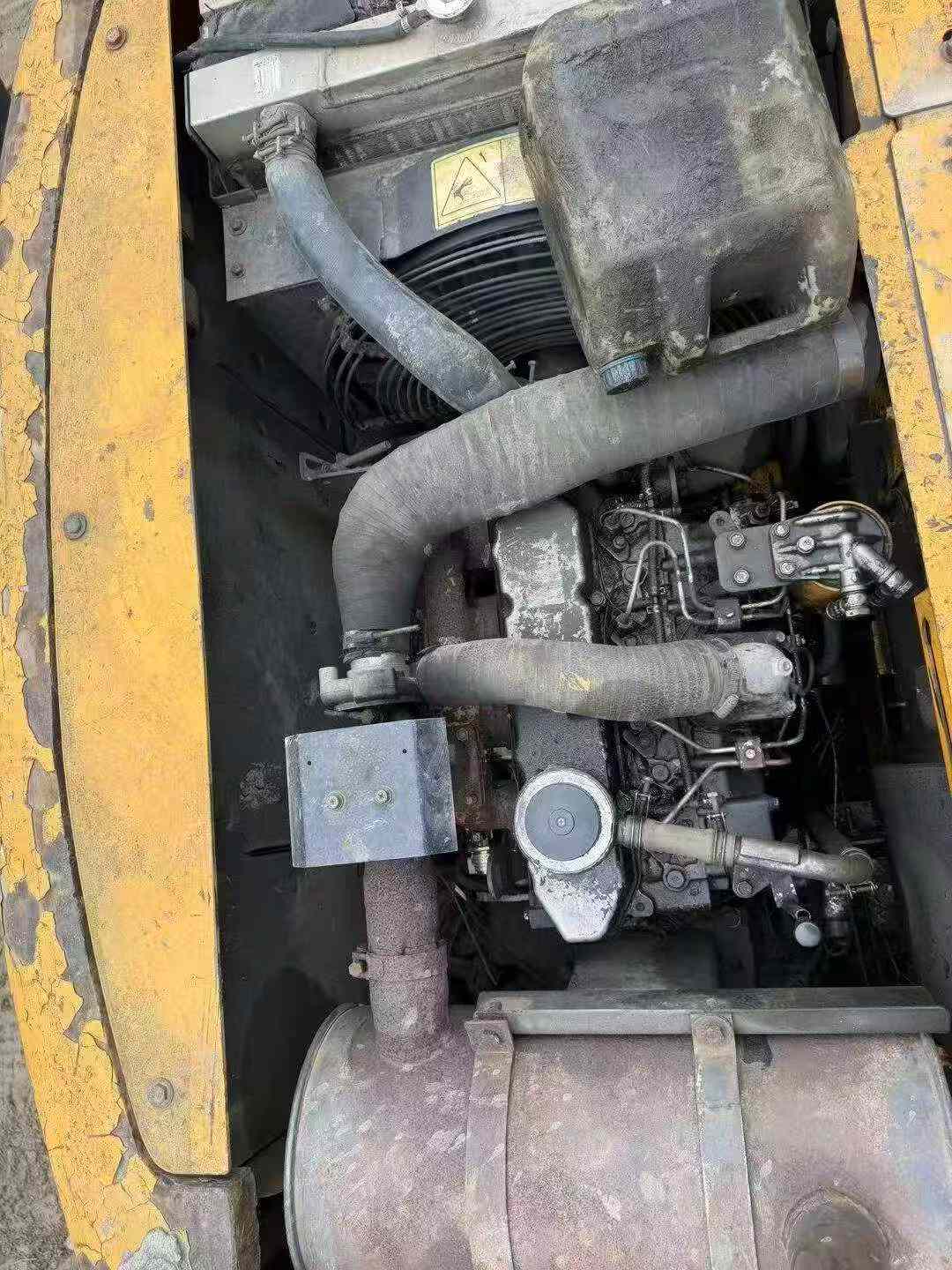

Buy Hyundai 110LVS Used Excavator / 4

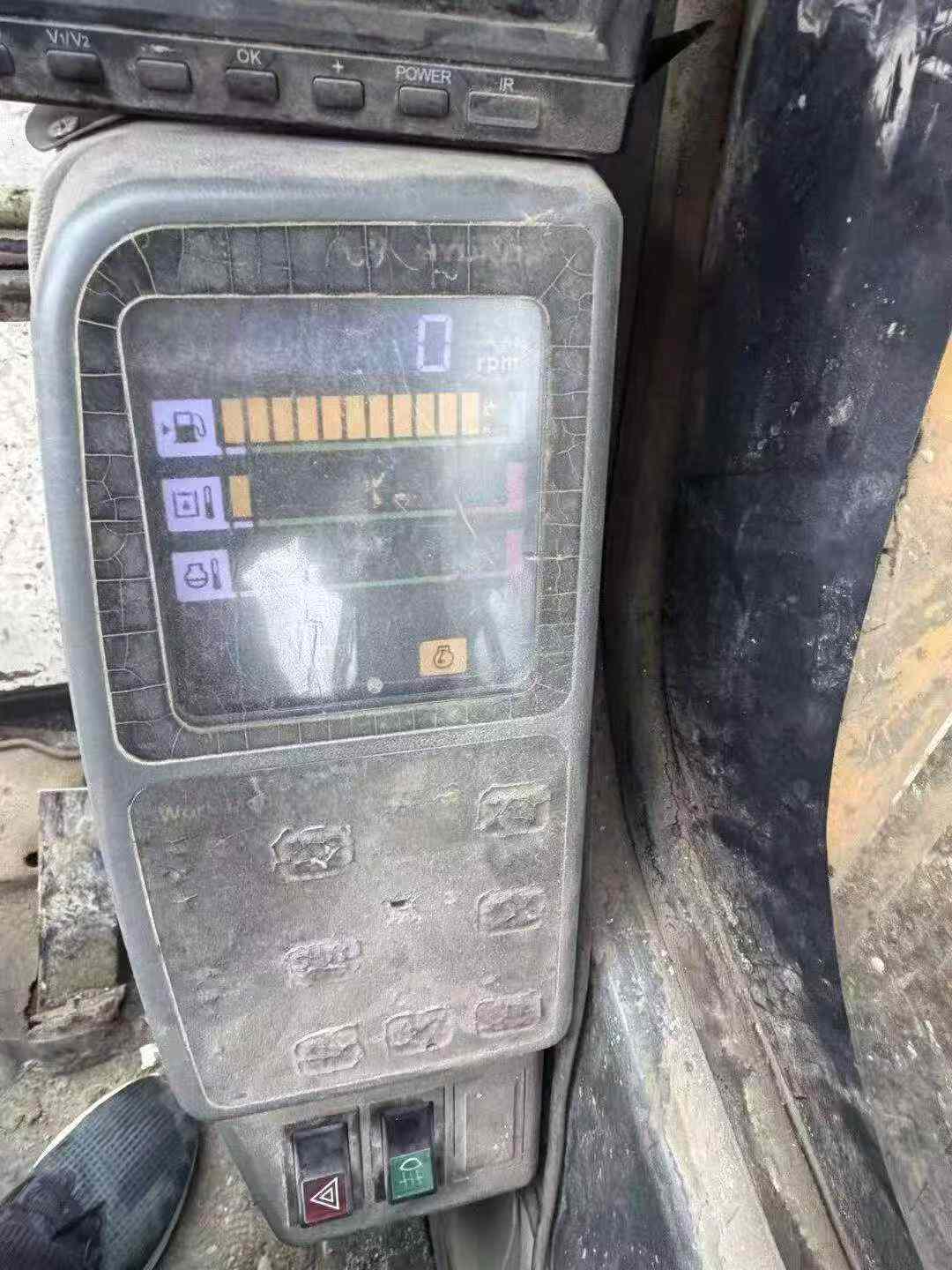

Buy Hyundai 110LVS Used Excavator / 5

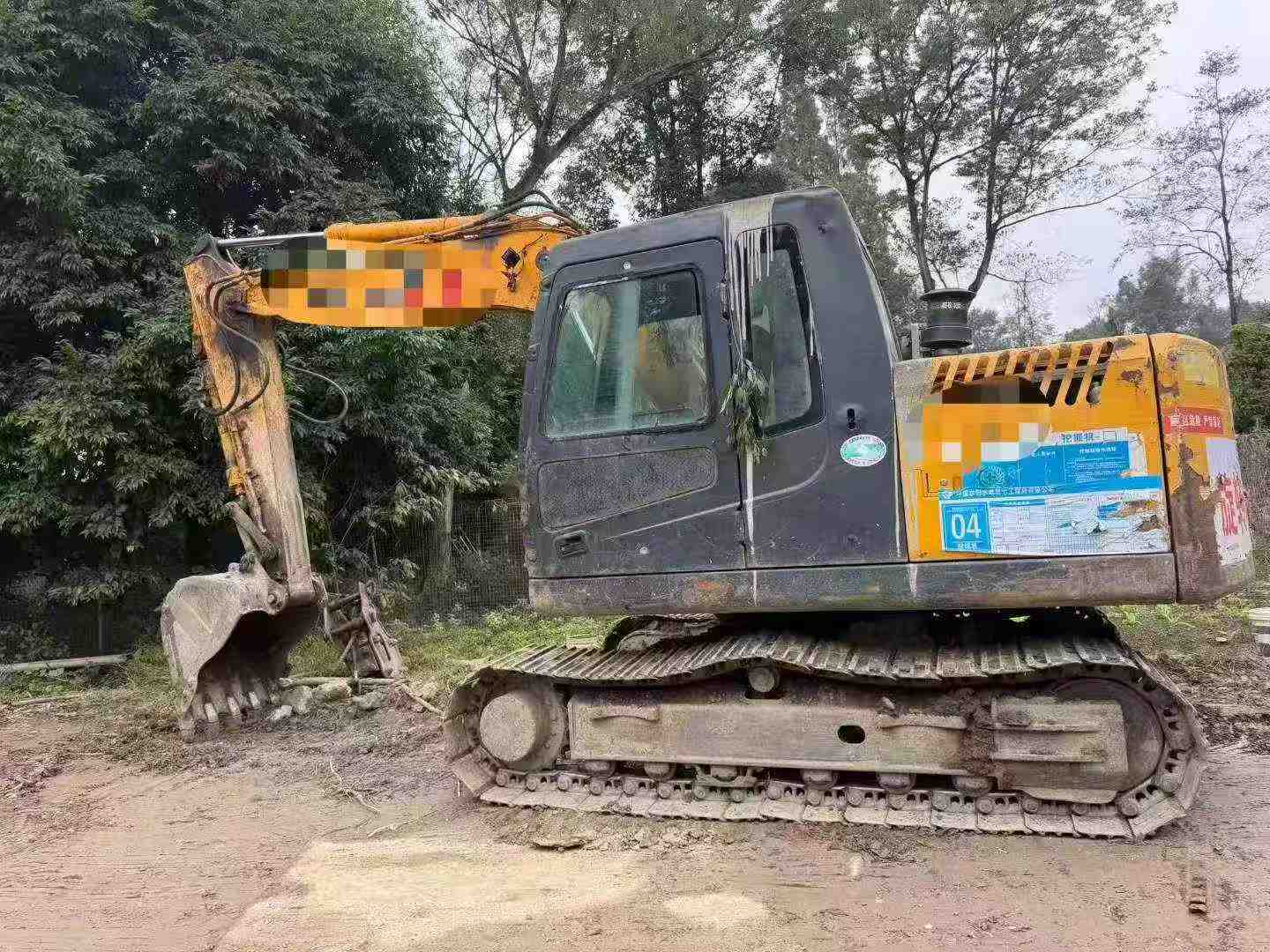

Buy Hyundai 110LVS Used Excavator / 6

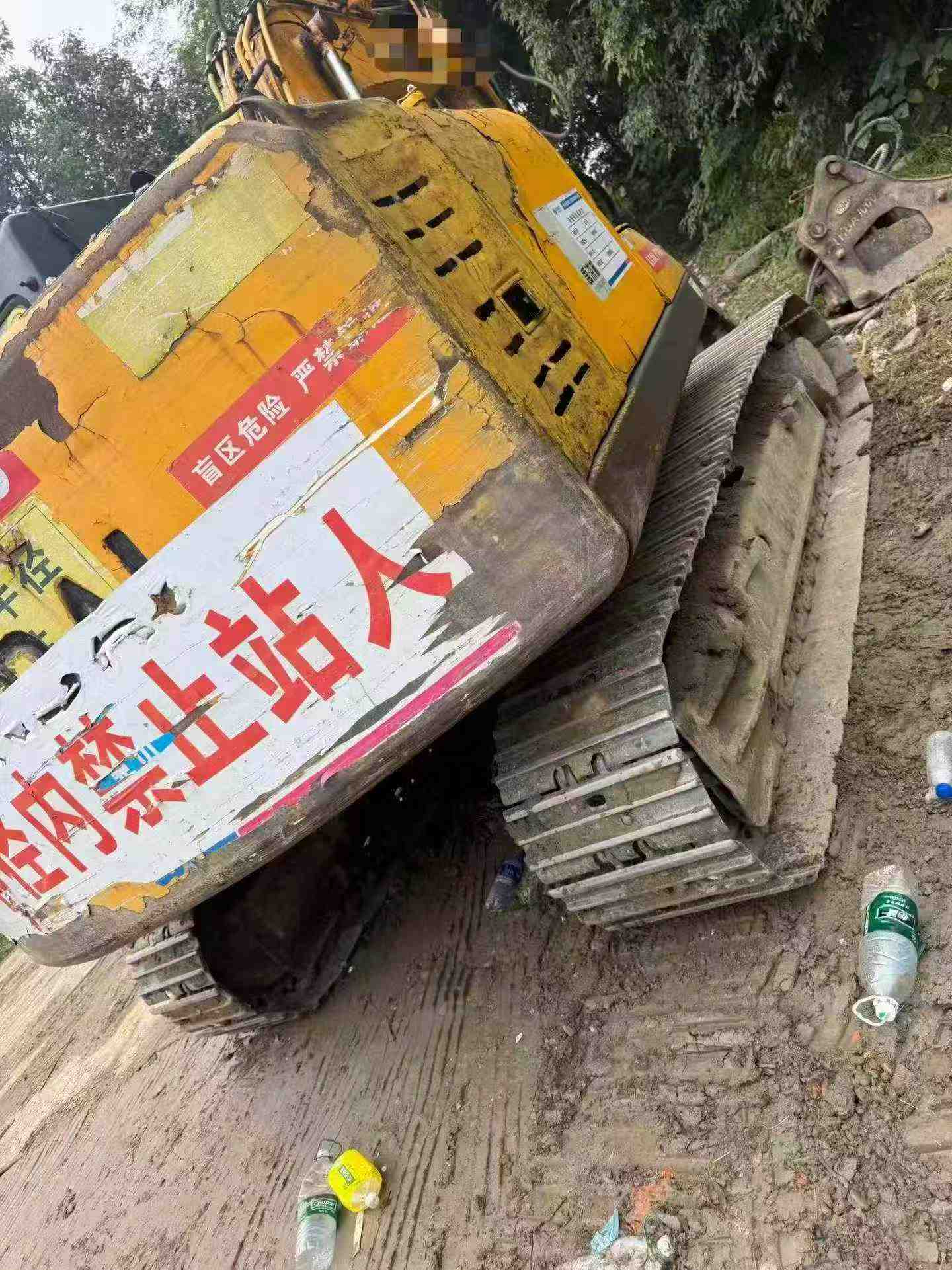

Buy Hyundai 110LVS Used Excavator / 7

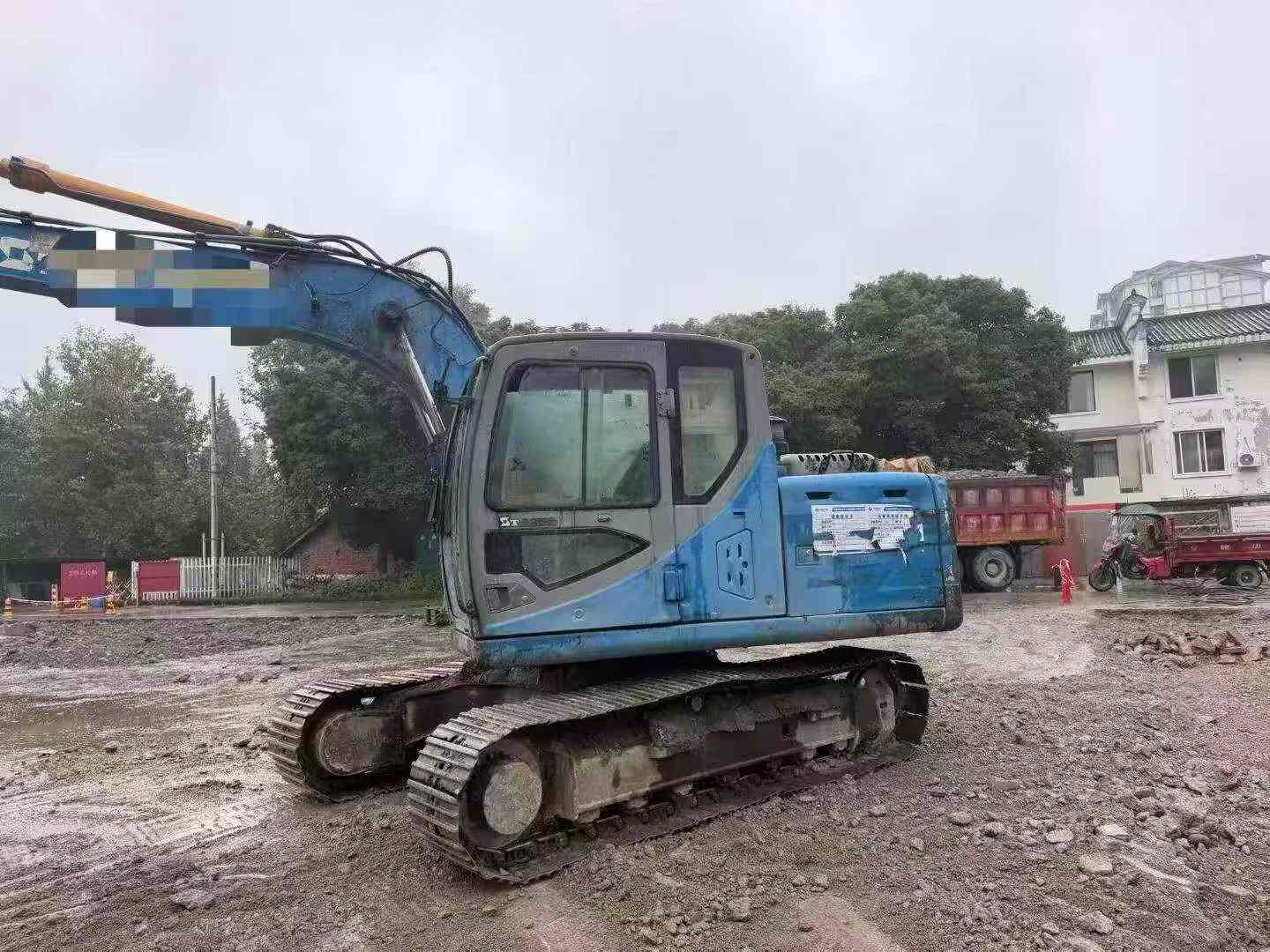

Buy Hyundai 110LVS Used Excavator / 8
Buy Hyundai 110LVS Used Excavator / 9

Product Description

This 2020 Hyundai 110LVS excavator is available as part of a bundled package in Sichuan, China. The unit comes from Hyundai's mid-size excavator line, designed for versatility across construction, excavation, and earthmoving applications. With approximately three years of field use, this machine offers a balance of proven performance and remaining service life for operations requiring reliable digging capacity.

  • Year: 2020
  • Make: Hyundai
  • Model: 110LVS
  • Location: Sichuan, China
  • Condition: Used
  • Package deal available

Suitable for contractors and fleet operators seeking mid-range excavation equipment. This unit is positioned for immediate deployment in regional projects. Inspection recommended prior to purchase. Contact us for current availability, detailed specifications, and competitive pricing on this bundled offer.

SpecificationsValue
No.1170078
Tonnage (tons)11
Bucket capacity (m³)0.45m3
Boom length (mm)4300mm
Rod length (mm)2260mm
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeMITSUBISHI 4FRC
Rated power (kw/rpm)99(74) / 2000
Cylinder diameter × stroke (mm)102 (4.02) x 130 (5.12)
Maximum torque (N.m)43.5(315) / 1350
Displacement (L)4.2
Working form4 cylinder 4 stroke water cooled direct injection engine
Climbing ability (%)70
Travel speed (km/h)5.5 km/h (3.4 mph) / 3.4 km/h (2.1 mph)
Maximum flow of main pump (l/min)2×112 (2×29.6)
Traveling Hydraulic Circuit (Mpa)330
Rotary Hydraulic Circuit (Mpa)240
Main pump typeTwo variable plunger pump
Working Hydraulic Circuit (Mpa)330
Bucket cylinders - Number × diameter × stroke (mm)1-95 x 65 x 855
Bucket rod cylinders - Number × diameter × stroke (mm)1-110 x 75 x 1070
Boom cylinders - Number × diameter × stroke (mm)2-95 x 70 x 1015
Fuel Tank (L)250
Hydraulic Tank (L)100
Engine Oil changes (L)17.5
Coolant (L)24
Hydraulic System (L)210
Full cab height (mm)2800
Counterweight ground clearance (mm)900
Back end turning radius (mm)2380mm
Total track length (mm)7270
Total track width (mm)2490
Maximum digging radius (mm)7740mm
Maximum digging depth (mm)5090mm
Maximum excavation height (mm)8070mm
Maximum unloading height (mm)5710mm
Maximum vertical digging depth (mm)4430mm
Maximum excavation radius of stop surface (mm)7610mm
see more

Overview

No.1170078

Brand Name:

Hyundai

Model Number:

110LVS

Year:

2020

Location:

Sichuan China

Pub Date:
