2020 Hyundai 110LVS

1/6
Buy Hyundai 110LVS Used Excavator / 1
Buy Hyundai 110LVS Used Excavator / 2

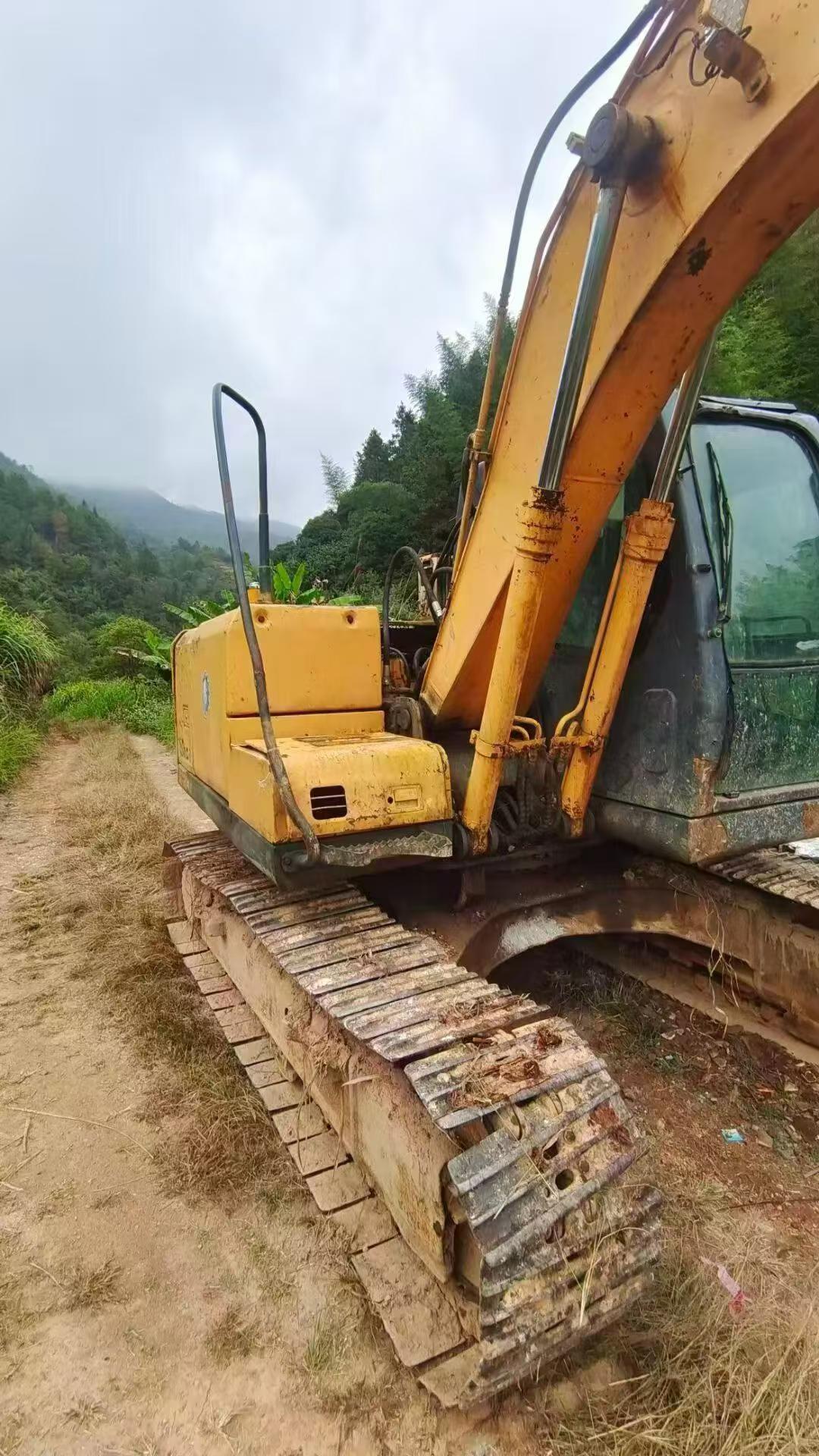

Buy Hyundai 110LVS Used Excavator / 3

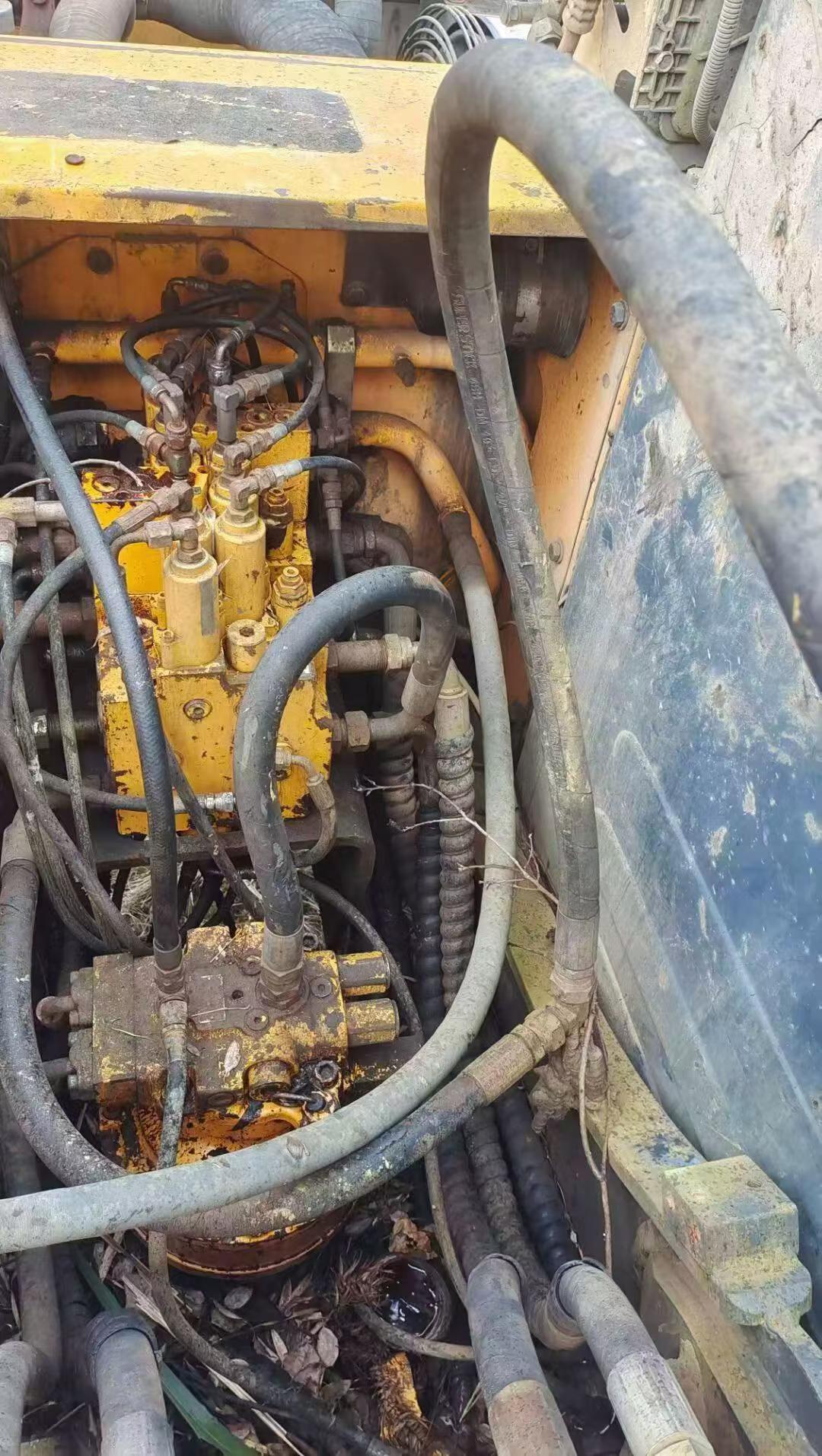

Buy Hyundai 110LVS Used Excavator / 4

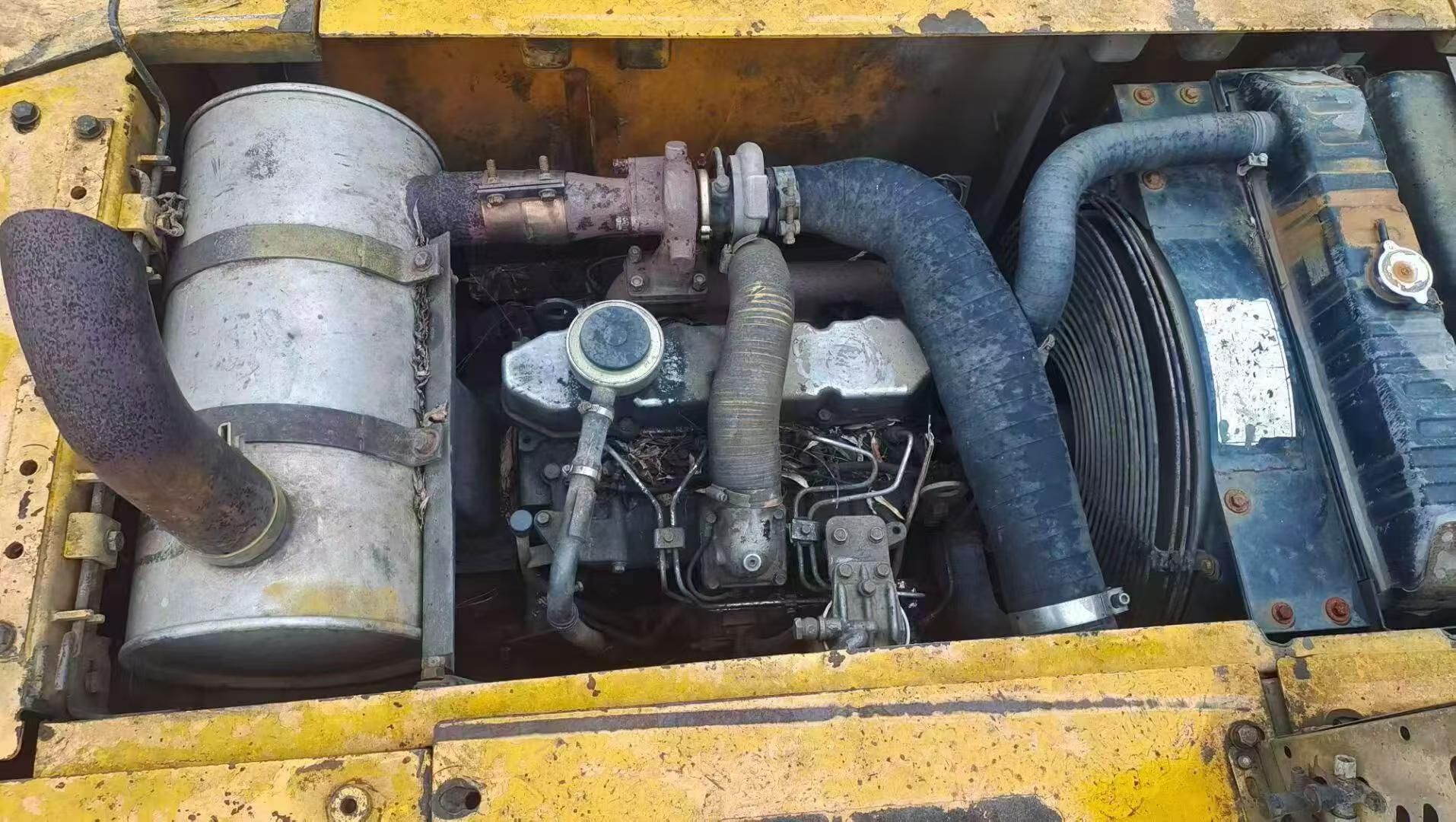

Buy Hyundai 110LVS Used Excavator / 5

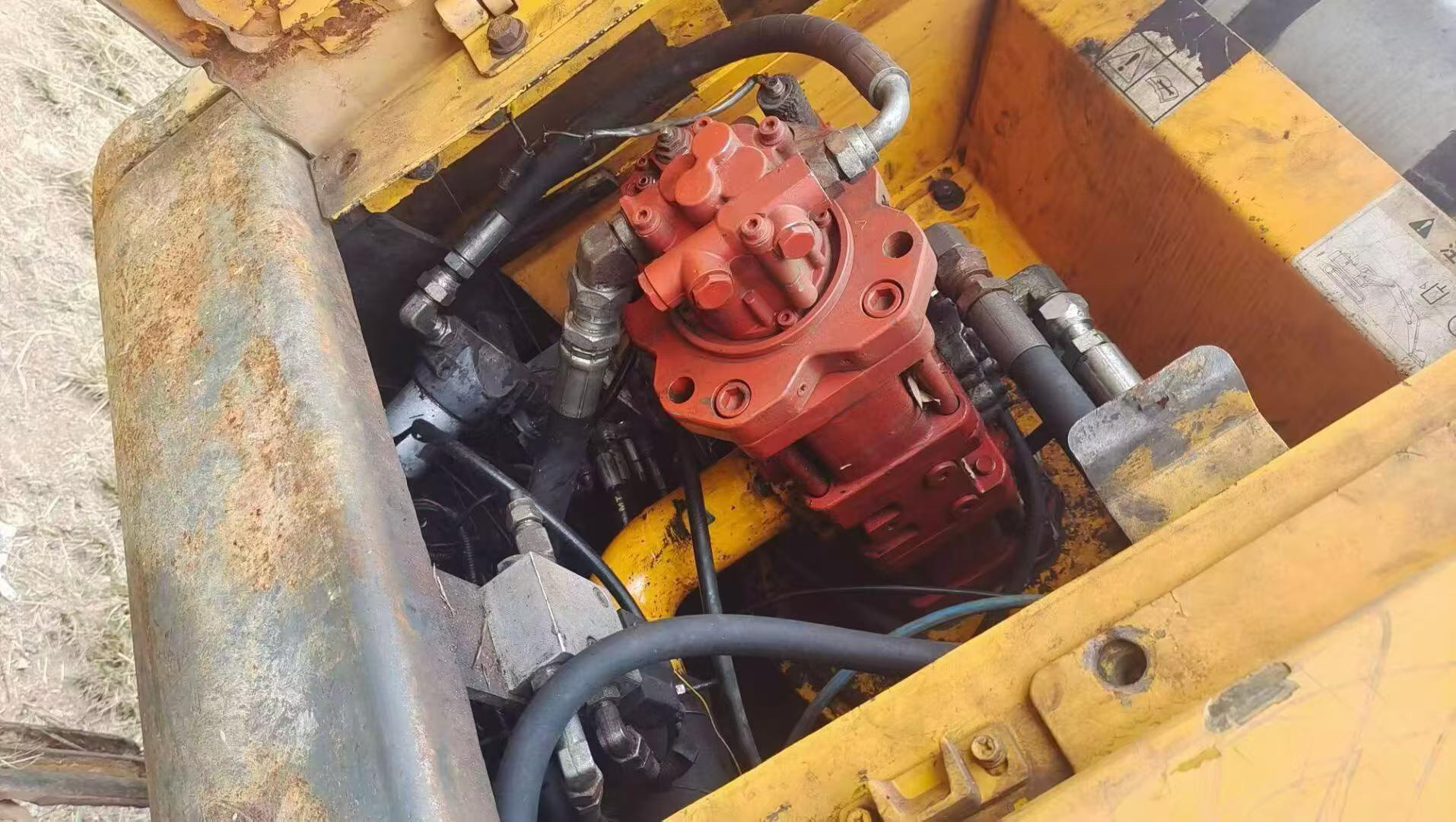

Buy Hyundai 110LVS Used Excavator / 6

Product Description

This 2020 Hyundai 110LVS excavator represents an excellent opportunity for contractors seeking reliable mid-size equipment. As a first-owner machine, it has been carefully maintained and shows minimal operational wear. The unit is currently located in Hunan, China, and is available for immediate inspection and delivery.

Key features include:

  • Low operating hours with documented single-owner history
  • Hyundai's proven hydraulic system for consistent performance
  • Well-maintained undercarriage and working components
  • Suitable for excavation, grading, and material handling applications
  • Competitively priced for the current market

This machine offers dependable performance for construction, infrastructure, and earthmoving projects. Full inspection reports and operational records are available upon request. Contact us to arrange a viewing or discuss shipping options to your location.

SpecificationsValue
No.1171547
Tonnage (tons)11
Bucket capacity (m³)0.45m3
Boom length (mm)4300mm
Rod length (mm)2260mm
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeMITSUBISHI 4FRC
Rated power (kw/rpm)99(74) / 2000
Cylinder diameter × stroke (mm)102 (4.02) x 130 (5.12)
Maximum torque (N.m)43.5(315) / 1350
Displacement (L)4.2
Working form4 cylinder 4 stroke water cooled direct injection engine
Climbing ability (%)70
Travel speed (km/h)5.5 km/h (3.4 mph) / 3.4 km/h (2.1 mph)
Maximum flow of main pump (l/min)2×112 (2×29.6)
Traveling Hydraulic Circuit (Mpa)330
Rotary Hydraulic Circuit (Mpa)240
Main pump typeTwo variable plunger pump
Working Hydraulic Circuit (Mpa)330
Bucket cylinders - Number × diameter × stroke (mm)1-95 x 65 x 855
Bucket rod cylinders - Number × diameter × stroke (mm)1-110 x 75 x 1070
Boom cylinders - Number × diameter × stroke (mm)2-95 x 70 x 1015
Fuel Tank (L)250
Hydraulic Tank (L)100
Engine Oil changes (L)17.5
Coolant (L)24
Hydraulic System (L)210
Full cab height (mm)2800
Counterweight ground clearance (mm)900
Back end turning radius (mm)2380mm
Total track length (mm)7270
Total track width (mm)2490
Maximum digging radius (mm)7740mm
Maximum digging depth (mm)5090mm
Maximum excavation height (mm)8070mm
Maximum unloading height (mm)5710mm
Maximum vertical digging depth (mm)4430mm
Maximum excavation radius of stop surface (mm)7610mm
see more

Overview

No.1171547

Brand Name:

Hyundai

Model Number:

110LVS

Year:

2020

Location:

Hunan China

Pub Date:
