Product Description

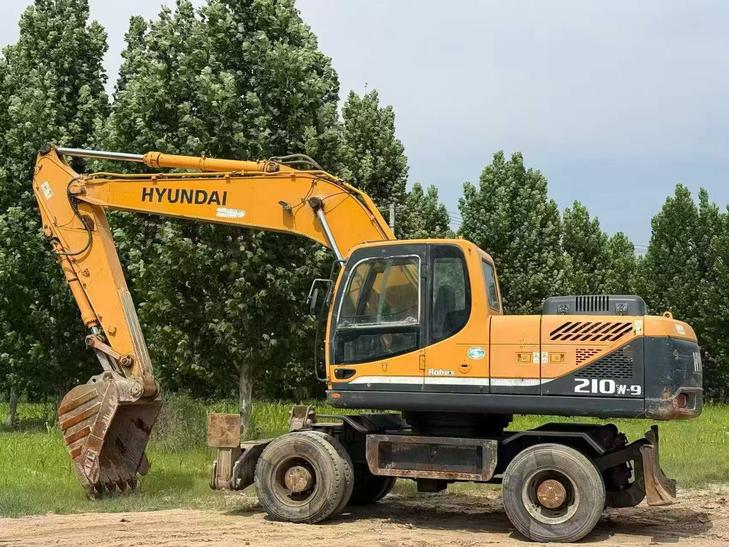

This 2016 Hyundai 210W-9 wheeled excavator offers a proven combination of mobility and performance for industrial applications. Currently located in Hebei, China, this unit delivers the versatility of wheeled operation with the power of Hyundai's 9-series platform.
Key features include:
- Wheeled configuration for superior road travel and site-to-site mobility
- Hyundai's fuel-efficient engine technology for reduced operating costs
- Spacious operator cab with enhanced visibility
- Reliable hydraulic system designed for demanding jobsite conditions
- Well-suited for urban construction, utility work, and infrastructure projects
This machine is available for inspection in Hebei. Ideal for contractors requiring rapid deployment across multiple work zones without transport logistics. Contact us to schedule a viewing and discuss export arrangements.
| Specifications | Value |
|---|---|
| No. | 1168401 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20560 |
| Bucket capacity (m³) | 0.51-1.34 |
| Boom length (mm) | 5.65 |
| Rod length (mm) | 2.92 |
| Country of origin | Peking |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins B5.9-C |
| Rated power (kw/rpm) | 124/1950 |
| Total displacement (L) | 5. 9 |
| Cooling mode | water-cooling |
| remark | Six-cylinder four-stroke turbocharged direct injection engine |
| Maximum torque (N.m/rpm) | 68.4/1500 |
| Number of cylinders (PCS) | 6 |
| Forward speed (Km/h) | 35 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 31.5 ° |
| Bucket digging force (kN) | 149.1 |
| Rod digging force (kN) | 106.9 |
| Minimum turning radius (m) | 6.69 |
| Maximum tractive force (kN) | 108 |
| Driving form | A two-speed axial piston motor drives the transmission |
| Main overflow set pressure (Mpa) | 350 |
| Rotary hydraulic motor type | Quantitative swash plate plunger motor |
| Type of walking hydraulic motor | Two-speed axial plunger motor |
| Maximum flow of main pump (l/min) | 222 x 2 |
| Main safety valve Pressure (Mpa) | 38 |
| Traveling Hydraulic Circuit (Mpa) | 38 |
| Rotary Hydraulic Circuit (Mpa) | 26.5 |
| Control Hydraulic Circuit (Mpa) | 4 |
| Boom cylinder - Cylinder diameter × stroke (mm) | 2-120 x 1290 |
| Bucket rod cylinder - Cylinder diameter × stroke (mm) | 140 x 1510 |
| Bucket cylinder - Cylinder diameter × stroke (mm) | 125 x 1055 |
| Main pump type | Variable swash plate piston pump |
| Working Hydraulic Circuit (Mpa) | 38 |
| Pilot Oil Circuit (MPa) | 4 |
| Fuel Tank (L) | 310 |
| Hydraulic Tank (L) | 165 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 340 |
| Total transport length (mm) | 9530 |
| Total transport width (mm) | 2530 |
| Total transport height (mm) | 3500 |
| Counterweight ground clearance (mm) | 1305 |
| Wheelbase (mm) | 2800 |
| Single tire width (mm) | 308 |
| Total tire outside width (mm) | 640 |
| Wheel base (mm) | 1874 |
| Minimum ground clearance (mm) | 365 |
| Minimum turning radius of front working device (mm) | 3580 |
| Back end turning radius (mm) | 2800 |
| Onboard width (mm) | 2530 |
| Maximum digging radius (mm) | 9960 |
| Maximum excavation radius (mm) | 9750 |
| Maximum digging depth (mm) | 6380 |
| Maximum excavation height (mm) | 10000 |
| Maximum unloading height (mm) | 7160 |
| Maximum vertical digging depth (mm) | 5990 |
| Maximum digging depth (mm) | 6210 |
| Minimum turning radius (mm) | 3580 |
| Bulldozer lift or depth (mm) | 445 |
| Dodging plate width × height (mm) | 2490 x 610 |
| Leg width (mm) | 3370 |
