Product Description

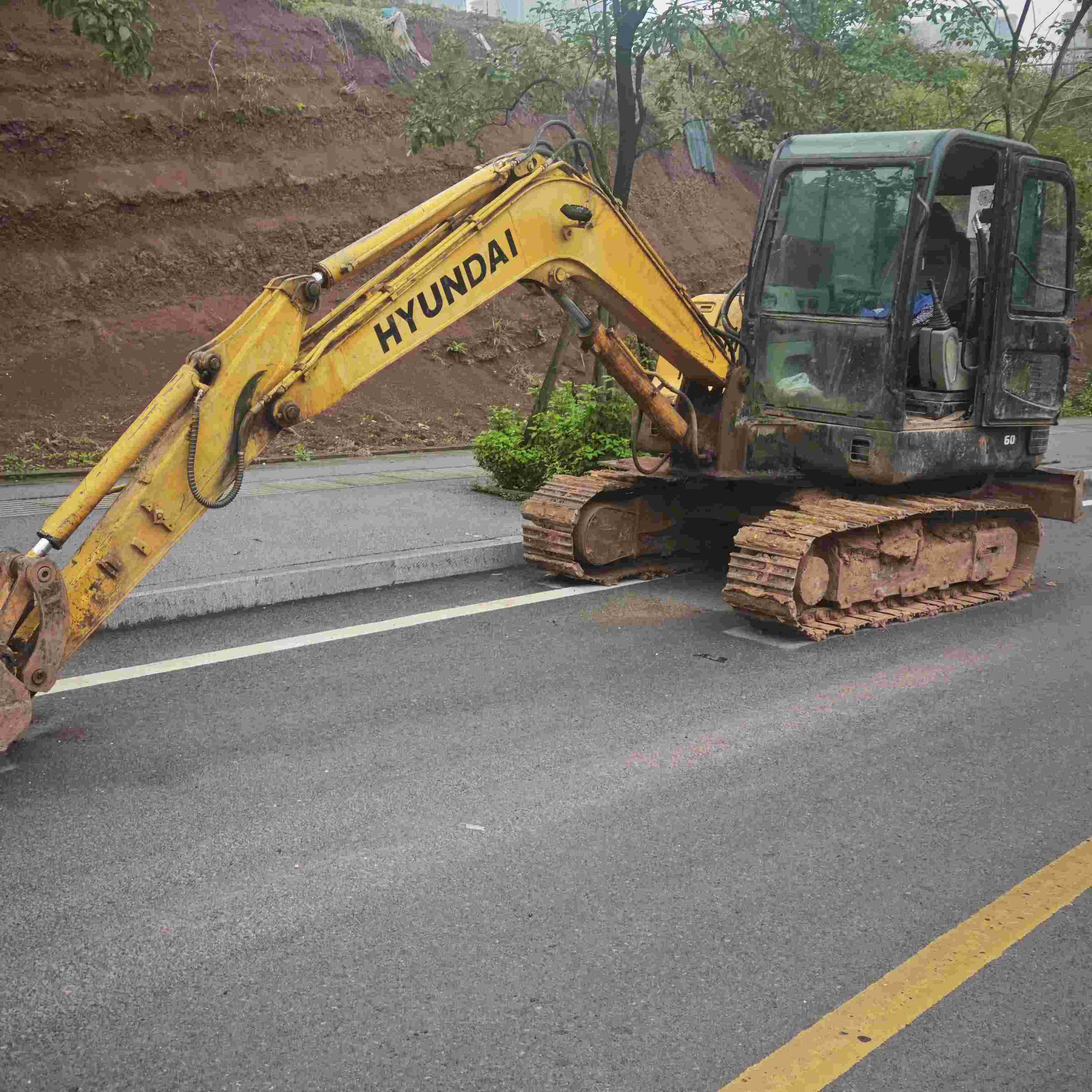

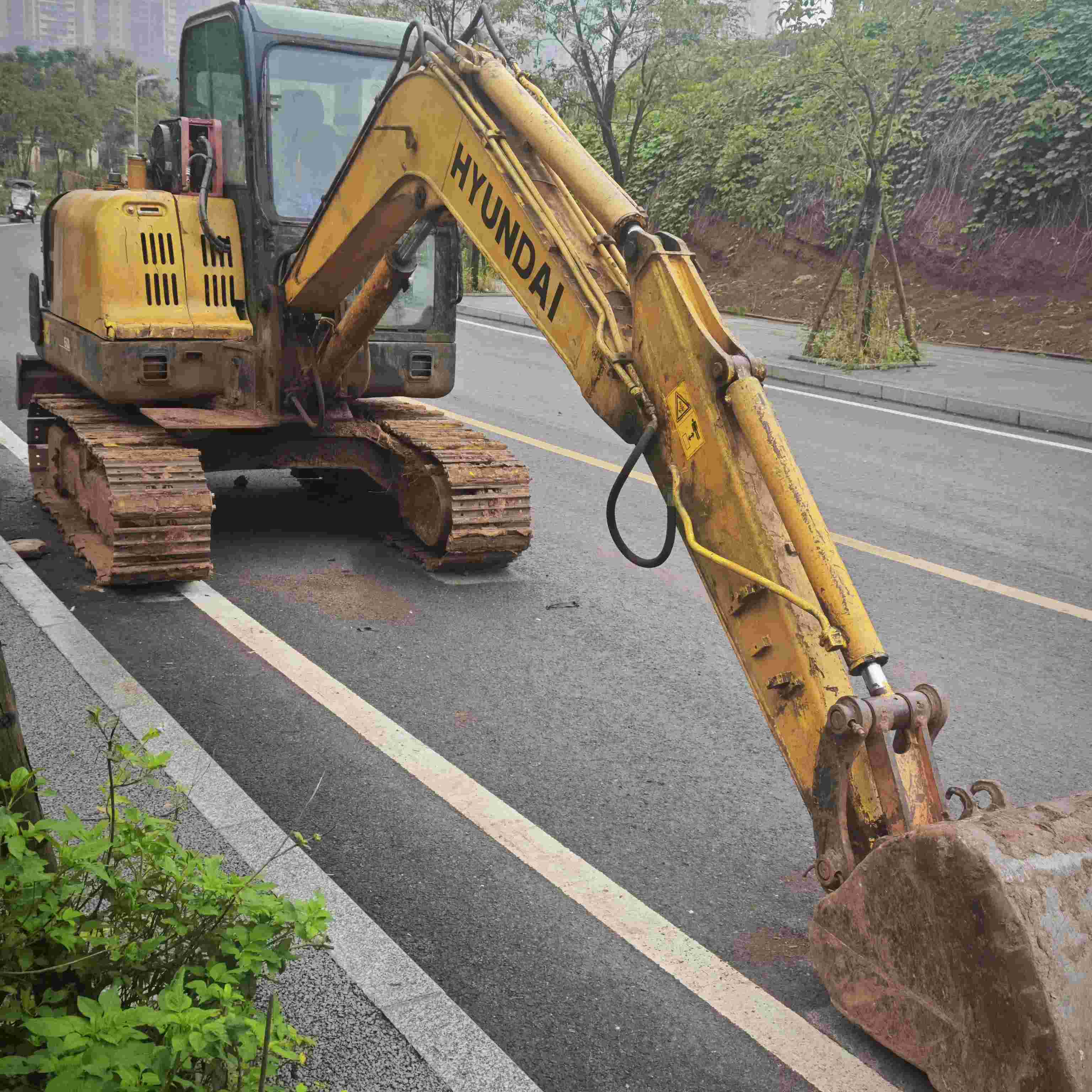

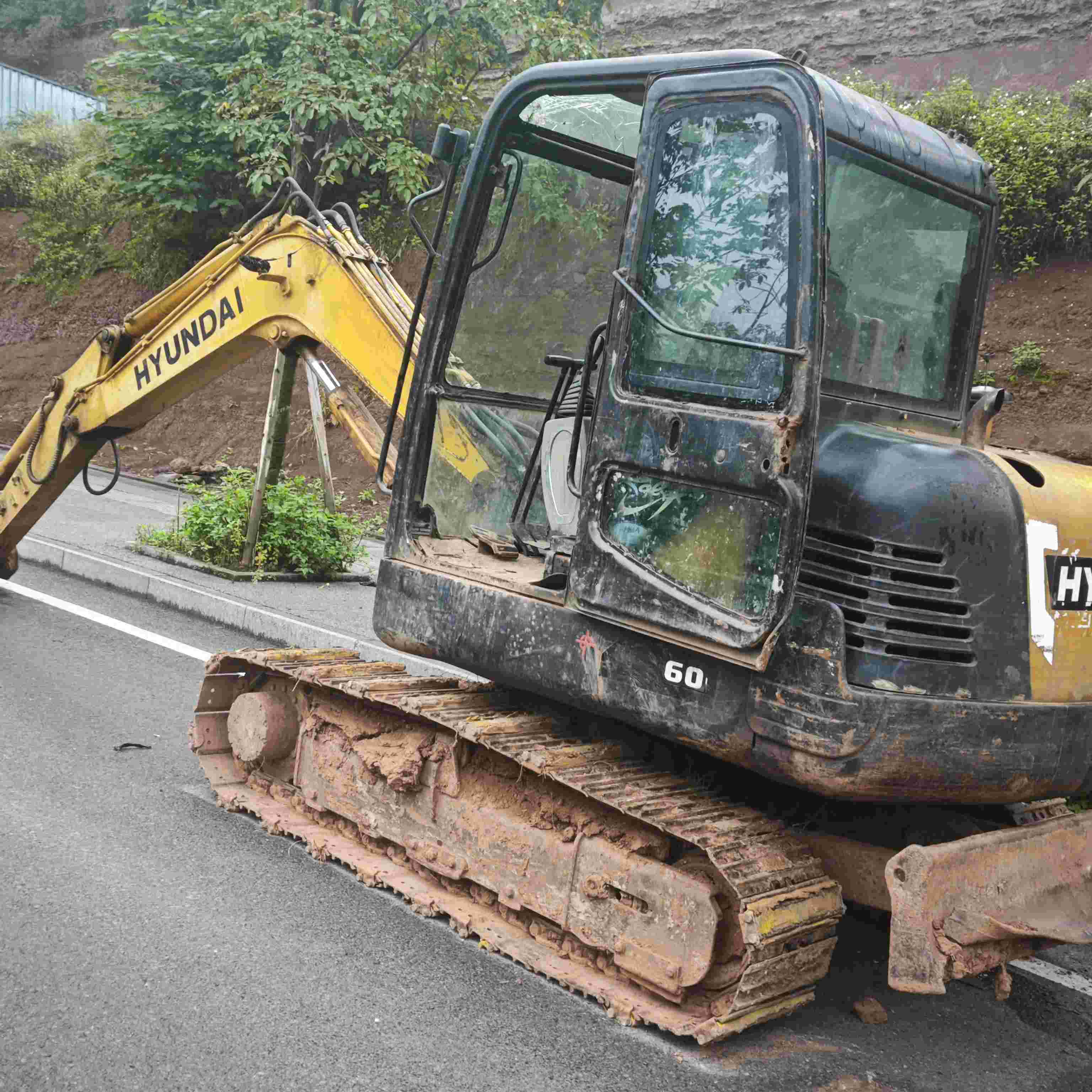

Discover the reliability and performance of the 2020 Hyundai 60-9 Excavator, currently available in Sichuan, China. This machine is equipped with a robust Yanmar engine, ensuring efficient and powerful operation for your construction needs. The hydraulic system by Kawasaki further enhances its operational capabilities, providing smooth and precise control. With components such as the tracks, sprockets, and rollers in excellent condition, rated at 90% new, this excavator is ready to tackle a variety of demanding tasks. Ideal for contractors and industrial operators looking for a dependable and high-performance used machine, the Hyundai 60-9 is a smart choice for your fleet.
- Year: 2020
- Brand: Hyundai
- Model: 60-9
- Engine: Yanmar
- Hydraulic System: Kawasaki

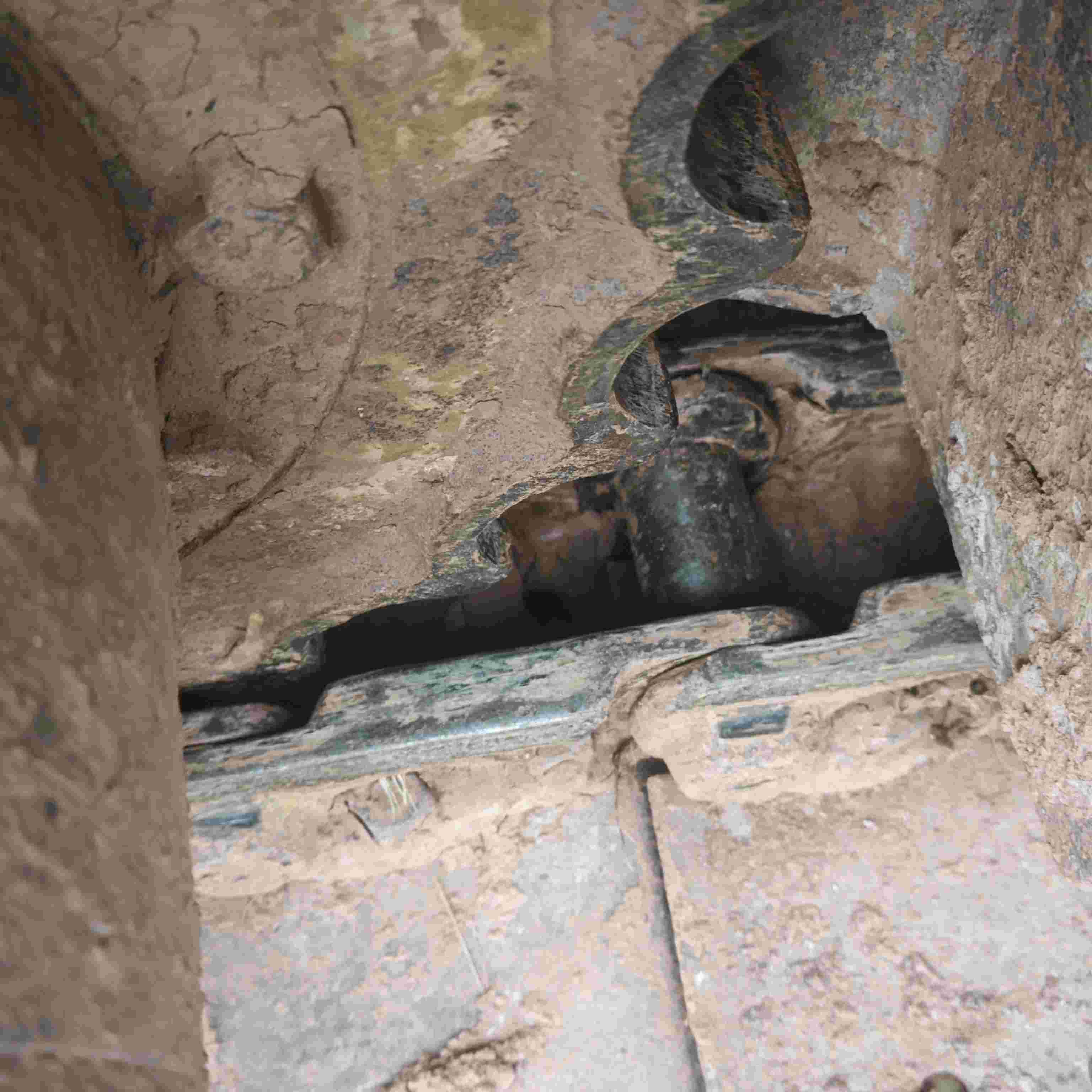

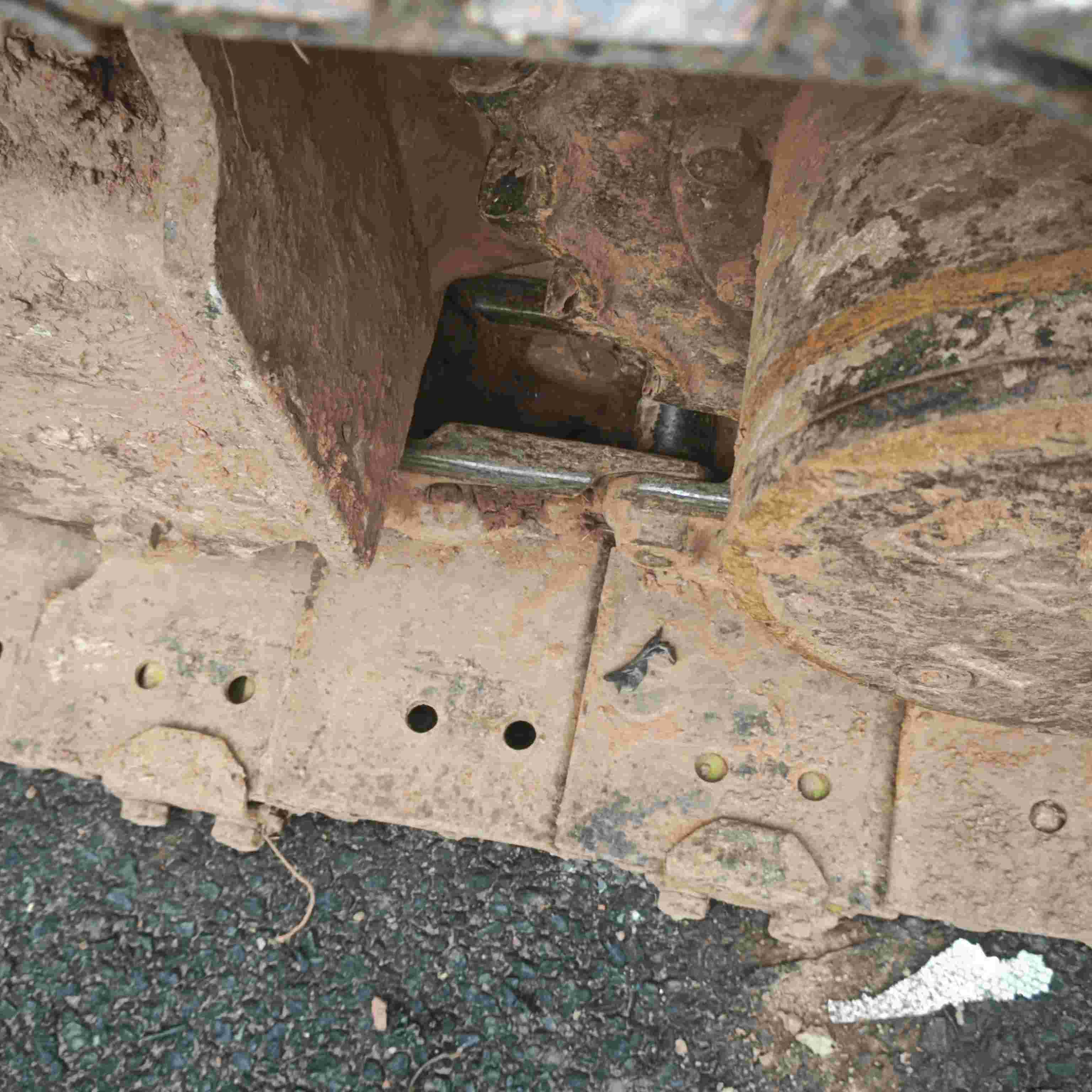

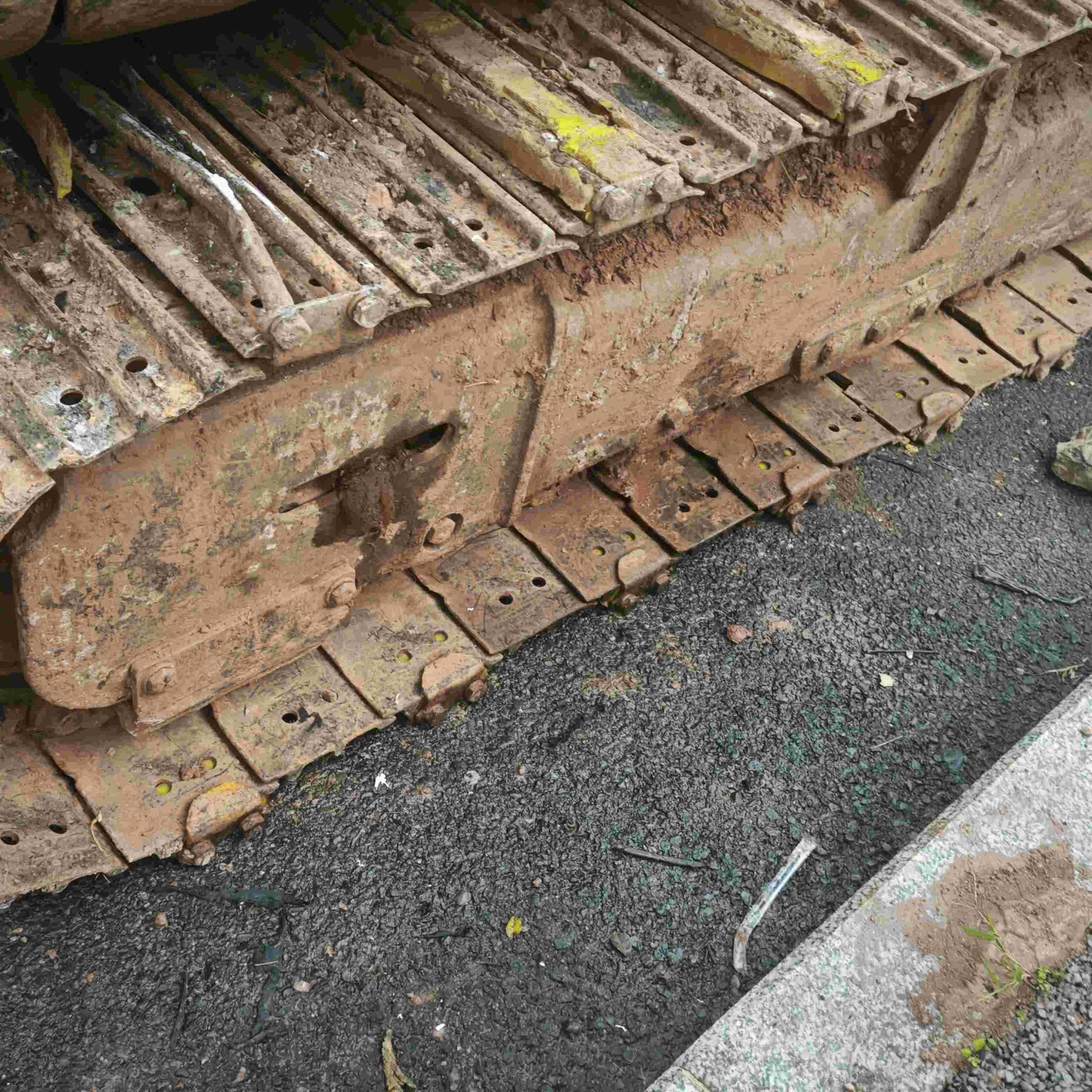

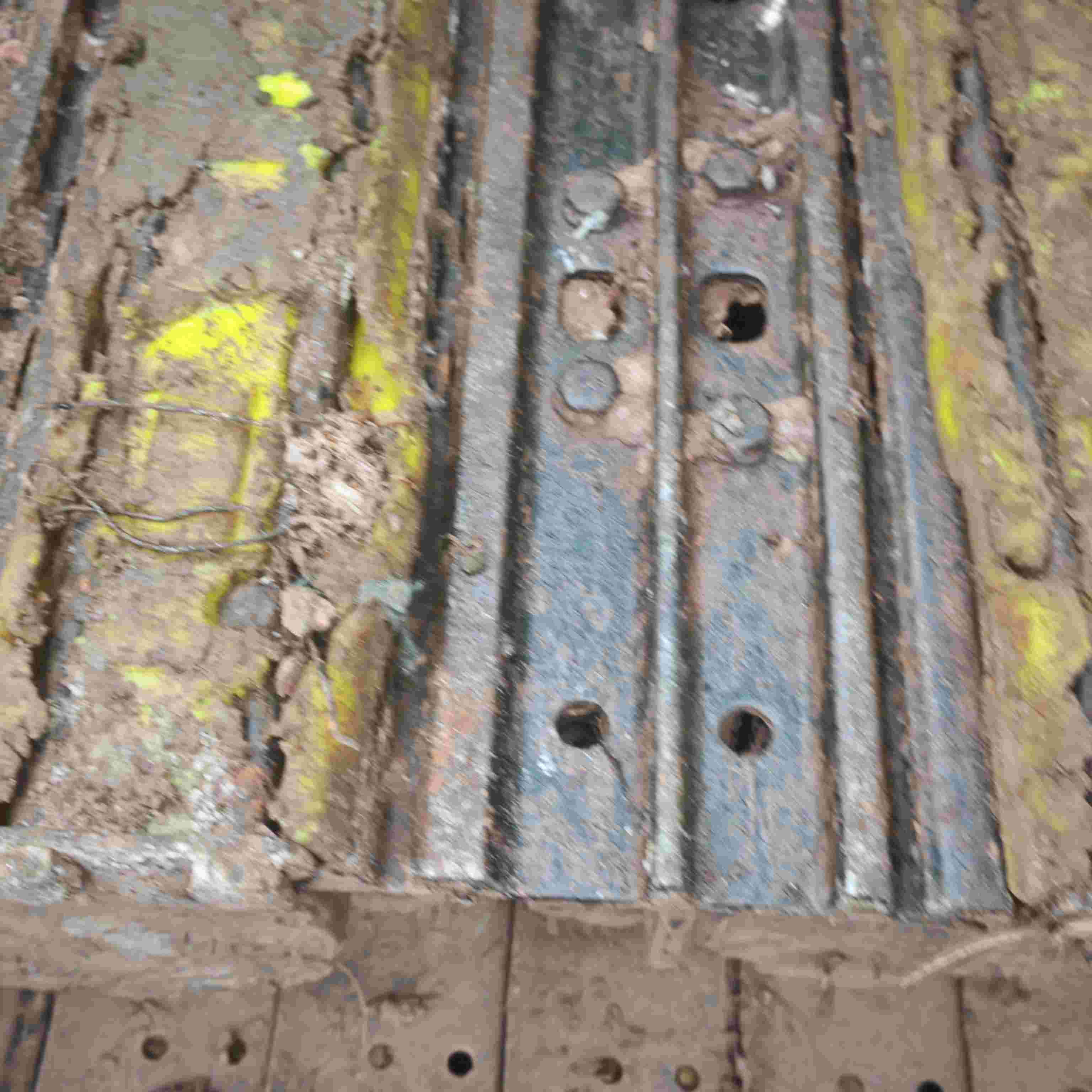

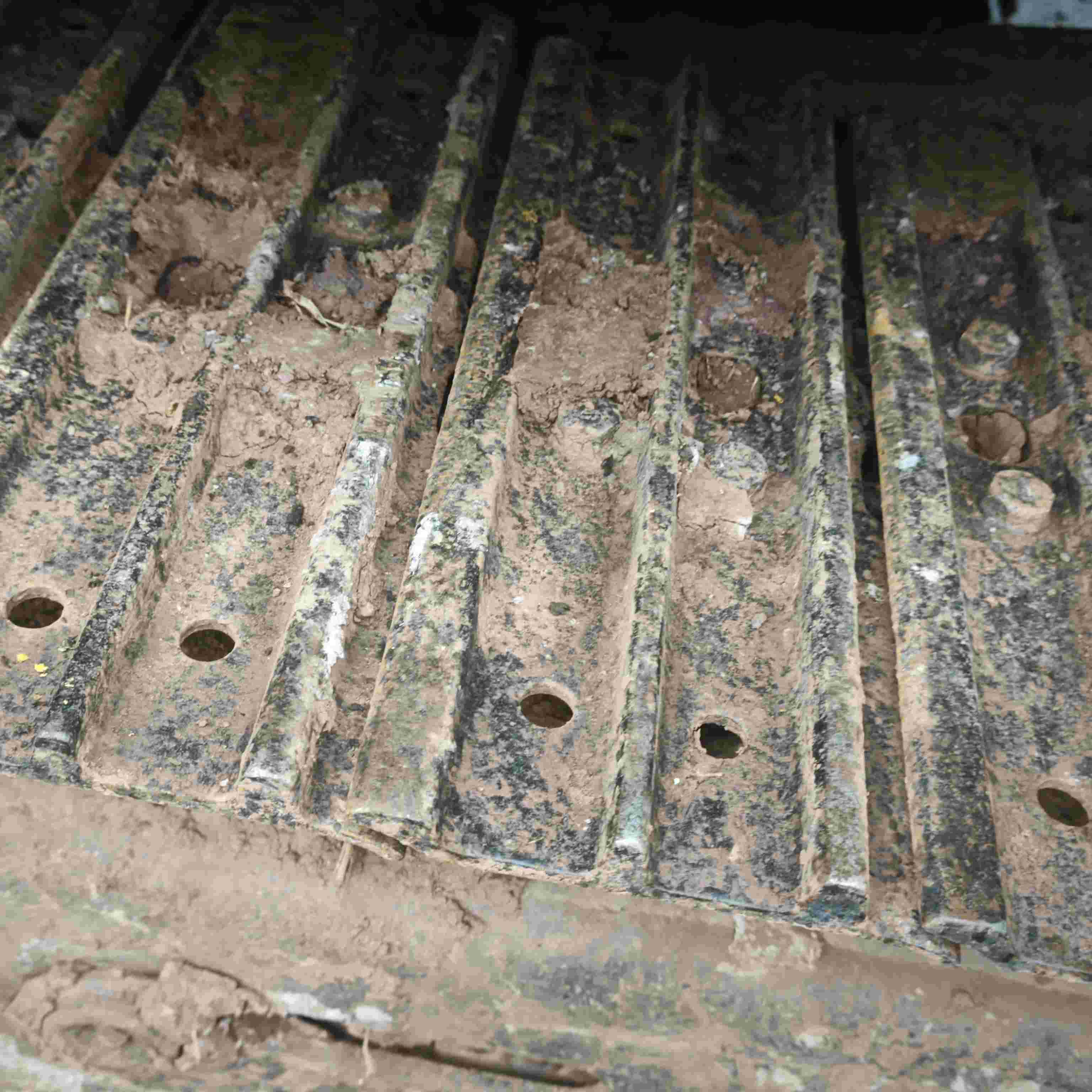

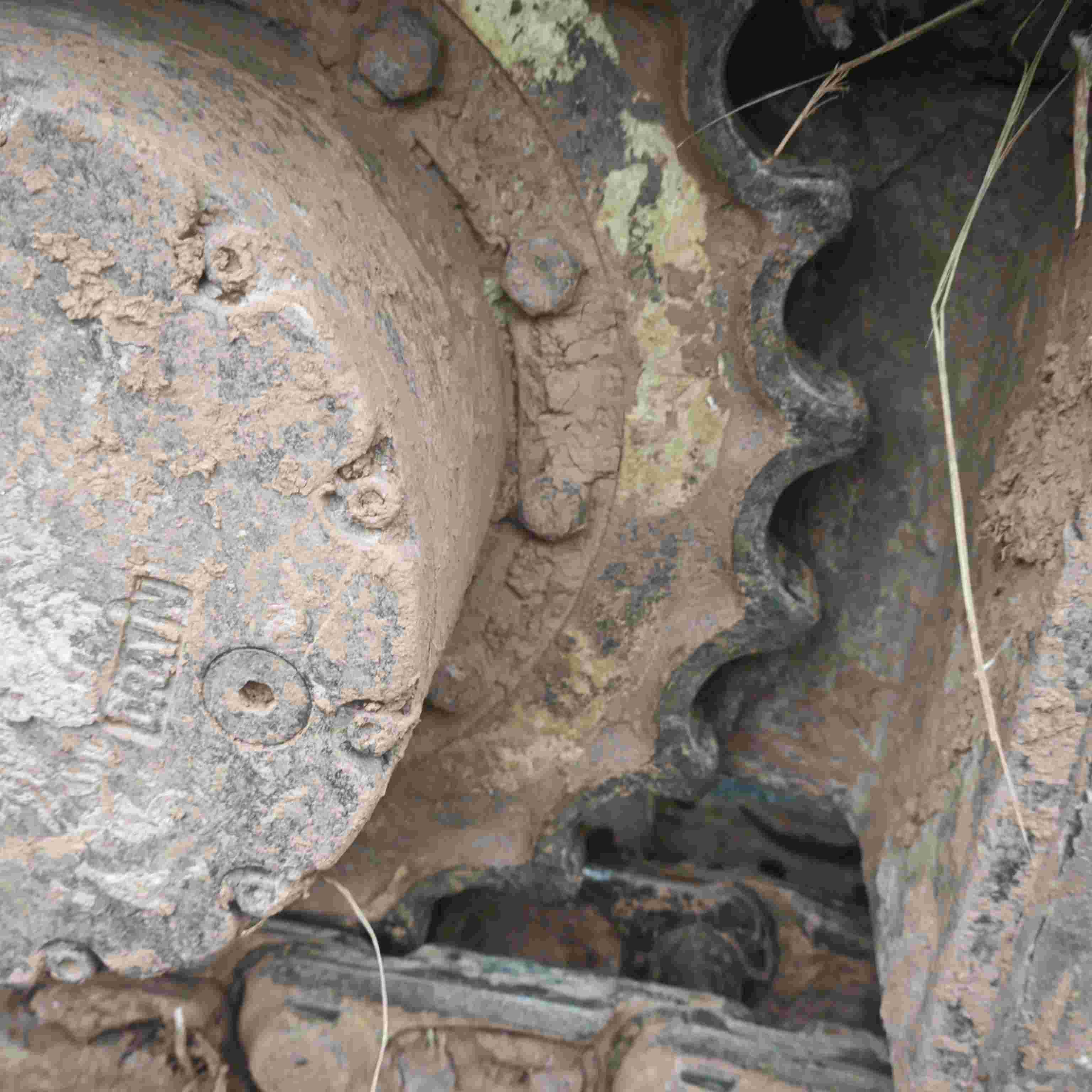

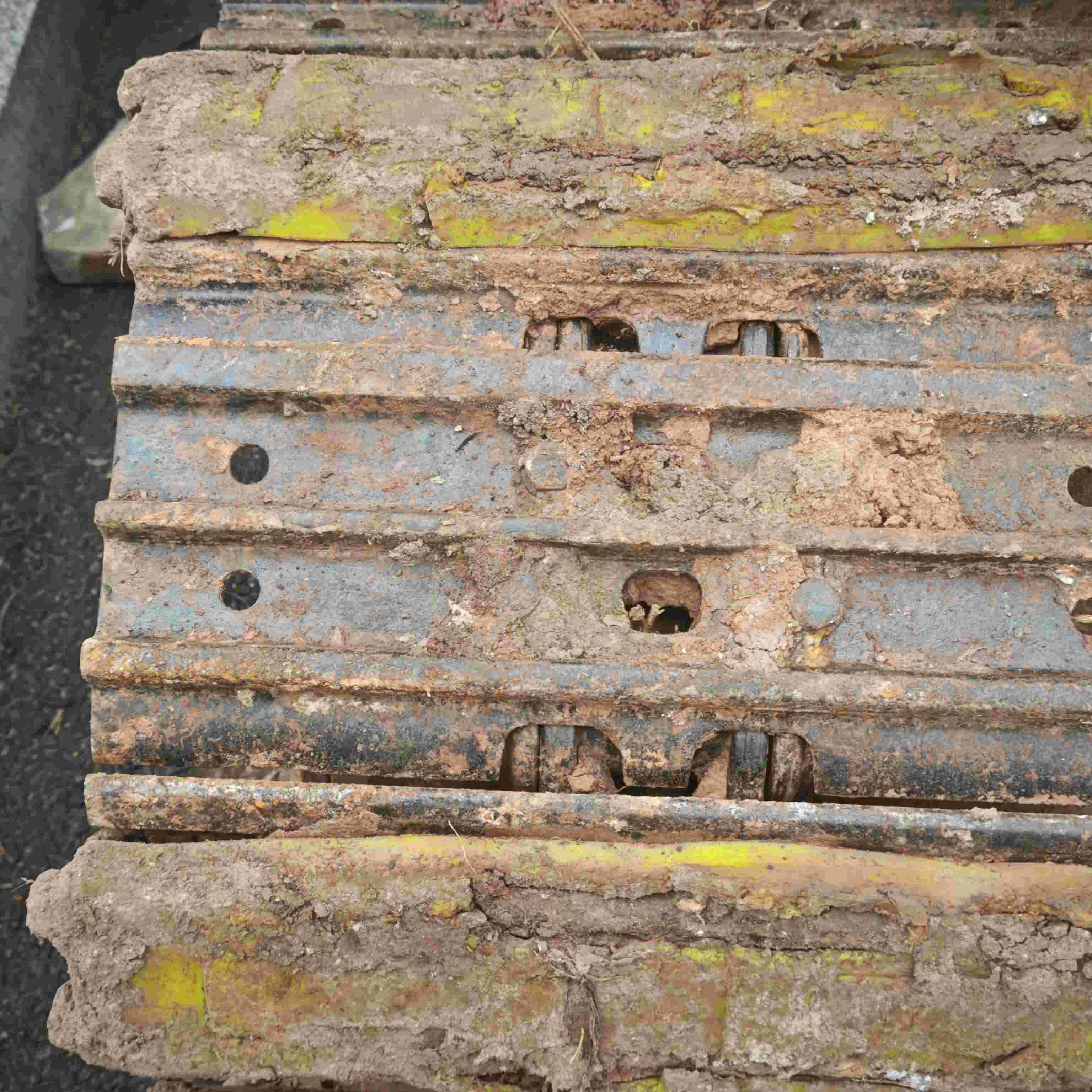

- Component Condition: 90% New (tracks, sprockets, rollers)
- Location: Sichuan, China
| Specifications | Value |
|---|---|
| No. | 1173108 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5660 |
| Bucket capacity (m³) | 0.07-0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Peking |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar Yanma 4TNV94L |
| Rated power (kw/rpm) | 39/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 38.5 |
| Rod digging force (kN) | 29 |
| Travel speed (km/h) | 2.2-4.0 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | 2× variable axial piston pump + gear pump |
| Fuel Tank (L) | 125 |
| Hydraulic Tank (L) | 70 |
| Total transport length (mm) | 5900 |
| Total transport width (mm) | 1920 |
| Total transport height (mm) | 2550 |
| Full cab height (mm) | 2550 |
| Minimum ground clearance (mm) | 380 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1520 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 1920 |
| Track ground length (mm) | 1990 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3820 |
| Maximum excavation height (mm) | 5780 |
| Maximum unloading height (mm) | 4050 |
| Maximum vertical digging depth (mm) | 3200 |
| Dodging plate width × height (mm) | 1920 x 350 |
| Maximum excavation radius of stop surface (mm) | 6010 |
