Product Description

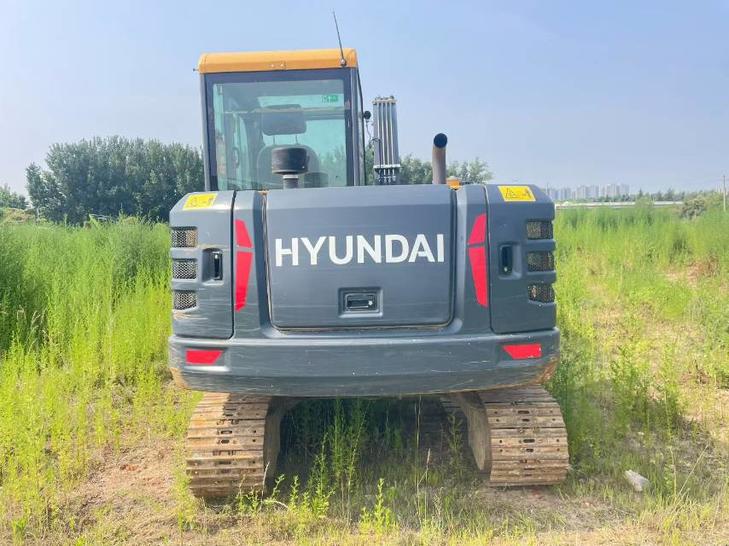

Discover the Hyundai HW60ECO, a nearly new machine from 2024, designed to meet the rigorous demands of construction and excavation. This model, available in Henan, China, is equipped with advanced features that comply with the latest emission standards. The innovative side arm design allows for versatile functionality, making it suitable for tasks typically handled by both 60 and 75 models. Ideal for contractors and construction companies, this machine offers exceptional performance and reliability, ensuring efficient operations on any job site.
- Year: 2024
- Brand: Hyundai
- Model: HW60ECO
- Location: Henan, China
- Condition: Nearly new, end of 2024 production
- Features: Advanced side arm design for versatility
| Specifications | Value |
|---|---|
| No. | 1088752 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5650 |
| Bucket capacity (m³) | 0.18 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 36.2/2,200 |
| Total displacement (L) | 3.054 |
| Cylinder diameter × stroke (mm) | 94*110 |
| Maximum torque (N.m) | 200.8/1400 |
| Number of cylinders (PCS) | 4 |
| Forward speed (Km/h) | 25.7 |
| Rotation speed (rpm) | 11.76 |
| Maximum flow of main pump (l/min) | 144.9+18.4 |
| Fuel Tank (L) | 127 |
| Engine Oil changes (L) | 9.2 |
| Coolant (L) | 10.7 |
| Total transport length (mm) | 6120 |
| Total transport width (mm) | 1925 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 965 |
| Minimum ground clearance (mm) | 255 |
| Onboard width (mm) | 1850 |
| Maximum digging radius (mm) | 6150 |
| Maximum excavation radius (mm) | 5930 |
| Maximum digging depth (mm) | 3465 |
| Maximum excavation height (mm) | 6040 |
| Maximum unloading height (mm) | 4305 |
| Maximum vertical digging depth (mm) | 2820 |
