Product Description

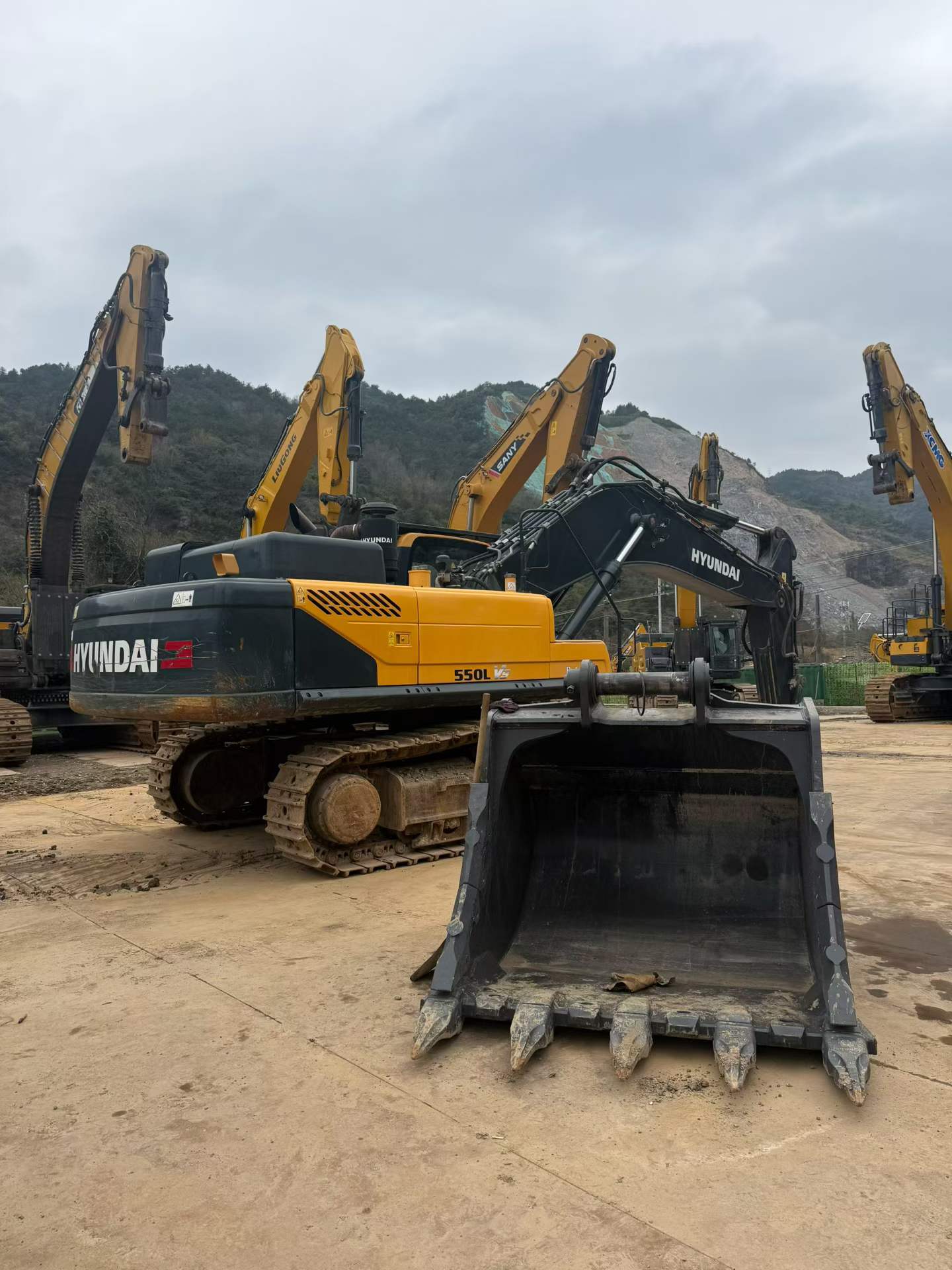

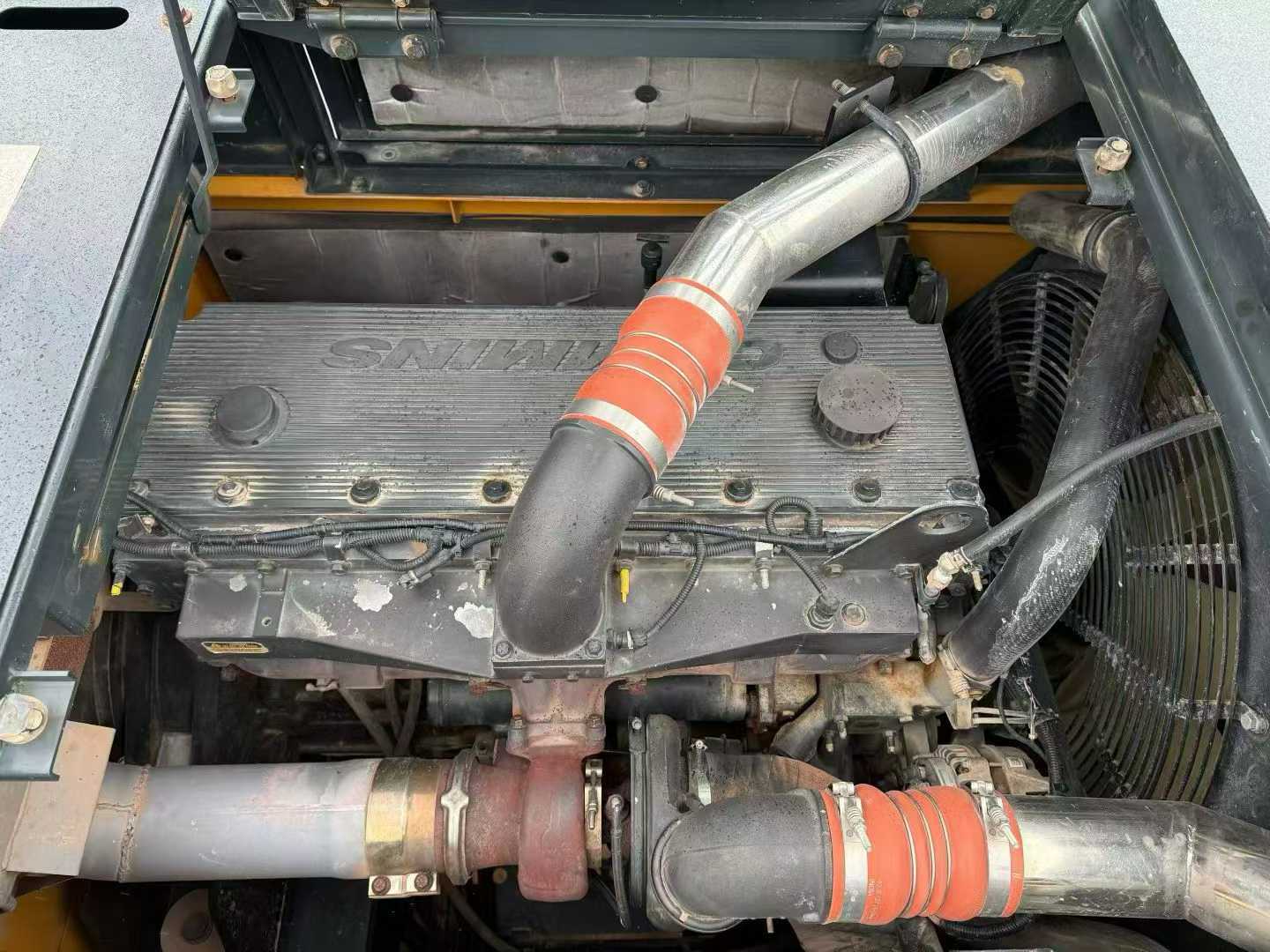

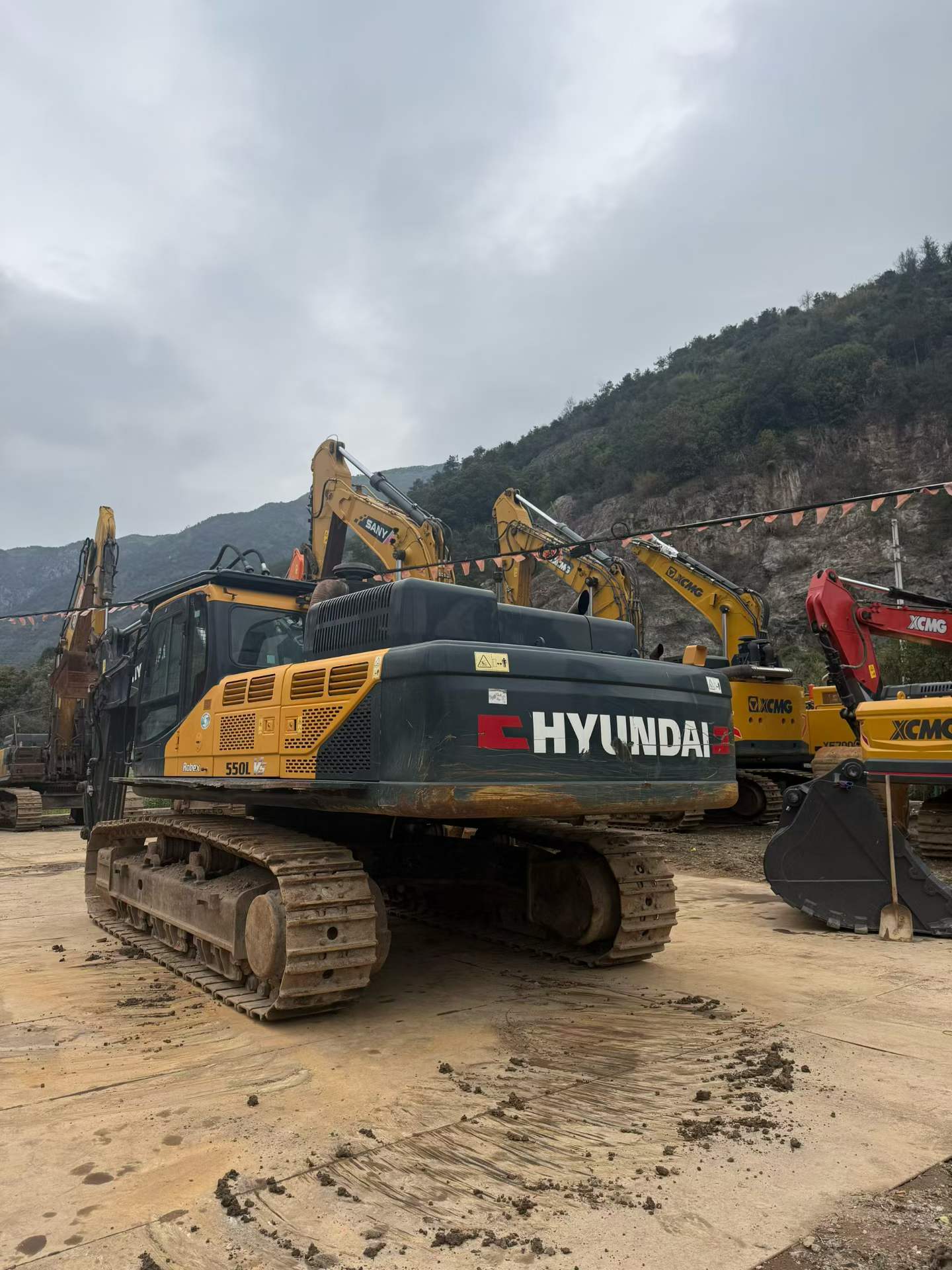

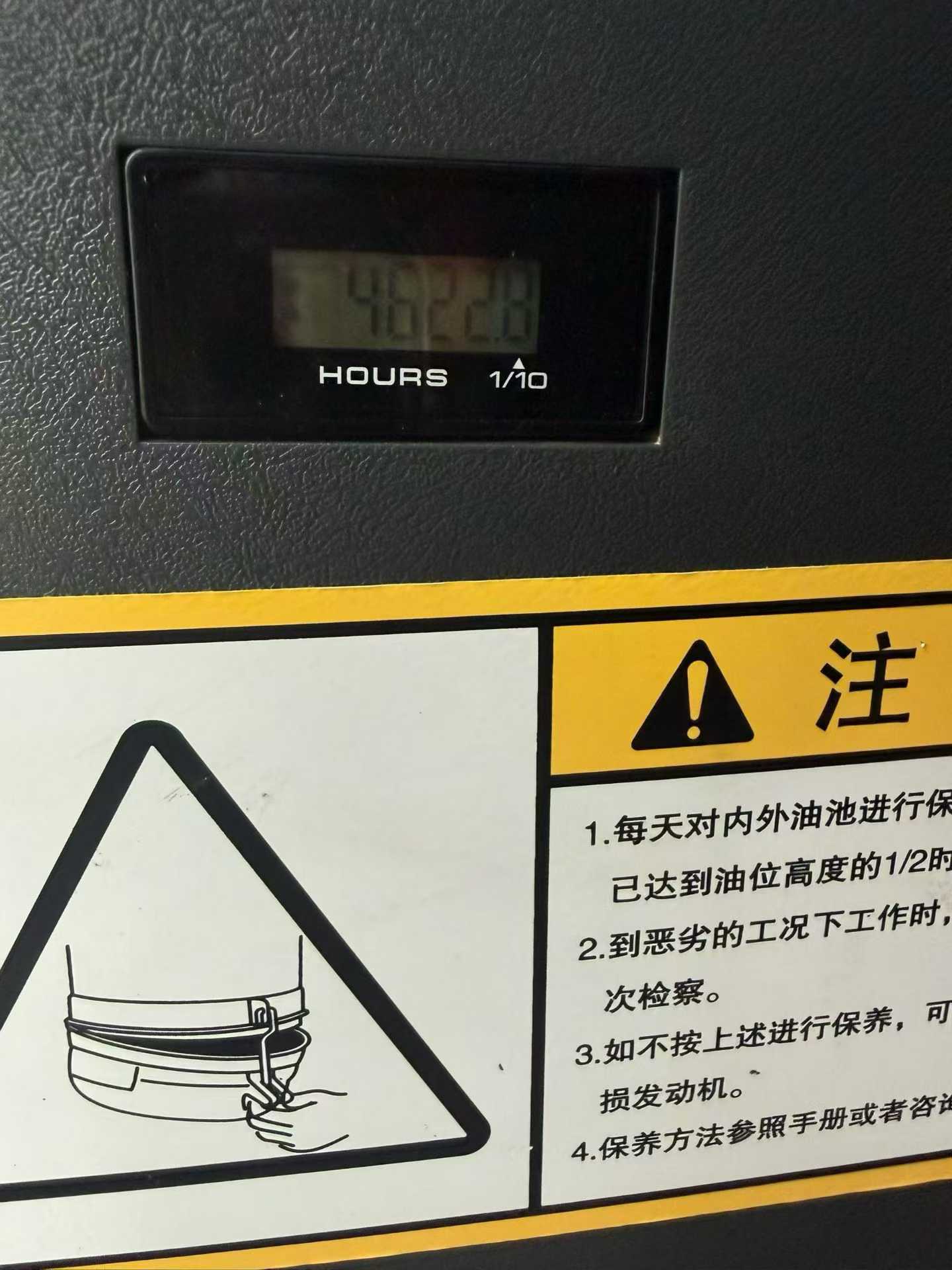

Maximize your ROI with this 2021 Hyundai HX550L excavator—a proven workhorse delivering flagship performance without the new-equipment premium. Powered by a robust Cummins X12 engine generating 280 kW at 2,100 rpm, this 55-ton machine combines exceptional digging force with operational efficiency that directly impacts your bottom line. With minimal operating hours since production, you're acquiring near-new capability at a substantial discount.
- Power & Productivity: 280 kW Cummins engine, 1966 N.m maximum torque, 27.14 kN bucket digging force
- Reach & Versatility: 10,730 mm maximum excavation radius, 6,550 mm digging depth, 3.6 m³ bucket capacity
- Built for Endurance: 52,500 kg working weight, 35% climbing ability, 605L fuel tank for extended operation
- Smart Economics: Joint venture quality with premium Cummins power train—fraction of new purchase cost
- Current Location: Wenzhou, Zhejiang—ready for immediate inspection and deployment
Invest strategically in proven Hyundai engineering. Contact Fair Trade Machinery today for detailed specifications and competitive pricing on this
| Specifications | Value |
|---|---|
| No. | 1022395 |
| Tonnage (tons) | 55 |
| Working weight (kg) | 52500 |
| Bucket capacity (m³) | 3.6 |
| Boom length (mm) | 6550 |
| Rod length (mm) | 2550 |
| power | Fuel oil |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins X12 |
| Rated power (kw/rpm) | 280/2,100 |
| Maximum torque (N.m) | 1966 /1400 |
| Ground specific pressure (Kpa) | 0.91 |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 27.14 |
| Rod digging force (kN) | 24.65 |
| Maximum tractive force (kN) | 42.8 |
| Travel speed (km/h) | 5.2/3.3 |
| Fuel Tank (L) | 605 |
| Hydraulic Tank (L) | 300 |
| Engine Oil changes (L) | 42 |
| Coolant (L) | 37 |
| Hydraulic System (L) | 560 |
| Urea Tank (L) | 70 |
| Total transport length (mm) | 11705 |
| Total transport width (mm) | 3400 |
| Total transport height (mm) | 4145 |
| Full cab height (mm) | 3335 |
| Minimum ground clearance (mm) | 590 |
| Back end turning radius (mm) | 3745 |
| Total track length (mm) | 5500 |
| Track gauge (mm) | 2740 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 53 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 10770 |
| Maximum unloading height (mm) | 7120 |
| Maximum vertical digging depth (mm) | 5500 |
| Maximum excavation radius of stop surface (mm) | 10730 |
| Maximum effective digging depth (mm) | 6385 |
