Product Description

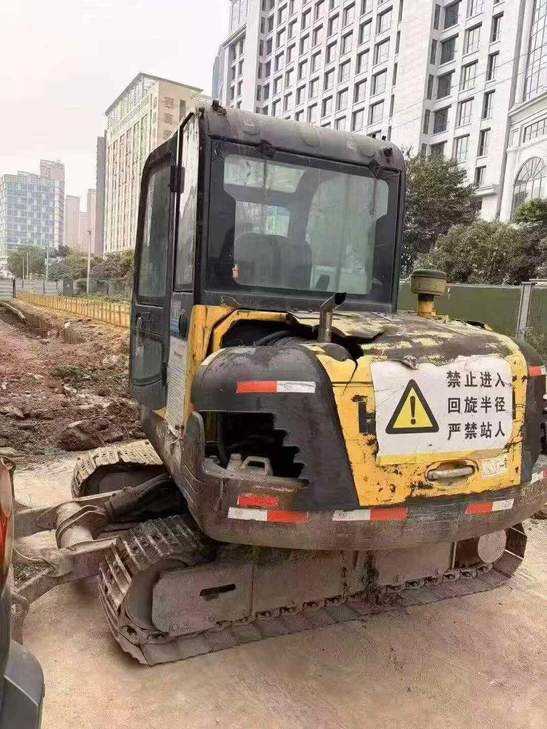

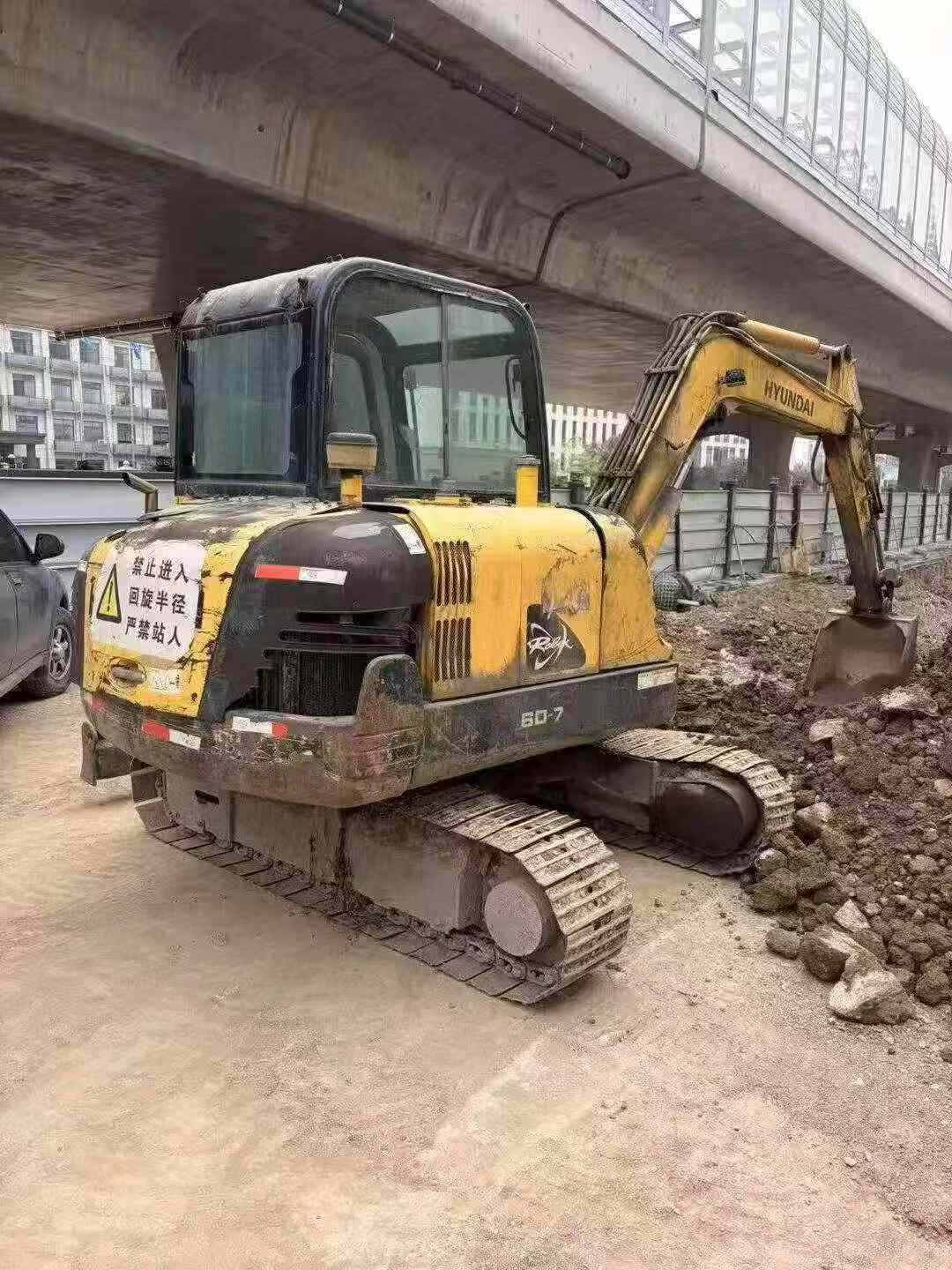

This 2014 Hyundai HX60 mini excavator is available from Sichuan, China at a competitive price point of approximately $2,800 USD. The HX60 is a compact 6-ton class machine designed for urban construction, landscaping, and confined-space applications where maneuverability is essential.
Key features of the Hyundai HX60 include:
- Compact dimensions for navigation in restricted work areas
- Reliable hydraulic system for smooth operation
- Fuel-efficient engine suitable for extended job sites
- Versatile bucket configuration options
- Stable undercarriage for safe operation on varied terrain
With a decade of service, this unit represents an economical entry point for contractors seeking dependable mini excavator capacity. Buyers should conduct thorough inspection to assess current mechanical condition, hour meter reading, and maintenance history before finalizing purchase. Suitable for light to medium-duty excavation, trenching, and material handling tasks.
| Specifications | Value |
|---|---|
| No. | 1162849 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5720 |
| Bucket capacity (m³) | 0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L-ZXSHYB(XSNSRE) |
| Rated power (kw/rpm) | 36.2/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 94 x 110 |
| Maximum torque (N.m) | 201.1/1400 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.053 |
| Working form | 4 stroke, direct injection engine |
| Rotation speed (rpm) | 10.88 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 46.7 |
| Rod digging force (kN) | 27.5 |
| Travel speed (km/h) | 4.6 / 2.4 |
| Rotary hydraulic motor type | Axial piston motor with automatic braking |
| Type of walking hydraulic motor | Two-speed axial plunger motor with brake valve and parking brake |
| Maximum flow of main pump (l/min) | 138 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Variable piston pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-80 * 50 * 660 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-85 * 55 * 850 |
| Boom cylinders - Number × diameter × stroke (mm) | 1-105 * 60 * 715 |
| Fuel Tank (L) | 118.5 |
| Hydraulic Tank (L) | 70 |
| Engine Oil changes (L) | 11.6 |
| Coolant (L) | 10 |
| Hydraulic System (L) | 120 |
| Total transport length (mm) | 5900 |
| Total transport width (mm) | 1920 |
| Total transport height (mm) | 2550 |
| Full cab height (mm) | 1860 |
| Minimum turning radius of front working device (mm) | 2350 |
| Back end turning radius (mm) | 1650 |
| Track ground length (mm) | 1990 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 40 |
| Maximum digging radius (mm) | 6127 |
| Maximum digging depth (mm) | 3760 |
| Maximum excavation height (mm) | 5753 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 2915 |
| Maximum excavation radius of stop surface (mm) | 5990 |
