2018 Hyundai HX60

1/7

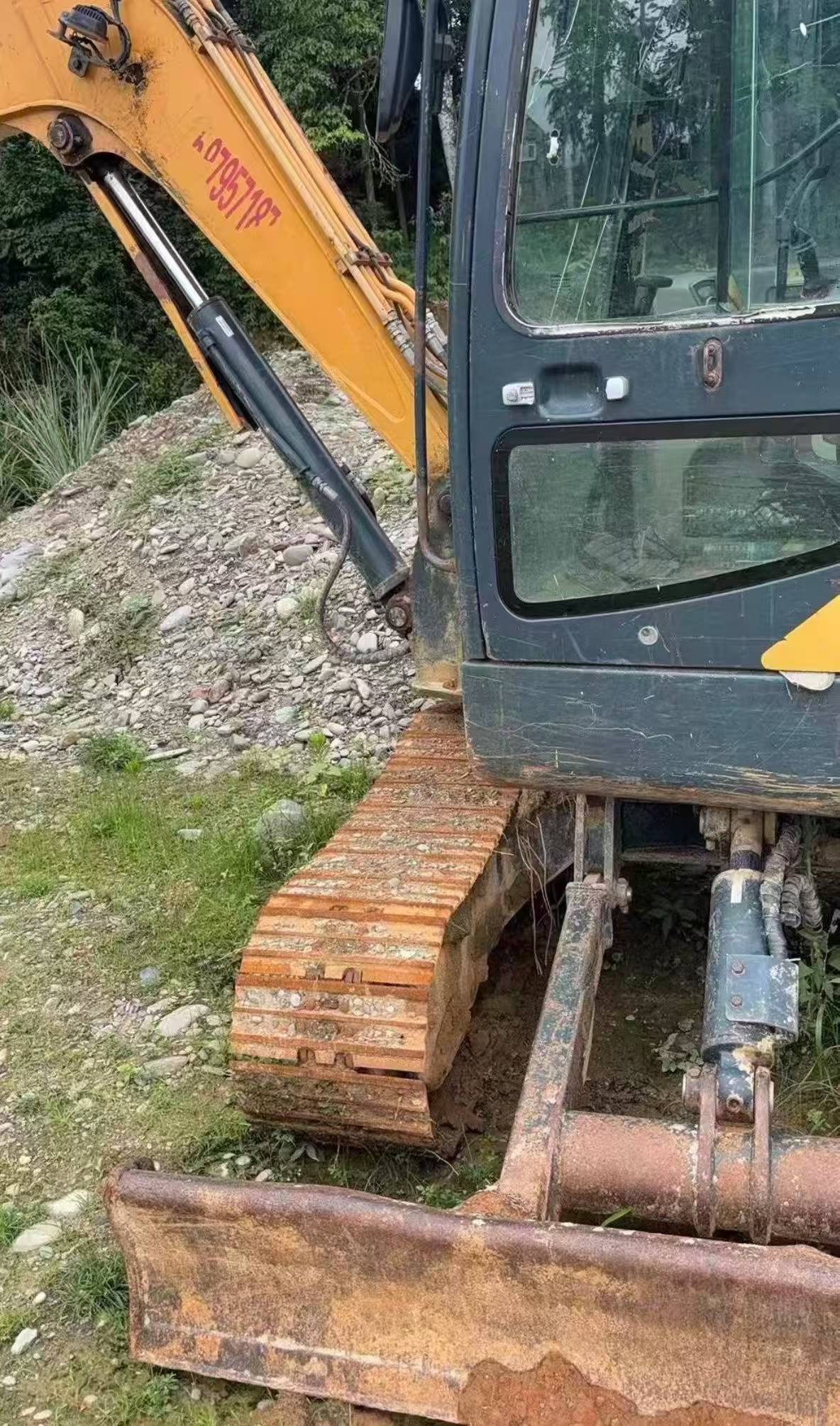

Buy Hyundai HX60 Used Excavator / 1
Buy Hyundai HX60 Used Excavator / 2
Buy Hyundai HX60 Used Excavator / 3

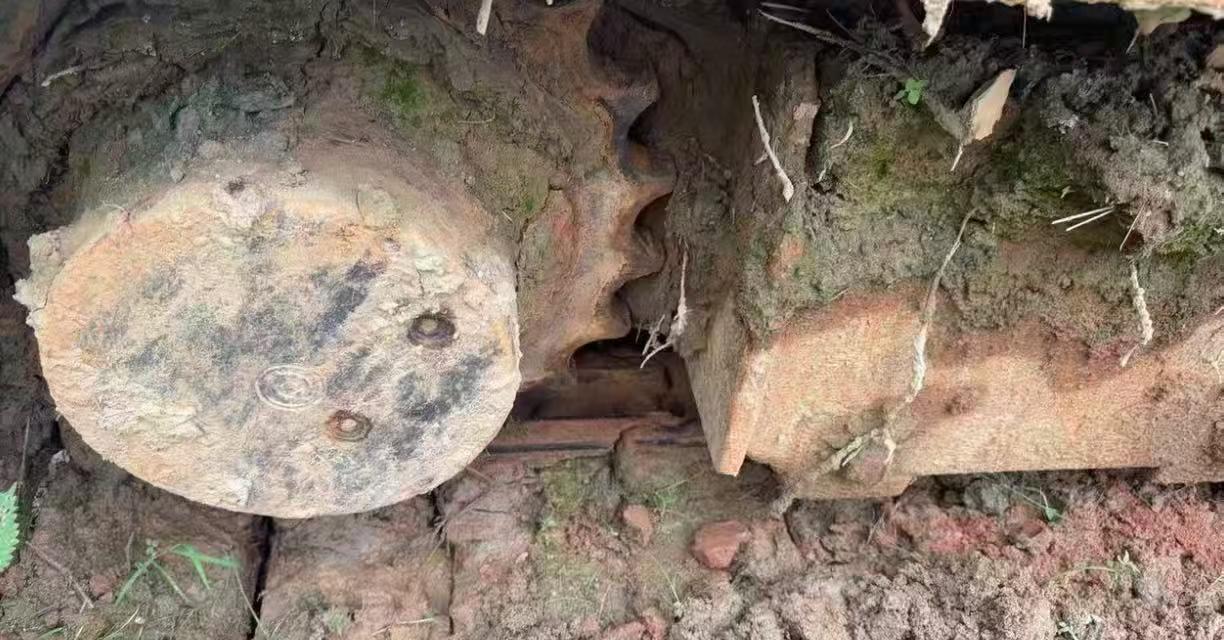

Buy Hyundai HX60 Used Excavator / 4
Buy Hyundai HX60 Used Excavator / 5
Buy Hyundai HX60 Used Excavator / 6
Buy Hyundai HX60 Used Excavator / 7

Product Description

This 2018 Hyundai HX60 excavator is available from Jiangxi, China. With approximately 40,000 hours of operation, this machine represents a well-utilized unit from Hyundai's reliable compact excavator lineup. The HX60 is designed for versatility in construction, landscaping, and utility applications where maneuverability and performance are essential.

  • Year of Manufacture: 2018
  • Operating Hours: Approximately 40,000+
  • Current Location: Jiangxi Province, China
  • Machine Type: Compact Hydraulic Excavator

This unit has accumulated significant operational time, which should be factored into purchase considerations and maintenance planning. Buyers are encouraged to conduct thorough inspections and request detailed service records to assess the machine's current condition. The HX60 offers a practical solution for operations requiring proven equipment at a competitive price point.

SpecificationsValue
No.1157103
Tonnage (tons)6
Working weight (kg)5720
Bucket capacity (m³)0.21
Boom length (mm)3000
Rod length (mm)1600
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeYanmar 4TNV94L-ZXSHYB(XSNSRE)
Rated power (kw/rpm)36.2/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)94 x 110
Maximum torque (N.m)201.1/1400
Number of cylinders (PCS)4
Displacement (L)3.053
Working form4 stroke, direct injection engine
Rotation speed (rpm)10.88
Climbing ability (%)70
Bucket digging force (kN)46.7
Rod digging force (kN)27.5
Travel speed (km/h)4.6 / 2.4
Rotary hydraulic motor typeAxial piston motor with automatic braking
Type of walking hydraulic motorTwo-speed axial plunger motor with brake valve and parking brake
Maximum flow of main pump (l/min)138
Hydraulic crushing pipeline is standardis
Main pump typeVariable piston pump
Bucket cylinders - Number × diameter × stroke (mm)1-80 * 50 * 660
Bucket rod cylinders - Number × diameter × stroke (mm)1-85 * 55 * 850
Boom cylinders - Number × diameter × stroke (mm)1-105 * 60 * 715
Fuel Tank (L)118.5
Hydraulic Tank (L)70
Engine Oil changes (L)11.6
Coolant (L)10
Hydraulic System (L)120
Total transport length (mm)5900
Total transport width (mm)1920
Total transport height (mm)2550
Full cab height (mm)1860
Minimum turning radius of front working device (mm)2350
Back end turning radius (mm)1650
Track ground length (mm)1990
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)5
Number of track plates (single side) (PCS)40
Maximum digging radius (mm)6127
Maximum digging depth (mm)3760
Maximum excavation height (mm)5753
Maximum unloading height (mm)4080
Maximum vertical digging depth (mm)2915
Maximum excavation radius of stop surface (mm)5990
