2018 Hyundai HX60

1/6
Buy Hyundai HX60 Used Excavator / 1
Buy Hyundai HX60 Used Excavator / 2
Buy Hyundai HX60 Used Excavator / 3
Buy Hyundai HX60 Used Excavator / 4
Buy Hyundai HX60 Used Excavator / 5
Buy Hyundai HX60 Used Excavator / 6

Product Description

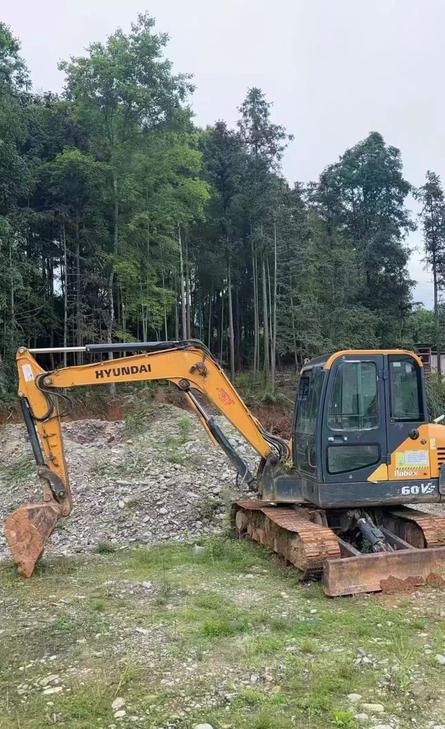

Available from Jiangxi, China: a 2018 Hyundai HX60 compact excavator, a 6-tonne-class machine built for utility trenching, municipal works, drainage and light site preparation. The HX series has strong parts availability across Asia, which keeps consumables and common wear components easy to source for contractors running mixed fleets.

  • Year: 2018 | Brand: Hyundai | Model: HX60
  • Class: approximately 6 t operating weight
  • Location: Jiangxi, China — inspection and loading can be arranged
  • Typical duty: trenching, utilities, drainage, landscaping
  • Pricing: listed in the RMB 40,000+ band, positioned for a quick sale

Hour meter readings, undercarriage wear and hydraulic performance should be confirmed on inspection; the seller welcomes serious buyers to arrange a viewing. A practical fit for dealers, rental fleets or contractors looking for a working compact unit at an entry-level capital cost.

SpecificationsValue
No.1157699
Tonnage (tons)6
Working weight (kg)5720
Bucket capacity (m³)0.21
Boom length (mm)3000
Rod length (mm)1600
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeYanmar 4TNV94L-ZXSHYB(XSNSRE)
Rated power (kw/rpm)36.2/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)94 x 110
Maximum torque (N.m)201.1/1400
Number of cylinders (PCS)4
Displacement (L)3.053
Working form4 stroke, direct injection engine
Rotation speed (rpm)10.88
Climbing ability (%)70
Bucket digging force (kN)46.7
Rod digging force (kN)27.5
Travel speed (km/h)4.6 / 2.4
Rotary hydraulic motor typeAxial piston motor with automatic braking
Type of walking hydraulic motorTwo-speed axial plunger motor with brake valve and parking brake
Maximum flow of main pump (l/min)138
Hydraulic crushing pipeline is standardis
Main pump typeVariable piston pump
Bucket cylinders - Number × diameter × stroke (mm)1-80 * 50 * 660
Bucket rod cylinders - Number × diameter × stroke (mm)1-85 * 55 * 850
Boom cylinders - Number × diameter × stroke (mm)1-105 * 60 * 715
Fuel Tank (L)118.5
Hydraulic Tank (L)70
Engine Oil changes (L)11.6
Coolant (L)10
Hydraulic System (L)120
Total transport length (mm)5900
Total transport width (mm)1920
Total transport height (mm)2550
Full cab height (mm)1860
Minimum turning radius of front working device (mm)2350
Back end turning radius (mm)1650
Track ground length (mm)1990
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)5
Number of track plates (single side) (PCS)40
Maximum digging radius (mm)6127
Maximum digging depth (mm)3760
Maximum excavation height (mm)5753
Maximum unloading height (mm)4080
Maximum vertical digging depth (mm)2915
Maximum excavation radius of stop surface (mm)5990
see more

Overview

No.1157699

Brand Name:

Hyundai

Model Number:

HX60

Year:

2018

Location:

Jiangxi China

Pub Date:
